Description
Product Overview
The ProSoft PLX31-EIP-SIE is a compact industrial standalone protocol gateway from the reliable PLX3x series. It serves as a professional high-speed converter between EtherNet/IP and Siemens Industrial Ethernet protocols. This DIN-rail mounted device solves common cross-brand communication barriers in hybrid automation systems. It enables seamless, stable data exchange between Rockwell EtherNet/IP controllers and Siemens S7 series PLCs and field equipment.
Unlike complex multi-functional gateways with redundant configurations, the PLX31-EIP-SIE focuses on dedicated EtherNet/IP to Siemens Industrial Ethernet conversion. It delivers targeted, high-efficiency protocol translation for industrial renovation projects. It features a compact single-body industrial design and wide-temperature operating capability. It supports simple deployment and long-term unattended operation. Every unit undergoes strict factory protocol calibration, full-load aging testing and EMC anti-interference verification. It fully adapts to global industrial e-commerce sales, batch engineering procurement and stable long-term field operation in standard and harsh factory environments.
Core Product Features & Competitive Advantages
Most universal industrial gateways support multiple generic protocols but lack targeted optimization for Siemens Industrial Ethernet docking. They often suffer from unstable connection, data packet loss and complex configuration during long-term operation. In contrast, the ProSoft PLX31-EIP-SIE adopts dedicated protocol stack optimization for Siemens industrial networks. It balances high transmission stability, simple operation and strong environmental adaptability. It greatly improves the integration efficiency of Rockwell and Siemens hybrid automation systems.
- Dedicated EtherNet/IP to Siemens Industrial Ethernet Conversion: This gateway is professionally optimized for Siemens S7 protocol communication. It perfectly connects Rockwell EtherNet/IP control systems with Siemens S7 series PLCs and industrial devices. It requires no additional program development or auxiliary hardware, realizing plug-and-play cross-brand interconnection.
- High-Stability Real-Time Data Transmission: It supports high-efficiency bidirectional data interaction. It maintains low-latency and low packet-loss transmission in continuous industrial working conditions. It fully meets real-time control and data monitoring requirements of automated production lines.
- Independent Local Protocol Processing: All protocol parsing, data sorting and signal conversion are completed locally by the gateway. It does not occupy PLC CPU or network bandwidth resources. It ensures the independent and stable operation of the main control system.
- Ultra-Wide Industrial Temperature Adaptability: It supports full-performance stable operation from -25°C to +70°C. It adapts to severe temperature fluctuations in factory workshops, equipment rooms and on-site industrial environments. It works stably in both low-temperature winter and high-temperature summer conditions.
- Compact DIN-Rail Installation Design: It adopts a lightweight and miniaturized industrial structure. It supports standard DIN-rail mounting. It occupies minimal cabinet space and simplifies on-site wiring and deployment. It is suitable for various compact industrial control cabinet layouts.
- Intuitive LED Status Diagnosis: Equipped with multiple LED indicator lights for power, operation, network connection and fault alarm. On-site engineers can quickly judge device operating status and network faults. It greatly improves daily maintenance efficiency.
- Industrial-Grade Mechanical Resistance: It passes strict industrial vibration and shock resistance tests. It resists equipment vibration and impact caused by on-site mechanical operation. It ensures long-term structural and operational stability.
- Simple Configuration & Low Maintenance Cost: It supports visual graphical configuration tools. It simplifies parameter setting and network debugging processes. The device features stable operation and low failure rate, effectively reducing later-stage operation and maintenance costs.
- 7×24-Hour Uninterrupted Full-Load Operation: Optimized industrial circuit design and standardized factory aging testing ensure continuous full-load operation. It maintains ultra-low failure rate in long-term industrial production scenarios.
PROSOFT PLX31-EIP-SIE
Detailed Technical Specifications (Key Highlight Parameters)
The ProSoft PLX31-EIP-SIE strictly complies with EtherNet/IP and Siemens Industrial Ethernet international protocol standards. It meets IEC industrial environmental and mechanical test specifications. All technical indicators pass authoritative factory testing and field verification. Its core advantages lie in dedicated protocol adaptation, high stability transmission and industrial extreme environment resistance. The complete classified parameters are listed below for engineering selection, scheme design and standardized batch procurement.
3.1 Basic Product Identification & System Matching
- Official Full Model: PLX31-EIP-SIE
- Manufacturer: ProSoft Technology
- Product Series: PLX31 Industrial Dedicated Protocol Gateway Series
- Product Type: EtherNet/IP to Siemens Industrial Ethernet Dedicated Communication Gateway
- Core Functions: Cross-protocol data conversion between EtherNet/IP and Siemens Industrial Ethernet, real-time bidirectional data transmission, network status monitoring and intelligent fault diagnosis
- Compatible Systems: Rockwell EtherNet/IP control systems, Siemens S7 series PLCs and supporting industrial Ethernet field equipment
- Applicable Scenarios: Rockwell and Siemens hybrid system integration, old factory automation network renovation, production line upgrading and cross-brand industrial data monitoring
- Executive Standards: Standard EtherNet/IP protocol, Siemens Industrial Ethernet specification, IEC 60068 mechanical environment standard, IEC 60950 safety standard, ISO 9001 quality management system
3.2 Core Communication Performance Parameters
The gateway adopts a dedicated industrial protocol processing chip. It achieves targeted adaptation for Siemens industrial Ethernet communication. It delivers stable, low-delay and high-reliability cross-protocol data transmission performance.
- Supported Protocols: Standard EtherNet/IP protocol and Siemens Industrial Ethernet protocol
- Communication Mode: Bidirectional real-time protocol conversion and data transparent transmission
- Ethernet Interface: 1 × 10/100 Mbps adaptive RJ45 industrial Ethernet port
- Transmission Performance: Optimized for industrial real-time control, low latency and ultra-low packet loss rate
- Configuration Method: Visual graphical industrial configuration software, simple parameter debugging
- Fault Mechanism: Automatic network detection, intelligent reconnection and data error correction
- Status Feedback: Multi-indicator synchronous display of power, operation, network and fault status
3.3 Electrical Power Parameters
The device adopts industrial wide-voltage power supply design. It adapts to on-site voltage fluctuation in industrial workshops. It features stable power output and low power consumption for long-term continuous operation.
- Power Supply Range: 10 VDC to 36 VDC industrial wide voltage input, nominal 24 VDC
- Nominal Operating Current: 300 mA @ 24 VDC standard working state
- Maximum Operating Current: 610 mA maximum load current
- Power Protection: Built-in overvoltage, overcurrent, reverse connection and surge anti-interference protection
- Power Performance: Low-power energy-saving design, suitable for 7×24-hour full-load operation
3.4 Structural & Installation Parameters
It adopts miniaturized lightweight industrial structure and standard DIN-rail installation. It features compact size and flexible deployment, which saves cabinet space and simplifies on-site construction.
- Installation Method: Standard industrial DIN-rail mounting
- Product Dimensions: 13.67 cm × 5.05 cm × 11.13 cm compact body size
- Protection Grade: IP20 indoor industrial protection grade
- Optional Enhancement: Conformal coating option for dusty, humid and harsh industrial environments
- Shell Material: High-strength flame-retardant industrial shell, anti-corrosion and anti-aging
3.5 Environmental & Mechanical Resistance Parameters
The gateway passes strict industrial extreme environment and mechanical durability tests. It maintains full and stable performance in complex factory working conditions.
- Operating Temperature Range: -25°C ~ +70°C full-performance stable operation
- Storage Temperature Range: -40°C ~ +80°C high and low temperature resistant storage
- Working Humidity Range: 5% ~ 95% RH non-condensing environment adaptation
- Operational Vibration Resistance: 5 G vibration resistance within 10 Hz–150 Hz frequency range per IEC 60068-2-6
- Operational Shock Resistance: 15 G anti-shock capability (working state) per IEC 60068-2-27
- Non-Operational Shock Resistance: 30 G anti-shock capability (storage and transportation state)
- Environmental Adaptability: Dust-proof, moisture-proof and strong electromagnetic interference resistance
- Continuous Operation: Support 7×24-hour full-load uninterrupted industrial long-term operation
3.6 Certification & Factory Testing Standards
All products are manufactured in accordance with international industrial standards. They complete standardized factory testing and authoritative certification to ensure global unified quality consistency and industrial applicability.
- Industrial Certifications: CE electromagnetic compatibility certification, RoHS environmental protection certification
- Quality Management System: ISO 9001 international quality system standardized production
- Factory Testing Items: Protocol compatibility calibration, network transmission stability test, full-load aging test, extreme temperature cycle test and EMC anti-interference test
- Field Reliability: Verified by massive cross-brand hybrid system integration projects with ultra-low failure rate

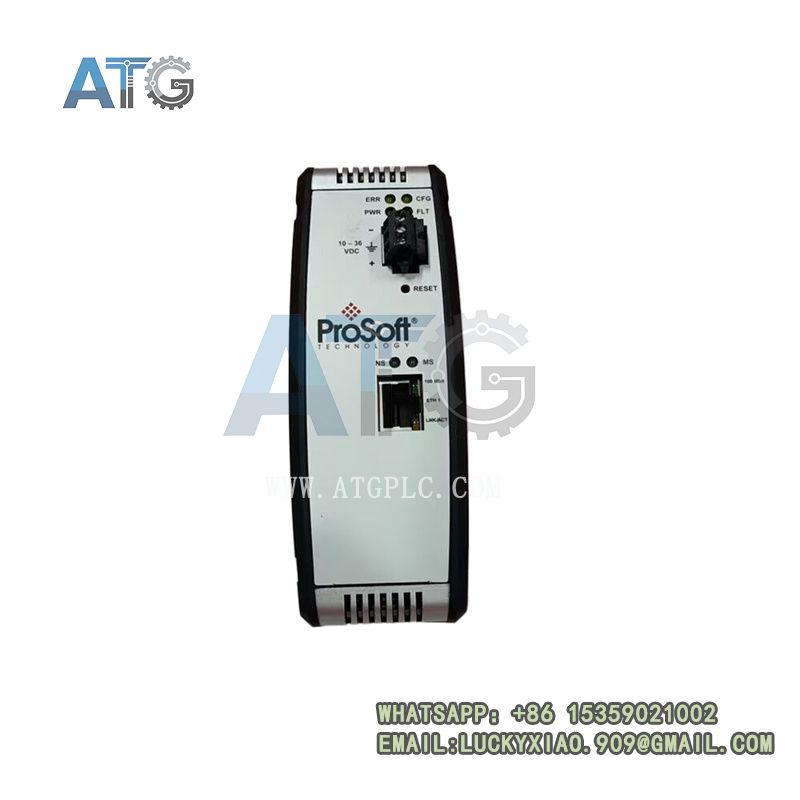

PROSOFT PLX31-EIP-SIE
E-commerce Sales Mode & Complete Procurement Advantages
As a dedicated cross-protocol gateway for Rockwell and Siemens hybrid systems, the ProSoft -EIP-SIE adopts a standardized and transparent global industrial e-commerce operation system. It focuses on cross-brand equipment interconnection and old factory network renovation scenarios. It provides one-stop standardized procurement and full-cycle professional technical services for engineering integrators, factory maintenance teams and industrial intelligent transformation enterprises.
4.1 Standardized Transparent E-commerce Sales System
All products implement unified ProSoft original factory production and testing standards. They adopt professional industrial shockproof and moisture-proof sealed packaging. The whole production, testing and warehousing process is fully traceable. E-commerce platforms openly display complete datasheets, configuration manuals, qualification certificates and factory test reports. Customers can verify product authenticity and protocol matching accuracy online. This transparent mechanism effectively avoids refurbished and incompatible equipment and ensures stable operation of cross-protocol industrial networking projects.
4.2 Diversified Flexible Procurement Modes
Aiming at on-site emergency replacement, small-scale network upgrading and large-scale factory system integration projects, we provide diversified flexible procurement channels to meet different project cycle and quantity demands.
- Single & Small-Batch Spot Emergency Procurement: Support single-unit and small-quantity spot orders. It is suitable for on-site faulty gateway replacement and urgent cross-protocol network recovery. Sufficient global spot inventory ensures fast delivery and avoids production shutdown losses caused by network communication failure.
- Large Engineering Batch Wholesale: Provide hierarchical preferential pricing and long-term framework cooperation services for large-scale factory intelligent transformation, cross-brand system overall integration and batch equipment supporting projects. It effectively reduces overall project procurement costs.
- Customized Supporting Procurement Service: Provide professional cross-protocol network scheme design, parameter matching verification and on-site debugging guidance. Support one-stop procurement of gateways, network cables and auxiliary installation accessories to simplify project procurement procedures.
4.3 Full-Cycle Value-Added Services & After-Sales Guarantee
Cross-brand industrial Ethernet communication has strict requirements for protocol compatibility and operational stability. We provide full-cycle professional technical support and quality assurance to eliminate customer after-purchase worries.
- 100% Original Genuine Quality Guarantee: All gateways are original ProSoft genuine products. Complete protocol compatibility test reports are provided to ensure stable docking with standard EtherNet/IP and Siemens Industrial Ethernet equipment.
- Professional Industrial-Grade Logistics Protection: Adopt multi-layer shockproof, dustproof and moisture-proof industrial packaging. It prevents precision equipment damage during cross-regional long-distance transportation and storage.
- 24/7 Full-Process Technical Support: Provide pre-sales network scheme matching consultation, in-sales configuration debugging guidance and after-sales fault diagnosis and firmware upgrade services.
- Official Global Warranty Service: Enjoy unified ProSoft global warranty and quick after-sales response. Free replacement is supported for non-human quality problems to reduce enterprise operational risks.

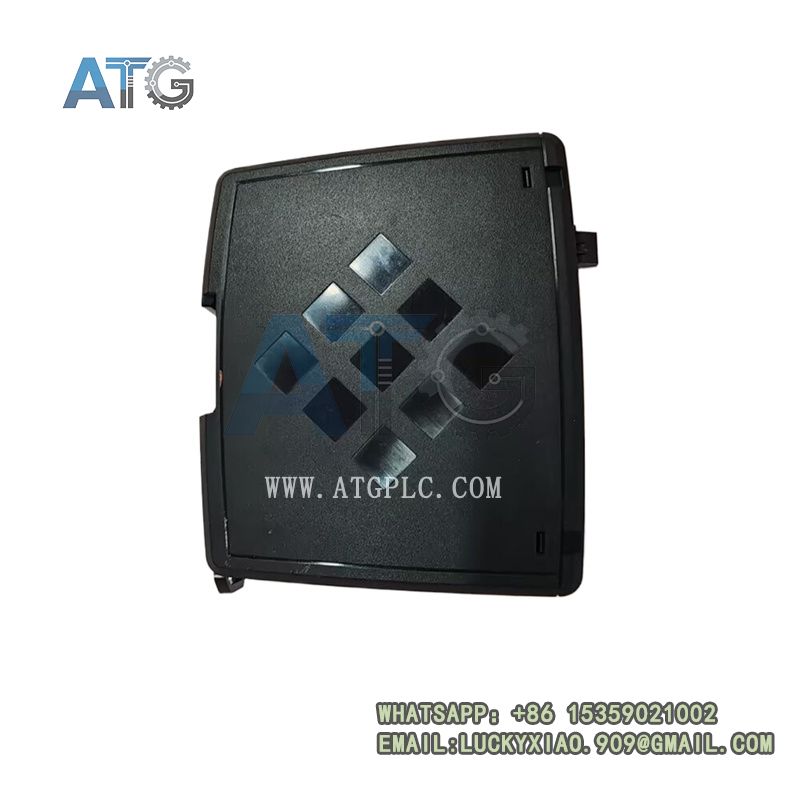

PROSOFT PLX31-EIP-SIE
Main Industrial Application Scenarios
Benefiting from dedicated protocol conversion, high stability transmission and ultra-wide temperature resce, the is widely used in various Rockwell and Siemens cross-brand system integration and old system renovation scenarios.
- Rockwell & Siemens Cross-Brand System Integration: Realize seamless data interconnection between EtherNet/IP control systems and Siemens S7 industrial Ethernet equipment. It solves long-standing communication barriers between the two mainstream automation platforms.
- Legacy Factory Network Renovation: It helps old factories with mixed Rockwell and Siemens equipment achieve unified networking. It avoids full equipment replacement and saves massive intelligent transformation costs.
- Process Industry Automatic Control: Widely applied in chemical, water treatment, machinery manufacturing, food processing and energy industries. It ensures stable real-time data interaction of production line control systems.
- Automation Production Line Upgrading: Adapt to multi-device hybrid networking of upgraded production lines. It provides reliable cross-protocol communication support for equipment iteration and system optimization.
- Industrial Network Maintenance & Replacement: Serve as a universal standard replacement gateway for old cross-protocol conversion equipment. It ensures consistent system performance and long-term stable operation of factory networks.
- Intelligent Factory Digital Transformation: Integrate scattered Rockwell and Siemens device data. It supports centralized monitoring and digital management, helping factories complete intelligent upgrading.
Product Value & Market Competitiveness
ProSoft fills the market gap of dedicated lightweight gateways for EtherNet/IP to Siemens Industrial Ethernet conversion. Compared with universal multi-protocol gateways, it features targeted protocol optimization, higher operational stability and simpler configuration. It avoids redundant function waste and complex debugging processes of universal gateways.
In the global industrial e-commerce market, the
