PROSOFT MVI56E-SIE Communication interface module

Description

Product Overview

The PROSOFT MVI56E-SIE is a high-performance, enhanced industrial communication interface module professionally developed by ProSoft Technology, exclusively designed for Rockwell Automation ControlLogix 1756 series PLC chassis platforms. Serving as a dedicated Siemens Industrial Ethernet (SIE) protocol gateway module, it realizes seamless high-speed data interconnection and protocol conversion between ControlLogix automation systems and Siemens S7/S1200/S1500 series PLC industrial Ethernet networks. As a core bridge device for cross-brand industrial system data interaction, the module independently undertakes industrial Ethernet protocol parsing, cyclic data polling, real-time data mapping and network fault diagnosis tasks, completely offloading protocol computing pressure from the main ControlLogix controller CPU.

Manufactured in strict accordance with ProSoft original industrial communication standards and Rockwell Automation chassis specification norms, the MVI56E-SIE adopts an independent on-board high-speed processing architecture and industrial-grade Ethernet transceiver chip. Different from ordinary third-party universal gateway modules, this enhanced SIE module features dedicated Siemens industrial Ethernet protocol stack optimization, large-capacity register data mapping, auto-adaptive network rate matching and industrial-grade anti-interference design. It supports one-stop data communication between Rockwell ControlLogix systems and full-series Siemens industrial Ethernet equipment, effectively solving cross-brand communication barriers, data transmission delay and unstable network linkage problems in hybrid industrial automation systems. Every MVI56E-SIE module undergoes strict factory network communication testing, full-temperature stability calibration, EMC anti-interference verification and 72-hour full-load aging inspection, fully complying with global industrial e-commerce spot sales, large engineering batch supporting procurement and full lifecycle quality traceability standards. It is the most reliable core communication component for hybrid Rockwell-Siemens industrial control system networking and upgrading projects.

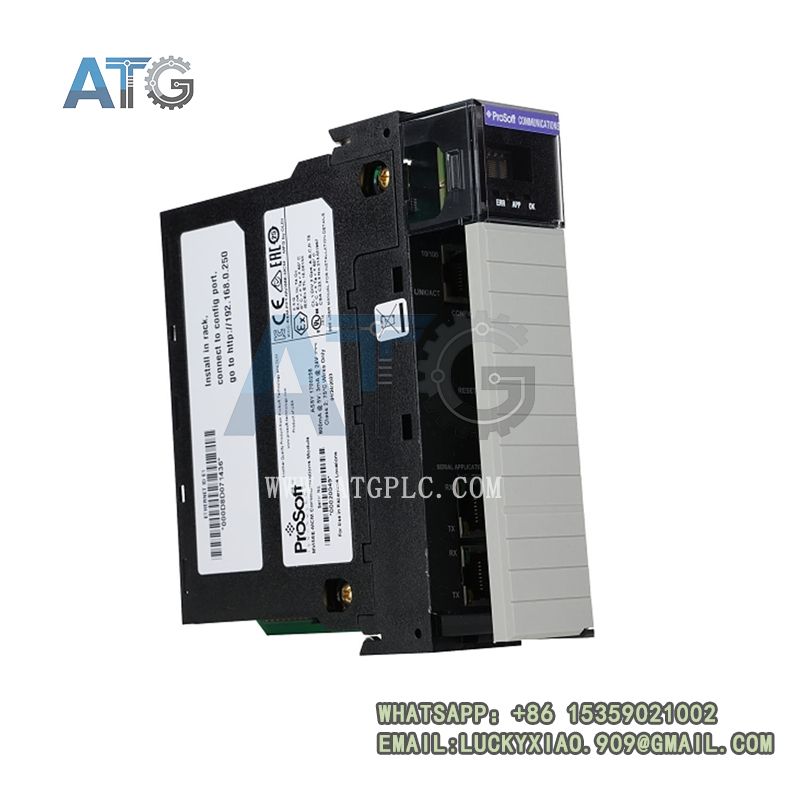

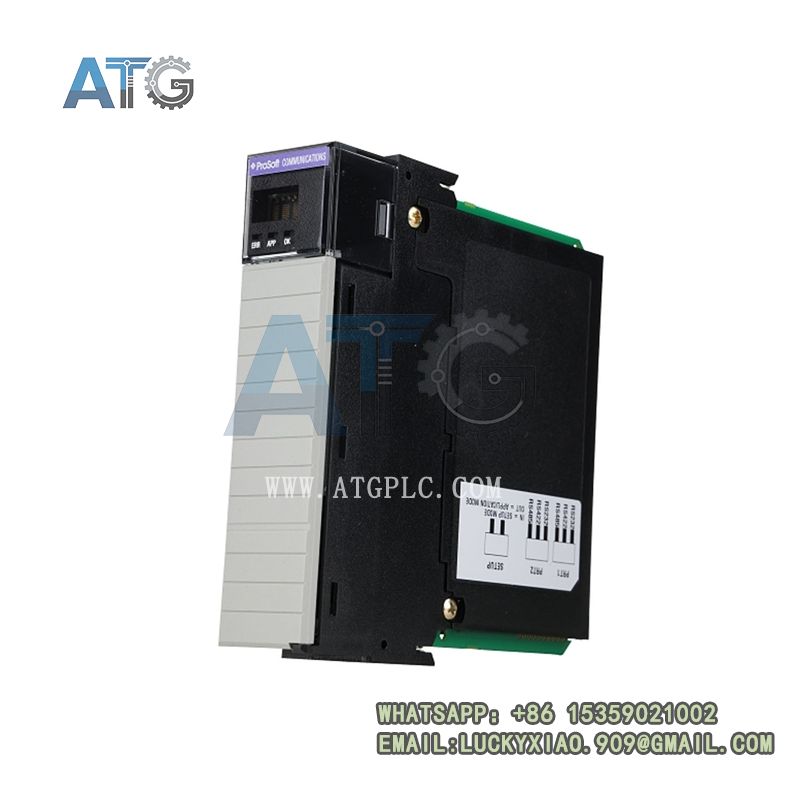

PROSOFT MVI56E-SIE

Core Product Features & Competitive Advantages

Compared with generic industrial Ethernet gateway modules and ordinary cross-brand communication cards, the PROSOFT MVI56E-SIE enhanced Siemens industrial Ethernet communication module has outstanding competitive advantages in protocol professionalism, data transmission efficiency, system compatibility and operational stability. It perfectly solves common industrial pain points such as complicated cross-brand protocol configuration, low data transmission efficiency, poor network stability and insufficient environmental adaptability of traditional gateway modules, providing ultra-reliable long-term network communication guarantee for hybrid industrial automation systems. The core competitive advantages are summarized as follows:

• Dedicated Siemens Industrial Ethernet Protocol Optimization: Built-in fully optimized Siemens industrial Ethernet dedicated protocol stack, supporting stable communication docking with Siemens S7-1200, S7-1500, S7-300/400 and other mainstream PLC equipment. It realizes efficient parsing and accurate interaction of Siemens private Ethernet data packets without additional protocol conversion debugging.
• Seamless ControlLogix Chassis Integration: Standard single-slot 1756 ControlLogix chassis installation design, perfectly compatible with all standard ControlLogix backplane systems. It supports automatic chassis backplane identification, one-stop data mapping with ControlLogix controller tags, no complex program secondary development required.
• High-Speed Adaptive Ethernet Transmission: Equipped with 10/100 Mbps self-adaptive industrial Ethernet interface, supporting automatic line speed detection and cross-line cable adaptive matching. It ensures low-delay and high-throughput real-time transmission of industrial process data, effectively reducing network communication jitter.
• Large-Capacity Data Register Mapping: Supports user-definable large-capacity 16-bit register data mapping, meeting the high-volume data real-time interaction requirements of large-scale production line process parameters, equipment status data and monitoring data.
• Independent Hardware Operation Architecture: Adopts on-board independent processing chip for full protocol stack operation and data processing, zero occupancy of ControlLogix main controller CPU resources. It ensures stable system operation even under long-term full-load network data transmission.
• Professional Visual Diagnosis System: Equipped with 4-character digital display and multi-color LED status indicators, realizing real-time visualization of module operating status, network connection status and communication fault codes. It supports rapid on-site fault location and greatly reduces maintenance difficulty and downtime.
• Intuitive Graphical Configuration Software Support: Fully compatible with ProSoft Configuration Builder (PCB) graphical configuration software, supporting visual network parameter setting, data tag configuration and online monitoring. It simplifies engineering debugging processes and shortens project implementation cycle.
• Industrial-Grade Harsh Environment Adaptability: Optimized EMC electromagnetic compatibility circuit and industrial-grade vibration and shock resistance design, with excellent dust-proof, moisture-proof, vibration-resistant and anti-electromagnetic interference capabilities. It maintains stable communication performance in complex industrial workshop environments.
• 7×24h Full-Load Stable Continuous Operation: Low-power high-efficiency circuit design with low heat generation and no performance attenuation under long-term full-load network operation. It fully meets unattended continuous operation requirements of industrial automated production lines.
• Plug-and-Play Deployment & Low Maintenance Cost: Standard chassis embedded installation supports fast disassembly and replacement, with stable operation and no frequent calibration. It effectively reduces long-term system operation and maintenance costs of hybrid industrial control systems.

Detailed Technical Specifications (Key Highlight Parameters)

All technical parameters of the PROSOFT MVI56E-SIE strictly comply with ProSoft original factory enhanced communication module specifications and Rockwell ControlLogix chassis industrial standards. Featuring dedicated Siemens industrial Ethernet protocol adaptation, high-speed network transmission, large-capacity data mapping, industrial-grade mechanical and environmental resistance, it fully meets the technical requirements of new hybrid industrial system construction, cross-brand network upgrading, old communication module replacement and batch standardized engineering procurement. The classified detailed parameters are as follows:

3.1 Basic Product Identification & Matching Information

• Official Full Model: MVI56E-SIE
• Manufacturer: ProSoft Technology (Industrial Cross-Brand Communication Solution Division)
• Product Series: ControlLogix Enhanced Siemens Industrial Ethernet Communication Module
• Product Type: Industrial Cross-Brand Protocol Gateway & High-Speed Data Mapping Unit
• Core Functions: Siemens industrial Ethernet protocol parsing, cross-brand network data interaction, large-capacity register data mapping, network status monitoring, intelligent fault diagnosis and chassis backplane data synchronization
• Fully Compatible Systems: Rockwell 1756 ControlLogix series PLC chassis, all mainstream Siemens S7 series industrial Ethernet PLC equipment
• Applicable Scenarios: Hybrid Rockwell-Siemens industrial automation system networking, cross-brand equipment data interconnection, old factory network upgrading, intelligent production line data integration and industrial intelligent transformation projects
• Executive Standards: Rockwell ControlLogix chassis specification, Siemens industrial Ethernet protocol standard, IEC industrial EMC standard, ISO 9001 quality management system

3.2 Core Network Communication Performance Parameters

• Ethernet Interface: Single industrial-grade Ethernet port
• Network Transmission Rate: 10/100 Mbps self-adaptive, automatic network rate identification and matching
• Cable Adaptation: Supports automatic cross-over detection, adapting to straight-through and cross-over network cables
• Compatible Devices: Siemens S7-300, S7-400, S7-1200, S7-1500 full-series industrial Ethernet PLC
• Data Mapping Capacity: User-definable large-capacity 16-bit register data mapping, supporting massive process data transmission
• Configuration Mode: ProSoft Configuration Builder (PCB) graphical visual configuration
• Data Synchronization Mode: Real-time cyclic data polling + automatic fault reconnection mechanism
• Transmission Performance: Low network delay, zero data packet loss under full-load long-term operation

3.3 Electrical & Backplane Load Parameters

• 5 VDC Backplane Current Load: 800 mA standard operating current
• 24 VDC Backplane Current Load: 3 mA low auxiliary current consumption
• Power Supply Mode: Pure ControlLogix chassis backplane power supply, no external power adapter required
• Power Consumption: Industrial low-power design, low heat generation during long-term full-load operation
• Protection Mechanism: Built-in overvoltage, overcurrent, short-circuit and surge anti-interference protection

3.4 Structural & Installation Parameters

• Chassis Specification: Standard single-slot 1756 ControlLogix chassis module
• Display Unit: 4-character digital display + multi-color LED status indicator lights
• Installation Method: Standard ControlLogix chassis embedded installation, plug-and-play deployment
• Structural Feature: High-integration compact industrial module design, saving chassis layout space
• Shell Material: High-strength flame-retardant industrial shell, anti-corrosion, anti-aging and anti-static

3.5 Environmental & Mechanical Resistance Parameters

• Operating Temperature Range: 0℃ ~ +60℃ full-performance stable industrial operation
• Storage Temperature Range: -40℃ ~ +85℃ high and low temperature resistant storage
• Working Humidity Range: 5% ~ 95% RH non-condensing full humidity environment adaptation
• Vibration Resistance: 5 g vibration resistance (10 Hz – 500 Hz, compliant with IEC 60068-2-6 standard)
• Shock Resistance: 30 g operational shock resistance, 50 g non-operational shock resistance (11 ms half-sine, IEC 60068-2-27)
• Working Altitude: Up to 2000 meters normal operation, supporting derated operation above 1000 meters
• Environmental Resistance: Dust-proof, moisture-proof, vibration-resistant, anti-electromagnetic interference and anti-aging
• Continuous Operation: Support 7×24-hour full-load uninterrupted industrial long-term operation

3.6 Certification & Factory Testing Standards

• Industrial Certifications: CE electromagnetic compatibility certification, RoHS environmental protection certification
• Quality System: ISO 9001 international quality management system standardized production and testing
• Factory Strict Testing Items: Network communication stability test, protocol compatibility calibration, high-low temperature cycle durability test, vibration and shock resistance test, EMC anti-interference test and long-term full-load aging test
• Field Reliability: Verified by global hybrid industrial control system projects with ultra-low failure rate and long-term stable operating performance

PROSOFT MVI56E-SIE

E-commerce Sales Mode & Complete Procurement Advantages

As a core dedicated cross-brand communication gateway for ControlLogix and Siemens industrial Ethernet hybrid systems, the PROSOFT adopts a standardized, transparent and professional global industrial control equipment e-commerce operation system. It supports full-process online professional technical consultation, single-unit spot retail, small-batch emergency replacement procurement, large engineering batch wholesale and industrial system customized supporting procurement services, providing one-stop high-reliability cross-brand network integration and module replacement solutions for industrial automation integrators, factory equipment maintenance teams, engineering construction companies and industrial spare parts suppliers. All products are 100% original genuine ProSoft factory goods with complete factory network test reports, protocol compatibility calibration documents and official qualification certificates, realizing full model traceability, hierarchical transparent pricing and full-cycle official after-sales protection, effectively solving common industrial problems such as cross-brand communication failure, network data jitter, protocol mismatch and aging module communication instability.

4.1 Standardized Transparent E-commerce Sales System

This product implements unified global ProSoft original factory enhanced communication module technical standards and professional industrial precision electronic equipment packaging specifications, adopting dedicated anti-static, shockproof and moisture-proof sealed packaging to ensure zero damage during cross-regional transportation. All product parameters, protocol performance indicators and applicable system standards are fully open and transparent. E-commerce platforms provide complete technical resources including official datasheets, PCB configuration operation manuals, cross-brand network debugging guidelines and full qualification files. It supports official factory authenticity verification and full lifecycle quality traceability, completely isolating refurbished, disassembled and modified inferior modules in the market, ensuring 100% protocol matching and long-term stable cross-brand network communication performance for user industrial control systems.

4.2 Diversified Flexible Procurement Modes

• Single & Small-Batch Spot Emergency Procurement: Support single-unit and small-quantity spot ordering, applicable to on-site faulty module emergency replacement, hybrid network daily maintenance, cross-brand communication signal optimization and small-scale industrial system renovation projects. Sufficient global spot inventory supports ultra-short delivery cycles, quickly restores normal cross-brand network data interaction of production equipment and avoids production shutdown losses caused by communication failure.
• Large Engineering Batch Wholesale: Provide customized hierarchical preferential pricing, long-term fixed-point supply and framework agreement cooperation services for large-scale factory hybrid network reconstruction, ControlLogix system batch upgrading, industrial park cross-brand equipment networking and key industrial automation engineering projects. It effectively reduces enterprise long-term spare parts procurement costs and inventory pressure.
• Customized Supporting Procurement Service: According to user project requirements of new hybrid system construction and old equipment network upgrading, provide professional system version matching verification, cross-brand network topology optimization, multi-module linkage debugging and on-site technical guidance, realizing one-stop supporting procurement of communication modules, industrial Ethernet cables and network auxiliary accessories.

4.3 Full-Cycle Value-Added Services & After-Sales Guarantee

• 100% Original Genuine Protocol Matching Guarantee: All supplied modules are original ProSoft genuine products with complete factory protocol compatibility test data and network performance reports, ensuring zero cross-brand protocol mismatch and zero network communication failure risks.
• Professional Precision Logistics Protection: Adopt industrial-grade precision module customized packaging with anti-vibration, anti-static, shockproof and moisture-proof design, ensuring intact product quality and undamaged communication performance after long-distance cross-regional transportation.
• 24/7 Full-Process Professional Technical Support: Provide pre-purchase model matching consultation and cross-brand network scheme optimization, in-purchase installation wiring and PCB parameter configuration guidance, after-purchase network fault diagnosis, firmware upgrade and operation stability optimization full-process technical services.
• Official Global Warranty Service: Enjoy unified ProSoft global official warranty, online quick after-sales response and quality problem free replacement services, reducing enterprise hybrid industrial system operation risks and equipment maintenance costs.

Main Industrial Application Scenarios

Relying on its dedicated Siemens industrial Ethernet protocol adaptation, seamless ControlLogix chassis integration, high-speed network transmission performance and excellent industrial environmental adaptability, the PROSOFT module is widely used in core cross-brand network communication links of hybrid Rockwell-Siemens industrial automation systems, covering multiple key industrial fields:

• Process Industry Hybrid System Networking: Widely applied in chemical, petroleum, metallurgy, power and building material industries, realizing stable data interconnection between Rockwell ControlLogix DCS/PLC systems and Siemens on-site equipment, ensuring real-time and accurate transmission of production process parameters.
• Intelligent Factory Production Line Integration: Used for data docking of hybrid automated production lines, solving communication barriers between Rockwell main control systems and Siemens field execution equipment, realizing unified monitoring and collaborative scheduling of workshop equipment.
• Legacy Industrial System Intelligent Renovation: Replace aging and inefficient cross-brand communication modules of old factory hybrid systems, improve network transmission efficiency and communication stability, and realize low-cost intelligent upgrading of legacy industrial control systems.
• Energy & Power Industrial Control Networking: Applied in thermal power, new energy power generation and power auxiliary control systems, undertaking cross-brand equipment data interaction tasks to improve the automation and intelligent operation level of power equipment.
• Industrial Intelligent Monitoring System Construction: Provide stable cross-brand data transmission support for industrial equipment centralized monitoring, data acquisition and remote scheduling systems, realizing unified data management of heterogeneous brand equipment.
• Automation Engineering Supporting Projects: Serve as standard supporting communication core components for large-scale industrial automation integration projects, providing reliable cross-brand network communication guarantee for project stable operation.

PROSOFT MVI56E-SIE

Product Value & Market Competitiveness

The PROSOFT enhanced Siemens industrial Ethernet communication module effectively solves the core pain points of traditional cross-brand gateway equipment, such as complex configuration, low transmission efficiency, poor protocol compatibility and unstable network operation. Its dedicated Siemens industrial Ethernet protocol stack optimization, seamless ControlLogix chassis integration, independent hardware full-load operation and industrial-grade harsh environment resistance provide solid and reliable cross-brand communication core support for hybrid industrial automation systems.

In the global industrial e-commerce market, the original ProSoft module has irreplaceable professional competitiveness in the field of ControlLogix cross-brand communication modules. It features exclusive dual-system zero-adaptation compatibility, professional dedicated protocol parsing capability, high-speed low-delay transmission performance and visual intelligent diagnosis function. It can significantly improve the data interaction efficiency and network stability of hybrid industrial systems, reduce cross-brand communication failure rate and equipment debugging frequency, and lower enterprise long-term system operation and maintenance costs. With standardized transparent procurement mechanism, 100% genuine quality traceability and full-cycle professional after-sales technical services, it is the preferred high-quality upgrading and replacement module for global ControlLogix and Siemens hybrid industrial control network systems.
