GE VMIVME-2128 Product Description
Product Overview
The GE VMIVME-2128 is a 128-channel high-voltage digital output board for VMEbus-based industrial control and test systems. It belongs to the GE VMIC embedded I/O product family and delivers high-density, high-current open-collector outputs for driving industrial field loads.
This module occupies a single 6U VME chassis slot and supports output voltages from 5 VDC to 48 VDC. It integrates built-in test (BIT) logic and multi-level protection circuits to ensure reliable operation in mission-critical scenarios. With its high channel density and robust fault protection, it is widely used for high-speed control, data acquisition and automated test systems across industrial, aerospace and energy sectors.

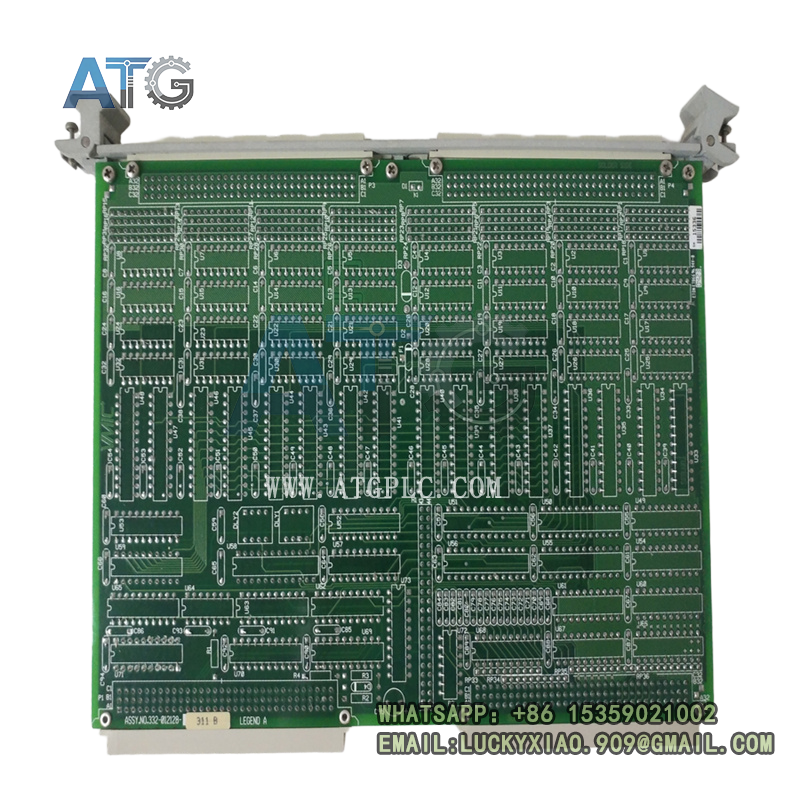

GE VMIVME-2128
Core Product Features
- 128 independent open-collector output channels deliver high-density digital control in one standard 6U VME slot.
- Wide 5 VDC to 48 VDC output range adapts to various industrial relays, contactors and indicator loads.
- Each channel supports up to 600 mA sink current for medium-power field device driving.
- Built-in test logic enables software-controlled verification of each channel for fast on-site fault isolation.
- Automatic surge current shutdown and thermal shutdown protect the module from overload and overheating damage.
- Output clamp diodes suppress inductive flyback voltage when switching relay and solenoid loads.
- Front-panel status LED provides clear visual indication of module power and fault conditions.
- Fully compliant with VMEbus ANSI/IEEE STD 1014-1987 standards for broad system compatibility.
Technical Specifications
| Item | Specification |
|---|---|
| Official Model | VMIVME-2128 |
| Product Type | 128-Channel High-Voltage Digital Output Board |
| Bus Standard | VMEbus (A24/A16, D32/D16/D08), 6U Eurocard form factor |
| Output Configuration | 128 channels, open-collector |
| Output Voltage Range | 5 VDC to 48 VDC |
| Maximum Sink Current | 600 mA per channel |
| Breakdown Voltage | 55 V minimum |
| Protection | Surge current shutdown, thermal shutdown, inductive flyback clamp diodes |
| Diagnostics | Built-in test (BIT) logic for per-channel verification |
| Power Input | +5 VDC from VME backplane |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% – 95% RH, non-condensing |
| Mounting | Single 6U VME chassis slot |
| Compliance | CE, UL, industrial EMC compliance |

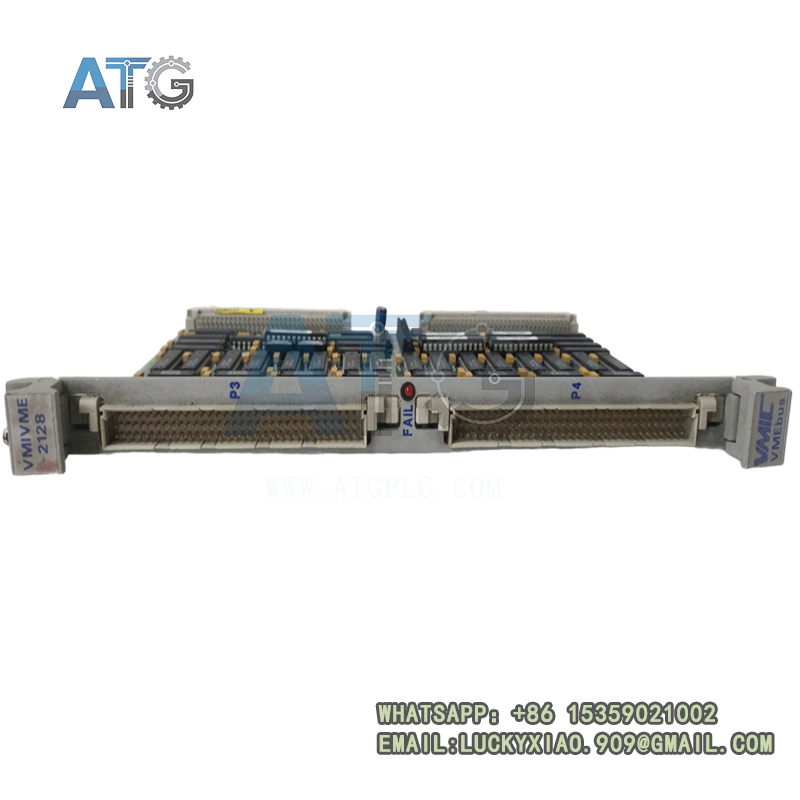

GE VMIVME-2128
Application Fields
- High-speed production line sequencing and discrete automation control
- Automated test equipment and aerospace ground test platforms
- Relay and contactor driving in power distribution cabinets
- Data acquisition and control systems in energy and process industries
- Transportation signaling and traffic management control systems
- Legacy VMEbus system I/O expansion and retrofit projects

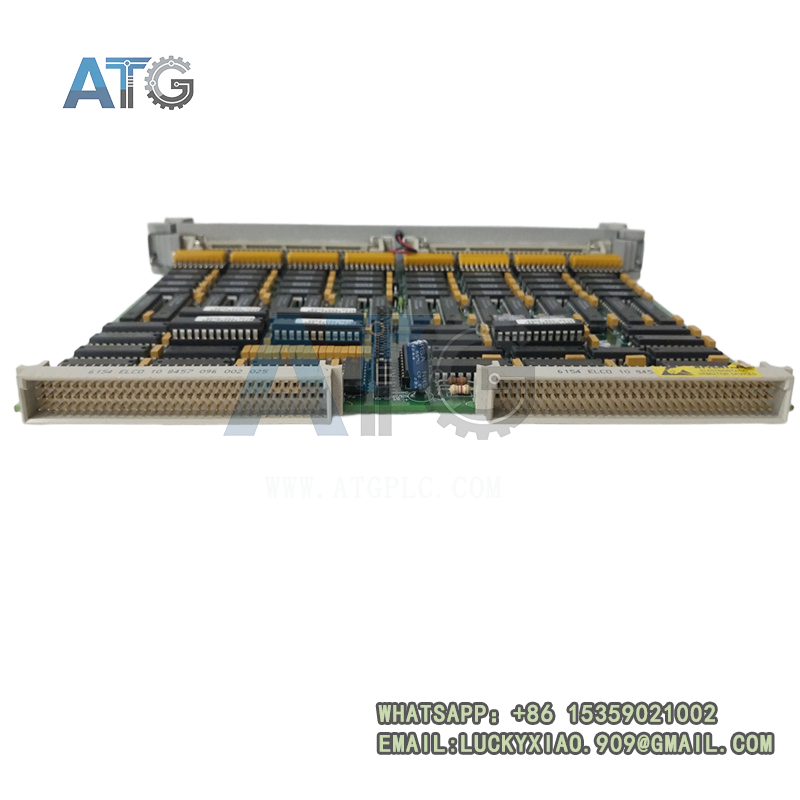

GE VMIVME-2128
Related Model Recommendations
- VMIVME-1128: 128-channel high-voltage digital input board from the same VMIC family, paired with VMIVME-2128 to form complete discrete control loops.
- VMIVME-2120: 64-channel high-voltage digital output module for smaller-scale applications with fewer control points.
- VMIVME-7750: 6U VMEbus single-board computer that controls and manages VMIVME-2128 output modules.
- IC698CMX016: Reflective memory module for ultra-fast data synchronization across multi-node VME control systems.
