Description
1. Product Overview
The GE IS230TNDSH2A is a high-performance discrete I/O terminal board designed exclusively for GE Speedtronic Mark VIe and Mark VIeS distributed control systems. It belongs to the SMLX small logic expansion module series. As a core field signal interaction component, it undertakes discrete digital signal input detection and relay output control tasks for industrial and power generation control systems. It acts as a reliable connection bridge between field sensors, switching equipment and the main DCS controller. It realizes accurate collection of on-site switching signals and stable execution of system control commands.
Industrial automatic control systems require discrete I/O modules with high stability and fast response. Ordinary generic I/O terminal boards have obvious usage limitations in harsh industrial scenarios. Most conventional modules feature simple circuit design and weak isolation performance. They are prone to signal interference, delayed response and unstable contact output under long-term vibration, high temperature and complex electromagnetic environments. In addition, non-original replacement modules often have mismatched channel definitions and communication protocols. They cannot perfectly adapt to Mark VIe system logic, which easily causes system identification failure and control loop errors. In contrast, the GE IS230TNDSH2A adopts industrial-grade discrete signal processing architecture. It integrates multi-channel isolated input and relay output, high-speed signal response and anti-interference protection functions. Every module passes strict environmental aging, vibration testing and full-function calibration before delivery. It serves as a standard original spare part for industrial control system maintenance and upgrading, and fully supports standardized global industrial e-commerce procurement.
2. Core Product Features & Competitive Advantages
Power plant and industrial process control scenarios put forward strict requirements on signal collection and equipment driving. Traditional discrete I/O modules suffer from single functions, slow response speed and poor environmental adaptability. These defects affect the real-time performance and accuracy of system control. To solve common industry pain points, the GE IS230TNDSH2A achieves comprehensive upgrades in signal processing efficiency, operational stability and industrial applicability.
-
16-Channel Isolated Input & Relay Output Integration: Equipped with 16 independent discrete input channels and 16 relay output channels. It supports one-board multi-point signal interaction. It meets the multi-loop switching control demands of industrial automation systems and simplifies on-site cabinet wiring.
-
Ultra-Fast Signal Response: Optimized internal logic and relay driving circuit. The input response time is ≤10ms and the output action time is ≤5ms. It ensures timely execution of control commands and real-time feedback of field signals.
-
500V DC High-Isolation Protection: Adopts channel-to-channel and channel-to-ground electrical isolation design. It effectively isolates on-site surge voltage and clutter interference. It avoids signal crosstalk and control misoperation.
-
24VDC Wide Voltage Adaptation: Matches standard 24VDC industrial power supply with a wide adaptive voltage range. It resists slight on-site power supply fluctuation and ensures stable module operation.
-
High-Load Relay Driving Capacity: Each channel supports 250V AC and 30V DC load driving. It can directly drive most industrial switching equipment without additional relay amplification modules.
-
100% Original System Compatibility: Perfectly adapts to GE Mark VIe and Mark VIeS system architectures. It supports plug-and-play installation and automatic system identification. No program modification or complex debugging is required after replacement.
-
Standard DIN Rail Modular Design: Adopts universal 35mm DIN rail installation structure. It features compact size and flexible layout. It simplifies control cabinet assembly and daily equipment maintenance.
-
Industrial-Grade Anti-Interference & Durability: Optimized EMC electromagnetic compatibility design and high-quality mechanical components. It resists long-term mechanical vibration, temperature changes and industrial dust erosion.
-
Long Mechanical Service Life: High-precision relay contacts support up to 10 million switching operations. It delivers long-term stable operation and reduces frequent module replacement costs.
-
Simplex Stable Operation Mode: Adopts reliable simplex non-redundant architecture. It meets conventional industrial control scenario demands with low failure rate and high cost performance.

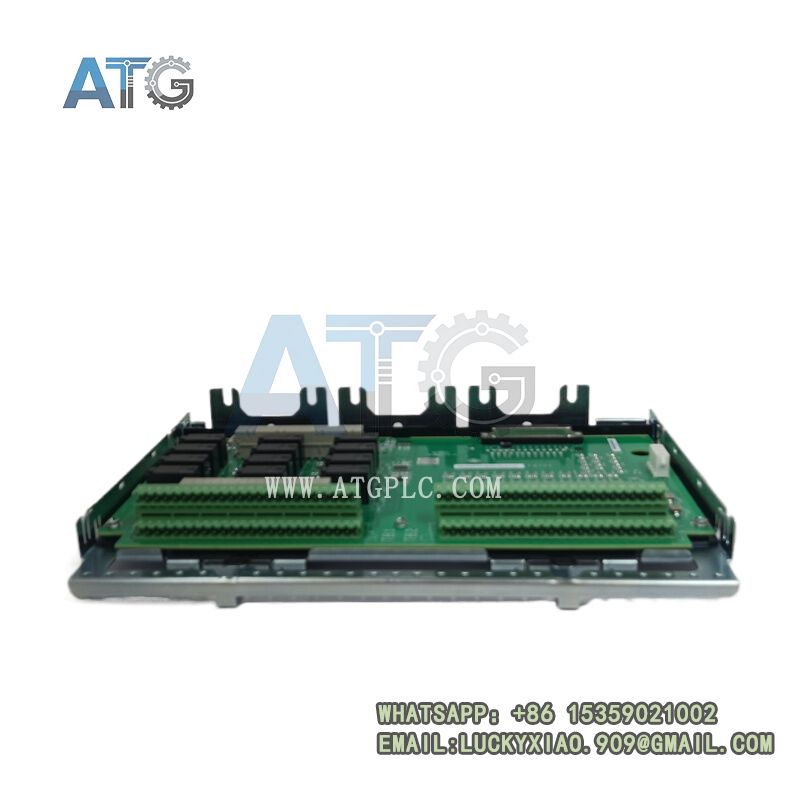

GE IS230TNDSH2A
3. Detailed Segmented Technical Specifications
The GE IS230TNDSH2A strictly complies with GE original Mark VIe system specifications and industrial automation control standards. All signal performance, electrical indicators, structural features and environmental resistance have passed professional laboratory testing and long-term field verification. The classified detailed parameters below support accurate model selection, on-site system renovation and standardized batch procurement.
3.1 Basic Product & Application Parameters
This product is a dedicated SMLX discrete I/O terminal board for GE Mark VIe/VIeS DCS systems. It focuses on field discrete signal acquisition and industrial equipment switching control output.
-
Official Product Model: IS230TNDSH2A
-
Product Category: Industrial Discrete I/O Signal Terminal Board (SMLX DIN Rail Module)
-
Manufacturer: General Electric (GE)
-
Core Product Positioning: On-site discrete switching signal collection, isolated signal processing and relay switching control output
-
Fully Compatible Systems: GE Speedtronic Mark VIe, Mark VIeS Distributed Control Systems
-
Installation Method: Standard 35mm DIN rail snap-on fixed installation
-
Core Application Scenarios: Power plant auxiliary system control, industrial automation switching control, equipment status monitoring, on-site signal wiring integration and old control module replacement projects
-
Implementation Standards: GE original DCS specifications, IEC industrial control standards and CE/UL industrial safety certification standards
3.2 Core Signal & Response Parameters
The module adopts high-speed discrete signal processing technology. It supports multi-channel synchronous signal acquisition and stable relay output to meet real-time industrial control requirements.
-
Channel Configuration: 16 isolated discrete input channels + 16 independent relay output channels
-
Input Voltage Specification: 24VDC nominal voltage, adaptive range 18VDC–30VDC
-
Single Channel Input Current: Approximately 7mA at rated 24VDC working voltage
-
Signal Response Speed: Input response ≤10ms, output action response ≤5ms
-
Isolation Strength: 500V DC isolation between channels and between channels and ground
-
Output Contact Type: High-stability dry contact relay output
3.3 Load & Electrical Parameters
It features excellent load driving capacity and stable electrical performance. It adapts to diverse on-site industrial load equipment and complex power supply environments.
-
Rated Working Power: 24VDC industrial power supply (±10% fluctuation tolerance)
-
Resistive Load Capacity: AC 250V/10A, DC 30V/20A single-channel maximum load
-
Inductive Load Capacity: AC 250V/5A, DC 30V/10A stable driving
-
Built-In Protection Mechanism: Overcurrent protection, overvoltage isolation and surge anti-interference protection
-
Electromagnetic Compatibility: Industrial high-level EMC grade, resisting workshop electromagnetic radiation and signal crosstalk
-
Operating Mode: Simplex single-module independent stable operation
3.4 Mechanical & Structural Parameters
The compact modular structure is optimized for industrial control cabinet layout. It ensures firm installation and convenient daily inspection and wiring maintenance.
-
Structural Type: SMLX small logic expansion DIN rail modular terminal board
-
Installation Mode: Standard 35mm DIN rail quick snap installation
-
Overall Dimension: 233mm × 150mm × 64mm standard industrial size
-
Product Weight: 1.5kg lightweight modular design
-
Structural Durability: Dust-proof, anti-vibration and anti-aging industrial treatment
-
Mechanical Service Life: More than 10 million stable switching operations
3.5 Environmental Adaptability Parameters
After strict extreme environment simulation and long-term aging tests, the module maintains full signal processing and load driving performance in harsh industrial working conditions.
-
Full-Load Operating Temperature Range: -40°C to +70°C ultra-wide temperature stable operation
-
Storage Temperature Range: -40°C to +85°C high and low temperature resistance
-
Working Humidity Range: 5%–95% RH non-condensing humid environment adaptation
-
Environmental Resistance: Resists industrial dust, mechanical vibration and temperature cycle alternating interference
-
Continuous Operation Capacity: Supports 7×24-hour uninterrupted full-load signal acquisition and control output
3.7 Factory Testing & Quality Certification
All GE IS230TNDSH2A modules are manufactured under GE’s strict industrial quality control system. Each unit completes comprehensive performance testing and function calibration before delivery to meet high-standard industrial control operational requirements.
-
Core Factory Testing Items: Multi-channel signal response calibration, isolation performance test, load driving stability test, temperature cycle test and long-term aging reliability test
-
Quality Inspection Standard: 100% full-function test + full performance calibration + complete test data filing
-
Authoritative Qualification Certification: CE, UL industrial safety certification and IEC electromagnetic compatibility certification
-
Field Operation Reliability: Widely deployed in global power and industrial automation control systems with ultra-low field failure rate

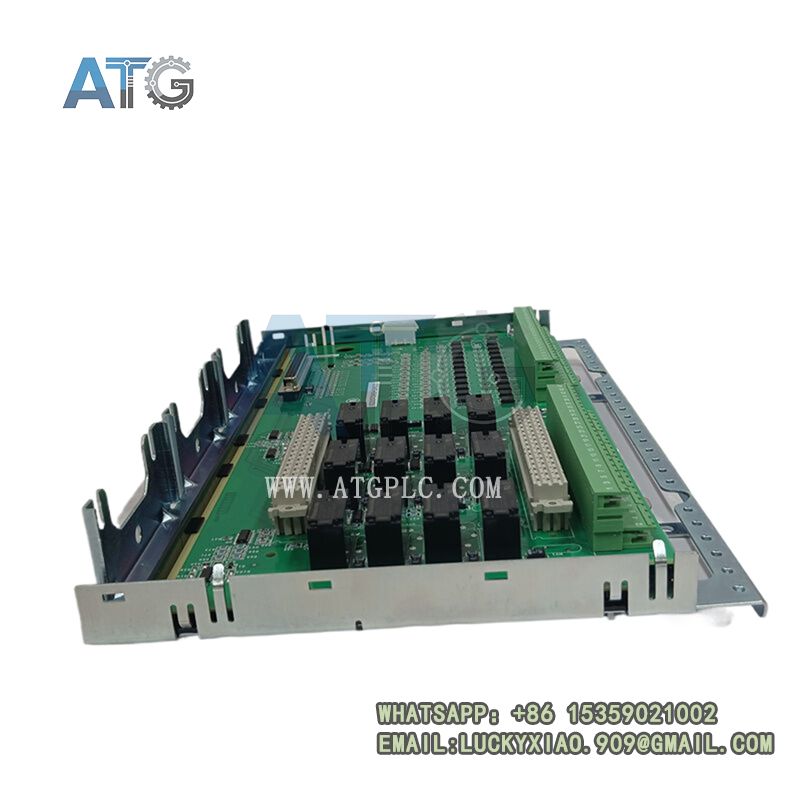

GE IS230TNDSH2A
4. E-commerce Sales Mode & Complete Procurement Advantages
As an original SMLX discrete I/O terminal board for GE Mark VIe/VIeS DCS systems, the GE IS230TNDSH2A adopts standardized, transparent and efficient global industrial e-commerce sales mode. It mainly serves industrial control system emergency maintenance, old discrete I/O module replacement and enterprise automation spare parts strategic reserve. It provides one-stop standardized procurement and full-cycle professional technical services for engineering integrators and industrial production enterprises.
4.1 Standardized Transparent E-commerce System
All products adopt unified original factory production and full-process standardized performance testing. The whole production, precision calibration and warehousing process is fully traceable. E-commerce platforms openly display complete product datasheets, performance test reports and official qualification certificates. Customers can verify product authenticity, system compatibility and operational stability online. This transparent sales mechanism effectively avoids refurbished and inferior I/O modules. It fully guarantees the stable and reliable operation of industrial automatic control systems.
4.2 Diversified Flexible Procurement Modes
Industrial control system emergency replacement, daily spare parts stocking and large-scale automation upgrading projects have different procurement cycles and quantity demands. To cover all industrial application scenarios, we provide three targeted and flexible procurement solutions.
-
Emergency Spot Procurement: Suitable for on-site I/O module failure, signal acquisition disorder and equipment control loop abnormality emergencies. Sufficient global spot inventory supports fast delivery. It helps enterprises quickly restore system signal interaction and avoid production shutdown losses.
-
Small-Batch Spare Parts Stocking: Ideal for power plants and industrial enterprises to build dedicated Mark VIe system spare parts inventory. Pre-storing this original module improves on-site fault emergency response speed and reduces operational equipment risks.
-
Large-Batch Engineering Procurement: Provides exclusive preferential pricing and long-term framework cooperation services for large-scale industrial automation system renovation and control loop upgrading projects. It effectively reduces overall project procurement costs and shortens system commissioning cycles.
4.3 Full-Cycle After-Sales Service Guarantee
The discrete I/O terminal board is a core signal interaction hub of industrial automation systems. Its signal accuracy and operational stability directly affect the overall production efficiency and control precision of equipment. We provide comprehensive full-cycle after-sales protection to eliminate all customer procurement risks.
-
100% Original Genuine Guarantee: All modules are brand-new original GE products with complete factory test reports and qualification documents, ensuring 100% system compatibility and signal control performance.
-
Professional Industrial Packaging: Adopts multi-layer anti-static, shockproof, moisture-proof and dust-proof industrial packaging. It protects internal precision circuits and relay components from damage during long-distance transportation and storage.
-
24/7 Professional Technical Support: Provides pre-sales model matching consultation, in-sales installation and wiring configuration guidance, and after-sales fault diagnosis and system debugging services.
-
Long-Term Official Warranty Service: Enjoys unified official warranty coverage. Free maintenance and replacement services are provided for non-human-induced quality faults to reduce enterprise operation and maintenance costs.
GE IS230TNDSH2A
5. Main Industrial Application Scenarios
Relying on multi-channel integrated I/O design, ultra-fast response speed, high-isolation anti-interference performance and strong load driving capacity, this module is widely used in core signal control links of GE Mark VIe system industrial automation and power plant projects.
-
Power Plant Auxiliary Control System: Undertakes status signal collection and switching control output of power plant auxiliary equipment. It ensures stable and coordinated operation of auxiliary control loops.
-
Industrial Automatic Switching Control: Applied to factory production line equipment start-stop control, status feedback and interlock linkage control. It improves the automation level of industrial production.
-
On-Site Signal Wiring Integration: Centralizes scattered field discrete signals through multi-channel design. It standardizes cabinet wiring and simplifies daily system inspection and maintenance.
-
Old Control System Upgrading & Maintenance: Replaces aging I/O modules with slow response and unstable signals. It upgrades the overall control efficiency and stability of Mark VIe system without large-scale equipment reconstruction.
6. Product Value & Market Competitiveness
The GE IS230TNDSH2A effectively solves common pain points of traditional discrete I/O modules, such as scattered channels, slow response speed, weak isolation performance and limited load capacity. It integrates 16-channel input and output integration, 5ms ultra-fast output response, 500V high isolation protection and high-load relay driving technology. It comprehensively improves the signal collection efficiency, control accuracy and operational stability of GE Mark VIe industrial control systems.
In the global industrial control spare parts e-commerce market, this product has prominent differentiated competitive advantages. It features original factory precision calibration, integrated I/O channel design, wide environmental adaptability and ultra-low field failure rate. Combined with standardized genuine procurement, complete qualification documents and full-cycle professional after-sales services, it is the preferred original replacement module for industrial automation system maintenance, control performance upgrading and enterprise strategic spare parts reserve.
