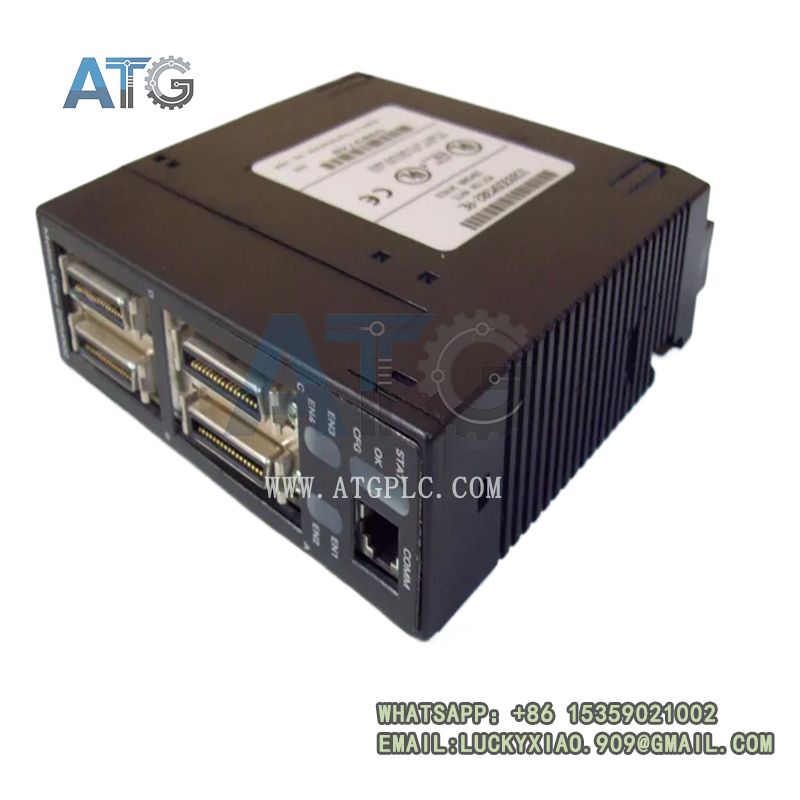

The GE IC693DSM302-AE is a high-performance 2-axis digital motion control module belonging to the GE Fanuc Series 90-30 PLC system. It serves as a dedicated servo motion control unit for automated industrial production lines. This module integrates independent DSP processing hardware. It achieves precise positioning, speed adjustment and synchronous control of two servo axes. It perfectly matches GE Fanuc AC servo systems.
Precision motion control is the core of automated manufacturing processes. Ordinary PLC modules rely on CPU program scanning to execute motion commands. They suffer from slow response, low precision and easy signal delay. These defects often cause workpiece deviation and equipment jitter. The GE IC693DSM302-AE solves these pain points with onboard independent operation. It undertakes all servo loop computing tasks and reduces the operating load of the main PLC CPU. Every module undergoes strict servo linkage testing, signal calibration and long-term aging screening before delivery. It supports direct replacement and system upgrade for Series 90-30 PLC racks, and fully adapts to global industrial e-commerce procurement scenarios.
Core Product Features & Competitive Advantages
Independent DSP motion control ensures stable and high-precision servo operation. Conventional extended modules can only execute simple motion instructions. They lack closed-loop adjustment and synchronous control capabilities. In contrast, the GE IC693DSM302-AE integrates high-speed loop calculation, multi-mode control logic and complete signal detection functions. It delivers reliable and efficient motion control for industrial automation equipment.
- Dual-Axis Independent Synchronous Control: It supports independent or synchronous operation of two servo axes. It meets multi-axis linkage requirements for cutting, positioning and handling equipment.
- Built-In DSP High-Speed Computing: The onboard digital signal processor runs servo loop calculations independently. It avoids program scan delay caused by PLC CPU overload.
- Ultra-Fast Loop Response Speed: It realizes microsecond-level servo loop update and millisecond-level block processing. It greatly improves motion tracking accuracy.
- Dual Working Modes Switchable: It supports standard independent control mode and follower synchronous mode. It adapts to diverse automated production processes.
- High-Resolution Motion Parameter: It provides ultra-wide range position and velocity programming units. It meets high-precision machining and positioning scenarios.
- Complete Onboard I/O Interface: It reserves home position, overtravel protection and position capture inputs. It supports analog output debugging and monitoring functions.
- Strong Anti-Interference Performance: Optimized circuit design and EMC suppression technology resist on-site electromagnetic noise. It prevents motion offset and servo jitter.
- Plug-and-Play Rack Compatibility: It perfectly fits standard Series 90-30 PLC backplane. It requires no additional modification for installation and replacement.
Detailed Segmented Technical Specifications
The GE IC693DSM302-AE strictly complies with GE Fanuc Series 90-30 PLC industrial standards and servo motion control specifications. Its motion accuracy, response speed, electrical performance and environmental adaptability pass professional laboratory verification and long-term field operation tests. The detailed classified parameters below support model selection, scheme design, equipment maintenance and bulk procurement.
3.1 Basic Product & Application Parameters
This dual-axis motion control module is specially designed for GE Series 90-30 PLC systems. It is widely used in machining tools, automated assembly lines, packaging equipment and precision positioning automation scenarios.
- Official Product Model: IC693DSM302-AE
- Product Category: 2-Axis DSP Digital Motion Control Module
- Manufacturer: GE Fanuc (GE Intelligent Platforms)
- Core Product Positioning: Dual-axis servo positioning, speed regulation, synchronous linkage, motion error correction and real-time motion monitoring
- Fully Compatible System: GE Series 90-30 PLC Rack System
- Installation Method: Standard backplane plug-in installation
- Core Application Scenarios: Old equipment module replacement, automated production line upgrade, servo system maintenance, industrial spare part stocking
- Compliance Standards: GE industrial hardware specifications, CE, UL certification, Class I Div 2 hazardous environment standard
3.2 Core Motion Control Performance
The module relies on independent DSP chips to complete closed-loop servo control. It effectively improves equipment motion precision and operation stability.
- Controlled Axis Quantity: 2 independent servo control axes
- Control Mode: Standard independent control mode / Follower synchronous control mode
- Loop Update Speed: Microsecond-level high-speed servo loop update
- Block Processing Cycle: Less than 5 milliseconds, ensuring fast motion response
- Position Resolution Range: -8,388,608 to +8,388,607 user units, supporting ultra-precision positioning
- Velocity Adjustment Range: 1 to 8,388,607 user units per second, adapting to multi-speed processing requirements
- Optimization Algorithm: Built-in velocity feedforward and position error integration algorithm, enhancing motion tracking accuracy
3.3 Interface & Signal Parameters
It is equipped with rich dedicated motion interfaces. It supports servo signal feedback, limit protection and real-time parameter monitoring.
- Servo Matching Type: Fully compatible with GE Fanuc digital AC servo system
- Basic Input Signals: Per-axis home position switch, overtravel limit switch input
- Precision Capture Input: Dual position capture strobe inputs for each axis
- Master Axis Signal: Incremental quadrature encoder input for follower mode master axis
- Auxiliary Output: 13-bit analog output for servo tuning monitoring and auxiliary control
3.4 Electrical & Power Supply Parameters
The module adopts standard PLC rack power supply design. It features stable power consumption and multiple protection mechanisms.
- Power Supply Mode: Powered by Series 90-30 PLC backplane
- Rated Power Consumption: Approximately 1.5A @ 5V low power consumption design
- Signal Isolation: Built-in electrical isolation structure to avoid signal crosstalk
- Protection Mechanism: Overcurrent, overvoltage and surge transient protection
3.5 Mechanical & Structural Parameters
It adopts standard industrial modular structure. It features compact size and firm installation, suitable for long-term cabinet operation.
- Structural Type: Standard plug-in industrial module for 90-30 series rack
- Installation Method: Embedded backplane fixed installation
- Overall Weight: About 0.6kg, lightweight and easy to replace
- Structural Advantages: Reinforced anti-vibration structure, adapting to mechanical vibration on production sites
3.6 Environmental Adaptability Parameters
The module passes strict environmental screening tests. It can operate stably in complex industrial environments for a long time.
- Full-Load Operating Temperature: -20°C to +70°C continuous stable operation
- Storage Temperature Range: -40°C to +85°C
- Working Humidity: 5%–95% RH non-condensing
- Environmental Resistance: Dust-proof, anti-electromagnetic interference, suitable for factory workshop environments
- Continuous Operation: Support 7×24 hours uninterrupted industrial operation
3.7 Factory Testing & Quality Certification
All GE IC693DSM302-AE modules follow unified GE quality control standards. Each product completes full-function testing and aging verification before leaving the factory.
- Core Test Items: DSP motion operation test, dual-axis synchronous linkage test, signal accuracy calibration, high and low temperature aging test, vibration resistance test
- Inspection Standard: 100% full-function detection + parameter calibration + complete test file archiving
- Authoritative Certifications: CE industrial certification, UL safety certification, Class I Div 2 hazardous area certification
- Field Performance: Widely used in global automated manufacturing equipment with stable motion control performance
E-commerce Sales Mode & Complete Procurement Advantages
As a core dedicated motion control module for GE Series 90-30 PLC systems, the GE adopts standardized and transparent global industrial e-commerce sales mode. It mainly serves automated equipment maintenance, old system renovation, production line upgrading and enterprise spare part reserve construction. It provides one-stop formal procurement and full-cycle technical after-sales services for industrial manufacturers and automation engineering companies.
4.1 Standardized & Transparent E-commerce System
All products are sourced from original genuine channels. The whole process of production calibration, quality inspection and warehousing is traceable. E-commerce platforms openly display product datasheets, test reports and qualification certifications. Buyers can verify product authenticity and performance indicators online. This transparent sales model effectively avoids refurbished and incompatible alternative modules. It ensures the stable operation of industrial servo motion control systems.
4.2 Diversified Flexible Procurement Modes
Different industrial projects and maintenance scenarios have different procurement cycle and quantity requirements. We provide three flexible procurement solutions to meet diverse industrial needs.
- Emergency Spot Procurement: Suitable for sudden module damage and equipment shutdown emergencies. Sufficient spot inventory supports rapid delivery. It quickly restores production line operation and reduces economic losses caused by downtime.
- Small-Batch Spare Part Stocking: Ideal for manufacturing enterprises to establish spare part inventory. Pre-storing this core motion module shortens emergency maintenance response time and improves equipment operation rate.
- Large-Batch Engineering Procurement: Provide customized preferential prices and long-term cooperative framework agreements for large-scale production line renovation and batch upgrading projects. It effectively reduces overall project procurement costs.
4.3 Full-Cycle After-Sales Service Guarantee
Motion control modules are key components that determine equipment machining accuracy and operation stability. Module failure will directly lead to production line paralysis. We provide comprehensive after-sales guarantee to fully eliminate customer procurement risks.
- 100% Original Genuine Guarantee: All modules are original GE Fanuc genuine products with complete factory documents. It ensures 100% compatibility with 90-30 PLC systems and consistent motion control accuracy.
- Professional Industrial Packaging: Adopt anti-static, shockproof and moisture-proof professional packaging. It protects precision electronic components from damage during long-distance transportation and storage.
- 7/24 Professional Technical Support: Provide pre-sales model matching, installation guidance, parameter debugging and post-sales fault diagnosis services.
- Standard Long-Term Warranty: Unified official warranty service. Free replacement and maintenance for non-human-induced quality problems to reduce enterprise maintenance costs.
Main Industrial Application Scenarios
With independent DSP high-speed operation, dual-axis synchronous control and high-precision positioning capability, this module is widely used in maintenance and upgrading of various automated production equipment.
- Precision Machining Equipment: Provide stable servo motion control for CNC machine tools and precision cutting equipment to ensure machining accuracy.
- Automated Assembly Lines: Realize synchronous positioning and handling actions of multi-axis equipment to improve production efficiency.
- Old Equipment Module Replacement: Directly replace aging and faulty original modules. No program modification is needed, realizing quick equipment recovery.
- Industrial Automation System Upgrade: Upgrade ordinary PLC control systems to high-precision servo motion control systems, improving equipment automation level.
Product Value & Market Competitiveness
The GE makes up for the shortcomings of ordinary PLC extended modules, such as low motion precision and slow response. It realizes independent, high-speed and high-precision dual-axis servo control. It effectively reduces PLC CPU load and improves the overall stability and machining accuracy of automated equipment.
In the global industrial spare parts e-commerce market, this module has outstanding competitive advantages. It features dedicated DSP motion processing, dual-mode switching control, high-resolution motion parameters and strong environmental adaptability. Combined with genuine product guarantee, complete technical documents and full-cycle after-sales service, it has become the preferred original spare part for GE 90-30 PLC motion control system maintenance and industrial automation equipment upgrading.
