Description
Product Overview

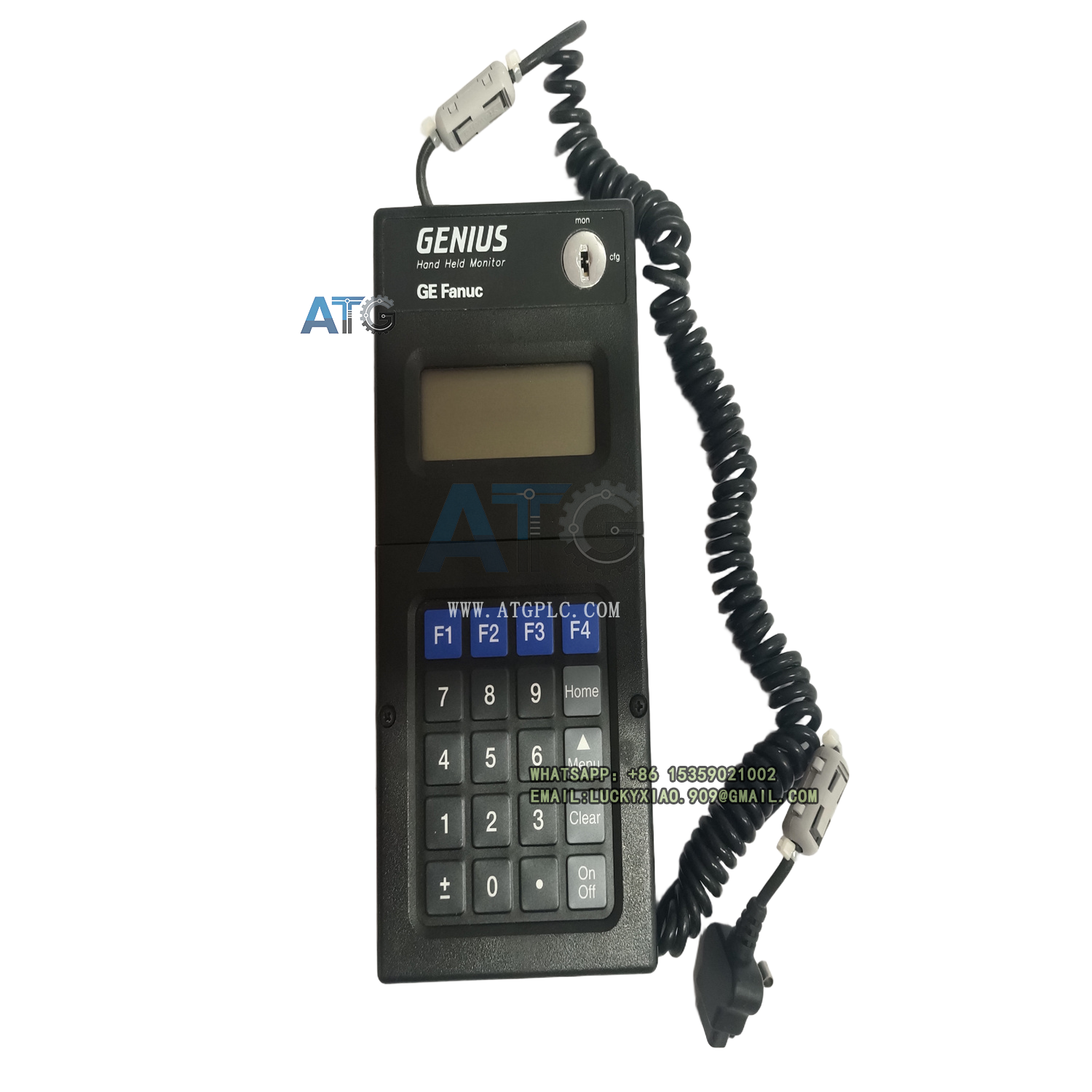

The GE IC660HHM501 is a portable industrial handheld monitor. It belongs to the GE Genius I/O system series. It acts as a on-site debugging and operation terminal for industrial control systems.
This handheld unit supports on-site parameter viewing and real-time data monitoring. It completes I/O point testing, fault checking and program debugging tasks. It connects directly to GE Genius bus devices. It enables field staff to operate equipment without a host computer. It adopts lightweight industrial handheld design. It features simple operation and strong on-site adaptability. It is widely used for system debugging, daily maintenance and on-site fault repair.
Core Product Features
The GE IC660HHM501 adopts professional industrial handheld architecture. It solves complex debugging and inconvenient on-site operation problems. It greatly improves industrial maintenance efficiency.
- Portable Handheld Design: Lightweight and compact body. It supports handheld carrying and flexible on-site operation.
- Real-Time Data Monitoring: It displays field I/O status and operating parameters in real time. It helps staff judge equipment conditions quickly.
- On-Site Fault Diagnosis: It supports point-to-point I/O testing. It accurately locates circuit and module faults on site.
- Genius Bus Compatibility: It matches GE Genius I/O bus protocol perfectly. It achieves fast device docking and communication.
- Simple Human-Machine Operation: Clear keys and intuitive display. It reduces on-site operation difficulty and learning cost.
- Industrial Drop Resistance: Reinforced shell structure. It adapts frequent carrying and accidental collision on site.
- Strong Anti-Interference Ability: Internal shielding design. It works stably in electromagnetic interference environments.
- Long Service Life: Industrial-grade components and durable keys. It supports long-term repeated on-site use.
Detailed Technical Specifications
All technical parameters comply with GE industrial control standards. Each unit passes strict function testing and aging screening before delivery.
- Official Model: IC660HHM501
- Product Type: Industrial Handheld Monitor & Debug Terminal
- Applicable System: GE Genius I/O Distributed Control System
- Core Function: On-site data monitoring, I/O point testing, fault diagnosis, system debugging
- Communication Mode: Standard Genius bus communication
- Operation Mode: Manual key operation with real-time screen display
- Shell Feature: Industrial reinforced drop-proof and wear-resistant shell
- Rated Power Supply: Standard industrial bus power supply
- Operating Temperature Range: -20°C to +70°C
- Storage Temperature Range: -40°C to +85°C
- Working Humidity: 5%–95% RH, non-condensing environment
- Using Scene: On-site mobile debugging and maintenance
- Continuous Working Performance: Stable output for long-time on-site debugging
- Industrial Certification: CE, UL and EMC electromagnetic compatibility certification
Main Application Fields
This handheld debugging terminal focuses on on-site industrial maintenance scenarios. It provides efficient and convenient technical support for system operation.
- On-Site System Debugging: It debugs Genius I/O distributed systems. It verifies I/O point status and signal validity during project commissioning.
- Industrial Equipment Maintenance: It assists daily inspection of automation equipment. It quickly checks abnormal signal and module faults.
- Factory Automation Control: It applies to production line distributed control systems. It supports on-site parameter confirmation and adjustment.
- Old System Renovation & Inspection: It detects aging Genius system modules. It provides data basis for equipment upgrade and replacement.
- Engineering Spare Tool: It serves as special debugging tool for GE system. It shortens maintenance time and improves work efficiency.
Related Model Recommendations
The following GE series models are fully compatible with IC660HHM501. They meet system matching, debugging and functional expansion needs.
- IC660BBD020: Genius discrete I/O module. It cooperates with handheld terminals for on-site signal testing and diagnosis.
- IC660BBA026: Genius analog I/O module. It supports analog signal debugging and parameter calibration with HHM terminals.
- IC695CPU315-BB: RX3i series CPU module. It matches Genius system to build complete control and debugging solutions.
- IC695ETM001: High-speed Ethernet module. It assists remote monitoring based on on-site handheld debugging data.
