1. Product Overview

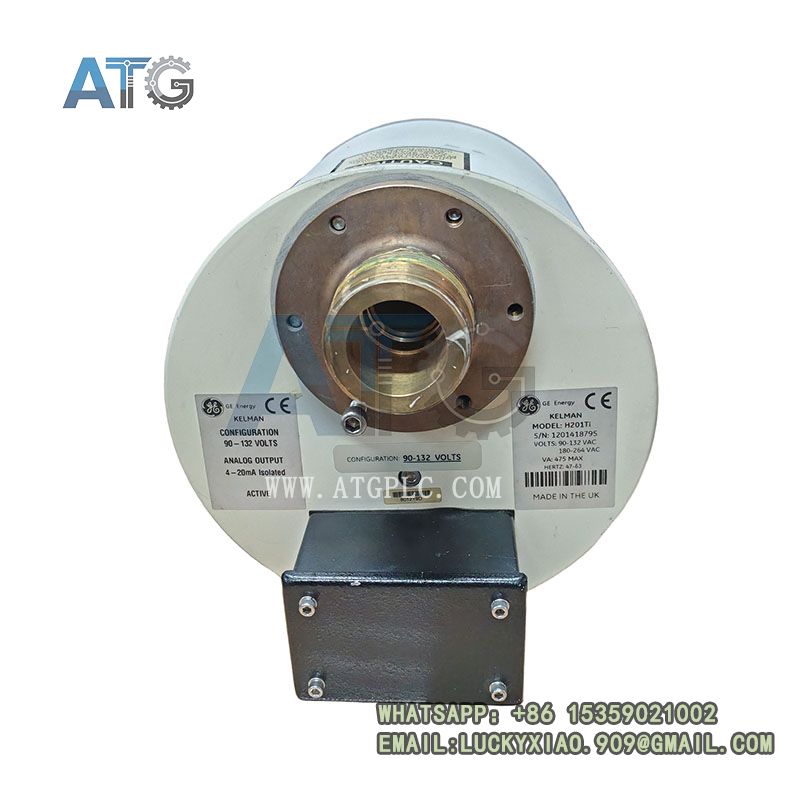

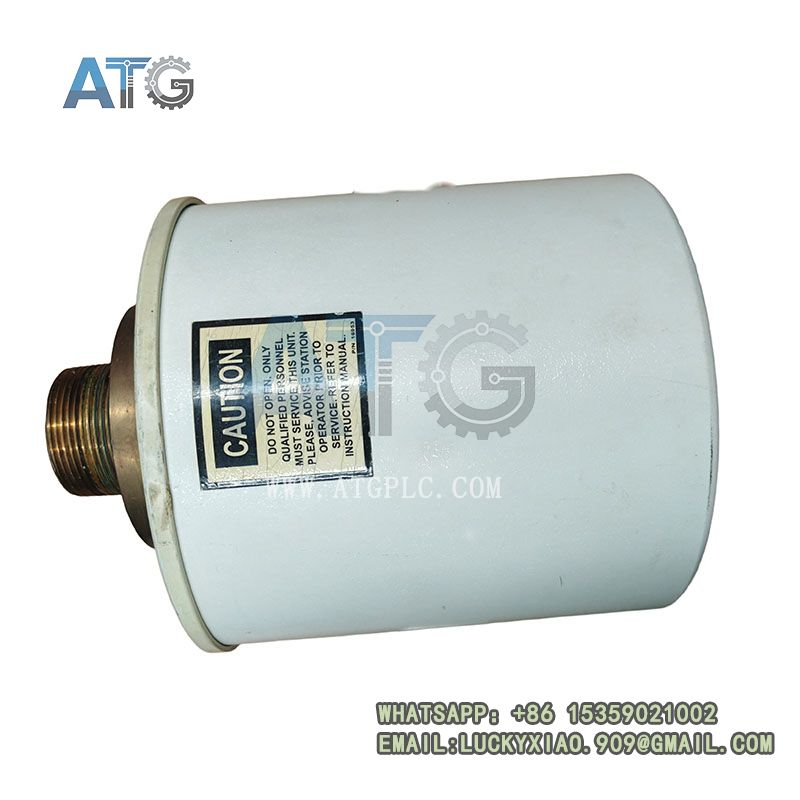

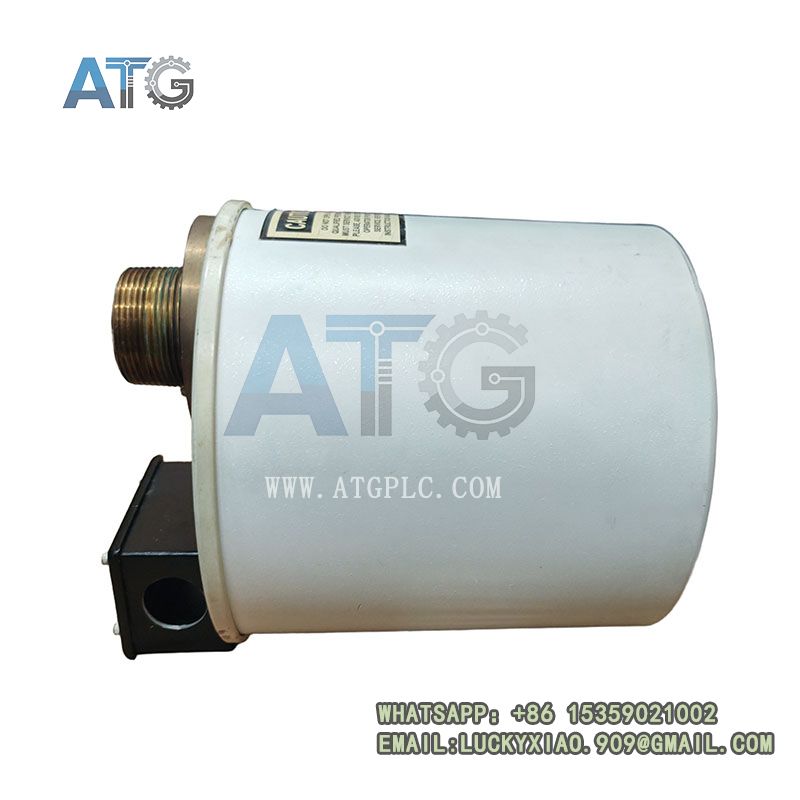

The GE HYDRAN 201TI is a compact, high-reliability online Dissolved Gas-in-Oil Analysis (DGA) monitor developed by GE Vernova Grid Solutions. Designed specifically for power transformer health monitoring, this intelligent transmitter delivers continuous real-time detection of composite fault gases in transformer oil. It serves as the first-line safety early warning device for power grid transformers and industrial oil-filled power equipment. It effectively identifies potential internal faults such as overheating, discharge and insulation aging. It helps engineering teams detect hidden risks in advance and avoid unplanned power outages and equipment damage.
Traditional transformer maintenance relies heavily on periodic offline oil sampling and laboratory testing. This method has obvious drawbacks. It features long testing cycles, delayed data feedback and inability to capture sudden transient faults. Many potential equipment anomalies cannot be detected in real time between sampling intervals. In addition, manual sampling and laboratory analysis consume large manpower and material resources, raising operational costs. In contrast, the GE HYDRAN 201TI supports 24/7 online uninterrupted monitoring. It adopts high-precision composite gas sensing technology without manual intervention. Each unit passes strict environmental aging testing, precision calibration and long-term operational verification before factory delivery. It has become a mainstream upgrading device for transformer intelligent monitoring systems, old equipment renovation and global industrial e-commerce standardized procurement.
2. Core Product Features & Competitive Advantages
Power transformers are core assets of power systems. Their operational stability directly determines grid safety and power supply reliability. Continuous online gas monitoring is essential for early fault warning and equipment life management. As a professional dedicated DGA monitor, the GE HYDRAN 201TI optimizes sensing performance, structural installation and system compatibility in all dimensions. It provides accurate, stable and low-cost health monitoring solutions for oil-filled power equipment.
-
Real-Time Composite Fault Gas Monitoring: Equipped with high-sensitivity permeable membrane gas sensing technology. It continuously detects composite fault gas concentration dissolved in transformer oil. It covers key fault gases generated by equipment overheating, partial discharge and insulation decomposition. It realizes all-weather real-time risk perception.
-
Professional IEEE Standard Compliance: All monitoring data and early warning logic fully comply with IEEE C57.104 industrial standard. The detection results are accurate and authoritative. It can be directly used for transformer health assessment and power system operation analysis.
-
Compact & Easy Installation Design: Adopts miniaturized integrated structure with small size and light weight. It supports direct fixed installation on transformer equipment. It requires no complex oil pipeline transformation or large-scale construction. It greatly shortens project deployment cycle.
-
High-Precision Stable Detection Performance: Features professional-level detection accuracy with stable output data. It effectively filters environmental interference signals. It avoids false alarms and missed alarms, ensuring reliable fault early warning for power equipment.
-
Diversified Industrial Signal Output: Integrates standard 4-20mA isolated analog output and relay alarm contacts. It supports real-time gas value output and threshold alarm linkage. It can directly dock with industrial control and monitoring systems.
-
Standard Modbus Communication Protocol: Built-in RS-485 serial communication interface compatible with Modbus protocol. It supports remote data transmission, real-time parameter viewing and remote equipment status monitoring. It adapts to intelligent power grid SCADA and DCS system architectures.
-
Low Maintenance & Long Service Life: The sensor adopts durable permeable membrane structure with no vulnerable consumable parts. It supports long-term uninterrupted online operation. It eliminates frequent calibration and maintenance work, reducing daily operational costs.
-
Strong On-Site Environmental Adaptability: Industrial-grade component selection and optimized structural design adapt to substation outdoor and harsh workshop environments. It resists temperature changes, dust and slight electromagnetic interference to ensure stable long-term operation.
-
Optional Remote Display Repeater: Supports matching external display repeater module. It solves the problem of inconvenient observation caused by high equipment installation. It facilitates on-site staff to quickly view real-time gas monitoring data.
-
Zero Manual Intervention Operation: After one-time installation and calibration, the device runs automatically all year round. It requires no regular manual sampling and debugging. It realizes fully intelligent unattended monitoring.
3. Detailed Segmented Technical Specifications
The GE HYDRAN 201TI strictly complies with GE Vernova original factory industrial standards and IEEE power equipment monitoring specifications. All detection performance, electrical parameters, communication indicators and environmental resistance capabilities pass professional laboratory testing and field verification. The classified detailed parameters below support accurate model selection, engineering design and standardized batch procurement.
3.1 Basic Product & Application Parameters
The GE HYDRAN 201TI is a compact online DGA intelligent transmitter. It focuses on real-time composite fault gas monitoring and early warning for oil-filled power transformers.
-
Official Product Model: HYDRAN 201TI
-
Product Category: Online Dissolved Gas-in-Oil Analysis (DGA) Monitor / Transformer Fault Gas Detector
-
Manufacturer: GE Vernova (GE Grid Solutions)
-
Core Technology: Permeable membrane composite gas sensing detection technology
-
Core Functions: Real-time dissolved composite gas monitoring, gas concentration data output, threshold alarm trigger and remote data communication transmission
-
Applicable Equipment: Oil-immersed power transformers, high-voltage oil-filled reactors and industrial oil-filled power equipment
-
Installation Method: Direct on-site fixed installation matching transformer equipment interface
-
Application Scenarios: Power grid substation equipment monitoring, industrial high-voltage transformer operation management, power equipment intelligent upgrading and safety early warning system construction
-
Executive Standards: IEEE C57.104 industrial standard, GE original factory technical specifications and power industry safety monitoring standards
3.2 Core Detection Performance Parameters
High-precision sensing configuration ensures accurate and sensitive fault gas detection, meeting the high-standard safety monitoring demands of power equipment.
-
Detection Gas Type: Composite fault gas (mainly hydrogen-based mixed fault gas)
-
Detection Range: 0–2000 ppm (H₂ equivalent volume ratio)
-
Detection Accuracy: ±10% of reading or ±25 ppm (H₂ equivalent), whichever is greater
-
Monitoring Mode: 24/7 continuous online real-time monitoring
-
Early Warning Logic: Supports custom threshold setting for fault gas concentration linkage alarm
3.3 Electrical & Power Parameters
Wide adaptive power supply design adapts to complex substation power environments and ensures stable equipment operation.
-
Rated Working Voltage: 115–230 VAC, 50/60Hz industrial universal power supply
-
Rated Power Consumption: 40W low-power stable operation
-
Output Signal: Standard isolated 4-20mA analog signal (corresponding to gas concentration)
-
Alarm Output: Multi-group relay contact alarm output, supporting upper system linkage
3.4 Communication & Expansion Parameters
Standard industrial communication configuration supports seamless docking with power monitoring systems and intelligent platform data interaction.
-
Communication Interface: Built-in RS-485 serial communication port
-
Communication Protocol: Standard Modbus RTU industrial protocol
-
Remote Functions: Real-time data upload, remote parameter query and equipment status monitoring
-
Expansion Configuration: Supports external matching display repeater module for on-site data viewing
-
System Compatibility: Fully compatible with power SCADA, DCS and industrial upper computer monitoring systems
3.5 Mechanical & Structural Parameters
Compact integrated structural design simplifies on-site installation and adapts to various transformer deployment environments.
-
Structure Type: Miniaturized integrated industrial waterproof and dustproof structure
-
Protection Grade: IP20 industrial protection rating
-
Installation Feature: Matching professional transformer interface, convenient and quick fixed installation
-
Structural Advantage: No complex pipeline layout, low on-site construction difficulty
3.6 Environmental Adaptability Parameters
After strict extreme environment simulation testing, the device maintains full-performance stable operation in substation outdoor and industrial harsh environments.
-
Full-Load Operating Temperature: 0°C to +50°C stable continuous operation
-
Working Altitude: Maximum 2000 meters adaptive operation
-
Working Air Pressure: 760–1040 millibar standard environmental pressure adaptation
-
Environmental Resistance: Resists industrial dust, conventional humidity and on-site electromagnetic interference
-
Continuous Operation Capacity: Supports long-term 7×24-hour uninterrupted online monitoring
3.7 Factory Testing & Quality Certification
Every GE HYDRAN 201TI monitor is manufactured under GE Vernova’s strict industrial quality control system. All units complete full-function testing, precision calibration and environmental aging screening before delivery to meet power industry high-reliability standards.
-
Core Testing Items: Gas detection accuracy calibration, signal stability test, communication compatibility test, temperature cycle test and long-term aging operation test
-
Quality Inspection Standard: 100% full-function test + full precision calibration + complete test data filing
-
Authoritative Certification: Power industry safety certification, EMC electromagnetic compatibility certification and IEEE standard compliance certification
-
Field Operation Reliability: Widely deployed in global power grid and industrial power projects with ultra-low failure rate and stable long-term monitoring performance
4. E-commerce Sales Mode & Complete Procurement Advantages
As a core intelligent monitoring device for power transformer safety, the GE HYDRAN 201TI adopts standardized, transparent and efficient global industrial e-commerce sales mode. It focuses on power grid equipment maintenance, old transformer monitoring system upgrading and power enterprise strategic spare parts reserve. It provides one-stop standardized procurement and full-cycle professional technical services for power engineering integrators and industrial power enterprises.
4.1 Standardized Transparent E-commerce System
All GE HYDRAN 201TI products adopt unified original factory production and full-process standardized testing. The whole production, precision calibration and warehousing process is fully traceable. E-commerce platforms openly display complete product datasheets, detection performance test reports and official qualification certificates. Customers can verify product authenticity, monitoring accuracy and system matching performance online. This transparent sales mechanism effectively avoids refurbished and inferior monitoring devices. It fully guarantees the safety and stability of power equipment monitoring systems.
4.2 Diversified Flexible Procurement Modes
Power equipment emergency maintenance, daily spare parts stocking and large-scale power grid intelligent renovation projects have different procurement demands. To cover all power industry application scenarios, we provide flexible multi-dimensional procurement solutions for the GE HYDRAN 201TI.
-
Emergency Spot Procurement: Suitable for on-site monitor failure, aging damage and emergency replacement. Sufficient global spot inventory supports fast delivery. It helps power stations quickly restore transformer online monitoring functions and avoid hidden safety hazards and power supply risks.
-
Small-Batch Spare Parts Stocking: Ideal for power grid substations and industrial power departments to build professional monitoring equipment spare parts inventory. Pre-storing this device improves on-site fault emergency response speed and reduces transformer operational risks.
-
Large-Batch Engineering Procurement: Provide exclusive preferential pricing and long-term framework cooperation services for large-scale power grid intelligent upgrading and transformer monitoring system reconstruction projects. It effectively reduces overall project procurement costs and shortens equipment installation and commissioning cycles.
4.3 Full-Cycle After-Sales Service Guarantee
The transformer DGA monitor is the key early warning barrier for power equipment safety. Its monitoring accuracy and operational stability directly affect power grid operational safety. We provide comprehensive full-cycle after-sales protection to eliminate all customer procurement risks.
-
100% Original Genuine Guarantee: All monitors are brand-new original GE Vernova products with complete factory test reports and qualification documents, ensuring 100% detection performance and system compatibility.
-
Professional Industrial Packaging: Adopt multi-layer anti-collision, shockproof, moisture-proof and dust-proof industrial packaging. It protects internal precision sensors and circuits from damage during long-distance transportation and storage.
-
24/7 Professional Technical Support: Provide pre-sales model matching consultation, in-sales installation and calibration guidance, and after-sales fault diagnosis and performance debugging services.
-
Long-Term Official Warranty Service: Enjoy unified official warranty coverage. Free maintenance and replacement services are provided for non-human-induced quality faults to reduce power equipment operation and maintenance costs.
5. Main Industrial Application Scenarios
Relying on its real-time online DGA monitoring, high detection accuracy, low maintenance and strong system compatibility, the GE HYDRAN 201TI is widely used in core safety monitoring links of various oil-filled power equipment.
-
Power Grid Substation Transformers: Applied to real-time fault gas monitoring of substation core transformers. It provides accurate early warning of internal equipment faults to ensure stable and safe power grid operation.
-
Industrial High-Voltage Power Equipment: Serves as safety monitoring equipment for oil-immersed transformers and reactors in industrial parks, chemical enterprises and manufacturing plants. It avoids equipment failure caused by hidden insulation faults.
-
Power Equipment Intelligent Upgrading: Used for renovation of old transformers relying on manual sampling detection. It realizes automatic online monitoring and improves the intelligent level of power equipment operation and maintenance.
-
Power Safety Early Warning System Construction: Matches power grid intelligent monitoring platforms. It provides continuous and reliable data support for equipment health assessment, fault analysis and predictive maintenance.
6. Product Value & Market Competitiveness
The GE HYDRAN 201TI solves common industry pain points of traditional transformer monitoring methods, such as delayed offline detection, high manual cost and inability to perceive transient faults. It integrates real-time online DGA monitoring, IEEE standard compliance, low-maintenance design and diversified signal output functions. It comprehensively improves the timeliness and accuracy of power transformer fault early warning.
In the global power equipment spare parts e-commerce market, the GE HYDRAN 201TI has outstanding differentiated competitiveness. It features compact deployment, stable field performance, low long-term operational cost and authoritative standard certification. Combined with standardized genuine procurement, complete qualification documents and full-cycle professional after-sales services, it is the preferred online monitoring device for power transformer daily operation, intelligent upgrading and enterprise strategic spare parts reserve.
