Description
- Model: HE693STG884D
- Brand: General Electric (GE)
- Series: GE Series 90-30 PLC System Series
- Core Function: Collects strain gauge signals for precise weight and force measurement
- Type: Strain Gauge Weight Measurement Input Module
- Key Specs: 8-channel high-precision input, 16-bit resolution, ±25/±50/±100mV range
- Supply Status: In stock
- Stock: Available
- Warranty: 1 year
- Ship From: China

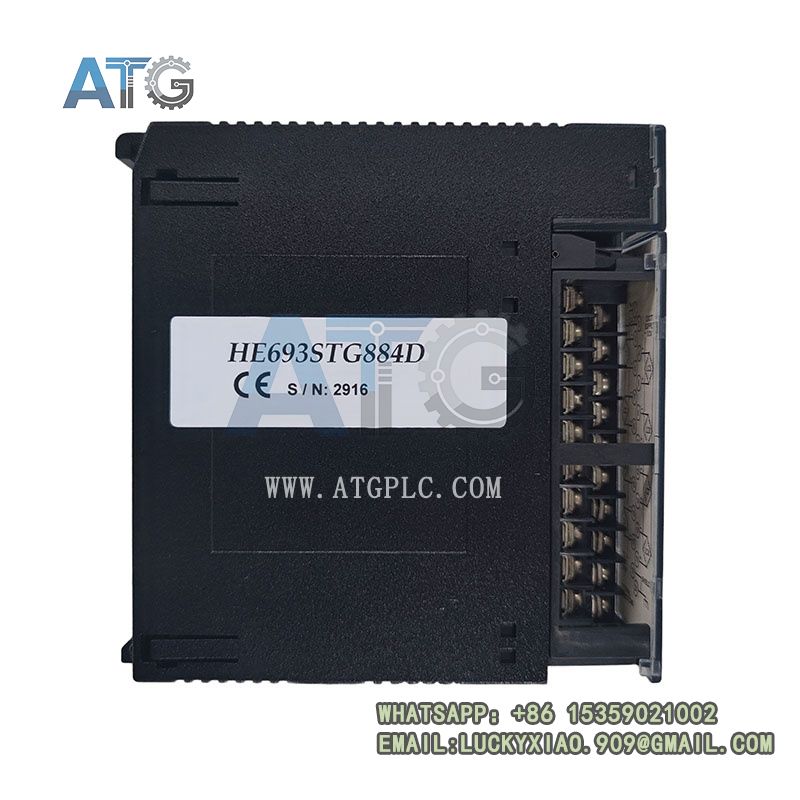

GE HE693STG884D
Product System Overview
The GE HE693STG884D is a professional high-precision strain gauge input module developed by General Electric, exclusively designed for the GE Series 90-30 PLC industrial control system. As a dedicated weight and force signal acquisition component, it directly connects to bridge-type strain gauge sensors without external signal conversion equipment, simplifying industrial weighing and force monitoring system construction. This module perfectly matches Series 90-30 PLC main units, conventional I/O modules and communication accessories to build a complete high-precision industrial measurement and automatic control system. It effectively solves the problems of low precision and complex wiring of traditional analog acquisition methods, improving the overall accuracy of industrial weight detection and force monitoring. Widely applied in material batching, industrial weighing, mechanical stress testing and automated production monitoring scenarios, it is an ideal replacement part for old system renovation, precision measurement module upgrading and on-site equipment maintenance.
Core Product Functions
This high-precision strain gauge module undertakes core functions of strain signal acquisition, precision conversion and data output for industrial weighing and force monitoring systems. It supports 8 independent signal input channels, compatible with multiple millivolt-level signal ranges including ±25mV, ±50mV and ±100mV, adapting to different types of strain gauge sensors and measurement scenarios. Equipped with 16-bit high-resolution analog-to-digital conversion technology, it accurately converts tiny strain and weight changes into identifiable digital data for PLC system analysis and calculation. The module integrates built-in signal amplification, filtering and noise reduction functions to eliminate on-site electromagnetic interference and signal drift, ensuring stable and reliable measurement data. It supports real-time data uploading and continuous sampling, providing accurate data support for automatic batching control, weight monitoring, mechanical stress analysis and equipment operating status judgment in industrial production.

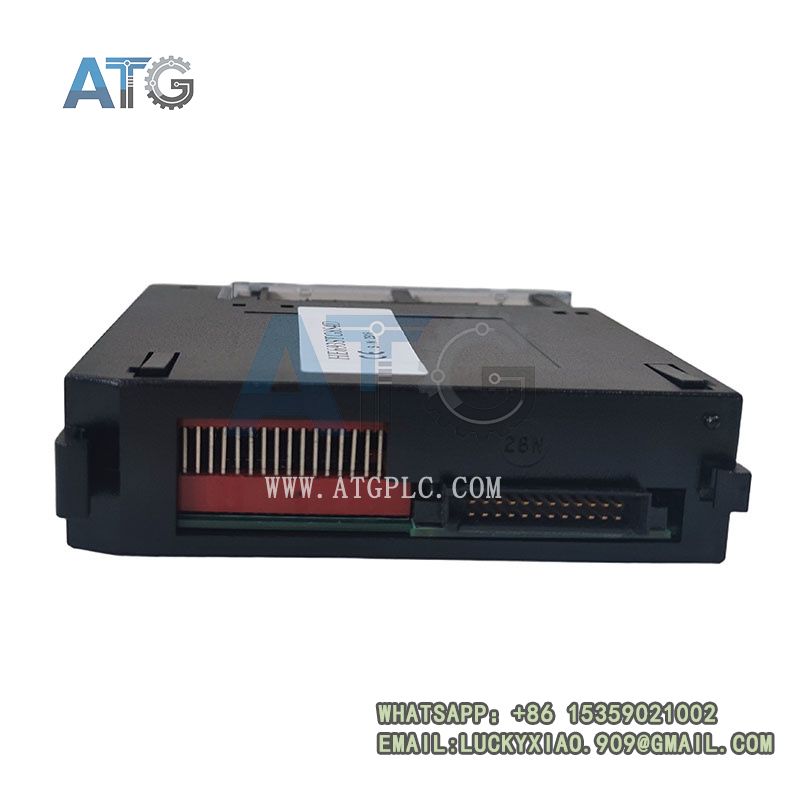

GE HE693STG884D
Product Features & Technical Advantages
The GE HE693STG884D strain gauge measurement module features ultra-high measurement accuracy, multi-scenario adaptability and excellent industrial stability, meeting stringent precision detection requirements of automated industrial systems. Adopting 16-bit high-resolution sampling design, it captures subtle strain changes that ordinary analog modules cannot identify, greatly improving industrial weighing and force detection accuracy. The multi-range adjustable input design supports flexible matching with various strain sensors, with strong functional scalability and scene compatibility. It eliminates the need for external transmitters and signal conditioning equipment, simplifying on-site wiring structure and reducing auxiliary equipment costs. The industrial-grade anti-interference circuit and optimized algorithm effectively suppress power fluctuation and electromagnetic clutter interference, ensuring long-term stable measurement results. The standardized plug-and-play structure is highly compatible with GE 90-30 PLC racks, supporting quick installation and replacement and reducing system debugging and maintenance cycle.
Industrial Application Scenarios
This high-reliability strain gauge input module is widely deployed in industrial scenarios requiring high-precision weight measurement and mechanical strain monitoring. It is mainly applicable to automated batching production lines, industrial platform weighing systems, mechanical equipment stress testing, building material detection and packaging automation industries. It provides professional high-precision signal acquisition and data processing support for strain gauges, weight sensors and force detection equipment. As an indispensable precision measurement component of the GE Series 90-30 PLC system, it effectively improves the refinement level of industrial production detection and automatic control, reduces production errors caused by inaccurate measurement, and ensures stable and efficient operation of automated production and precision detection systems.

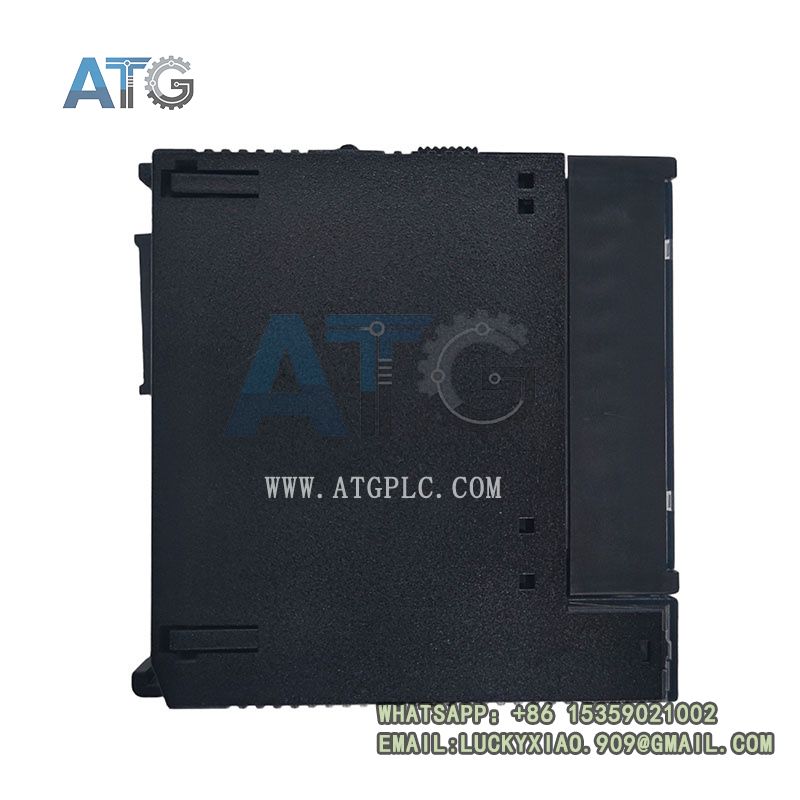

GE HE693STG884D
