The GE DS3800XTFP1E1C is a high-performance analog signal termination and filter board within the GE DS3800 series. This series belongs to the Speedtronic turbine control family. It works as a front-end signal conditioning unit for GE Mark IV and Mark V turbine control systems. The board collects raw field analog signals. It filters electrical noise and stabilizes signal quality before sending data to the main controller.
Field sensors in turbine sites often deliver noisy analog signals. Power loop interference and electromagnetic noise easily distort measurement values. Unfiltered signals cause unstable control actions or false system alarms. Many generic replacement boards cannot match the original impedance and filter parameters. They introduce signal offset and fail to integrate smoothly with the turbine control rack. To address these operational risks, the GE DS3800XTFP1E1C uses dedicated passive filter circuits and precision termination resistors. Every board passes signal accuracy testing and full-load aging before shipment. It serves as original spare hardware for turbine maintenance and retrofit projects, and fully supports global industrial e-commerce procurement.
Core Product Features & Competitive Advantages
Signal integrity directly decides the reliability of turbine closed-loop control. Ordinary signal boards use simple circuits. They cannot suppress high-frequency interference in heavy industrial environments. In contrast, the GE DS3800XTFP1E1C focuses on signal filtering and impedance matching. It delivers steady and clean analog inputs for the turbine control system.
- Precision Analog Signal Filtering: Built-in multi-stage passive filter network. It removes high-frequency electromagnetic noise from sensor analog inputs. It reduces signal jitter effectively.
- Accurate Impedance Termination Design: Matches standard field sensor impedance. It prevents signal reflection and maintains measurement accuracy over long cable runs.
- Multi-Channel Signal Input Support: Accepts multiple analog input signals from pressure, temperature and vibration transmitters. It centralizes signal preprocessing for the turbine rack.
- Original Speedtronic Rack Compatibility: Designed for GE DS3800 rack structure. It fits standard card slots directly without mechanical modification.
- Strong Electromagnetic Interference Resistance: Optimized PCB layout and grounding design. It works reliably near large motors and high-power drive units.
- Full-Board Conformal Coating: The whole printed circuit board receives protective coating. It defends against dust, moisture and mild corrosive gas in turbine enclosures.
- Stable Low-Drift Circuitry: Uses high-precision, low-temperature-drift components. It keeps signal offset minimal under changing cabinet temperatures.
- Easy Field Replacement: Standard card form factor supports quick swap during planned or emergency maintenance. It cuts system downtime significantly.

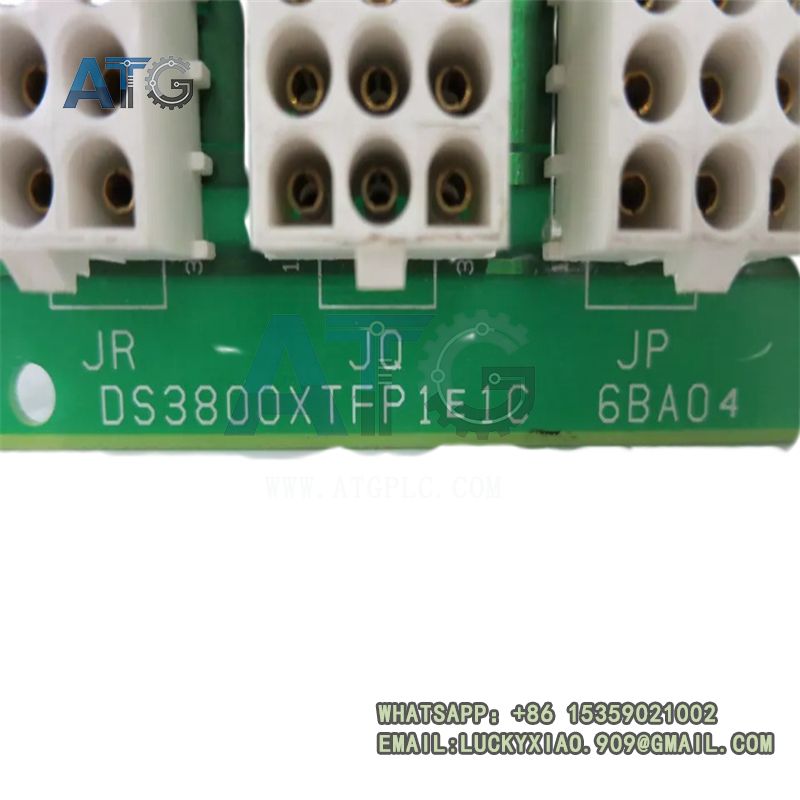

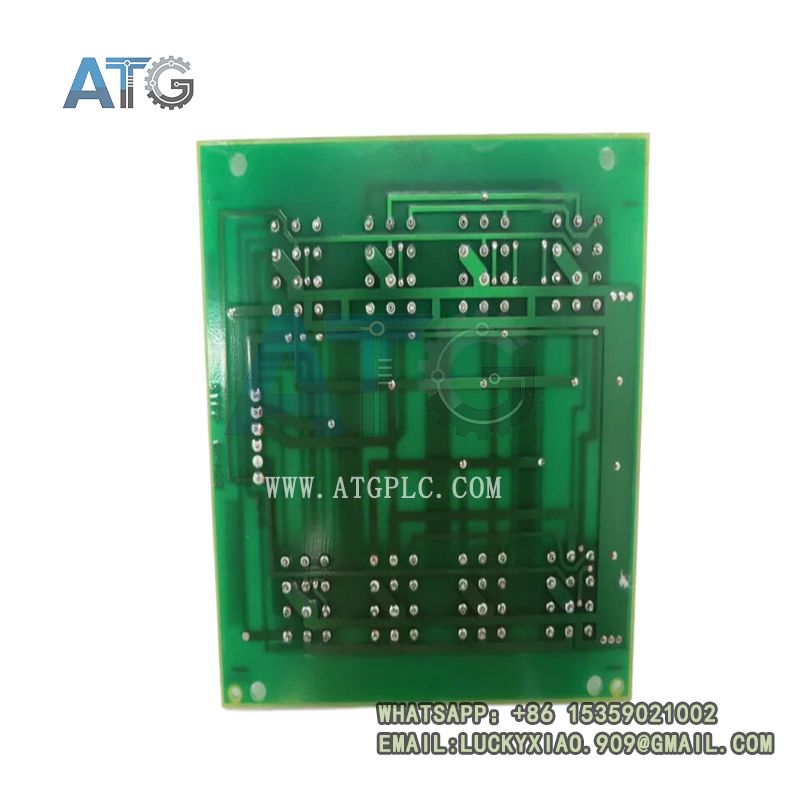

GE DS3800XTFP1E1C
Detailed Segmented Technical Specifications
The GE DS3800XTFP1E1C follows GE Speedtronic original design standards and power generation industry requirements. Its signal characteristics, electrical ratings and environmental limits have passed laboratory validation and long-term field operation. The grouped parameters below help users select parts, plan retrofits and arrange bulk procurement.
3.1 Basic Product & Application Parameters
This unit is an analog termination and filter board for GE Speedtronic turbine control racks. It sits between field analog sensors and the main control processor.
- Official Product Model: DS3800XTFP1E1C
- Product Category: Analog Termination & Signal Filter Board
- Manufacturer: General Electric (GE)
- Core Product Positioning: Analog signal filtering, impedance termination, noise suppression, front-end signal conditioning
- Fully Compatible Systems: GE Speedtronic Mark IV, Mark V Turbine Control Systems, DS3800 series rack
- Installation Method: Standard plug-in card slot mounting in DS3800 control rack
- Core Application Scenarios: Gas / steam turbine control maintenance, analog signal channel repair, control system retrofit, spare part stock preparation
- Implementation Standards: GE original power generation specifications, IEC EMC standards, CE/UL industrial certification
3.2 Signal & Filter Parameters
The board uses passive filter circuits to condition analog signals. It preserves true measurement values while rejecting unwanted noise.
- Supported Signal Type: Industry standard analog sensor signals
- Filter Type: Multi-stage passive low-pass filter
- Core Function: High-frequency noise suppression and line impedance matching
- Signal Drift Performance: Low temperature drift design to maintain measurement consistency
- Channel Feature: Independent channel conditioning to reduce crosstalk between sensor signals
3.3 Electrical & Power Parameters
The board draws low power from the control rack power supply. It operates steadily under typical turbine cabinet power conditions.
- Rated Working Power: Powered by DS3800 rack internal power bus
- Circuit Design: Passive filter network with low power consumption
- Protection Design: Built-in transient voltage suppression components against voltage spikes
- Signal Isolation: Channel-level noise isolation to limit cross-channel interference
3.4 Mechanical & Structural Parameters
It adopts the standard form factor for DS3800 series plug-in boards. The physical size matches the original rack slots perfectly.
- Structural Type: Plug-in printed circuit board for industrial control rack
- Installation Method: Card edge connector insertion into rack backplane
- Surface Protection: Full-board conformal coating for moisture and dust protection
- Mechanical Resistance: Reinforced soldering to withstand cabinet vibration
3.5 Environmental Adaptability Parameters
The board undergoes thermal cycle and vibration testing. It can sustain continuous operation inside turbine control cabinets.
- Full-Load Operating Temperature Range: -20°C to +70°C stable continuous operation
- Storage Temperature Range: -40°C to +85°C
- Working Humidity Range: 5%–95% RH non-condensing
- Environmental Resistance: Resists dust, temperature cycling and mild industrial corrosive vapors
- Continuous Operation Capacity: Supports 7×24-hour full-time operation
3.6 Factory Testing & Quality Certification
All GE DS3800XTFP1E1C boards follow strict GE quality control rules. Each unit completes signal accuracy check and aging screening before delivery.
- Core Factory Test Items: Signal filtering performance test, impedance matching verification, continuity check, high-low temperature aging test, vibration test
- Quality Inspection Standard: 100% functional testing + parameter calibration + test record archiving
- Authoritative Qualification Certification: CE, UL and IEC EMC compliance certification
- Field Operation Performance: Widely deployed in global gas and steam turbine control systems with low failure rate
GE DS3800XTFP1E1C
E-commerce Sales Mode & Complete Procurement Advantages
As a front-end signal conditioning spare part for GE Speedtronic turbine control racks, the GE uses standardized, transparent global industrial e-commerce sales. It mainly serves power plant turbine maintenance, control system retrofits and strategic spare inventory building. It delivers one-stop procurement and full-cycle technical service for power EPC contractors and energy operators.
4.1 Standardized Transparent E-commerce System
Every product comes with standardized factory testing records. Production, calibration and warehousing steps are traceable. E-commerce platforms publish datasheets, test reports and qualification documents openly. Buyers can verify authenticity and signal performance online. This open model helps customers avoid refurbished or incompatible substitute boards. It protects the stable operation of turbine control systems.
4.2 Diversified Flexible Procurement Modes
Power plant maintenance and upgrade projects have different timelines and order volumes. We provide three procurement solutions to fit different power industry scenarios.
- Emergency Spot Procurement: Suitable for sudden analog channel faults or signal noise alarms. Available stock enables fast shipment. It helps power plants restore turbine control loops quickly and reduce outage losses.
- Small-Batch Spare Parts Stocking: Ideal for power plants to build dedicated rack spare inventory. Pre-stocking this filter board shortens response time for future maintenance work.
- Large-Batch Engineering Procurement: Offers preferential pricing and long-term framework agreements for large turbine retrofit projects. It lowers overall project spare part cost.
4.3 Full-Cycle After-Sales Service Guarantee
Signal conditioning boards directly affect measurement quality and turbine control stability. Poor signal integrity may trigger turbine trips. We provide complete after-sales protection to reduce procurement risk.
- 100% Original Genuine Guarantee: Boards are genuine GE products with complete factory documentation. They guarantee full rack compatibility and original signal performance.
- Professional Industrial Packaging: Anti-static, shockproof and moisture-proof packaging protects delicate PCB components during transit and storage.
- 24/7 Professional Technical Support: Pre-sales model verification, on-site replacement guidance, post-sales fault diagnosis and technical docking available.
- Long-Term Warranty Service: Unified warranty coverage. Free repair or replacement applies to non-human-caused quality defects to cut plant maintenance expense.
GE DS3800XTFP1E1C
Main Industrial Application Scenarios
With reliable noise filtering, precise termination and rack compatibility, this board works widely in maintenance and upgrade projects of GE Speedtronic turbine control systems.
- Turbine Analog Signal Front-End Conditioning: Filters raw analog signals from pressure, temperature and vibration transmitters for gas and steam turbine controllers.
- Damaged Board Direct Replacement: Replaces failed original termination boards. It restores clean signal paths without modifying control logic or rack wiring.
- Control System Retrofit & Upgrade: Used during turbine control system modernization. It stabilizes analog measurement channels for upgraded control racks.
- Power Plant Spare Part Reserve: Stored as critical spare hardware to prepare for unexpected analog channel faults in generation units.
Product Value & Market Competitiveness
The GE solves common pain points of turbine analog signal circuits. These issues include high-frequency noise, signal reflection and measurement drift caused by mismatched termination. It focuses on front-end signal purification. It improves measurement reliability for Mark IV and Mark V turbine control systems.
Within the global power spare parts e-commerce market, this termination and filter board holds clear competitive advantages. It features original rack compatibility, dedicated passive filter design and strong vibration and humidity resistance. Combined with genuine product guarantee, complete documentation and full-cycle technical support, it is the preferred original replacement spare part for GE Speedtronic turbine control maintenance and retrofit.
