Description
- Model: DS200TCQCG1BGF
- Brand: General Electric (GE)
- Series: DS200 Mark V Turbine Control System Series
- Core Function: Expands analog I/O and processes turbine field signals stably
- Type: Analog I/O Expander Control Board
- Key Specs: 8 isolated analog input channels, ±0.05% high precision, multi-signal range support
- Supply Status: In stock
- Stock: Available
- Warranty: 1 year
- Ship From: China

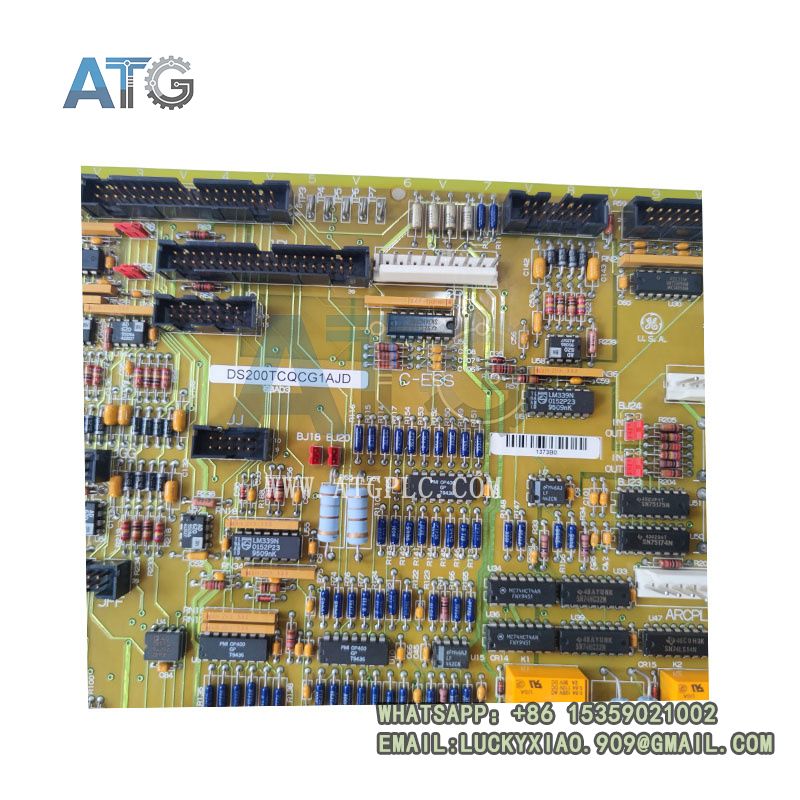

DS200TCQCG1BGF
Product System Overview
The GE DS200TCQCG1BGF is a high-precision analog I/O expander board designed exclusively for the GE DS200 Mark V turbine control system. Serving as a vital extended signal processing component, it compensates for insufficient native I/O resources of basic turbine control racks and expands the system’s field signal acquisition capacity. This board operates in synergy with Mark V series main control boards, power supply modules and signal processing units to build a complete, high-precision turbine operation monitoring and closed-loop control system. Optimized for extreme power plant operating environments, it supports long-term stable collection and conversion of various field analog signals, effectively solving signal loss and monitoring dead zone issues in complex industrial monitoring scenarios. It is widely applied in thermal power plants, combined cycle power stations and energy generation projects, serving as a reliable solution for system function expansion, equipment performance upgrading and aging circuit board replacement.
Core Product Functions
This professional analog I/O expander board undertakes multi-channel analog signal acquisition, precision conditioning and data transmission for industrial turbine control systems. It features 8 fully isolated analog input channels, supporting mainstream industrial signal ranges including 0-5V, ±5V and 0-20mA, and is compatible with various on-site temperature, pressure, vibration and flow sensors. The board converts collected weak field analog signals into standard digital data that the main control system can identify, ensuring accurate and real-time transmission of turbine operating parameters. It integrates precise signal filtering and error correction functions to eliminate on-site clutter interference and signal distortion. Meanwhile, it assists the main control unit in completing operating data analysis, equipment status judgment and abnormal condition feedback, providing comprehensive and accurate data support for turbine unit operation regulation, fault early warning and daily maintenance management.

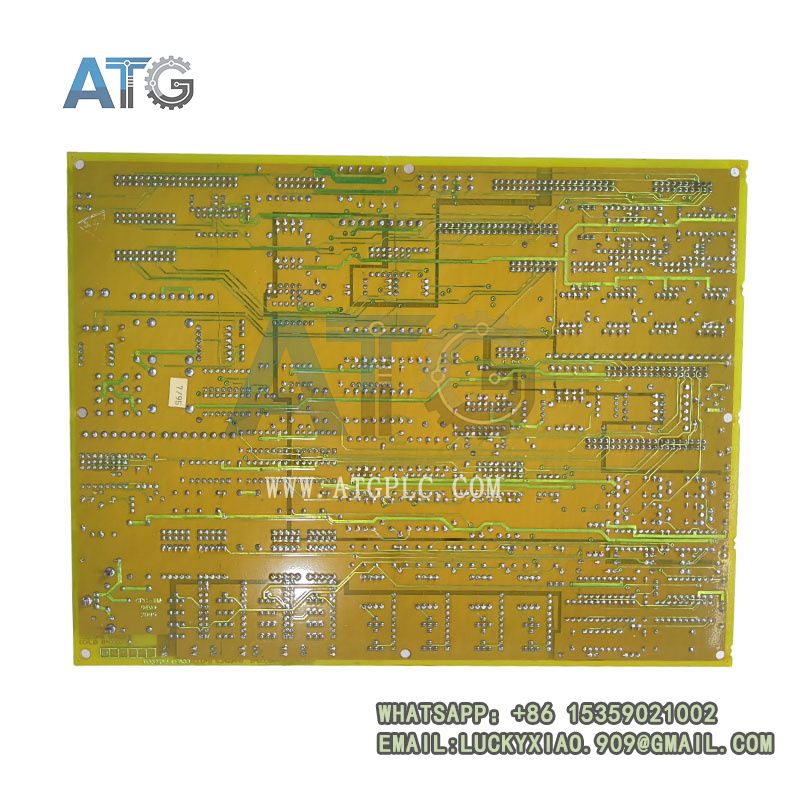

DS200TCQCG1BGF
Product Features & Technical Advantages
The GE DS200TCQCG1BGF analog expander board boasts ultra-high measurement accuracy, excellent signal isolation performance and rugged industrial durability, meeting stringent long-term operation requirements of power generation control systems. With a full-scale accuracy of ±0.05% and 24-bit high-resolution signal processing, it delivers extremely precise data acquisition results and low signal drift, ensuring consistent monitoring accuracy during long-term operation. Independent channel isolation design effectively prevents crosstalk and interference between different signal channels, greatly enhancing the system’s anti-interference capability in high-electromagnetic industrial environments. Adopting industrial-grade component layout and wide-temperature hardware design, it stably operates within -40°C to +85°C, adapting to harsh power plant temperature changes and mechanical vibration. The standardized rack-mounted structure achieves seamless compatibility with Mark V system racks, supporting plug-and-play installation and quick replacement to simplify on-site maintenance and reduce system downtime.
Industrial Application Scenarios
This high-reliability analog I/O expander board is widely deployed in large-scale power generation industrial scenarios equipped with GE DS200 Mark V turbine control systems. It is mainly applicable to traditional thermal power stations, combined cycle power plants, industrial self-provided power stations and energy equipment supporting projects. It provides extended signal acquisition and high-precision data processing services for core equipment such as steam turbines, gas turbines and generator sets. As an indispensable extended functional component of the Mark V turbine control system, it enriches the system’s signal monitoring dimensions, improves the comprehensiveness and accuracy of unit operating status monitoring, and effectively guarantees the safe, stable and efficient continuous operation of industrial power generation equipment.
