Description
Product Overview

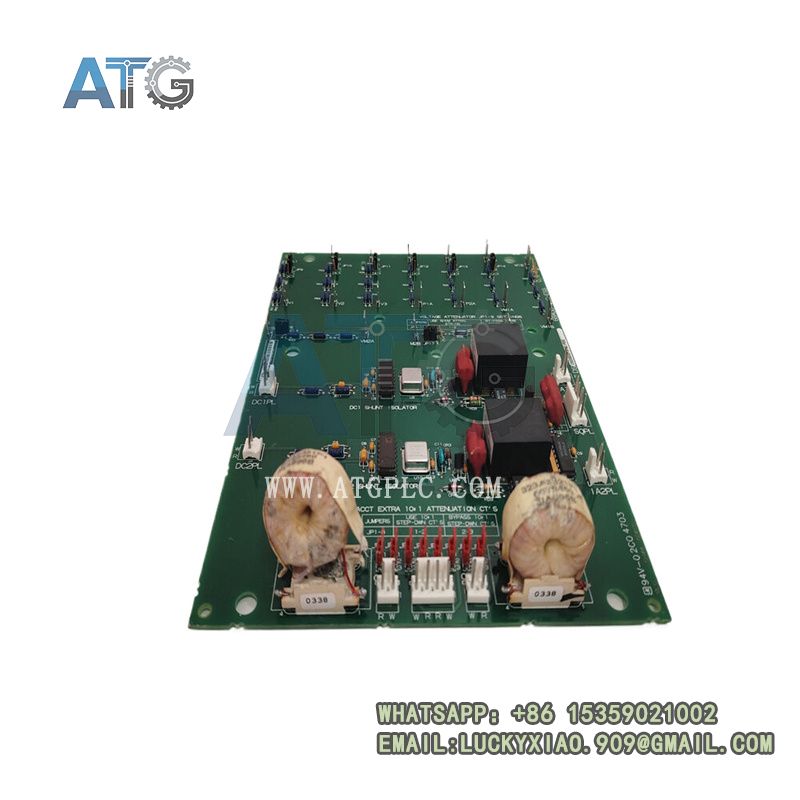

The GE DS200SHVMG1AGE is a high-performance M-frame high-voltage interface and servo drive module from the GE Speedtronic DS200 series. It is exclusively designed for GE Mark V turbine control systems and medium-voltage variable frequency drive platforms. As a core signal conditioning and power interface unit, it acts as a critical bridge between high-voltage SCR power bridges, servo actuators and low-voltage main control logic boards. It undertakes high-precision high-voltage signal sampling, servo current driving, signal isolation conversion and system data interaction tasks. It ensures accurate, stable and safe closed-loop control of turbine power regulation and drive system operation.
Medium-voltage turbine and industrial drive systems have extremely strict requirements for signal isolation and drive accuracy. Ordinary universal interface modules have obvious limitations in high-voltage industrial scenarios. Most generic boards lack professional high-voltage isolation design. They cannot withstand high potential differences and are prone to signal crosstalk, data drift and circuit breakdown. In addition, conventional drive modules feature low output accuracy and slow response speed. They fail to meet the precise servo control demands of turbine power loops. Non-original replacement modules usually have protocol mismatches and inconsistent electrical parameters. They cause system identification failures and hidden operational risks. In contrast, the GE DS200SHVMG1AGE adopts industrial-grade high-voltage isolation architecture and high-precision servo drive circuit. It integrates three-phase voltage and current sampling, adjustable servo current output and multi-dimensional safety protection. Every module passes strict high-voltage withstand testing, precision calibration and long-term aging screening before delivery. It serves as a standard original spare part for industrial turbine control system maintenance and upgrading, and fully supports standardized global industrial e-commerce procurement.
Core Product Features & Competitive Advantages
Turbine power regulation and medium-voltage drive control rely heavily on high-precision signal collection and fast servo response. Traditional interface modules suffer from insufficient isolation performance, low control accuracy and single functions. These defects easily lead to unstable power output and delayed system protection actions. To solve common industry pain points, the GE DS200SHVMG1AGE achieves comprehensive upgrades in high-voltage resistance, control precision and system compatibility.
- Professional High-Voltage Isolation Design: Built with multi-kV high-voltage isolation circuitry between field high-voltage signals and internal logic circuits. It completely isolates high-voltage impact and protects the main control system from breakdown damage.
- High-Precision Three-Phase Sampling: Supports synchronous sampling of three-phase voltage and current signals. The measurement accuracy reaches ±0.1%–±0.25% FS. It provides ultra-precise data for system synchronization, power calculation and fault protection logic.
- Adjustable High-Speed Servo Drive: Provides optional ±10mA and ±20mA servo control current output. It features ultra-fast response time ≤0.1ms. It meets the high dynamic response demands of turbine servo actuator closed-loop control.
- Multi-Sensor Signal Adaptation: Perfectly matches LVDT and RVDT displacement feedback sensors. It realizes real-time acquisition and accurate conversion of mechanical position signals. It ensures precise positioning control of turbine equipment.
- Excellent Electromagnetic Compatibility: Adopts multi-layer shielding and signal filtering design. It effectively suppresses on-site electromagnetic interference and high-frequency noise. It maintains long-term signal stability in complex industrial environments.
- Complete Electrical Safety Protection: Integrated overcurrent, overvoltage and surge protection functions. It automatically cuts off abnormal loops during power fluctuation and signal anomalies. It improves overall system operational safety.
- 100% Original System Compatibility: Fully compliant with GE Speedtronic Mark V system protocols and M-frame hardware standards. It supports plug-and-play installation and automatic system recognition. No program modification or complex debugging is required.
- Flexible Parameter Configuration: Equipped with 17 configurable jumpers. It supports drive attenuation adjustment and multi-mode operation switching. It adapts to different on-site control parameter demands.
- Low Power & High Stability: Low power consumption design with maximum power ≤4.6W. It generates low heat during long-term full-load operation. It reduces cabinet heat accumulation and equipment aging speed.
- Ultra-Low Field Failure Rate: Manufactured with high-grade industrial components and strict factory aging tests. It supports 7×24-hour uninterrupted operation. It effectively reduces enterprise maintenance costs and system downtime risks.
GE DS200SHVMG1AGE
Detailed Segmented Technical Specifications
The GE DS200SHVMG1AGE strictly complies with GE original Mark V turbine control system specifications and international industrial high-voltage safety standards. All sampling accuracy, servo drive performance, electrical parameters and environmental indicators have passed professional laboratory testing and long-term field verification. The classified detailed parameters below support accurate model selection, system renovation and standardized batch procurement.
3.1 Basic Product & Application Parameters
This product is a dedicated M-frame high-voltage interface and servo drive module for GE DS200 series and Mark V turbine control systems. It focuses on three-phase electrical signal sampling, servo current driving and high-voltage signal isolation conversion.
- Official Product Model: DS200SHVMG1AGE
- Product Category: High-Voltage M-Frame Servo Interface Control Module
- Manufacturer: General Electric (GE)
- Core Product Positioning: Three-phase high-voltage signal sampling, servo actuator current driving, sensor signal conversion and system safety isolation
- Fully Compatible Systems: GE Speedtronic Mark V Turbine Control System, DS200 Series Industrial Drive Platform
- Installation Method: Standard M-frame embedded rack fixed installation
- Core Application Scenarios: Power plant turbine power regulation, medium-voltage VFD drive system control, servo loop precision control and old system performance upgrading projects
- Implementation Standards: GE original industrial control specifications, IEC high-voltage isolation standards and CE/UL industrial safety certification standards
3.2 Core Sampling & Servo Drive Parameters
The module adopts high-precision sampling chip and high-speed drive circuit. It achieves accurate signal collection and fast servo output. It meets the high-precision closed-loop control requirements of turbine power loops.
- Sampling Channel Configuration: 3 voltage channels + 3 current channels, supporting full three-phase electrical signal synchronous detection
- Measurement Accuracy: High precision of ±0.1% to ±0.25% FS, ensuring reliable data for system synchronization and protection judgment
- Servo Drive Current: Optional ±10mA / ±20mA dual current output modes for flexible servo matching
- Output Accuracy: Ultra-high current output accuracy of ±0.05% FS, supporting micro-precision power regulation
- System Response Speed: Ultra-fast response time ≤0.1ms, realizing real-time dynamic adjustment of servo loops
- Supported Sensors: Compatible with LVDT and RVDT linear/rotary displacement sensors for position feedback acquisition
3.3 Electrical & Isolation Parameters
This module features professional high-voltage isolation and stable electrical design. It adapts to complex high-voltage power supply and strong electromagnetic interference environments in power plant control rooms.
- AC Input Voltage Range: 115V–230V wide adaptive input, frequency adaptation 47Hz–63Hz
- Maximum Power Consumption: ≤4.6W low-power energy-saving design, low heat generation for long-term operation
- High-Voltage Isolation Performance: Multi-kV high-potential isolation between field signals and control logic circuits
- Configurable Jumpers: 17 onboard jumpers for drive attenuation adjustment and operating mode switching
- Protection Mechanism: Integrated overcurrent, overvoltage and surge isolation protection to avoid circuit burnout
3.4 Communication & Compatibility Parameters
Diversified industrial communication protocols and perfect system compatibility support flexible system docking and remote data management. It improves the intelligent control level of turbine units.
- Supported Communication Protocols: MODBUS, PROFIBUS and other mainstream industrial protocols
- System Bus Matching: Fully adapted to Mark V system dedicated bus, supporting stable data interaction
- Remote Functions: Supports remote data reading, parameter configuration and equipment status diagnosis
3.5 Mechanical & Structural Parameters
The standard M-frame modular structure perfectly matches Mark V system cabinet layout. It features compact size and firm installation, which simplifies on-site wiring and daily maintenance work.
- Structural Type: Standard DS200 M-frame industrial control board
- Installation Method: Embedded rack fixed installation, compatible with original system standard slots
- Overall Dimensions: Approximately 200mm × 127mm standard industrial size
- Product Weight: About 0.85kg lightweight modular design
- Surface Treatment: Full-board conformal coating for dust-proof, moisture-proof and anti-corrosion protection
- Protection Grade: IP20 industrial protection grade for indoor cabinet operation
3.6 Environmental Adaptability Parameters
After strict extreme environment simulation and long-term aging tests, the module maintains complete functional stability in harsh power plant industrial environments.
- Full-Load Operating Temperature Range: -40°C to +70°C ultra-wide temperature stable operation
- Storage Temperature Range: -40°C to +85°C high and low temperature resistance
- Working Humidity Range: 5%–95% RH non-condensing humid environment adaptation
- Environmental Resistance: Resists industrial dust, mechanical vibration and temperature cycle alternation
- Continuous Operation Capacity: Supports 7×24-hour uninterrupted full-load sampling and drive operation
3.7 Factory Testing & Quality Certification
All GE DS200SHVMG1AGE modules are manufactured in strict accordance with GE industrial quality control standards. Each unit completes high-voltage withstand test, precision sampling calibration and full-function performance verification before delivery.
- Core Factory Testing Items: High-voltage isolation withstand test, three-phase sampling accuracy calibration, servo drive response test, communication stability test and temperature cycle aging test
- Quality Inspection Standard: 100% full-function performance test + full parameter calibration + complete test data filing and traceability
- Authoritative Qualification Certification: CE, UL industrial safety certification and IEC electromagnetic compatibility certification
- Field Operation Performance: Widely deployed in global power plant Mark V turbine control systems with ultra-low field failure rate
GE DS200SHVMG1AGE
E-commerce Sales Mode & Complete Procurement Advantages
As an original core high-voltage interface and servo drive module for GE Mark V turbine control systems, the GE adopts standardized, transparent and efficient global industrial e-commerce sales mode. It mainly serves power plant turbine system emergency maintenance, old module performance degradation replacement and power enterprise industrial control spare parts strategic reserve. It provides one-stop standardized procurement and full-cycle professional technical services for power engineering integrators and power generation enterprises.
4.1 Standardized Transparent E-commerce System
All products adopt unified original factory production and full-process standardized performance testing. The whole production, high-voltage verification, precision calibration and warehousing process is fully traceable. E-commerce platforms openly display complete product datasheets, high-voltage test reports and official qualification certificates. Customers can verify product authenticity, isolation performance and system compatibility online. This transparent sales mechanism effectively avoids refurbished and inferior modules. It fully guarantees the safe and stable operation of turbine high-voltage control loops.
4.2 Diversified Flexible Procurement Modes
Power plant emergency fault replacement, daily spare parts stocking and large-scale turbine system upgrading projects have different procurement cycles and quantity demands. To cover all industrial application scenarios, we provide three targeted and flexible procurement solutions.
- Emergency Spot Procurement: Suitable for on-site module failure, abnormal servo drive and three-phase sampling data disorder emergencies. Sufficient global spot inventory supports fast delivery. It helps power plants quickly restore turbine power regulation function and avoid unit shutdown losses.
- Small-Batch Spare Parts Stocking: Ideal for power plants and industrial automation enterprises to build dedicated Mark V system spare parts inventory. Pre-storing this original module improves on-site emergency response speed and reduces operational safety risks.
- Large-Batch Engineering Procurement: Provides exclusive preferential pricing and long-term framework cooperation services for large-scale turbine system renovation and control loop upgrading projects. It effectively reduces overall project procurement costs and shortens system commissioning cycles.
4.3 Full-Cycle After-Sales Service Guarantee
The high-voltage servo interface module is a key core component of turbine power regulation systems. Its isolation safety, sampling accuracy and drive stability directly affect turbine unit operational safety and power generation efficiency. We provide comprehensive full-cycle after-sales protection to eliminate all customer procurement risks.
- 100% Original Genuine Guarantee: All modules are brand-new original GE products with complete factory test reports and qualification documents, ensuring 100% system matching and standard high-voltage safety performance.
- Professional Industrial Packaging: Adopts multi-layer anti-static, shockproof, moisture-proof and dust-proof industrial packaging. It protects internal precision circuits and high-voltage isolation components from transportation damage.
- 24/7 Professional Technical Support: Provides pre-sales model matching consultation, in-sales installation and parameter debugging guidance, and after-sales loop fault diagnosis and system docking services.
- Long-Term Official Warranty Service: Enjoys unified official warranty coverage. Free maintenance and replacement services are provided for non-human-induced quality faults to reduce enterprise operation and maintenance costs.
GE DS200SHVMG1AGE
Main Industrial Application Scenarios
Relying on professional high-voltage isolation performance, ultra-high sampling accuracy, fast servo response and perfect system compatibility, this module is widely used in core control links of GE Mark V turbine and medium-voltage drive systems.
- Power Plant Turbine Power Regulation: Undertakes three-phase electrical signal sampling and servo actuator driving. It supports precise closed-loop adjustment of turbine power and ensures stable unit power output.
- Medium-Voltage VFD Drive System Control: Matches industrial medium-voltage frequency conversion equipment to complete high-voltage signal isolation and conversion. It improves the operational stability and safety of drive systems.
- Old Control System Upgrading & Renovation: Replaces aging modules with low accuracy and poor isolation performance. It upgrades the overall precision and safety level of old turbine control systems without large-scale equipment reconstruction.
- Industrial Precision Servo Loop Control: Applies to high-precision position and power servo control scenarios. It ensures accurate equipment positioning and stable dynamic response of industrial units.
Product Value & Market Competitiveness
The GE effectively solves common pain points of traditional industrial interface modules, such as insufficient high-voltage isolation, low sampling accuracy, slow servo response and poor anti-interference ability. It integrates multi-channel three-phase high-precision sampling, adjustable high-speed servo driving, professional high-voltage isolation and full-circuit safety protection technology. It comprehensively improves the precision, safety and stability of GE Mark V turbine power control systems.
In the global industrial control spare parts e-commerce market, this product has prominent differentiated competitive advantages. It features original factory high-voltage certification, ultra-high measurement accuracy, fast dynamic response and exclusive Mark V system matching. Combined with standardized genuine procurement, complete qualification documents and full-cycle professional after-sales services, it is the preferred original replacement and upgrading module for power plant turbine system maintenance, precision control optimization and enterprise strategic spare parts reserve.
