Description
Product Overview
The GE DS200SHVMG1AFE is a professional SCR high-voltage M-frame interface board belonging to the GE Speedtronic DS200 series. It is specially developed for GE Mark V turbine control systems and EX2100 static excitation systems. As a key bridge between low-voltage control logic and high-voltage power units, this module undertakes high-precision high-voltage signal sampling, safe signal isolation, SCR gate drive signal output and signal conversion transmission. It effectively connects core control assemblies with high-voltage thyristor and IGBT power bridges. It ensures accurate, safe and stable closed-loop control of turbine excitation and high-voltage drive systems.
High-voltage excitation and turbine drive systems have extremely strict requirements for signal isolation and control accuracy. Traditional common interface boards have obvious technical limitations in high-potential industrial scenarios. Most ordinary modules lack professional high-voltage isolation structures and dedicated SCR drive circuits. They cannot withstand high voltage impact, which easily causes signal distortion and board burnout. Meanwhile, generic replacement boards often fail to match exclusive Mark V system protocols. They lead to system identification failure and abnormal excitation loop operation. To solve these industry pain points, the GE DS200SHVMG1AFE adopts industrial high-voltage isolation architecture and optimized signal conditioning design. It integrates precise voltage and current sampling, safe photoelectric isolation and stable gate drive output. Every module passes strict high-voltage withstand testing, precision calibration and long-term aging screening before delivery. It serves as a standard original spare part for power plant excitation system maintenance and upgrading, and fully supports standardized global industrial e-commerce procurement.
Core Product Features & Competitive Advantages
Turbine static excitation and high-voltage drive control rely on reliable signal isolation, accurate data collection and stable power device driving. Conventional interface modules have weak anti-interference performance and single functions. They cannot meet the high safety and precision standards of power plant high-voltage loops. In contrast, the GE DS200SHVMG1AFE achieves comprehensive upgrades in isolation safety, signal accuracy and operational stability, covering multiple core advantages that ordinary modules do not have.
- Professional High-Voltage Isolation Protection: Built-in high-strength electrical isolation circuit and multi-layer PCB shielding structure. It completely isolates low-voltage control circuits from high-voltage power loops. It avoids high-potential surge damage to the main control system.
- Precision High-Voltage Signal Sampling: Equipped with industrial-grade precision sensing and signal conditioning circuits. It supports accurate collection of phase-to-phase and phase-to-ground high-voltage signals. It provides reliable data for system power calculation and fault judgment.
- Dedicated SCR Gate Drive Function: Optimized for EX2100 static excitation systems. It stably outputs drive signals for high-voltage thyristor and IGBT power bridges. It ensures synchronous and accurate action of power units.
- High-Stability Signal Conversion: Supports precise conversion from microvolt-level shunt input signals to high-frequency differential output signals. It guarantees lossless transmission and accurate identification of control signals.
- Optical Isolation Anti-Interference Design: Adopts optical isolation for low-voltage PWM input signals. It thoroughly filters on-site electromagnetic clutter and harmonic interference. It maintains long-term signal consistency and stability.
- 100% Original System Compatibility: Fully compliant with GE Speedtronic Mark V system and EX2100 excitation system hardware and protocol standards. It supports plug-and-play installation and automatic system recognition without program modification.
- Industrial-Grade Environmental Adaptability: Uses high-temperature resistant, anti-aging and flame-retardant components. It adapts to harsh power plant environments and supports 7×24-hour uninterrupted full-load operation.
- Compact M-Frame Modular Structure: Standard M-frame board layout fits system cabinet slots perfectly. It saves installation space and simplifies on-site wiring and daily maintenance work.
- Ultra-Low Field Failure Rate: Strict factory high-voltage aging and full-function testing suppress long-term performance attenuation. It effectively reduces excitation system faults and enterprise maintenance costs.
- Complete Circuit Protection Mechanism: Integrated overvoltage, overcurrent and surge suppression protection. It automatically isolates abnormal loops to ensure system operational safety.

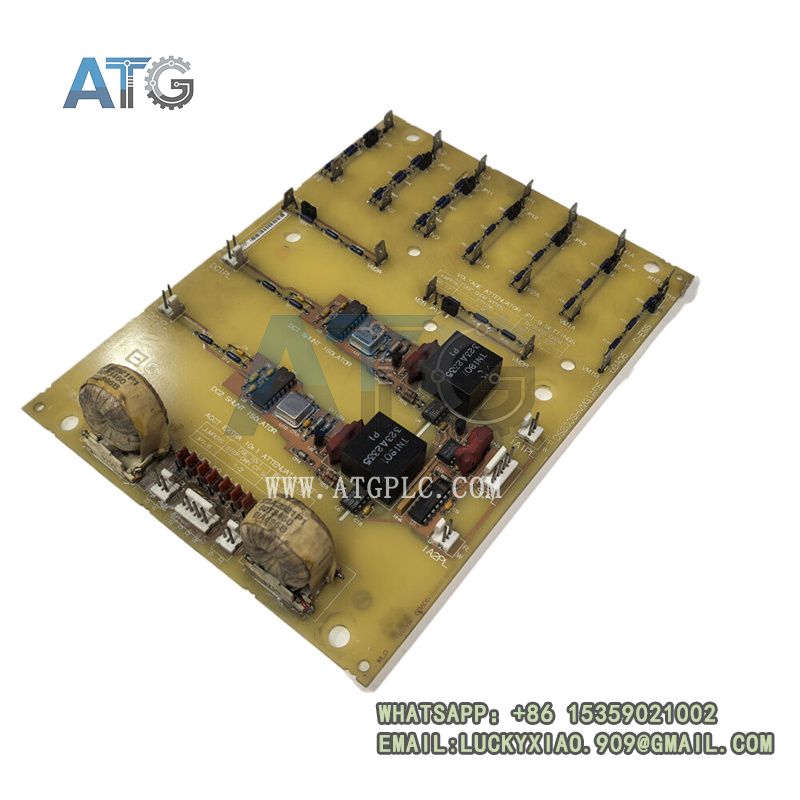

GE DS200SHVMG1AFE
Detailed Segmented Technical Specifications
The GE DS200SHVMG1AFE strictly complies with GE original Mark V turbine control and EX2100 excitation system design specifications. All signal processing, electrical isolation, drive performance and environmental indicators have passed professional laboratory testing and long-term field verification. The classified detailed parameters below support accurate model selection, system renovation and standardized batch procurement.
3.1 Basic Product & Application Parameters
This product is a dedicated high-voltage M-frame SCR interface and drive module for GE DS200 series, Mark V turbine control systems and EX2100 static excitation platforms. It focuses on high-voltage signal sampling, photoelectric isolation conversion and power bridge drive control.
- Official Product Model: DS200SHVMG1AFE
- Product Category: High-Voltage M-Frame SCR Interface & Gate Drive Board
- Manufacturer: General Electric (GE)
- Core Product Positioning: High-voltage signal acquisition, photoelectric signal isolation, SCR/IGBT gate drive and high-precision signal conversion
- Fully Compatible Systems: GE Speedtronic Mark V Turbine Control System, EX2100 Static Excitation System
- Installation Method: Standard M-frame embedded rack fixed installation
- Core Application Scenarios: Power plant turbine excitation system control, high-voltage power bridge drive, old interface module replacement and system stability upgrading projects
- Implementation Standards: GE original industrial control specifications, IEC high-voltage safety standards and CE/UL industrial safety certification standards
3.2 Core Signal & Drive Parameters
The module adopts high-precision signal conditioning and optimized drive circuit design. It achieves stable signal conversion and accurate power unit driving. It meets the high-precision control requirements of turbine excitation loops.
- Input Signal Type: Optically isolated low-voltage PWM control signal from core control assembly
- Shunt Input Range: -500mV to +500mV high-sensitivity microvolt-level signal input
- Signal Conversion Output: 0–500kHz differential frequency stable output
- Drive Object: High-voltage thyristor (SCR) and IGBT power bridge units
- Sampling Accuracy: Industrial high-precision level, effectively avoiding excitation current and voltage deviation
- Signal Processing Mode: Multi-stage filtering and harmonic suppression, adapting to complex high-voltage electromagnetic environments
3.3 Electrical & Isolation Parameters
This module features professional high-voltage isolation and stable electrical design. It solves the safety risks of signal crosstalk and high-voltage breakdown in high and low voltage mixed control systems.
- Rated Working Voltage: 24VDC standard industrial logic power supply
- Maximum Withstand Voltage: Supports up to 600VDC high-voltage loop adaptation
- Isolation Method: Full optical isolation + physical high-voltage isolation dual protection
- Anti-Interference Level: Industrial high-grade EMC, resisting strong electromagnetic radiation and harmonic interference of high-voltage equipment
- Protection Functions: Integrated overvoltage, overcurrent, surge and static protection to ensure circuit safety
3.4 Mechanical & Structural Parameters
The standard M-frame compact structure is optimized for Mark V and system cabinet layout. It features firm installation and good structural stability, adapting to long-term industrial operation vibration scenarios.
- Structural Type: Standard DS200 M-frame industrial high-voltage interface board
- Installation Mode: Embedded rack fixed installation, fully compatible with original system standard slots
- Overall Dimensions: 82mm × 122mm × 60mm compact industrial size
- Product Weight: 0.36kg lightweight modular design
- Surface Protection: Full-board conformal coating for dust-proof, moisture-proof and anti-corrosion protection
- Structural Stability: Reinforced component welding and anti-vibration design, adapting to long-term turbine unit mechanical vibration
3.5 Environmental Adaptability Parameters
After strict extreme environment simulation and long-term full-load aging tests, the module maintains complete functional stability in harsh power plant high-voltage workshop environments.
- Full-Load Operating Temperature Range: -40°C to +70°C ultra-wide temperature stable operation
- Storage Temperature Range: -40°C to +85°C high and low temperature resistance
- Working Humidity Range: 5%–95% RH non-condensing humid environment adaptation
- Environmental Resistance: Resists industrial dust, temperature cycle alternation and slight chemical corrosion
- Continuous Operation Capacity: Supports 7×24-hour uninterrupted high-load operation of excitation control loops
3.6 Factory Testing & Quality Certification
All GE DS200SHVMG1AFE modules are manufactured in strict accordance with GE industrial quality control standards. Each unit completes high-voltage withstand test, signal precision calibration and full-function performance verification before delivery.
- Core Factory Testing Items: High-voltage isolation withstand test, signal conversion accuracy test, SCR drive stability test, temperature cycle aging test and vibration reliability test
- Quality Inspection Standard: 100% full-function performance test + full parameter calibration + complete test data filing and traceability
- Authoritative Qualification Certification: CE, UL industrial safety certification and IEC electromagnetic compatibility certification
- Field Operation Performance: Widely deployed in global power plant Mark V excitation systems with ultra-low field failure rate and stable operation

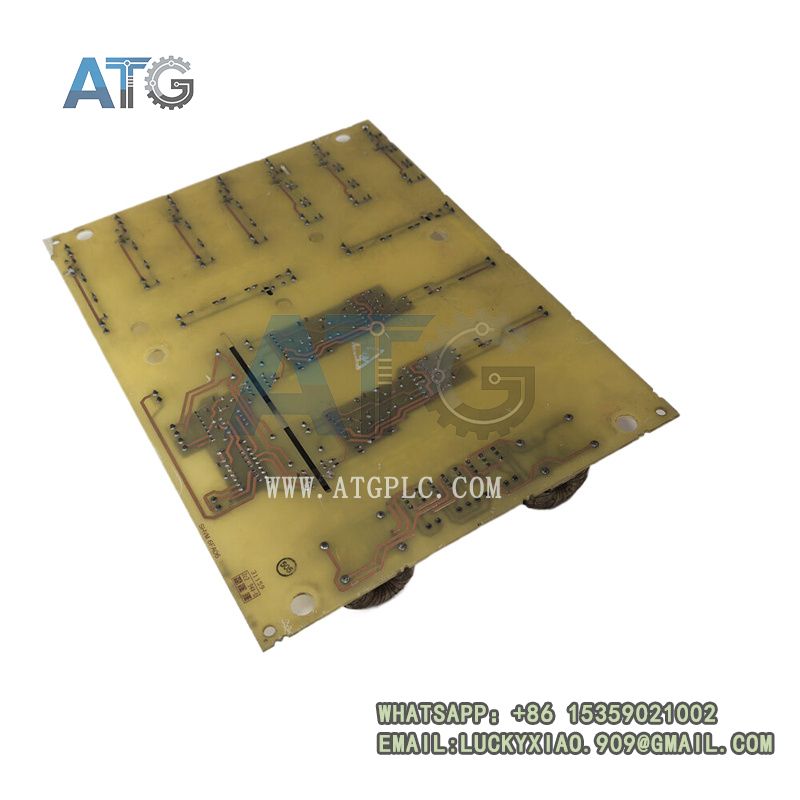

GE DS200SHVMG1AFE
E-commerce Sales Mode & Complete Procurement Advantages
As an original core high-voltage interface and SCR drive module for GE Mark V turbine and excitation systems, the GE adopts standardized, transparent and efficient global industrial e-commerce sales mode. It mainly serves power plant excitation system emergency maintenance, aging high-voltage board replacement and power enterprise industrial control spare parts strategic reserve. It provides one-stop standardized procurement and full-cycle professional technical services for power engineering integrators and power generation enterprises.
4.1 Standardized Transparent E-commerce System
All products adopt unified original factory production and full-process standardized performance testing. The whole production, high-voltage verification, signal calibration and warehousing process is fully traceable. E-commerce platforms openly display complete product datasheets, high-voltage test reports and official qualification certificates. Customers can verify product authenticity, isolation safety performance and system compatibility online. This transparent sales mechanism effectively avoids refurbished and inferior modules. It fully guarantees the safe and stable operation of power plant high-voltage excitation loops.
4.2 Diversified Flexible Procurement Modes
Power plant excitation system emergency maintenance, daily spare parts stocking and large-scale system upgrading projects have different procurement demands. To cover all industrial application scenarios, we provide three targeted and flexible procurement solutions.
- Emergency Spot Procurement: Suitable for on-site excitation loop failure, SCR drive abnormality and high-voltage signal disorder emergencies. Sufficient global spot inventory supports fast delivery. It helps power plants quickly restore excitation system operation and avoid unit shutdown losses.
- Small-Batch Spare Parts Stocking: Ideal for power plants to build dedicated Mark V and system spare parts inventory. Pre-storing this original module improves on-site fault emergency response speed and reduces excitation system operation risks.
- Large-Batch Engineering Procurement: Provides exclusive preferential pricing and long-term framework cooperation services for large-scale turbine excitation system renovation and performance upgrading projects. It effectively reduces overall project procurement costs and shortens system commissioning cycles.
4.3 Full-Cycle After-Sales Service Guarantee
The high-voltage interface drive module is a core safety component of turbine excitation systems. Its isolation performance, signal accuracy and drive stability directly determine the operational safety and power supply stability of power generation units. We provide comprehensive full-cycle after-sales protection to eliminate all customer procurement risks.
- 100% Original Genuine Guarantee: All modules are brand-new original GE products with complete factory test reports and qualification documents, ensuring 100% system matching and standard high-voltage safety performance.
- Professional Industrial Packaging: Adopts multi-layer anti-static, shockproof, moisture-proof and dust-proof industrial packaging. It protects internal precision circuits and high-voltage isolation components from transportation damage.
- 24/7 Professional Technical Support: Provides pre-sales model matching consultation, in-sales installation and loop debugging guidance, and after-sales excitation system fault diagnosis and system docking services.
- Long-Term Official Warranty Service: Enjoys unified official warranty coverage. Free maintenance and replacement services are provided for non-human-induced quality faults to reduce enterprise operation and maintenance costs.

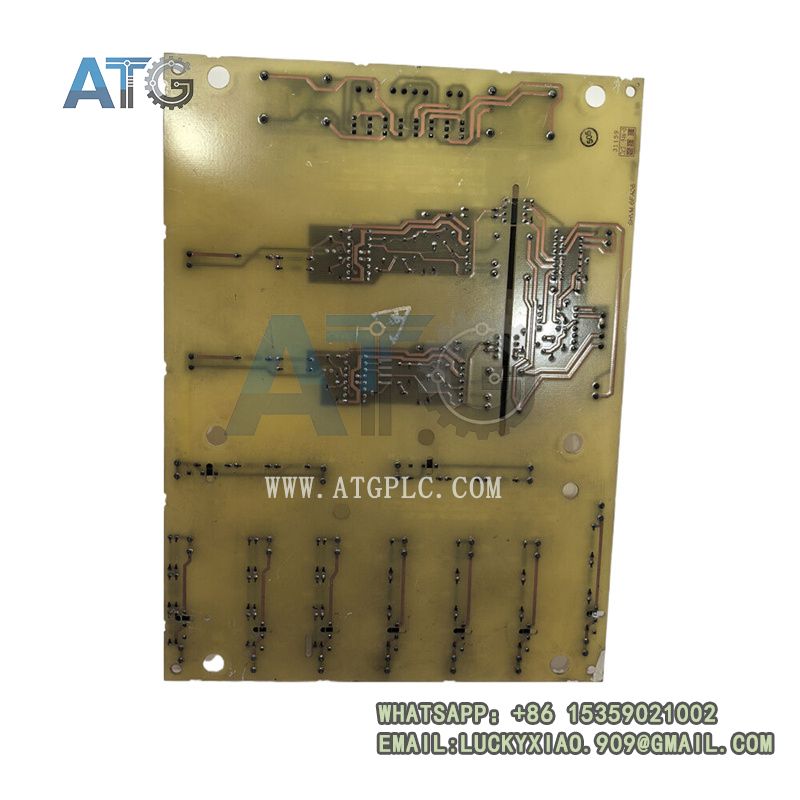

GE DS200SHVMG1AFE
Main Industrial Application Scenarios
Relying on professional high-voltage isolation performance, precise signal conversion, stable SCR drive capability and strong industrial adaptability, this module is widely used in core control links of GE Mark V turbine excitation and high-voltage drive systems.
- Power Plant Turbine Excitation System Control: Matches static excitation systems to complete high-voltage signal sampling and power bridge drive control. It ensures stable and accurate excitation output of turbine units.
- High-Voltage Drive Loop Signal Isolation: Realizes safe isolation and lossless transmission of high and low voltage mixed signals. It avoids high-voltage surge impact on low-voltage main control equipment.
- Old Excitation System Upgrading & Renovation: Replaces aging high-voltage interface boards with insufficient isolation performance and low precision. It upgrades the overall safety and control accuracy of old excitation systems without large-scale equipment reconstruction.
- Industrial High-Precision Power Control: Applies to high-precision sampling and stable drive control of industrial high-voltage power equipment. It improves the overall operational stability of power control systems.
Product Value & Market Competitiveness
The GE effectively solves common pain points of traditional high-voltage interface modules, such as insufficient isolation capacity, low signal conversion accuracy, unstable drive output and poor anti-interference ability. It integrates high-strength high-voltage isolation, micro-precision signal conversion, dedicated SCR gate drive and full-circuit safety protection technology. It comprehensively improves the safety, precision and stability of GE Mark V turbine excitation and high-voltage drive systems.
In the global industrial control spare parts e-commerce market, this product has prominent differentiated competitive advantages. It features exclusive system adaptation, original factory high-voltage safety certification, ultra-stable long-term operation and professional excitation loop matching. Combined with standardized genuine procurement, complete qualification documents and full-cycle professional after-sales services, it is the preferred original replacement and upgrading module for power plant turbine excitation system safety maintenance, precision optimization and enterprise strategic spare parts reserve.
