Description
Product Overview

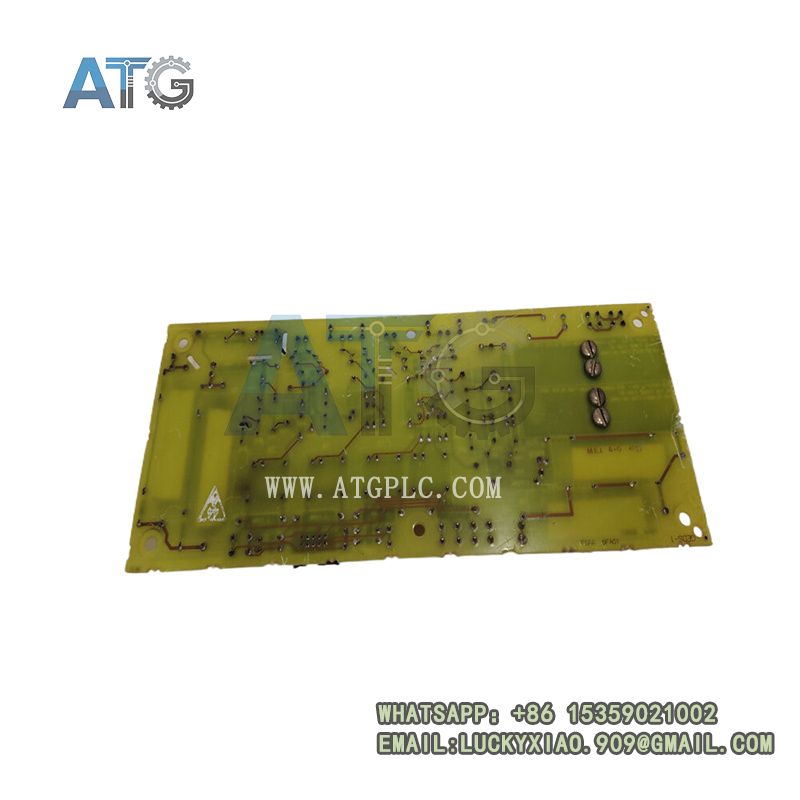

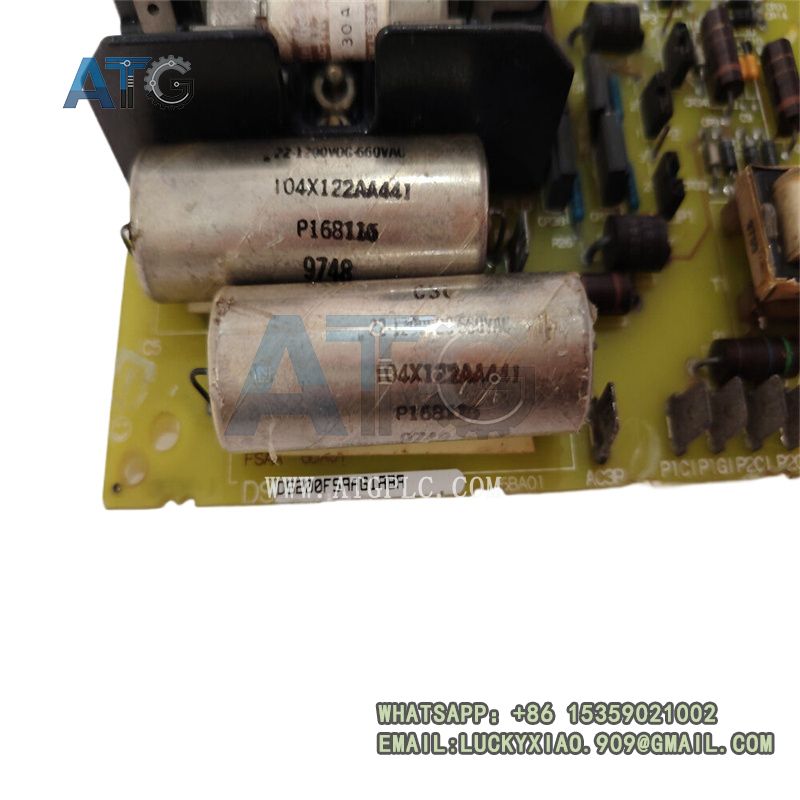

The GE DS200FSAAG1ABA is a professional Field Supply Amplifier (FSA) board belonging to the classic GE Speedtronic DS200 series. It is exclusively designed and fully compatible with GE Mark V turbine control systems and supporting DC2000 drive platforms. As a core signal conditioning and field power amplification module, this board undertakes analog signal collection, precision signal amplification, field power supply regulation and stable signal transmission tasks. It acts as a key intermediate bridge between field transmitters, on-site sensors and the main turbine controller. It ensures accurate signal feedback and stable operational control for turbine excitation and auxiliary control loops.
Turbine and industrial drive control systems rely heavily on high-precision analog signal processing and stable field power output. Ordinary universal amplifier boards have obvious defects in heavy-duty power plant scenarios. Most generic modules feature low signal resolution, poor amplification accuracy and unstable power output. They cannot process multi-channel 4-20mA standard industrial signals synchronously. Long-term operation easily causes signal distortion, data drift and system control deviation. In addition, non-original replacement boards often fail to match GE exclusive system protocols. They cannot be identified by Mark V systems, which leads to loop failure and equipment abnormal operation. To solve these common industrial pain points, the GE DS200FSAAG1ABA adopts dedicated field amplification circuit architecture and optical isolation design. It integrates multi-channel signal conditioning, high-precision amplification and regulated power output functions. Every module passes strict signal calibration, full-load aging testing and performance screening before delivery. It serves as a standard original spare part for turbine control system maintenance and performance upgrading, and fully supports standardized global industrial e-commerce procurement.
Core Product Features & Competitive Advantages
Stable turbine system operation depends on accurate analog signal processing and reliable field power supply. Traditional amplifier modules have single functions, weak anti-interference ability and low operational precision. They cannot meet the high-standard control requirements of power plant turbine equipment. In contrast, the GE DS200FSAAG1ABA achieves comprehensive upgrades in signal accuracy, power stability and environmental adaptability, forming irreplaceable core advantages in professional industrial control scenarios.
- Multi-Channel Analog Signal Processing: Supports up to 8 groups of differential 4-20mA analog signal synchronous acquisition and conditioning. It fully covers mainstream field sensor signal types of turbine control systems.
- 12-Bit High-Precision Signal Resolution: Adopts high-precision digital conversion chip with 12-bit resolution. It effectively reduces signal distortion and data drift. It provides ultra-accurate feedback data for system closed-loop control.
- Professional Field Amplification Function: Built-in dedicated field supply amplification circuit. It stably amplifies weak field signals and converts them into identifiable standard signals for the main controller.
- Optical Isolation Anti-Interference Design: Equipped with full-channel optical isolation structure. It completely isolates on-site electromagnetic clutter, harmonic interference and power surge signals. It ensures long-term signal transmission stability.
- Stable Regulated Power Output: Supports 24VDC standard industrial regulated power output with maximum 10A load capacity. It provides stable power supply for field transmitters and small-scale actuators.
- Complete System Compatibility: Fully compliant with GE Mark V Speedtronic turbine control systems and DC2000 drive system hardware and protocol standards. It supports plug-and-play installation and automatic system identification without program modification.
- High-Safety Circuit Protection: Integrated overvoltage, overcurrent and short-circuit protection circuits. It automatically cuts off abnormal loops to protect rear-end precision control equipment from damage.
- Industrial-Grade Durability: Uses high-temperature resistant, anti-aging and flame-retardant original components. The whole board adopts conformal coating protection. It adapts to harsh power plant environments and supports 7×24-hour uninterrupted full-load operation.
- Standard Modular Structure: Features compact industrial PCB layout and standard cabinet slot size. It saves installation space and simplifies on-site wiring, inspection and daily maintenance work.
- Ultra-Low Field Failure Rate: Strict factory full-load aging test and signal precision screening. It suppresses long-term performance attenuation. It effectively reduces turbine system signal faults and enterprise maintenance costs.
Detailed Segmented Technical Specifications
The GE DS200FSAAG1ABA strictly complies with GE original DS200 series and Mark V turbine system design specifications and industrial electrical safety standards. All signal processing performance, electrical parameters, power output indicators and environmental resistance have passed professional laboratory testing and long-term field verification. The classified detailed parameters below support accurate model selection, system renovation and standardized batch procurement.
3.1 Basic Product & Application Parameters
This product is a dedicated Field Supply Amplifier (FSA) board for GE DS200 series, Mark V Speedtronic turbine control systems and DC2000 industrial drive platforms. It focuses on multi-channel analog signal conditioning, precision amplification and field power supply regulation.
- Official Product Model: DS200FSAAG1ABA
- Product Category: Field Supply Amplifier (FSA) Analog Signal Board
- Manufacturer: General Electric (GE)
- Core Product Positioning: 4-20mA analog signal acquisition, precision signal amplification, field power supply output and system signal transmission
- Fully Compatible Systems: GE Mark V Speedtronic Turbine Control System, GE DC2000 Drive Control System
- Installation Method: Standard embedded rack fixed installation
- Core Application Scenarios: Power plant turbine signal conditioning, field sensor signal amplification, old amplifier board replacement and system control precision upgrading projects
- Implementation Standards: GE original industrial control specifications, IEC electromagnetic compatibility standards and CE/UL industrial safety certification standards
3.2 Core Signal Processing Parameters
The module adopts high-precision signal conditioning and differential amplification circuit design. It achieves synchronous processing of multi-channel standard analog signals. It meets the high-precision control requirements of turbine closed-loop regulation systems.
- Signal Input Channels: 8-channel differential analog signal input
- Standard Input Signal: Industrial standard 4-20mA current signal
- Signal Resolution: 12-bit high-precision digital conversion resolution
- Signal Isolation Mode: Full-channel optical isolation anti-interference design
- Processing Accuracy: Ultra-low signal error and zero drift, ensuring consistent and reliable system feedback data
- Response Speed: Fast signal conversion and amplification response, matching turbine real-time control loop frequency
3.3 Electrical & Power Output Parameters
This module features stable industrial power regulation and high-load output design. It adapts to complex on-site power fluctuation environments. It provides reliable power supply and signal amplification support for field equipment.
- Rated Working Power Supply: 125VDC industrial standard power input
- Regulated Output Voltage: Stable 24VDC field power output
- Maximum Output Current: 10A high-current stable load capacity
- Circuit Safety Rating: 600V industrial grade withstand voltage, equipped with 30A fuse protection
- Power Supply Stability: Low power loss and low heat generation, maintaining stable output under long-term full-load operation
- Electromagnetic Compatibility: Industrial high-grade EMC, resisting strong on-site electromagnetic radiation and signal crosstalk
3.4 Interface & Wiring Parameters
The module is equipped with standard industrial pluggable interfaces. It supports convenient wiring and stable signal docking. It simplifies on-site construction and daily maintenance work.
- Main Interface Type: 10-pin dedicated pluggable terminal connectors
- Wiring Method: Standard industrial terminal wiring, firm and anti-loosening
- Signal Docking Objects: Industrial field transmitters, pressure sensors, temperature sensors and other analog equipment
- Transmission Performance: Lossless signal transmission, no attenuation or distortion in long-distance signal transmission
3.5 Mechanical & Structural Parameters
The module adopts standard DS200 series industrial board structure. It perfectly matches Mark V system cabinet installation specifications. It features compact layout and strong structural stability.
- Structural Type: Standard DS200 series FSA industrial amplifier board
- Installation Mode: Embedded rack fixed installation, fully compatible with original system standard slots
- Overall Dimensions: 25.4cm × 10.2cm × 3.5cm standard industrial size
- Product Weight: 0.4kg lightweight modular design
- Surface Protection Treatment: Full-board conformal coating for dust-proof, moisture-proof, anti-corrosion and anti-oxidation protection
- Structural Stability: Reinforced component welding process, resisting long-term mechanical vibration of turbine units
3.6 Environmental Adaptability Parameters
After strict extreme environment simulation and long-term full-load aging tests, the module maintains complete signal processing and power output stability in harsh power plant workshop environments.
- Full-Load Operating Temperature Range: -40°C to +70°C ultra-wide temperature stable operation
- Storage Temperature Range: -40°C to +85°C high and low temperature resistance
- Working Humidity Range: 5%–95% RH non-condensing humid environment adaptation
- Environmental Resistance: Resists industrial dust, temperature cycle alternation and slight chemical corrosion
- Continuous Operation Capacity: Supports 7×24-hour uninterrupted full-load signal processing and power output
3.7 Factory Testing & Quality Certification
All GE DS200FSAAG1ABA modules are manufactured in strict accordance with GE industrial quality control standards. Each unit completes signal precision testing, power stability verification and full-function aging calibration before delivery.
- Core Factory Testing Items: 8-channel signal acquisition accuracy test, signal amplification stability test, 24VDC power load test, temperature cycle aging test and vibration reliability test
- Quality Inspection Standard: 100% full-function performance test + full parameter calibration + complete test data filing and traceability
- Authoritative Qualification Certification: CE, UL industrial safety certification and IEC electromagnetic compatibility certification
- Field Operation Performance: Widely deployed in global power plant Mark V turbine systems with ultra-low field failure rate and stable long-term operation
GE DS200FSAAG1ABA
E-commerce Sales Mode & Complete Procurement Advantages
As an original core field supply amplification and analog signal processing module for GE Mark V turbine control systems, the GE adopts standardized, transparent and efficient global industrial e-commerce sales mode. It mainly serves power plant turbine system signal loop maintenance, aging amplifier board replacement and power enterprise industrial control spare parts strategic reserve. It provides one-stop standardized procurement and full-cycle professional technical services for power engineering integrators and power generation enterprises.
4.1 Standardized Transparent E-commerce System
All products adopt unified original factory production and full-process standardized performance testing. The whole production, signal precision calibration, power performance verification and warehousing process is fully traceable. E-commerce platforms openly display complete product datasheets, signal test reports and official qualification certificates. Customers can verify product authenticity, signal processing accuracy and system compatibility online. This transparent sales mechanism effectively avoids refurbished and inferior amplifier modules. It fully guarantees the precision and stability of turbine control system signal loops.
4.2 Diversified Flexible Procurement Modes
Power plant signal loop emergency maintenance, daily spare parts stocking and large-scale system upgrading projects have different procurement demands. To cover all industrial application scenarios, we provide three targeted and flexible procurement solutions.
- Emergency Spot Procurement: Suitable for on-site signal amplification failure, data distortion and amplifier board damage emergencies. Sufficient global spot inventory supports fast delivery. It helps power plants quickly restore turbine system signal stability and avoid unit shutdown economic losses.
- Small-Batch Spare Parts Stocking: Ideal for power plants and industrial automation enterprises to build dedicated Mark V system spare parts inventory. Pre-storing this original FSA board improves on-site signal fault emergency response speed and reduces system operation risks.
- Large-Batch Engineering Procurement: Provides exclusive preferential pricing and long-term framework cooperation services for large-scale turbine system signal optimization and equipment upgrading projects. It effectively reduces overall project procurement costs and shortens system commissioning cycles.
4.3 Full-Cycle After-Sales Service Guarantee
The field supply amplifier board is the core signal conditioning and power supply unit of turbine control systems. Its signal precision, amplification stability and power output reliability directly determine the operational accuracy and safety of turbine units. We provide comprehensive full-cycle after-sales protection to eliminate all customer procurement risks.
- 100% Original Genuine Guarantee: All modules are brand-new original GE products with complete factory test reports and qualification documents, ensuring 100% system matching and standard signal processing performance.
- Professional Industrial Packaging: Adopts multi-layer anti-static, shockproof, moisture-proof and dust-proof industrial packaging. It protects internal precision circuits and chips from transportation and storage damage.
- 24/7 Professional Technical Support: Provides pre-sales model matching consultation, in-sales installation and signal debugging guidance, and after-sales system fault diagnosis and loop docking services.
- Long-Term Official Warranty Service: Enjoys unified official warranty coverage. Free maintenance and replacement services are provided for non-human-induced quality faults to reduce enterprise operation and maintenance costs.
GE DS200FSAAG1ABA
Main Industrial Application Scenarios
Relying on multi-channel high-precision signal processing, stable field power amplification, optical isolation anti-interference performance and strong industrial adaptability, this module is widely used in core signal control links of GE Mark V turbine and DC2000 drive systems.
- Turbine System Signal Conditioning: Undertakes collection and precision amplification of 4-20mA analog signals from field temperature, pressure and flow sensors. It provides accurate data support for turbine operation monitoring and closed-loop control.
- Field Equipment Power Supply Support: Outputs stable 24VDC regulated power for on-site transmitters and small auxiliary actuators. It ensures continuous and stable operation of field signal acquisition equipment.
- Old Control System Upgrading & Renovation: Replaces aging low-precision amplifier boards. It upgrades the overall signal processing accuracy and anti-interference ability of old Mark V systems without large-scale equipment reconstruction.
- Industrial Drive System Signal Matching: Applies to DC2000 drive system signal conditioning and conversion. It realizes stable signal interaction between drive equipment and main controllers to ensure accurate speed regulation and load control.
Product Value & Market Competitiveness
The GE effectively solves common pain points of traditional signal amplifier modules, such as low signal resolution, poor anti-interference ability, unstable power output and single channel adaptation. It integrates 8-channel differential signal acquisition, 12-bit high-precision conversion, optical isolation protection and high-load regulated power output technology. It comprehensively improves the signal processing accuracy, operational stability and anti-interference level of GE Mark V turbine control systems.
In the global industrial control spare parts e-commerce market, this product has prominent differentiated competitive advantages. It features exclusive Mark V system adaptation, multi-channel integrated signal processing, high-precision amplification and ultra-high field reliability. Combined with standardized genuine procurement, complete qualification documents and full-cycle professional after-sales services, it is the preferred original replacement and upgrading module for power plant turbine system signal loop maintenance, precision optimization and enterprise strategic spare parts reserve.
