Description
Product Overview

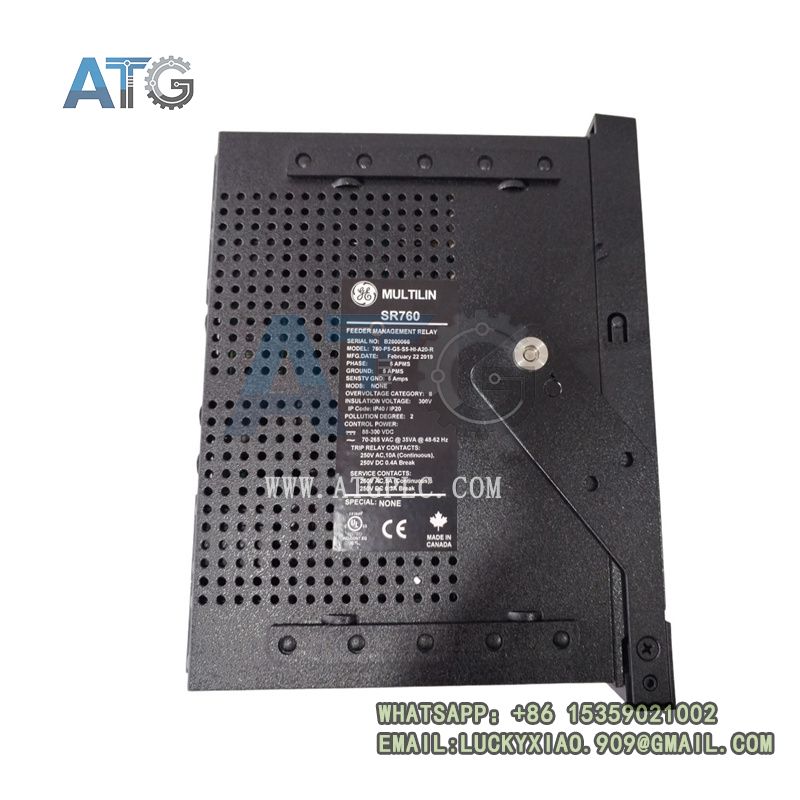

The GE 760-P1-G1-S1-LO-A20-R-E is a digital feeder protection relay from the GE 760 series. It serves as an integrated protection and monitoring device for distribution feeders in power plants and substations. This relay combines fault protection, electrical measurement, event recording and local human-machine interaction. It monitors feeder operating status continuously and triggers fast protection actions when electrical faults occur.
Distribution feeders face frequent risks like short circuit, overload and earth fault. These faults may damage power equipment and cause large-area power outages. Many universal protection relays cannot match the original setting logic and communication registers. They bring hidden risks to feeder protection loops after replacement. To eliminate these safety hazards, the GE 760-P1-G1-S1-LO-A20-R-E adopts mature digital signal processing architecture. Every unit completes protection logic verification, sampling calibration and full-load aging test before shipment. It acts as original spare equipment for substation renovation and feeder protection upgrade, and fully supports global industrial e-commerce procurement.
Core Product Features & Competitive Advantages
Reliable feeder protection keeps distribution grid stable. Simple protective devices only cover limited fault types. They lack waveform recording and flexible communication functions. In contrast, the GE 760-P1-G1-S1-LO-A20-R-E integrates comprehensive protection algorithms, high-precision measurement and powerful data recording. It provides all-round safety monitoring for power distribution feeders.
- Comprehensive Feeder Protection Functions: It includes overcurrent protection, earth fault protection, overload protection and over/under voltage protection. It covers most common feeder fault conditions.
- High Precision Electrical Sampling: High-speed analog sampling circuit captures current and voltage signals accurately. It reduces measurement error under complex grid interference.
- Built-In Fault Waveform Recorder: It stores fault waveforms, action sequences and related electrical parameters. Engineers can analyze accident root causes quickly after a trip.
- Multiple Industrial Communication Interfaces: It supports mainstream power communication protocols. It connects smoothly with SCADA and remote monitoring platforms.
- Local HMI & Parameter Configuration: Equipped with front-panel display and operation keys. Users can check real-time data and adjust protection settings on site.
- Continuous Hardware Self-Diagnosis: The relay runs automatic internal hardware checks all the time. It sends alarms for internal circuit or firmware abnormalities in time.
- Strong EMC Anti-Interference Performance: Optimized electromagnetic design resists surge and electromagnetic noise in substation environments. It prevents false tripping caused by field interference.
- Standard Panel Mount Structure: Compact panel-mounted casing fits standard substation cabinets. It simplifies replacement during maintenance work.
Detailed Segmented Technical Specifications
The GE 760-P1-G1-S1-LO-A20-R-E follows GE power protection product standards and IEC grid protection requirements. Its protection logic, electrical ratings and environmental indicators pass laboratory verification and long-term field operation. The grouped parameters below support model selection, scheme design and bulk procurement.
3.1 Basic Product & Application Parameters
This digital multifunction relay focuses on power distribution feeder protection and condition monitoring. It is widely deployed in industrial power distribution stations and utility substations.
- Official Product Model: 760-P1-G1-S1-LO-A20-R-E
- Product Category: Digital Multifunction Feeder Protection Relay
- Manufacturer: General Electric (GE)
- Core Product Positioning: Feeder fault protection, electrical parameter measurement, fault waveform recording, local status monitoring and remote data uploading
- Fully Compatible Applications: Medium voltage distribution feeders, industrial plant auxiliary power circuits, substation outgoing feeders
- Installation Method: Standard cabinet panel mounting
- Core Application Scenarios: Substation feeder protection renovation, old relay replacement, industrial power system upgrade, spare part inventory preparation
- Implementation Standards: GE power protection specifications, IEC protection relay standards, CE/UL industrial certification
3.2 Protection & Measurement Parameters
The relay integrates multiple protection algorithms. It monitors voltage, current and thermal status of distribution feeders in real time.
- Core Protection Functions: Phase overcurrent, earth fault, overload, overvoltage, undervoltage and breaker failure protection
- Sampling Accuracy: High precision analog sampling for voltage and current measurement
- Fault Recording Capacity: Stores fault waveforms and event logs for post-fault analysis
- Setting Mode: Local HMI setting or remote parameter configuration via communication port
- Self-Diagnosis: Continuous hardware self-check with alarm output for internal faults
3.3 Communication Parameters
It reserves multiple communication channels. It realizes data upload and remote control with upper monitoring platforms.
- Supported Communication Protocols: Widely adopted power industry communication protocols for substation automation
- Interface Type: Rear panel wired communication ports
- Data Function: Real-time telemetry upload, event report transmission, remote parameter read and write
- Network Performance: Stable data transmission suitable for long-term uninterrupted substation operation
3.4 Electrical & Power Supply Parameters
The relay supports common DC auxiliary power supply in power industry. It keeps working under short-term voltage fluctuation.
- Rated Auxiliary Power: DC power supply for substation control cabinet
- Power Consumption: Low standby power consumption
- Input Signal Source: Secondary signals from current transformers and voltage transformers
- Contact Capacity: Relay output contacts for trip and alarm signals
3.5 Mechanical & Structural Parameters
It adopts standard panel-mounted metal casing design. The front panel has display and operation buttons for convenient local operation.
- Structural Type: Panel-mounted metal enclosure for protection relay
- Installation Method: Embedded panel installation in control cabinet
- Front Panel: LCD display, LED status indicators and setting keys
- Mechanical Resistance: Anti-vibration structure to adapt to substation cabinet vibration
3.6 Environmental Adaptability Parameters
The relay passes strict environmental tests. It runs continuously in substation and power plant control room conditions.
- Full-Load Operating Temperature Range: -20°C to +70°C stable continuous operation
- Storage Temperature Range: -40°C to +85°C
- Working Humidity Range: 5%–95% RH non-condensing
- Environmental Resistance: Dust resistance and strong electromagnetic interference resistance
- Continuous Operation Capacity: Supports 7×24-hour uninterrupted operation
3.7 Factory Testing & Quality Certification
All GE 760-P1-G1-S1-LO-A20-R-E relays follow strict GE quality control workflows. Each unit completes protection logic test and aging screening before delivery.
- Core Factory Test Items: Protection function test, analog sampling accuracy test, communication test, EMC interference test, high-low temperature aging test, vibration test
- Quality Inspection Standard: 100% full function testing + parameter calibration + complete test record filing
- Authoritative Qualification Certification: CE, UL and IEC relay compliance certification
- Field Operation Performance: Widely deployed in global power distribution systems with reliable protection action performance
E-commerce Sales Mode & Complete Procurement Advantages
As a core feeder protection device for power distribution systems, the GE 760-P1-G1-S1-LO- uses standardized, transparent global industrial e-commerce sales. It mainly serves substation protection renovation, feeder protection equipment replacement and strategic spare inventory for power enterprises. It delivers one-stop standardized procurement and full-cycle technical service for EPC contractors and grid operators.
4.1 Standardized Transparent E-commerce System
Each product comes with complete factory test documents. Production, calibration and warehousing steps are fully traceable. E-commerce platforms publish datasheets, test reports and certification documents openly. Buyers can verify product authenticity and protection performance online. This transparent sales model helps customers avoid refurbished or incompatible relays. It safeguards the safe operation of feeder protection loops.
4.2 Diversified Flexible Procurement Modes
Substation maintenance and power upgrade projects have different construction timelines and order volumes. We provide three procurement solutions for different power industry scenarios.
- Emergency Spot Procurement: Suitable for sudden relay failure or protection loop defect. Available stock enables fast shipment. It helps restore feeder protection quickly and reduce power outage losses.
- Small-Batch Spare Parts Stocking: Ideal for power plants and substations to build 760 series spare inventory. Pre-stocking this relay shortens emergency maintenance response time.
- Large-Batch Engineering Procurement: Offers preferential pricing and long-term framework agreements for large substation renovation projects. It lowers overall project equipment cost.
4.3 Full-Cycle After-Sales Service Guarantee
Feeder protection relays are critical safety equipment for distribution grids. Relay malfunction may lead to equipment damage or power supply interruption. We provide complete after-sales protection to reduce procurement risks.
- 100% Original Genuine Guarantee: Products are genuine GE relays with complete factory documentation. It ensures consistent protection logic and communication compatibility.
- Professional Industrial Packaging: Anti-static, shockproof and moisture-proof packaging protects precision electronic components during transportation and storage.
- 24/7 Professional Technical Support: Pre-sales model matching, protection setting guidance, on-site commissioning advice and post-sales fault diagnosis available.
- Long-Term Warranty Service: Unified warranty coverage. Free repair or replacement applies to non-human-caused quality defects to cut maintenance expense.
Main Industrial Application Scenarios
With comprehensive protection logic, high sampling precision and strong anti-interference capability, this relay is widely used in protection and monitoring projects of medium voltage distribution feeders.
- Main & Backup Protection for Distribution Feeders: Provides overcurrent and backup protection for outgoing feeders in industrial substations.
- Damaged Relay Direct Replacement: Replaces failed old 760 series relays. It matches original secondary circuit and protection scheme with minor adjustment.
- Substation Automation Retrofit: Used in smart substation upgrading. It uploads feeder operation data to SCADA monitoring platform.
- Critical Spare Reserve for Power Assets: Reserved as key protection equipment to respond to unexpected relay faults of distribution feeders.
Product Value & Market Competitiveness
The GE 760-P1-G1-S1-LO- solves common weak points of traditional feeder protection devices. These limits include incomplete protection functions, poor anti-interference and insufficient fault recording capacity. It realizes real-time monitoring and fast fault isolation for medium voltage distribution feeders.
In the global power spare parts e-commerce market, this multifunction feeder protection relay has obvious competitive strengths. It integrates rich protection algorithms, local HMI operation and fault waveform recording. Coupled with genuine guarantee, complete technical documents and full-cycle technical support, it becomes the preferred original equipment for feeder protection renovation and relay replacement in power industry.
