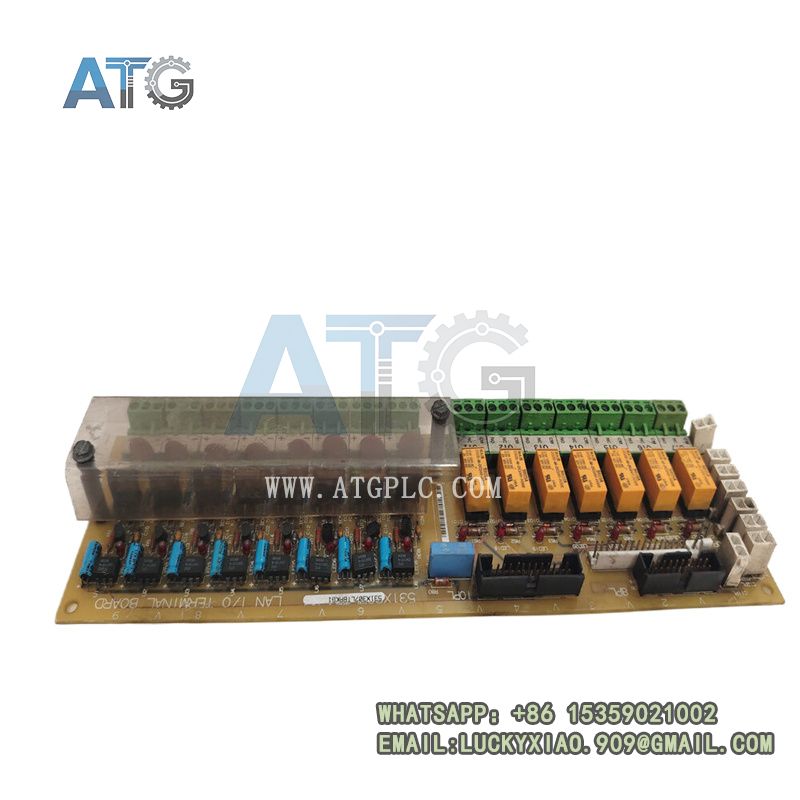

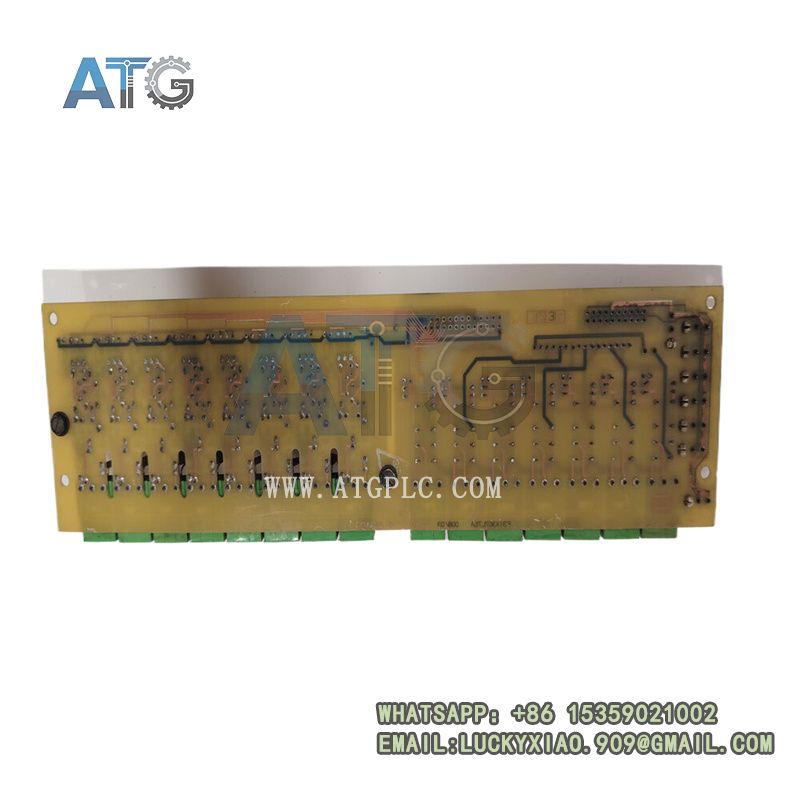

The GE 531X307LTBAKG1 is a terminal board from the GE 531X industrial control series. It works as a local terminal connection and signal distribution unit. The board is specially built for GE DC2000 adjustable speed drive systems. It also fits well with related Mark V turbine control platforms. It forms a reliable connection point between field sensors, actuators and main control boards. It routes analog and digital signals into the drive controller correctly. It also distributes auxiliary power for on-site signal loops.
Drive and turbine control systems need solid wiring terminals to keep signals steady. Generic terminal boards often struggle under heavy vibration and temperature swings. Loose terminals or poor contact may trigger intermittent signal loss. Such faults can lead to unexpected drive trips and costly downtime. Besides, non-original boards may have mismatched pin definitions. They cannot align with the DC2000 system wiring logic. To avoid these risks, the GE 531X307LTBAKG1 uses industrial-grade terminal blocks and reinforced PCB layout. Every board passes continuity and insulation testing before shipment. It serves as a standard spare part for drive maintenance and supports global industrial e-commerce procurement.
Core Product Features & Competitive Advantages
Reliable signal wiring is critical for variable speed drive operation. Ordinary terminal boards only offer simple wire connection. They lack surge protection and vibration resistance for power plant environments. The GE 531X307LTBAKG1 adds multiple practical upgrades for industrial heavy-duty use.
- Multi-Point Signal Termination: It provides dense terminal points for analog inputs, digital I/O and power wiring. It organizes messy field cables in one single board.
- Built-In Surge Suppression: It carries integrated transient protection components. These parts absorb voltage spikes from field wiring and protect downstream control circuits.
- Clear Pin Definition Marking: Printed pin labels stay readable over long service life. They speed up wiring work and reduce human wiring errors.
- High Vibration Resistance Design: It uses secure screw-type terminal blocks. Terminals stay tight under continuous mechanical vibration from drive equipment.
- Full Compatibility with DC2000 Drives: Pinout matches GE DC2000 adjustable speed drive systems directly. It supports direct replacement without changing existing wiring layouts.
- Insulation Safety Design: The PCB adopts high dielectric substrate. It prevents short circuits between adjacent signal and power channels.
- Conformal Coating Protection: The whole board gets a protective coating. It defends against dust, moisture and mild corrosive gas in industrial workshops.
- Modular Rack Mount Structure: Standard size fits the original drive cabinet slots. Installation, inspection and replacement can finish quickly during maintenance.
- Easy Troubleshooting Access: Separated signal and power terminals. Engineers can test each loop separately without disconnecting all cables.
GE 531X307LTBAKG1
Detailed Segmented Technical Specifications
The GE 531X307LTBAKG1 follows GE 531X series original design rules. All electrical insulation, terminal rating and mechanical indicators go through lab and field validation. The following grouped parameters help with model selection, cabinet retrofit and bulk procurement.
3.1 Basic Product & Application Parameters
This unit is a dedicated local terminal board in GE 531X series. It focuses on signal termination, cable distribution and auxiliary power routing for DC2000 drive and Mark V turbine control systems.
- Official Product Model: 531X307LTBAKG1
- Product Category: Local Terminal Board, Signal Distribution Board
- Manufacturer: General Electric (GE)
- Core Product Positioning: Field cable termination, signal splitting, power distribution and transient overvoltage protection
- Fully Compatible Systems: GE DC2000 Adjustable Speed Drive System, GE Mark V Turbine Control Platform
- Installation Method: Rack-mounted inside drive control cabinet
- Core Application Scenarios: drive cabinet wiring renovation, worn terminal board replacement, turbine auxiliary signal wiring integration
- Implementation Standards: GE original industrial control specifications, IEC insulation and EMC standards, UL industrial safety requirements
3.2 Electrical Parameters
The board is designed for mixed low-voltage signal and auxiliary power circuits. It maintains stable insulation performance under normal voltage fluctuations.
- Rated Signal Voltage: 24VDC control signal circuit
- Maximum Terminal Rated Voltage: 300V
- Single Terminal Rated Current: 5A continuous
- Insulation Withstand Voltage: 1500VAC between power and signal circuits
- Surge Protection Level: Built-in TVS components for transient voltage suppression
- Isolation Type: Galvanic separation between analog signal channels and power terminals
3.3 Terminal & Wiring Parameters
Screw-clamp terminals are selected for heavy-duty industrial wiring. They deliver stable clamping force for stranded or solid copper wires.
- Terminal Type: Screw-type removable terminal blocks
- Supported Wire Range: 0.5 mm² to 2.5 mm² copper cable
- Terminal Function Groups: Analog signal terminals, digital I/O terminals, DC power terminals, common ground terminals
- Marking: Permanent silkscreen pin number and function labels on PCB
- Wiring Feature: Each terminal supports independent wire connection and disconnection
3.4 Mechanical & Structural Parameters
The board uses standard 531X series PCB form factor. It fits the original cabinet slot without mechanical modification.
- Structure Type: Printed circuit terminal board, 531X series standard form
- Mounting Style: Rack mount in GE drive cabinet
- Overall Dimensions: 24.8 cm × 11.0 cm × 3.2 cm
- Product Weight: 0.37 kg
- Surface Protection: Full-board acrylic conformal coating
- Mechanical Resistance: Reinforced soldering to resist continuous vibration
3.5 Environmental Adaptability Parameters
The board can work reliably in typical power plant and industrial drive cabinet environments. It tolerates temperature cycling and moderate humidity.
- Operating Temperature Range: -30°C to +70°C
- Storage Temperature Range: -40°C to +85°C
- Working Humidity: 5%–95% RH, non-condensing
- Environmental Resistance: Dust resistance, anti-humidity, resistance to mild industrial airborne contaminants
- Continuous Operation: Supports 7×24 hour service within rated environment limits
3.6 Factory Testing & Quality Certification
Every GE 531X307LTBAKG1 goes through standard factory checks before delivery. These tests verify continuity, insulation and mechanical stability.
- Core Factory Test Items: Continuity test, insulation resistance test, terminal pull force test, visual solder inspection, coating integrity check
- Quality Inspection Standard: 100% electrical function test, record saved for traceability
- Qualifications: Complies with UL, CE and IEC EMC and electrical safety standards
- Field Performance: Widely deployed on drive systems, low failure rate for wiring interface faults
GE 531X307LTBAKG1
E-commerce Sales Mode & Complete Procurement Advantages
The GE 531X307LTBAKG1 is a key spare part for GE drive and Mark V turbine maintenance. It is sold via standardized global industrial e-commerce channels. It serves power plants, automation system integrators and heavy industry asset owners. Customers can buy single emergency replacement units or build long-term spare part inventory.
4.1 Standardized Transparent E-commerce System
All products follow unified inspection rules before warehousing. Test records and specification sheets are available for customer review online. Buyers can check board condition, pin integrity and coating quality before confirming orders. This transparent process lowers the risk of buying counterfeit or poorly reworked terminal boards.
4.2 Diversified Flexible Procurement Modes
Maintenance tasks have different purchasing needs. Emergency breakdown repair, routine spare stocking and large cabinet upgrade projects require separate solutions.
- Emergency Spot Procurement: Suitable for sudden terminal board damage or loose wiring faults. Available stock enables quick shipment. It helps restore drive system operation fast and cuts production loss.
- Small-Batch Spare Parts Stocking: For regular maintenance teams. Keep one or several boards on site to shorten repair time when the original terminal board ages.
- Large-Batch Engineering Procurement: Designed for system renovation projects. Volume orders get special pricing and coordinated batch delivery schedules.
4.3 Full-Cycle After-Sales Service Guarantee
A bad terminal board can break the whole control loop. We provide full support to reduce procurement risks for customers.
- Genuine Product Guarantee: Verified GE board with complete factory test documents. It matches original pin definition and mechanical size.
- Professional Industrial Packaging: Anti-static bag, shock absorbing foam and hard carton protect the PCB during transit.
- 24/7 Technical Support: Pre-sales model confirmation, wiring consultation and post-delivery troubleshooting guidance.
- Warranty Coverage: Standard warranty applies. Non-artificial quality issues qualify for maintenance or replacement service.
GE 531X307LTBAKG1
Main Industrial Application Scenarios
With stable termination, built-in surge protection and native compatibility, this terminal board works in many heavy industry control cabinet projects.
- : Collect field sensor and actuator cables, and transfer signals to the main drive control card.
- Worn Terminal Board Replacement: Replace aged boards with corroded or loose screw terminals. It restores signal connection reliability without cabinet modification.
- Mark V Turbine Auxiliary Signal Interface: Handle auxiliary analog and digital wiring for turbine auxiliary control loops.
- Drive System Retrofit Project: Used in cabinet rebuild work to reorganize wiring layout and improve system maintainability.
Product Value & Market Competitiveness
The GE 531X307LTBAKG1 solves common terminal board weaknesses, such as weak vibration resistance, poor surge protection and unclear pin marking. It combines multi-channel signal termination, transient voltage protection and high-reliability screw terminals. It stabilizes the wiring interface of adjustable speed drive systems.
In the global industrial spare parts e-commerce market, this terminal board has clear strengths. It keeps native compatibility with GE drives. It carries conformal coating and built-in surge suppression. Combined with transparent inspection records and flexible ordering options, it becomes a preferred spare part for drive cabinet maintenance and industrial control system renovation.
