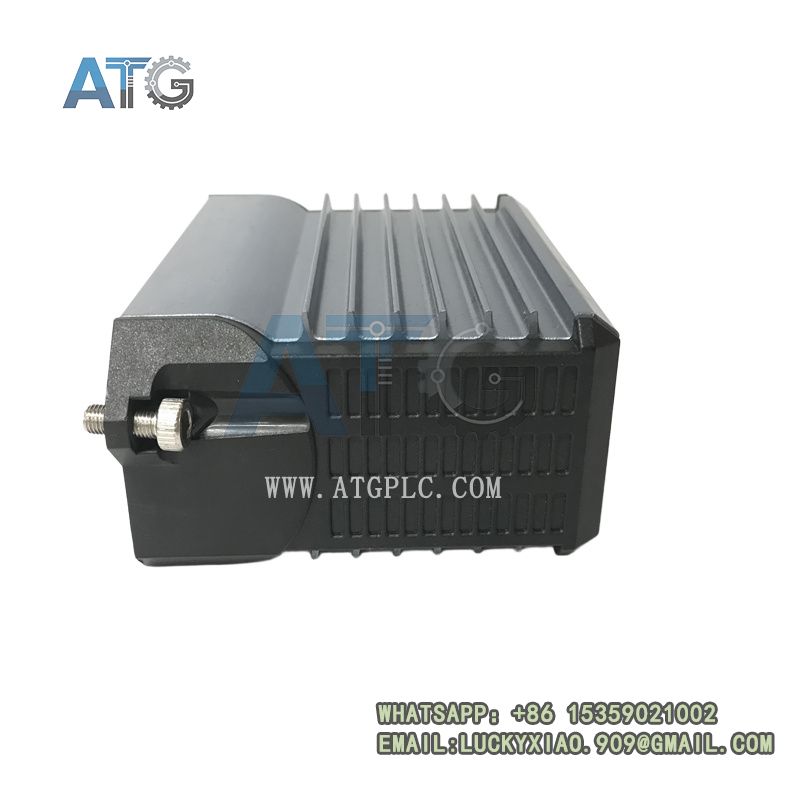

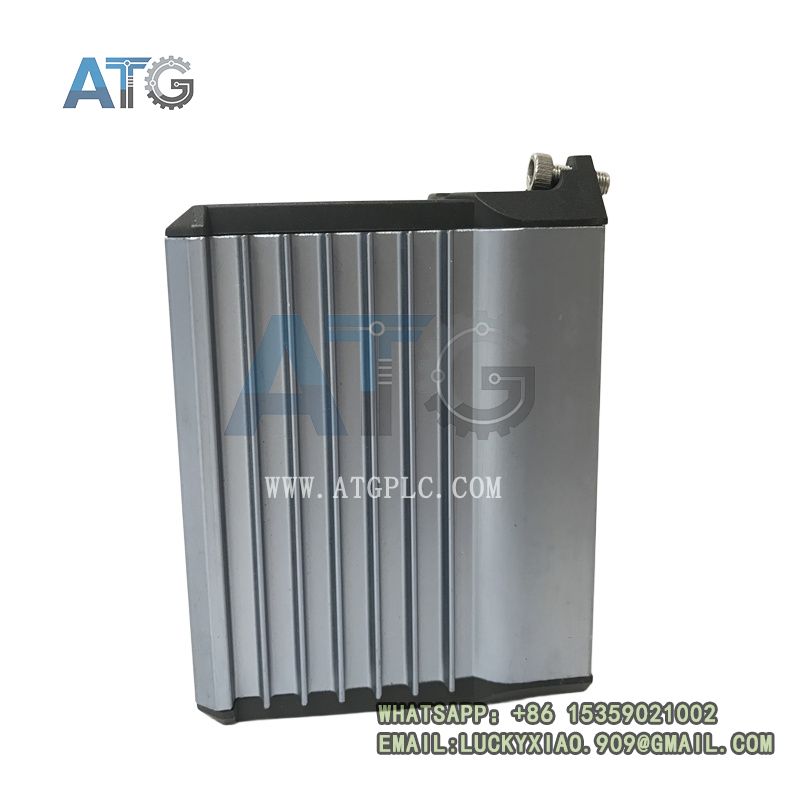

FOXBORO FBMSVH Servo control module

Description

Product Overview

The FOXBORO FBMSVH is a high-precision industrial closed-loop servo control module belonging to the Schneider Electric EcoStruxure Foxboro I/A Series DCS field bus module family. Designed exclusively for precision position regulation and servo drive control in process industrial systems, this module serves as a professional signal acquisition, calculation and drive output unit for pneumatic and hydraulic servo actuators. It realizes high-precision closed-loop control by receiving upper-level control command signals and real-time LVDT position feedback signals from field actuators, accurately adjusting servo output to maintain process equipment position, stroke and operating state within set parameters.

Manufactured in strict accordance with Foxboro DCS industrial precision control standards and international process industry safety specifications, the FBMSVH adopts dedicated servo closed-loop algorithm chip, high-resolution signal sampling circuit and isolated drive output design. Different from ordinary universal analog I/O modules, this professional servo control card integrates command parsing, feedback demodulation, PID operation and servo drive output functions in one unit, perfectly matching LVDT position sensors and industrial servo actuators. It features ultra-high control accuracy, strong signal anti-interference capability and stable dynamic response performance, fully adapting to 7×24-hour uninterrupted high-precision control scenarios in harsh industrial environments. Every FBMSVH module undergoes strict factory algorithm calibration, full-temperature performance testing, signal accuracy verification and long-term dynamic aging inspection, complying with global industrial e-commerce spot sales, large-scale engineering batch procurement and full lifecycle quality traceability standards. It is widely applied in power generation, petrochemical and heavy industrial precision process control links, serving as the core closed-loop control unit for industrial servo regulation systems.

Core Product Features & Competitive Advantages

Compared with conventional analog control modules and generic servo control accessories, the FOXBORO FBMSVH dedicated DCS servo control module has outstanding advantages in precision control capability, signal processing performance, system matching degree and operational stability. It solves common industry pain points such as low position control accuracy, slow dynamic response, weak signal isolation and single functional mode of traditional servo matching modules, providing high-stability and high-precision closed-loop control solutions for industrial servo actuator systems. The core competitive advantages are summarized as follows:

• Professional Closed-Loop Servo Control Integration: Integrates command signal acquisition, LVDT feedback demodulation, intelligent P/PI algorithm operation and servo current drive output. It completes full-process closed-loop position adjustment independently, avoiding control delay and signal deviation caused by multi-module coordination, greatly improving system response efficiency.
• Ultra-High Control Accuracy & Resolution: Equipped with 16-bit high-precision signal sampling architecture, achieving ±0.1% FS full-scale control accuracy. It supports micro-position fine adjustment of servo actuators, fully meeting the ultra-precision process regulation requirements of power generation equipment, chemical valves and hydraulic transmission systems.
• Dual Signal Mode Compatibility: Supports standard 4–20 mA current command and 0–10 VDC voltage command input, compatible with mainstream DCS system control signal standards. It matches LVDT 0–10 V position feedback signal access, realizing seamless docking of mainstream industrial servo sensing and control systems.
• Precision Servo Drive Output Capacity: Provides stable ±27 mA high-precision servo drive current output, which can directly drive industrial pneumatic and hydraulic servo actuators without additional signal amplification equipment, simplifying on-site system configuration and reducing peripheral equipment investment.
• Adjustable Algorithm Gain & Bias: Supports flexible adjustment of closed-loop gain (1–20 adjustable range) and feedback bias (-8 VDC to +8 VDC). It can adapt to different servo actuator characteristics and on-site process working conditions, realizing customized optimization of control loops.
• High-Strength Electrical Isolation & Anti-Interference: Built-in 1500 VAC reinforced electrical isolation structure between input, feedback and output loops. It effectively isolates industrial on-site electromagnetic interference, power grid fluctuation and signal crosstalk, ensuring long-term stable and error-free operation of precision control loops.
• Dedicated LVDT Demodulation Function: Integrated 1000 Hz high-stability oscillator circuit (±10% frequency tolerance), supporting high-precision demodulation of LVDT displacement feedback signals. It accurately restores field equipment position data and eliminates feedback signal distortion.
• Industrial-Grade Continuous Operation Stability: Optimized circuit power consumption and heat dissipation design, adapting to 0℃–60℃ industrial control room temperature environment. It maintains consistent control accuracy and dynamic response performance during long-term full-load operation without parameter drift or performance attenuation.
• Perfect Foxboro DCS System Compatibility: Fully compatible with Foxboro I/A Series and Evo series DCS platforms, supporting seamless docking with FCP series controllers and system configuration software. It realizes one-stop configuration, debugging and real-time data monitoring with low engineering implementation difficulty.
• Modular Hot-Swap Maintainability: Adopts standard FBM field bus modular structure, supporting on-site hot-swap replacement. It realizes rapid fault maintenance without system shutdown or process interruption, minimizing industrial production downtime losses.

Detailed Technical Specifications (Key Highlight Parameters)

All technical parameters of the FOXBORO FBMSVH strictly comply with Schneider Electric Foxboro official FBM series module specifications and international industrial servo control precision standards. Featuring high-precision sampling, adjustable closed-loop algorithm, isolated signal protection, dedicated LVDT signal processing and industrial-grade stability, it fully meets the technical requirements of new precision servo control system construction, old equipment upgrading, process loop optimization and batch standardized engineering procurement. The classified detailed parameters are as follows:

3.1 Basic Product Identification & Classification

• Official Full Model: FBMSVH
• Manufacturer: FOXBORO (Schneider Electric Industrial Automation Division)
• Product Series: Foxboro I/A Series FBM Field Bus Control Module
• Product Type: High-Precision Closed-Loop Servo Control Module
• Core Functions: DCS command signal acquisition, LVDT displacement signal demodulation, P/PI closed-loop algorithm operation, ±27mA servo drive output, equipment position closed-loop regulation, signal isolation and fault diagnosis
• Matching Equipment: Foxboro FCP series field control processors, LVDT displacement sensors, industrial pneumatic/hydraulic servo actuators, DCS standard system racks
• Applicable Scenarios: Thermal power unit DEH servo regulation systems, petrochemical precision valve control, hydraulic transmission equipment closed-loop control, industrial automation precision displacement regulation, legacy Foxboro servo control system upgrading
• Executive Standards: IEC industrial precision control standard, Foxboro FBM series module specification, electromagnetic compatibility EMC standard, ISO 9001 quality system standard

3.2 Core Control & Precision Performance Parameters

• Signal Input Mode: 4–20 mA analog command input / 0–10 VDC voltage command input
• Feedback Signal Type: LVDT 0–10 VDC displacement feedback signal, maximum 18 Vpp input range
• Drive Output Signal: ±27 mA high-precision servo current drive output
• Control Accuracy: ±0.1% FS full-scale ultra-high precision
• Sampling Resolution: 16-bit high-resolution signal sampling
• Algorithm Mode: Support pure proportional (P) and proportional-integral (PI) closed-loop control
• Gain Adjustment Range: 1–20 continuous adjustable closed-loop gain
• Feedback Bias Range: -8 VDC to +8 VDC adjustable offset calibration
• LVDT Oscillator Frequency: 1000 Hz standard frequency, ±10% tolerance accuracy

3.3 Isolation & Anti-Interference Parameters

• Isolation Strength: 1500 VAC reinforced electrical isolation between input, feedback and output loops
• Anti-Interference Design: Built-in EMC electromagnetic shielding and signal filtering circuit
• Signal Stability: No drift or jitter under long-term industrial electromagnetic interference environment
• Loop Independence: Isolated design for each control loop, no mutual signal crosstalk

3.4 Power & Electrical Parameters

• Power Supply Mode: Support ±15 VDC or 24 VDC industrial standard power supply
• Power Consumption: Low-power optimized circuit design, low heat generation during full-load operation
• Power Supply Protection: Built-in overvoltage, overcurrent and short-circuit protection mechanism
• Voltage Adaptation: Adapt to industrial power supply voltage fluctuation, stable output without distortion

3.5 Environmental & Mechanical Parameters

• Operating Temperature Range: 0℃ ~ +60℃ standard industrial precision control environment
• Storage Temperature Range: -30℃ ~ +80℃ wide temperature resistant storage
• Working Humidity Range: 5% ~ 95% RH non-condensing humidity adaptation
• Environmental Resistance: Dust-proof, moisture-proof, vibration-resistant industrial modular structure
• Installation Method: Standard Foxboro FBM series rack-mounted modular installation
• Operating Mode: Support 7×24-hour continuous full-load stable operation

3.6 Compatibility & Certification Parameters

• System Compatibility: Fully compatible with Foxboro I/A Series V8.4–V8.8 and Evo V9.0 and above system versions
• System Docking: Perfectly matched with FCP series controllers and Foxboro official configuration software
• Industrial Certifications: CE electromagnetic compatibility certification, RoHS environmental protection certification
• Quality Standard: ISO 9001 international quality system standardized production
• Factory Testing Items: Precision accuracy calibration, closed-loop dynamic response test, isolation withstand voltage test, full-temperature aging test, LVDT signal demodulation verification
• Field Reliability: Verified by global thermal power and petrochemical large-scale projects, ultra-low field failure rate

E-commerce Sales Mode & Procurement Advantages

As a professional high-precision servo closed-loop control module for Foxboro DCS systems, the FOXBORO FBMSVH adopts a standardized, transparent and professional global industrial automation e-commerce operation system. It supports global online technical consultation, single spot retail, industrial engineering batch wholesale and DCS precision control system customized supporting procurement services, providing one-stop high-reliability servo control module procurement solutions for power plant automation teams, petrochemical engineering integrators, industrial control system upgrade contractors and DCS spare parts suppliers. All products are 100% original genuine with complete factory calibration reports, performance test documents and qualification certificates, realizing full model traceability, transparent hierarchical pricing and full-cycle official after-sales protection, effectively helping enterprises solve precision servo control loop failure problems, improve process control accuracy and reduce long-term system operation and maintenance costs.

4.1 Standardized Transparent Online Sales System

This product implements unified global Schneider Foxboro official FBM module technical standards and professional precision electronic equipment anti-static, shockproof and moisture-proof sealed packaging, with synchronized global unified warranty policies and industrial control precision module quality inspection standards. E-commerce platforms provide complete open technical resources including official FBMSVH datasheets, closed-loop configuration guidelines, LVDT signal matching manuals and full qualification certification documents. The fixed standard model supports official factory authenticity verification and full lifecycle quality traceability, completely eliminating refurbished, disassembled and recalibrated inferior modules in the market. It ensures 100% system matching and long-term high-precision stable control performance for Foxboro DCS servo regulation systems.

4.2 Diversified Flexible Procurement Modes

• Single & Small-Batch Spot Retail: Support single-unit and small-quantity spot ordering, applicable to on-site faulty module replacement, DCS servo control loop routine maintenance, precision control equipment calibration and small-scale system renovation projects. Sufficient global spot inventory supports ultra-short delivery cycles, quickly restores servo system closed-loop control accuracy and avoids process parameter deviation and production instability caused by module failure.
• Bulk Wholesale & Engineering Batch Procurement: Provide customized hierarchical preferential pricing and long-term batch supply schemes for large-scale thermal power unit DEH system upgrading, petrochemical precision valve control system construction and industrial automation precision regulation project deployment. Support long-term framework agreement cooperation and fixed-point stocking, greatly reducing long-term DCS precision control module spare parts procurement costs.
• Project Customized Supporting Services: Provide professional model matching verification, servo closed-loop scheme design, gain and bias parameter debugging, LVDT sensor matching calibration and on-site system commissioning guidance according to customers’ new DCS servo system construction and legacy precision control system upgrading projects, realizing one-stop supporting procurement of FBMSVH modules, matching sensors and debugging accessories.

4.3 Full-Cycle E-commerce Value-Added Services

• 100% Original Genuine Precision Guarantee: All supplied products are original Foxboro genuine FBM servo control modules with complete factory precision calibration reports and performance test data. Standard model traceability ensures zero matching errors and zero control accuracy deviation for on-site closed-loop systems.
• Professional Precision Industrial Logistics: Adopt dedicated anti-vibration, anti-static, shockproof and moisture-proof precision module packaging, avoiding circuit damage and precision parameter deviation during long-distance transportation. Support global multi-warehouse priority delivery to ensure intact product performance and consistent precision indicators.
• 24/7 Full-Process Professional Technical Support: Provide pre-purchase system matching consultation and closed-loop scheme optimization, mid-purchase on-site installation, parameter debugging and LVDT signal calibration guidance, and post-purchase operation optimization, fault diagnosis and precision recalibration full-process technical services to solve all servo control loop deployment and operation problems.
• Complete Official After-Sales Warranty: Enjoy unified global Foxboro official warranty service, support online after-sales quick response, quality problem free replacement and long-term professional operation and maintenance guidance, reducing precision control system operation risks and equipment maintenance costs.

Main Industrial Application Scenarios

Benefiting from its ultra-high control accuracy, stable closed-loop operation, strong signal isolation and exclusive DCS system compatibility, the FOXBORO FBMSVH module is widely used in precision closed-loop servo control links of Foxboro I/A Series DCS systems in process and power industries, covering key application fields as follows:

• Thermal Power Generation DEH Control System: Widely deployed in steam turbine digital electro-hydraulic control systems, responsible for precision closed-loop regulation of steam turbine valve position and hydraulic actuator stroke. It ensures precise speed regulation and load stability of power generation units, improving power plant operation safety and power supply quality.
• Petrochemical Precision Valve Control: Applied in chemical reaction kettle regulating valves, pipeline flow control valves and pressure regulating actuators, realizing high-precision closed-loop adjustment of valve opening. It stabilizes chemical reaction process parameters and ensures continuous and stable operation of petrochemical production processes.
• Hydraulic & Pneumatic Industrial Actuator Control: Used in industrial hydraulic transmission and pneumatic execution systems, accurately controlling actuator displacement and operating position. It meets the high-precision positioning requirements of mechanical transmission and process execution links in heavy industry automation systems.
• New Energy Power Plant Precision Regulation System: Deployed in wind power and photovoltaic supporting thermal power peak shaving units, undertaking precision servo regulation of unit auxiliary equipment. It improves the response speed and control accuracy of new energy power generation supporting systems.
• Industrial Automated Process Fine Control: Applied in fine chemical, pharmaceutical and environmental protection precision process control links, realizing micro-adjustment of process equipment status. It eliminates parameter fluctuation caused by low control accuracy and ensures standardized and refined production management.
• Legacy Foxboro Servo System Upgrading: Used to replace aging low-precision control modules in old DCS systems, improving system closed-loop control accuracy, dynamic response speed and anti-interference capability, realizing low-cost intelligent upgrading of industrial precision control systems.

Product Value & Market Competitiveness

The FOXBORO FBMSVH dedicated servo control module solves multiple core pain points of traditional industrial control modules, including low control precision, single algorithm mode, weak signal anti-interference and complex peripheral matching. Its integrated closed-loop control design, 16-bit high-resolution sampling, ±0.1% FS ultra-high accuracy and adjustable P/PI algorithm provide reliable high-precision control core for industrial servo execution systems.

In the global industrial e-commerce market, this original Foxboro genuine FBM module features exclusive DCS system compatibility, professional LVDT signal processing capability, integrated servo drive output and industrial-grade long-term stability. It can effectively improve the precision and stability of industrial process closed-loop control, reduce production parameter fluctuation and equipment failure rate, simplify on-site system configuration and lower overall engineering and maintenance costs. With standardized transparent procurement mechanism, 100% genuine quality traceability and full-cycle professional technical services, it has irreplaceable professional competitiveness in the field of Foxboro DCS precision servo control and industrial high-precision process regulation systems.
