Description
- Model: 3500/92-04-01-00
- Brand: Bently Nevada (Baker Hughes)
- Series: 3500 High-Precision Machinery Protection System Series
- Core Function: Converts rack data for seamless industrial system communication
- Type: Multi-Protocol Communication Gateway Module
- Key Specs: Ethernet & serial ports, Modbus/TCP & RTU protocols, wide temp adaptability
- Supply Status: In stock
- Stock: Available
- Warranty: 1 year
- Ship From: China

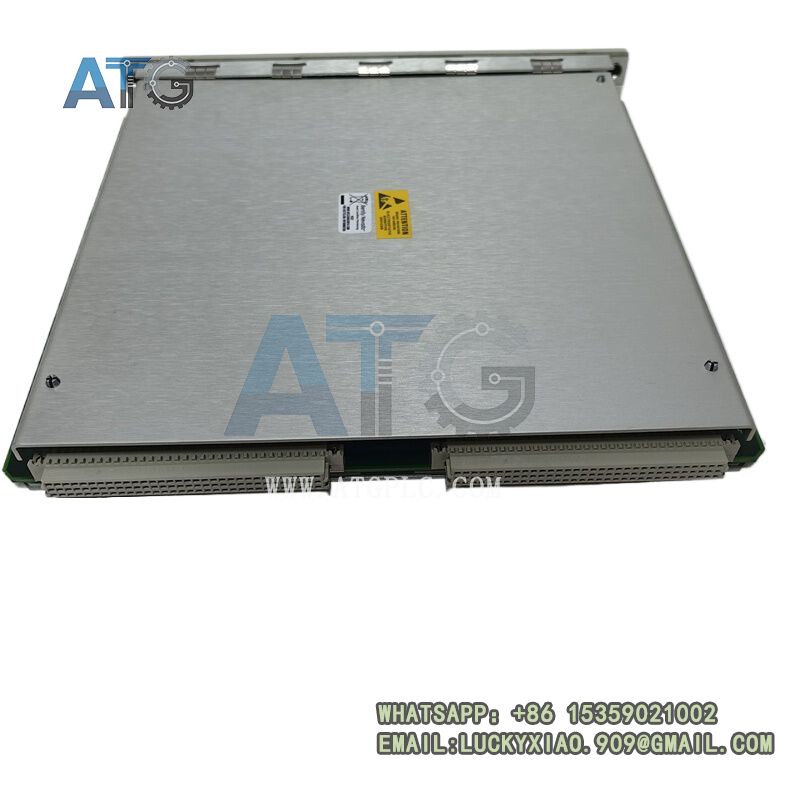

Bently Nevada 3500/92-04-01-00
Product System Overview
The Bently Nevada 3500/92-04-01-00 is a high-performance dedicated communication gateway module developed by Baker Hughes for the industry-leading 3500 machinery protection system. Serving as the core network interaction hub of the entire TSI monitoring rack, it bridges the proprietary internal bus data of 3500 series hardware and universal industrial automation systems. It collaborates stably with monitoring cards, power supply units and display modules to form a complete API 670-compliant machinery safety monitoring solution. This gateway supports dual communication modes of network port and serial port, realizing efficient docking with System 1 diagnostic software, DCS, SCADA and PLC platforms. With excellent field adaptability and long-term verified operational stability in global energy and process industries, it is a core standard component for new system deployment, old equipment upgrading and faulty communication module replacement projects.
Core Product Functions
This professional communication gateway module undertakes full-system data collection, intelligent protocol conversion and remote interactive management for the 3500 machinery protection rack. It automatically collects real-time operating data including vibration, displacement, rotational speed and temperature from all functional modules inside the rack, as well as system alarm logs and fault waveform records. Supporting mainstream industrial protocols such as Modbus/TCP and Modbus RTU, it converts proprietary rack bus signals into universal standard data formats to solve cross-platform data docking barriers. The module supports remote system configuration, parameter debugging and real-time data upload, enabling engineers to complete equipment monitoring and system maintenance without on-site operation. It also synchronizes system running status and fault information to upper control terminals in real time, providing accurate and timely data support for equipment safety supervision and predictive maintenance.

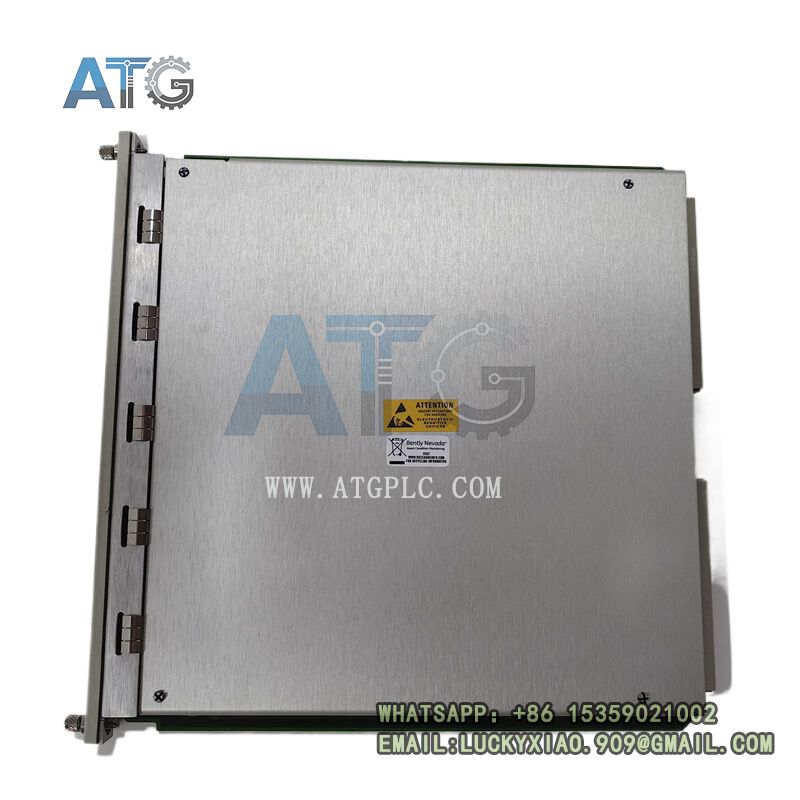

Bently Nevada 3500/92-04-01-00
Product Features & Technical Advantages
The 3500/92-04-01-00 gateway module boasts diverse interface compatibility, stable transmission performance and industrial-grade durability, fully adapting to complex factory operating environments. Equipped with integrated Ethernet and multi-functional serial ports including RS232/RS485, it provides dual communication backup options to ensure uninterrupted data transmission. The built-in multi-protocol adaptive algorithm simplifies cross-brand and cross-system integration, greatly improving project deployment efficiency. Adopting professional EMC electromagnetic shielding and surge protection design, it effectively resists on-site strong electromagnetic interference, power fluctuation and mechanical vibration, avoiding data distortion and packet loss. The intelligent data filtering and error correction mechanism further enhances transmission accuracy and stability. Featuring standardized rack-mounted plug-and-play installation, it supports fast assembly and replacement, effectively reducing system debugging time and operational maintenance costs.
Industrial Application Scenarios
This high-stability communication gateway module is widely deployed in critical industrial scenarios equipped with Bently Nevada 3500 monitoring systems. It is mainly applied to thermal power plants, combined cycle power stations, petrochemical refining bases, oil and gas compression stations and large metallurgical enterprises. It provides reliable data interconnection services for core rotating equipment such as steam turbines, gas turbines and centrifugal compressors. As an indispensable network interaction core of the 3500 TSI system, it realizes efficient linkage between field monitoring racks and remote intelligent management platforms, optimizes industrial equipment operation and maintenance efficiency, and guarantees long-term safe and stable operation of core production systems.
Bently Nevada 3500/92-04-01-00
