Description
- Model: 3500/15E 164949-01
- Brand: Bently Nevada (Baker Hughes)
- Series: 3500 High-Precision Machinery Protection System Series
- Core Function: Delivers regulated power for full 3500 rack system stable operation
- Type: Enhanced Redundant Power Supply Module
- Key Specs: Wide AC/DC input range, high-efficiency conversion, redundant backup support
- Supply Status: In stock
- Stock: Available
- Warranty: 1 year
- Ship From: China

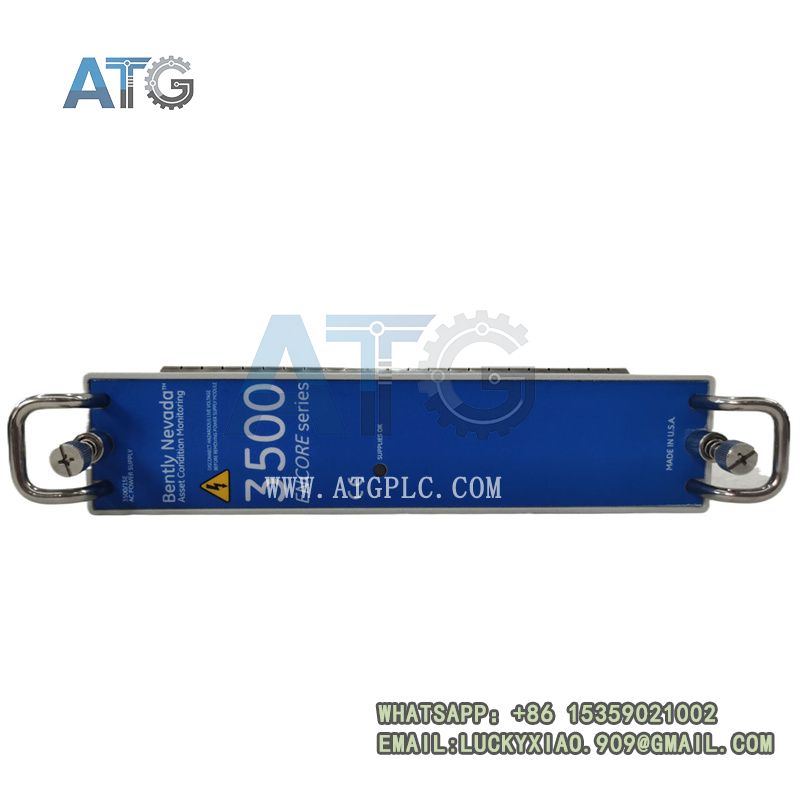

Bently Nevada 3500/15E 164949-01
Product System Overview
The Bently Nevada 3500/15E 164949-01 is an upgraded enhanced power supply module customized for Baker Hughes’ flagship 3500 machinery protection system. Serving as the core power distribution and conversion hub of the entire TSI monitoring rack, it is installed in the dedicated left slot of the standard 3500 chassis and works collaboratively with all monitoring cards, communication modules and signal acquisition units. This enhanced power module supports flexible redundant power configuration, effectively improving the overall operational stability of the monitoring system compared with conventional power units. It complies with API 670 international industrial safety standards, converting unstable field power into pure, filtered and stable multi-channel DC operating voltage for system hardware. Fully compatible with System 1 diagnostic software and mainstream DCS/SCADA industrial control platforms, it is widely applied in new system construction, old equipment upgrading and faulty power module replacement in global heavy industrial sites.
Core Product Functions
This industrial-grade enhanced power supply module undertakes precise power conversion, whole-rack power distribution and comprehensive safety protection for the 3500 machinery protection system. It adapts to diverse on-site AC and DC power input environments, efficiently converting fluctuating industrial power into stable and reliable operating voltage required by high-precision monitoring components. The built-in multi-stage filtering and voltage stabilization circuit eliminates power grid ripples, surge interference and signal clutter, ensuring interference-free power supply for sensitive signal acquisition and data processing modules. It supports dual-module redundant backup operation; when one power unit fails, the backup module automatically takes over power supply without system interruption. Additionally, it integrates real-time power status monitoring, overvoltage, undervoltage and short-circuit protection functions, feeding back abnormal power data to the upper system in real time to support intelligent fault judgment and daily maintenance.
Bently Nevada 3500/15E 164949-01
Product Features & Technical Advantages
The 3500/15E 164949-01 power supply module features upgraded circuit design, higher operational efficiency and stronger industrial adaptability than ordinary power modules, meeting stringent long-term operation requirements of core industrial equipment. Its ultra-wide input voltage range adapts to complex and unstable power grid conditions in industrial sites, avoiding system downtime and data loss caused by voltage fluctuations. The high-efficiency power conversion structure reduces heat generation and power consumption, supporting 24-hour continuous full-load stable operation without performance attenuation. Equipped with redundant power backup capability, it eliminates single-point power failure risks and greatly improves system operational reliability. The industrial-grade EMC anti-interference and electromagnetic shielding design enables stable operation in high-vibration and strong-electromagnetic industrial environments. Adopting standardized half-height plug-and-play structure, it simplifies on-site installation and replacement procedures, effectively reducing equipment maintenance downtime and operational costs.
Industrial Application Scenarios
This high-reliability enhanced power supply module is specially designed for high-standard Bently Nevada 3500 machinery protection monitoring systems. It is widely deployed in key industrial fields such as thermal power plants, combined cycle power stations, petrochemical refining bases, oil and gas compression stations and large metallurgical enterprises. It provides continuous and stable power guarantee for core monitoring racks supporting steam turbines, gas turbines, centrifugal compressors and other high-value rotating equipment. As the critical energy supply foundation of the entire TSI monitoring system, it ensures uninterrupted operation of data acquisition, signal analysis and safety interlock functions, effectively preventing system failures caused by power anomalies and safeguarding the safe and efficient operation of industrial production systems.
