Description
- Model: SPIET800
- Brand: ABB
- Series: ABB Symphony Plus INFI-NET Communication Series
- Core Function: Enable high-speed Ethernet data transmission for DCS systems
- Type: Industrial Ethernet CIU Communication Module
- Key Specs: 24VDC rated voltage, 10/100Mbps Ethernet, RS485 interface
- Supply Status: In Stock
- Stock: Available
- Warranty: 12 months
- Ship From: China

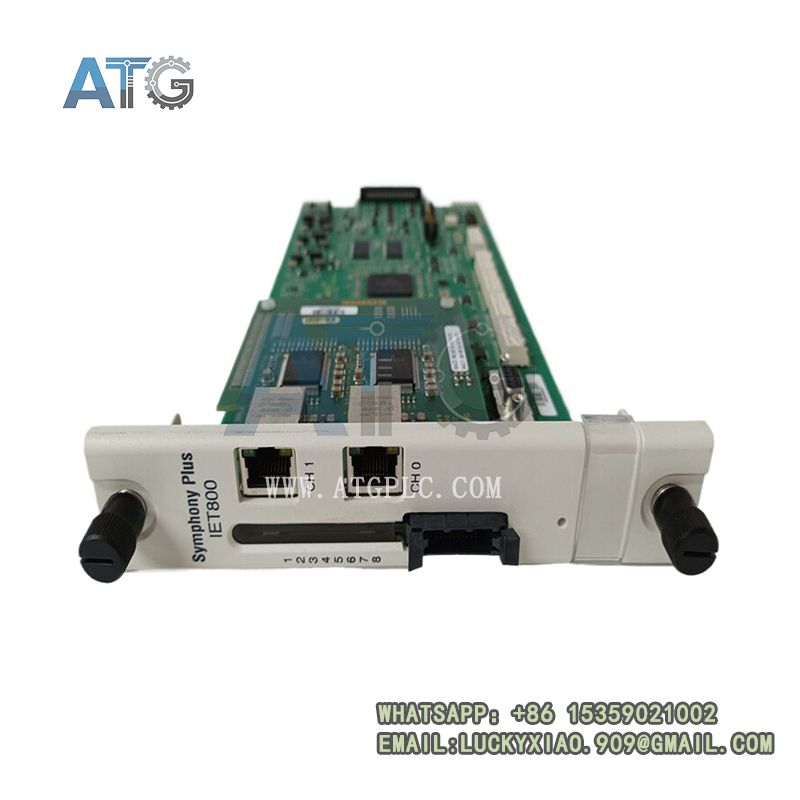

ABB SPIET800
Product System Introduction
The ABB SPIET800 is a high-performance industrial Ethernet CIU (Communication Interface Unit) module designed exclusively for ABB Symphony Plus distributed control systems. Serving as a critical network conversion and data transmission hub in industrial DCS architectures, it bridges traditional INFI-NET field bus systems and modern industrial Ethernet networks. This module adopts industrial-grade network processing chip and optimized anti-interference circuit design, fully complying with ABB’s strict industrial automation hardware manufacturing standards. It supports seamless compatibility with Symphony Plus series controllers, I/O modules and redundant power supply units, enabling smooth protocol conversion and bidirectional data interaction between legacy bus systems and upper Ethernet monitoring platforms. Widely deployed in power generation, petrochemical, water treatment and continuous process manufacturing industries, it effectively solves network compatibility problems of old DCS systems, realizes intelligent network upgrading, and serves as a core spare part for system maintenance, renovation and technical upgrading projects.
Product Functions
This professional communication interface module integrates network protocol conversion, high-speed data transmission and intelligent link monitoring functions, undertaking core network interaction tasks for Symphony Plus DCS systems. It supports adaptive 10/100Mbps Ethernet transmission and standard RS485 serial communication, realizing efficient data exchange between INFI-NET field bus devices and upper industrial Ethernet systems. The module can stably collect real-time field operating data including process parameters, equipment status signals and system operation logs, and transmit standardized data packets to HMI monitoring terminals, upper computer systems and third-party industrial platforms. Meanwhile, it accurately forwards remote control commands issued by the host system to field bus equipment, ensuring precise linkage control of the entire automated system. In addition, it builds in comprehensive network fault diagnosis and self-protection functions, which can automatically identify network disconnection, signal attenuation, data packet loss and protocol matching abnormalities, record detailed fault logs, and support rapid on-site troubleshooting to maintain continuous and stable system communication.

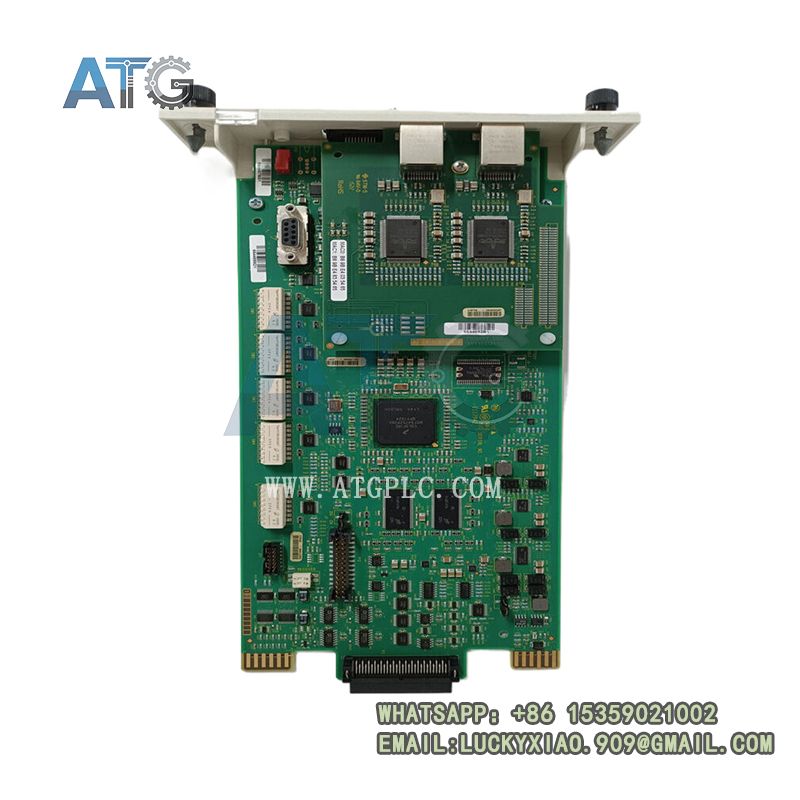

ABB SPIET800
Product Features
ABB SPIET800 boasts outstanding network transmission performance, ultra-high industrial stability and excellent system compatibility, fully adapting to long-term continuous operation in complex industrial scenarios. Equipped with independent Ethernet and RS485 dual communication interfaces, it realizes multi-channel signal transmission, greatly improving system communication efficiency and expandability. The industrial-grade circuit design and built-in electromagnetic shielding structure effectively resist on-site strong electromagnetic interference, voltage fluctuation and high-frequency signal clutter, ensuring low-latency and error-free data transmission. It supports stable 24VDC wide-range power supply operation and adapts to a wide working temperature range of -20°C to +70°C, maintaining stable performance in harsh environments such as high temperature, humidity and dust. The compact modular structure supports standard cabinet installation and quick plug-and-play replacement, effectively reducing system maintenance downtime and on-site debugging costs. With powerful backward compatibility, it perfectly matches old and new versions of Symphony Plus DCS systems, being the ideal choice for traditional bus system Ethernet upgrading, equipment renewal and daily spare part replacement.

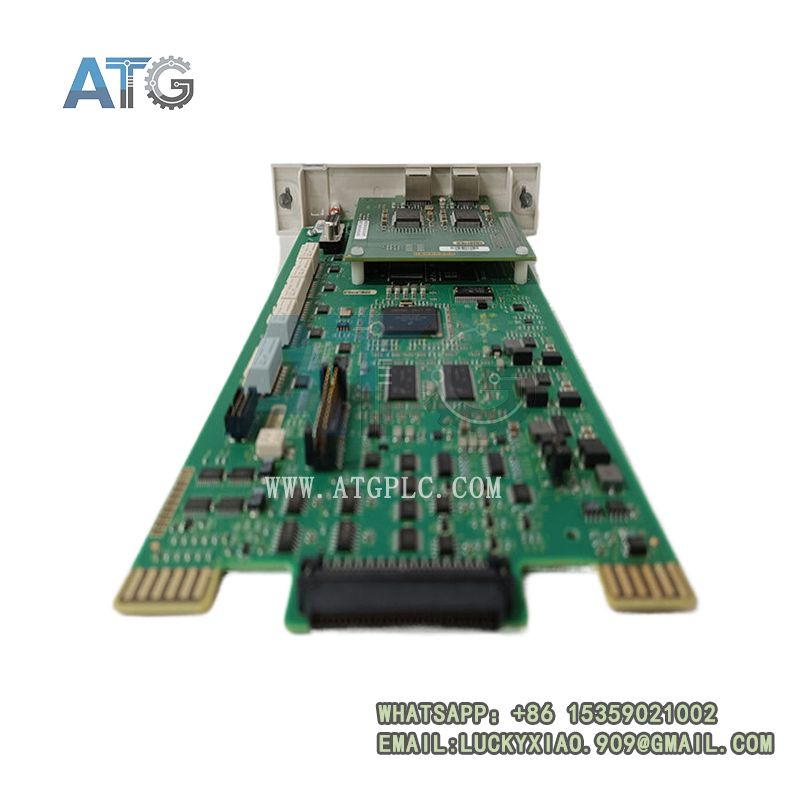

ABB SPIET800
Compatible & Recommended Products
To build a complete and high-stability Symphony Plus DCS network system, we recommend matched ABB supporting products: ABB SPK800-RCL1 redundancy cable, Symphony Plus series main controller module and industrial Ethernet shielded cable. These compatible accessories achieve seamless hardware docking and protocol adaptation with SPIET800, support redundant network configuration, further enhance system communication stability and fault tolerance, and ensure long-term reliable operation of industrial distributed control systems.
