Description
Product Overview
The ABB PFRL101C 2.0KN, with the official factory part number 3BSE002964R002, is a high-precision Pressductor radial load cell developed by ABB for industrial tension measurement and force monitoring systems. As a core sensing component of ABB’s professional web tension control solution, this load cell adopts advanced magnetic induction non-contact measurement principle, specializing in real-time radial tension detection for continuous material processing equipment. With a rated load capacity of 2.0kN, it delivers ultra-stable and high-accuracy force signal acquisition, serving as the key guarantee for constant tension control in automated production lines.
Featuring stainless steel industrial construction, IP67 high-level protection and excellent anti-interference performance, the PFRL101C 3BSE002964R002 can adapt to various harsh industrial environments including high humidity, dust and electromagnetic interference. It is perfectly compatible with ABB PFEA series tension amplifiers and tension control systems, realizing seamless signal transmission and closed-loop control. As a standardized mass-produced industrial sensor, it features plug-and-play installation, stable batch consistency and complete certification qualifications, fully meeting global industrial e-commerce standardized procurement, equipment maintenance and engineering supporting demands.

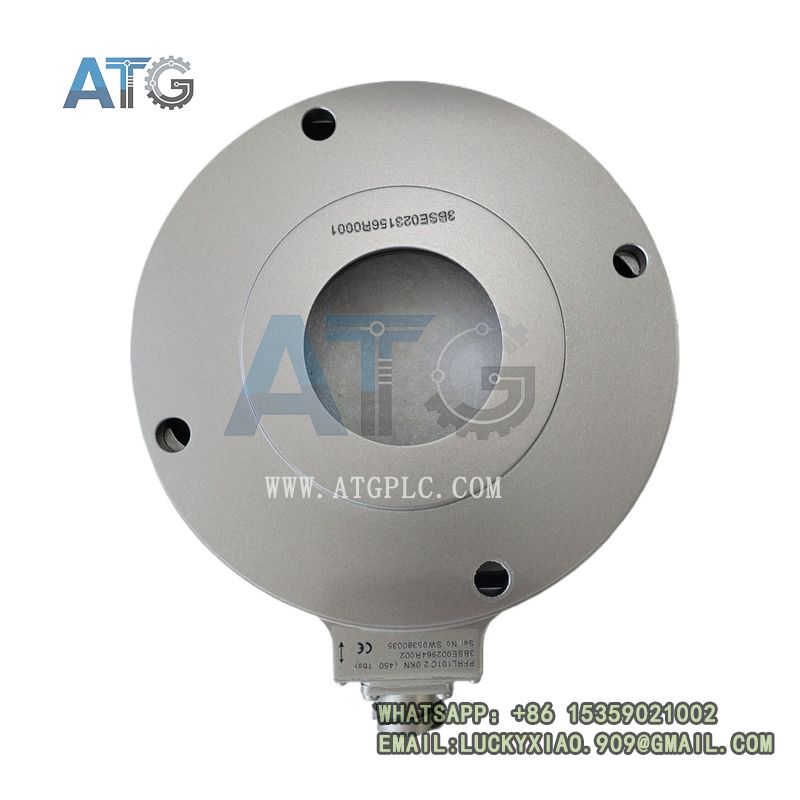

ABB PFRL101C 2.0KN 3BSE002964R002
Core Product Features & Competitive Advantages
Different from traditional strain gauge load cells, the ABB PFRL101C 2.0KN (3BSE002964R002) adopts non-contact Pressductor magnetic induction technology, with outstanding advantages in measurement stability, service life and environmental adaptability. It has irreplaceable competitiveness in high-precision industrial tension control scenarios, and the core advantages are summarized as follows:
- Non-Contact Magnetic Induction Measurement: Adopts ABB exclusive Pressductor sensing principle, no mechanical contact and no wear during operation. It completely avoids measurement drift and accuracy attenuation caused by mechanical fatigue, ensuring long-term consistent measurement precision and greatly extending product service life compared with traditional sensors.
- High Measurement Accuracy & Stability: Achieves high precision of ±0.3% full scale (non-linearity + hysteresis) and ultra-fine 0.01N resolution. It supports 150% FS safe overload capacity, effectively resisting instantaneous impact load of equipment and ensuring stable and reliable tension data output in continuous production.
- IP67 Industrial Waterproof & Dustproof Grade: Integral sealed stainless steel structure reaches IP67 protection level, realizing full dust-tight performance and short-term immersion resistance. It can operate stably for a long time in humid, dusty, splash and harsh workshop environments without failure or accuracy deviation.
- Excellent System Compatibility: Exclusively matched with ABB PFEA series tension amplifiers and professional tension control systems. The standard analog voltage/current output signal supports seamless docking with industrial PLC, DCS and upper computer monitoring systems, realizing fast closed-loop tension adjustment and intelligent control.
- Ultra-Wide Environmental Adaptability: Supports extreme industrial temperature range from -40℃ to +85℃, with stable performance in low-temperature cold workshops and high-temperature production environments. It features strong electromagnetic anti-interference ability, adapting to complex industrial electromagnetic field working conditions.
- Compact Modular & Easy Installation: Optimized compact radial structure design with standardized overall dimensions. It supports professional radial fixed installation, with simple wiring and convenient disassembly and replacement, effectively reducing on-site installation and maintenance time and lowering enterprise operation costs.
Detailed Technical Specifications (Key Highlight Parameters)
All technical parameters of ABB PFRL101C 2.0KN (3BSE002964R002) comply with ABB original factory industrial standards and international IEC measurement instrument specifications. With standardized and precise configuration, it fully meets the requirements of engineering supporting, equipment upgrading, precision detection and batch standardized procurement. The classified detailed parameters are as follows:
3.1 Basic Product Parameters
- Official Model: PFRL101C
- Factory Part Number: 3BSE002964R002
- Product Type: Pressductor Radial Industrial Tension Load Cell
- Rated Nominal Load: 2.0kN (2000N, approximately 450Lbs)
- Measurement Principle: Non-contact Pressductor Magnetic Induction
- Core Application: Real-time radial tension detection and closed-loop control for continuous material production lines
- Matching Equipment: ABB PFEA series tension amplifier, industrial tension control system, PLC and DCS control platform
3.2 Measurement Performance Parameters
- Comprehensive Accuracy: ±0.3% FS (Full Scale, including non-linearity and hysteresis error)
- Ultra-High Resolution: 0.01N minimum identifiable force value
- Safe Overload Capacity: 150% FS allowable overload, resisting instantaneous impact load
- Mechanical Deflection: 0.01mm ultra-small deformation under rated load, ensuring structural stability
- Output Signal: Standard industrial 4-20mA current signal / 0-10V voltage signal (optional)
- Excitation Voltage: 10VDC standard power supply (supplied by supporting tension control module)
3.3 Environmental & Mechanical Parameters
- Operating Temperature Range: -40℃ ~ +85℃ ultra-wide temperature adaptation
- Storage Temperature Range: -40℃ ~ +85℃
- Working Humidity: 5% ~ 95% non-condensing, anti-moisture and anti-corrosion
- Protection Grade: IP67 (dust-tight, waterproof, resistant to short-term water immersion)
- Product Material: High-strength stainless steel, anti-corrosion, anti-rust and wear-resistant
- Overall Dimension: 120mm × 75mm × 35mm compact structure
- Installation Method: Professional radial fixed mounting, supporting standard bracket matching installation
3.4 Safety & Certification Parameters
- Industrial Compliance Standard: IEC international industrial measurement instrument safety standard
- Official Certifications: CE, UL, CSA multi-national industrial safety certifications
- Electromagnetic Compatibility: Industrial EMC anti-interference grade, adapting to strong electromagnetic industrial sites
- Continuous Operation: Support 7×24 hours long-term uninterrupted stable operation
- Service Life: Ultra-long industrial service life due to non-contact wear-free measurement design
ABB PFRL101C 2.0KN 3BSE002964R002
E-commerce Sales Mode & Procurement Advantages
As a standardized original high-precision industrial sensor of ABB, the PFRL101C 2.0KN (3BSE002964R002) adopts a mature industrial e-commerce centralized sales system, supporting global online inquiry, spot retail, batch wholesale and engineering customized supporting services. It provides one-stop transparent and reliable procurement solutions for automation system integrators, production equipment manufacturers, factory maintenance departments and engineering contractors, with guaranteed authenticity, standardized pricing and full-process after-sales service.
4.1 Standardized Online Sales System
The product implements unified global official specifications, standard industrial packaging and consistent after-sales warranty policies. E-commerce platforms display complete official datasheets, technical parameter manuals, certification files, installation guidelines and application case resources, realizing fully transparent procurement. Each product corresponds to the exclusive factory part number 3BSE002964R002, supporting official factory authenticity inquiry and product traceability, completely eliminating refurbished, disassembled and counterfeit products.
4.2 Diversified Procurement Modes
- Spot Retail Procurement: Support single-piece and small-batch spot ordering, suitable for production line daily maintenance, faulty sensor replacement, laboratory precision testing and small-scale equipment renovation projects, with sufficient spot inventory and fast delivery cycle.
- Batch Wholesale Cooperation: Provide hierarchical preferential pricing and customized supply schemes for bulk orders from large manufacturing enterprises and automation supporting manufacturers. Support long-term framework agreement cooperation, fixed-point stocking and stable batch supply, effectively reducing comprehensive procurement costs for enterprises.
- Engineering Supporting Customization: Provide professional model matching and system docking consultation according to customer tension control system construction, production line upgrading and intelligent transformation projects, realizing one-stop supporting procurement of load cells, tension amplifiers and control modules.
4.3 E-commerce Supporting Value-Added Services
- 100% Original Genuine Guarantee: All products are ABB original factory genuine goods with complete factory qualification certificates and test reports, ensuring 100% equipment matching rate and zero use risk.
- Professional Industrial Logistics: Adopt dedicated anti-vibration, dust-proof and moisture-proof industrial packaging, support global multi-warehouse delivery, effectively protecting precision sensors from damage during long-distance transportation and handling.
- 24/7 Online Technical Support: Provide pre-purchase parameter verification, model matching consultation, on-site installation guidance, and post-purchase equipment debugging and fault troubleshooting technical services.
- Complete After-Sales Warranty: Unified global official warranty service, support online after-sales application, quality problem replacement and professional technical maintenance guidance, reducing enterprise operation and maintenance risks.
Main Application Scenarios
Relying on its non-contact wear-free measurement, high precision and strong environmental adaptability, the ABB 2.0KN (3BSE002964R002) is widely used in precision tension control scenarios of continuous material processing industries, with core application fields as follows:
- Paper & Cardboard Industry: Web tension real-time monitoring and constant tension control for paper making, coating, slitting and rewinding production lines, ensuring stable paper forming and consistent product quality.
- Plastic Film & Foil Processing: Precision tension detection for plastic film, aluminum foil and flexible material rolling and stretching lines, avoiding material deviation, stretching and breaking problems.
- Textile & Chemical Fiber Industry: Tension control for textile yarn, chemical fiber filament and fabric weaving production lines, improving production efficiency and finished product qualification rate.
- Metal Processing Industry: Tension monitoring for metal strip, thin steel coil and copper foil rolling and conveying equipment, realizing stable operation of high-speed metal processing lines.
- Industrial Intelligent Renovation: Replacement and upgrading of old tension sensors for traditional automated production lines, helping enterprises realize precise tension control and intelligent production upgrading.
Product Market Value & Competitiveness
The ABB 2.0KN (3BSE002964R002) breaks the defects of easy wear and low stability of traditional strain gauge sensors through non-contact magnetic induction measurement technology. Its high precision, ultra-wide temperature resistance and IP67 high protection performance ensure long-term stable operation in complex industrial environments, effectively reducing equipment failure rate and production downtime caused by tension measurement deviation.
In the global industrial e-commerce market, this ABB classic tension load cell has mature technology, stable batch quality and a large number of global engineering application cases. The standardized modular design reduces installation and maintenance costs, and the perfect matching with ABB tension control systems makes it the preferred supporting sensor for high-end industrial tension control projects. With high cost performance, reliable genuine guarantee and complete after-sales system, it occupies an important market position in the field of industrial precision force measurement.
