Description
- Model: PCD231B101 3BHE025541R0101
- Brand: ABB
- Series: ABB PCD Series Industrial Communication & I/O Module
- Core Function: Realize multi-protocol communication and signal interaction
- Type: Communication & I/O Interface Module
- Key Specs: 24VDC power, 16DI/10DO channels, Modbus/TCP protocol
- Supply Status: In Stock
- Stock: Available
- Warranty: 12 months
- Ship From: China

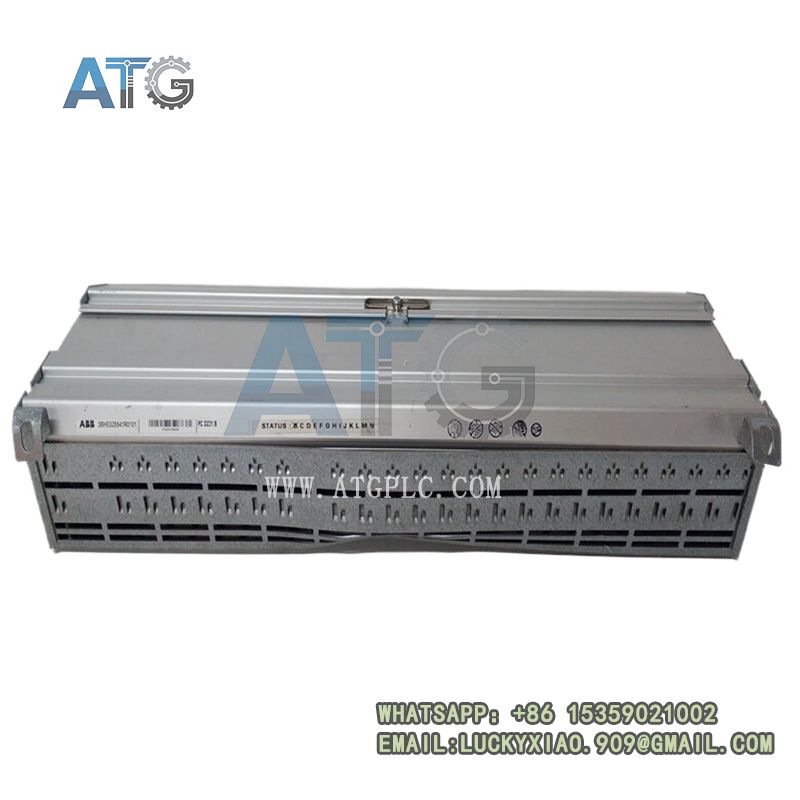

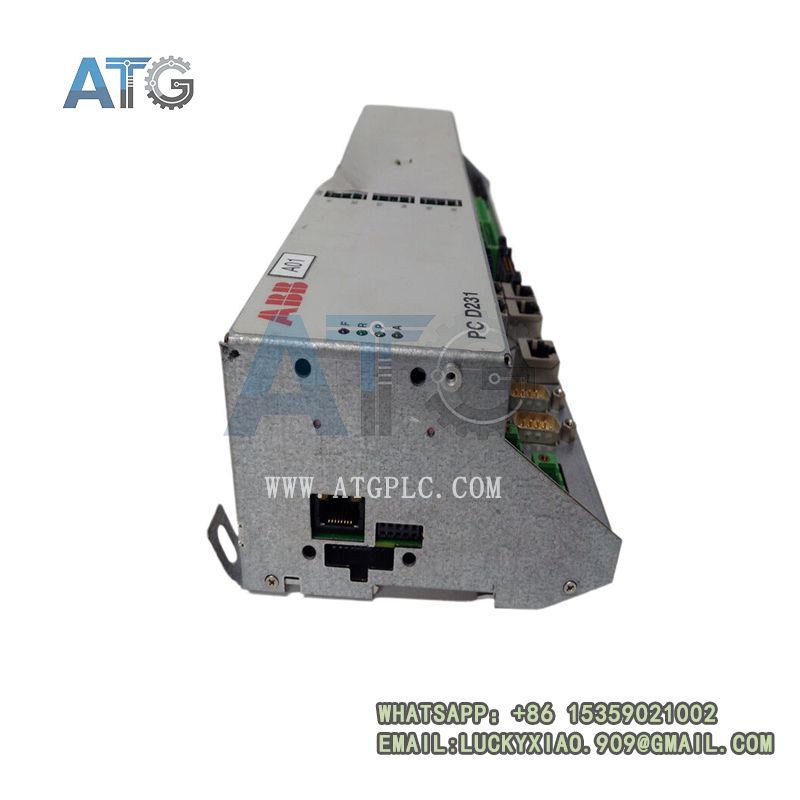

PCD231B101 3BHE025541R0101
Product System Introduction
The ABB PCD231B101 3BHE025541R0101 is a versatile industrial communication and I/O module developed for ABB industrial automation and power control systems. As a key connection unit bridging field devices and upper control platforms, it integrates communication transmission and signal acquisition and output functions in one module. It can be perfectly compatible with ABB mainstream controllers, protection relays and distributed control systems, supporting access to multiple industrial bus protocols. This modular hardware adopts industrial-standard circuit design and rugged structural technology, which can be flexibly deployed in automation cabinets of power, petrochemical, metallurgy and other heavy industries. It effectively expands the system’s signal processing capacity and network compatibility, helping users build highly integrated and stable industrial control architectures.
Product Functions
This multifunctional module undertakes core tasks of industrial signal interaction and network data transmission in automatic control systems. It is equipped with 16 programmable digital input channels and 10 relay output channels, which can stably collect switching state signals from on-site sensors, limit switches and detection equipment, and feed back real-time operating status to the upper system. Meanwhile, it can output relay control signals to drive on-site actuators such as solenoid valves and alarm devices to complete automatic control actions. Supporting mainstream communication protocols including Modbus TCP, Modbus RTU and IEC 61850, it realizes seamless data interaction and remote transmission between field equipment and host control system. In addition, it has built-in data error detection and fault diagnosis functions, which can automatically identify abnormal communication links and signal faults, record operation logs, and assist engineers in rapid troubleshooting to ensure continuous and stable system operation.
PCD231B101 3BHE025541R0101
Product Features
ABB PCD231B101 3BHE025541R0101 features powerful comprehensive performance, excellent environmental adaptability and ultra-high operational reliability, fully adapting to complex industrial working conditions. The integrated I&C design saves cabinet space and reduces the cost of separate communication and I/O module configuration. It supports a wide operating temperature range of -20°C to +60°C and adapts to high humidity and dusty industrial environments with stable performance. The built-in electromagnetic shielding structure effectively resists on-site electromagnetic interference, ensuring accurate signal transmission and stable network communication. The relay output supports 250V AC/DC and 5A load capacity, with strong on-site load driving capability. Adopting standardized modular installation, it supports quick plug-and-play replacement and system expansion, with low failure rate and long service life. Moreover, it has strong protocol compatibility and system scalability, suitable for both new system construction and old equipment renovation and upgrade projects.
Compatible & Recommended Products
To build a complete and efficient industrial control and communication system, we recommend matched ABB supporting products: ABB PM862 series controller module, industrial shielded communication cable and dedicated system power supply module. These compatible accessories achieve seamless hardware docking and efficient data synchronization with PCD231B101 3BHE025541R0101, effectively improving the overall communication stability and signal processing capability of the industrial automation system.
