Description
- Model: DSAI130A 3BSE018292R1
- Brand: ABB
- Series: ABB MasterPiece / AC400 Process Control Series
- Core Function: Collect multi-type analog signals for process control systems
- Type: Analog Input I/O Module
- Key Specs: 24VDC power, 16 differential channels, PROFIBUS DP protocol
- Supply Status: In Stock
- Stock: Available
- Warranty: 12 months
- Ship From: China

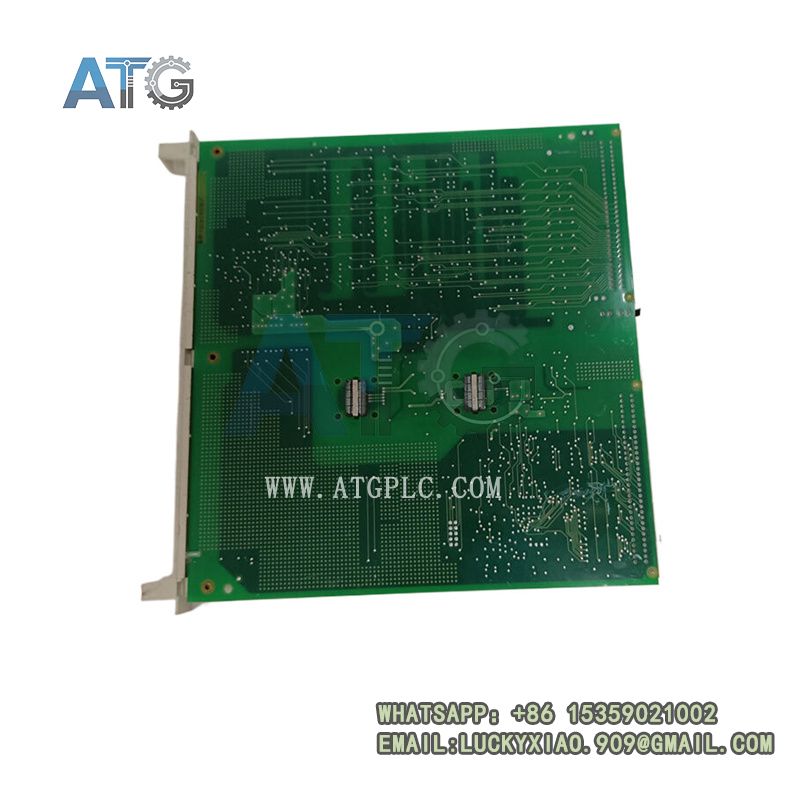

ABB DSAI130A 3BSE018292R1
Product System Introduction
The ABB DSAI130A 3BSE018292R1 is a high-density industrial analog input module tailored for ABB MasterPiece and AC400 series process control systems. Serving as a critical field signal acquisition unit in distributed control architectures, it acts as the bridge connecting field sensing equipment and upper industrial controllers. This upgraded iteration module replaces the traditional DSAI130 version, featuring optimized circuit design and stronger operational stability. It supports seamless integration with ABB AC410, AC450 and AC460 control platforms, cooperating with CPU modules, communication cards and output modules to build a complete closed-loop industrial automatic control system. Widely deployed in petrochemical, power generation, metallurgy and manufacturing industries, it provides accurate and reliable field data support for continuous process production and intelligent equipment monitoring.
Product Functions
This high-performance analog input module focuses on full-range collection and precise processing of industrial field analog signals. Equipped with 16 independent differential signal channels, it supports multi-standard signal acquisition including 4-20mA current signals, 0-10VDC voltage signals, RTD temperature signals and thermocouple signals, adapting to various types of field sensors and detection instruments. It adopts differential sampling technology to effectively eliminate common-mode interference in industrial circuits and collect high-precision field operating data such as temperature, pressure, flow and liquid level in real time. After filtering, sorting and analog-to-digital conversion, the module transmits standardized digital data to the upper controller via PROFIBUS DP bus. It supports real-time data upload, cycle signal monitoring and abnormal signal screening, providing accurate data basis for system logic operation, process parameter adjustment and equipment fault judgment, ensuring the precise operation of industrial process control links.

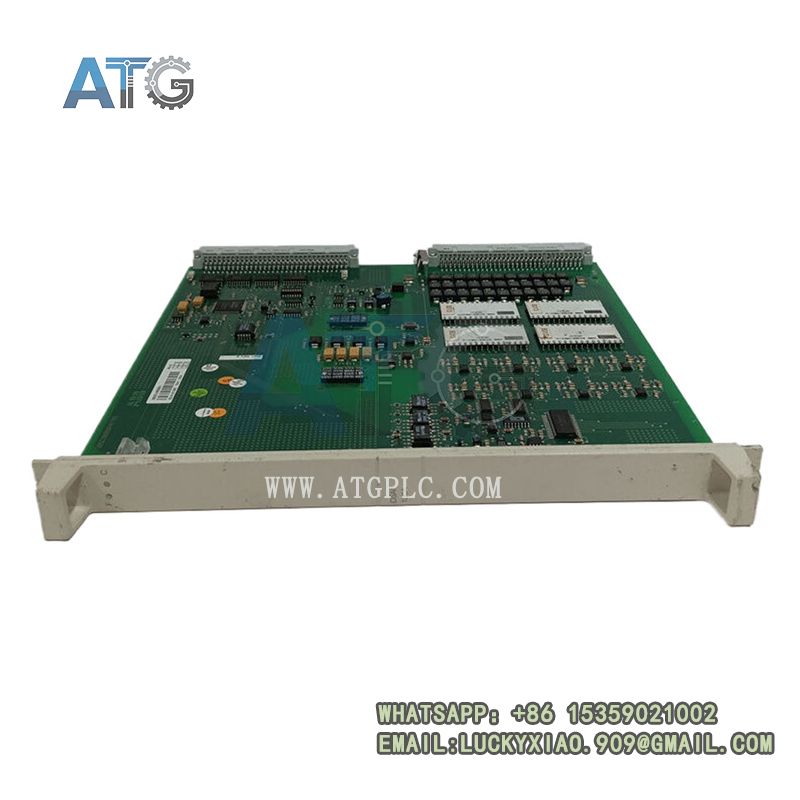

ABB DSAI130A 3BSE018292R1
Product Features
ABB DSAI130A 3BSE018292R1 boasts outstanding signal acquisition accuracy, industrial stability and versatile compatibility, fully adapting to complex and harsh industrial working environments. The 16-channel high-density design greatly improves on-site signal collection efficiency and saves cabinet installation space. The differential input structure effectively suppresses electromagnetic interference and signal crosstalk, ensuring ultra-high measurement accuracy even in high-interference industrial scenarios. It supports stable 24VDC wide-range power supply, with low power consumption and excellent long-term continuous operation capability. The module features a wide operating temperature range of -40°C to +85°C, adapting to extreme temperature changes in industrial workshops and outdoor control cabinets. Adopting standardized rack-mounted installation, it supports quick assembly and hot-swappable replacement, greatly reducing equipment maintenance downtime. In addition, it retains excellent backward compatibility, perfectly compatible with old-generation ABB control systems, making it ideal for old factory system renovation, equipment upgrade and new project construction.
Compatible & Recommended Products
To build a complete and stable ABB process control system, we recommend matched supporting products: ABB AC460 main controller module, PROFIBUS DP communication adapter card, and industrial shielded signal cable. These compatible accessories achieve seamless hardware docking and efficient data interaction with DSAI130A 3BSE018292R1, effectively improving the overall data acquisition stability and operational efficiency of the industrial control system.
ABB DSAI130A 3BSE018292R1
