Description
- Model: CMA120 (3DDE300400)
- Brand: ABB
- Series: ABB Industrial Process Control Module Series
- Core Function: Collects multi-type analog signals for process control systems
- Type: Multifunctional Analog Input Module
- Key Specs: 16 configurable channels, 16-bit resolution, 24/48VDC operating voltage
- Supply Status: In stock
- Stock: Available
- Warranty: 1 year
- Ship From: China

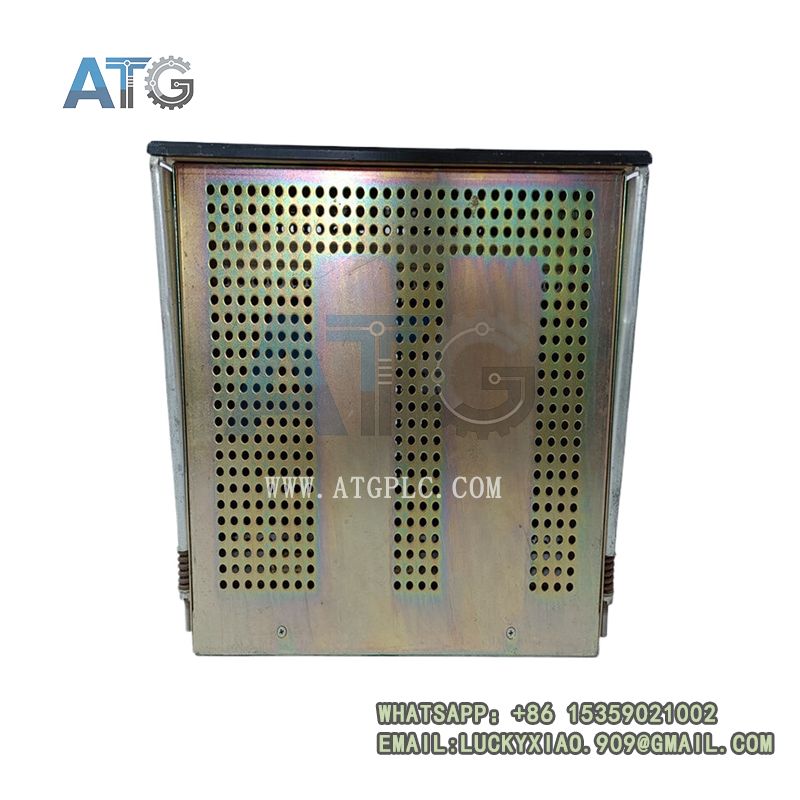

ABB CMA120
Product System Overview
The ABB CMA120 is a high-performance multifunctional analog input module designed for industrial process automation and monitoring systems. Engineered to integrate diverse signal acquisition capabilities into a compact unit, this module serves as a vital front-end data collection component for industrial control racks. It perfectly matches ABB process control hardware and third-party industrial PLC and DCS systems, building a stable and high-precision industrial signal acquisition network. Supporting multi-type sensor signal access, it eliminates the need for multiple specialized acquisition modules, greatly simplifying on-site cabinet layout and system configuration. Optimized for continuous long-term operation in complex industrial environments, it is widely deployed in chemical processing, water treatment, energy power and marine automation fields, serving as an optimal solution for system upgrading, old module replacement and refined process control transformation.
Core Product Functions
This industrial analog input module undertakes comprehensive multi-signal collection, precision conversion and stable data transmission tasks for automated process control systems. Equipped with 16 independently configurable channels, it supports flexible access to multiple industrial signal types, including thermocouple, RTD resistance temperature, millivolt and 4-20mA current signals, covering temperature, pressure, flow and liquid level monitoring scenarios. Adopting 16-bit high-resolution analog-to-digital conversion technology, it accurately converts weak field analog signals into standard digital data, ensuring precise and real-time data feedback. The module features built-in signal filtering and anti-jitter algorithms to eliminate on-site signal noise and data deviation. It supports unified data upload and channel status diagnosis, providing complete and accurate data basis for system logic control, parameter adjustment and equipment operating status judgment.
ABB CMA120
Product Features & Technical Advantages
The ABB CMA120 analog input module stands out with versatile signal compatibility, ultra-high acquisition accuracy and excellent industrial stability, meeting refined industrial process control requirements. Each channel supports independent parameter configuration, allowing flexible matching with different types of field sensors and greatly improving system configuration flexibility. With a full-scale accuracy of ±0.1%, it delivers outstanding measurement stability and repeatability, effectively avoiding production process fluctuations caused by inaccurate data collection. Supporting dual 24VDC and 48VDC industrial power supply modes, it adapts to diverse on-site power supply environments with strong anti-fluctuation capability. The compact integrated structure supports standard panel mounting, saving installation space and facilitating rapid deployment and maintenance. Industrial-grade component design ensures wide temperature resistance and electromagnetic interference resistance, enabling long-term stable operation in harsh factory environments.
Industrial Application Scenarios
This high-precision multi-channel analog input module is widely applicable to various industrial automation scenarios requiring multi-parameter unified monitoring. It is mainly used in petrochemical process control systems, municipal water supply and sewage treatment projects, thermal power auxiliary monitoring systems, marine automation equipment and new energy industrial control platforms. It provides stable and accurate multi-type analog signal acquisition support for industrial automatic control and monitoring systems. As a highly versatile core component of the ABB process control series, it effectively improves the refinement and intelligence level of industrial production monitoring, reduces equipment failure rates and process adjustment errors, and ensures stable, efficient and standardized operation of industrial process automation systems.
