Description
Product Overview
The ABB BCU-02, with exclusive factory part number 3AUA000110429, is a high-performance basic control unit specifically designed for ABB ACS880 series industrial multi-drive and single-drive frequency conversion systems. As the core brain of ABB high-power AC drive equipment, this module undertakes full-range drive operation logic calculation, optical fiber signal interaction, motor closed-loop control, system fault diagnosis and upper network data communication tasks. It serves as the indispensable core control carrier to ensure precise operation, stable linkage and intelligent management of medium and high-power industrial frequency converters.
Adopting ABB exclusive industrial drive dedicated algorithm architecture, high-speed optical fiber communication mechanism and multi-level EMC anti-interference circuit design, the BCU-02 3AUA000110429 delivers ultra-high operational stability and dynamic control accuracy in heavy-duty industrial working conditions. Equipped with dual optical fiber interfaces for high-speed drive internal linkage and PROFIBUS DP industrial bus communication function, it supports high-precision analog signal sampling and multi-dimensional system protection. Undergoing strict ABB factory full-load aging tests, extreme temperature cycle verification and standardized batch production, the BCU-02 control unit is widely deployed in new ACS880 drive system assembly, old high-power frequency converter renovation, faulty main control board replacement and batch engineering supporting procurement, fully complying with standardized and high-efficiency procurement requirements of the global industrial e-commerce market.

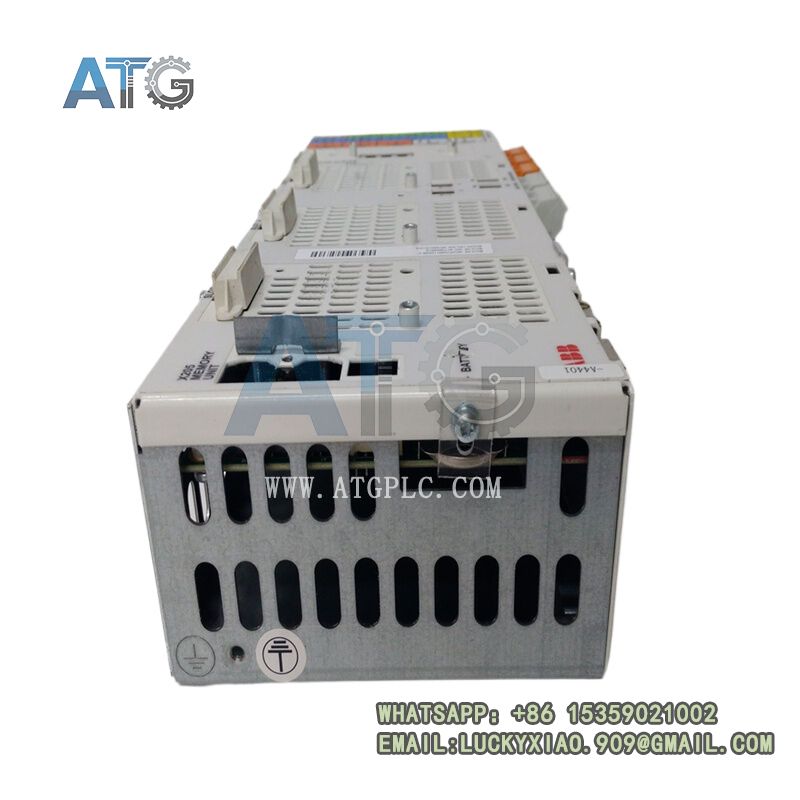

ABB BCU-02 3AUA000110429
Core Product Features & Competitive Advantages
Different from ordinary universal drive control boards, the ABB BCU-02 (3AUA000110429) professional dedicated drive control unit has prominent comprehensive advantages in high-power drive adaptation, high-speed optical fiber linkage, control precision and industrial reliability. It provides full-cycle stable operation guarantee for ABB ACS880 series high-power frequency conversion systems, with core competitive advantages summarized as follows:
- Exclusive Adaptation for ABB ACS880 High-Power Drives: Developed exclusively for ABB ACS880 series industrial frequency conversion systems, achieving 100% matching in system firmware, bus protocol, optical fiber signal logic and electrical parameters. It supports plug-and-play rapid replacement without secondary program debugging and parameter modification, completely eliminating compatibility risks of universal control modules.
- Dual Optical Fiber High-Speed Linkage Design: Built-in dual V1/V2 optical fiber communication interfaces, supporting high-speed XD2D drive-to-drive linkage communication. It realizes ultra-fast data interaction and synchronous operation control between multiple drive units, ensuring high-precision synchronous operation of multi-motor linkage systems and solving delay and jitter problems of traditional cable communication.
- High-Precision Multi-Channel Analog Acquisition & Output: Equipped with 16-bit high-resolution analog sampling chip, supporting multi-channel voltage and current signal acquisition and output. It covers ±10V, 0–10V voltage signals and 4–20mA, 0–20mA current signals, realizing accurate closed-loop regulation of motor speed, torque and power, meeting fine industrial process control requirements.
- PROFIBUS DP Industrial Bus Compatibility: Natively integrates standard PROFIBUS DP communication protocol, with a communication rate ranging from 9.6kBit/s to 12MBit/s. It realizes seamless data docking with upper PLC, DCS and SCADA systems, supporting remote parameter configuration, real-time operating data uploading, fault information transmission and centralized drive system management.
- Complete Multi-Dimensional System Protection Mechanism: Integrated overvoltage, undervoltage, overcurrent, overload, overheating, phase loss and short-circuit protection functions. It can real-timely monitor the operating status of high-power drive systems and motors, automatically trigger protection locking and alarm prompts in case of abnormalities, effectively avoiding high-power equipment burnout and industrial production shutdown losses.
- Ultra-Strong Industrial Harsh Environment Adaptability: Adopts industrial-grade wide-temperature hardware design, supporting stable operation in -25℃ to +70℃ extreme temperature environments. It passes strict industrial vibration, impact and EMC electromagnetic compatibility tests, resisting strong electromagnetic interference, temperature fluctuation and dust humidity interference in heavy industrial scenarios.
- Large-Capacity Data Storage & Logging: Equipped with 128MB high-capacity Flash storage space, supporting long-term drive operating data recording, fault waveform storage and operation log retention. It provides complete data support for post-fault analysis, equipment operation optimization and industrial production data statistics.
- SIL2 Safety Certification & High Reliability: Complies with international SIL2 safety level standards, with redundant control logic and fault self-diagnosis function. It effectively reduces system misoperation and failure probability, meeting high-standard safety operation requirements of heavy-duty industrial fields such as mining, petrochemical and marine engineering.
Detailed Technical Specifications (Key Highlight Parameters)
All technical parameters of the ABB BCU-02 3AUA000110429 strictly comply with ABB original factory ACS880 series drive hardware standards and international IEC industrial control specifications. Featuring exclusive drive matching, high-speed optical fiber communication, high-precision signal processing and industrial-grade safety reliability, it fully meets the technical requirements of high-power frequency conversion system construction, equipment upgrading, faulty module replacement and batch standardized procurement. The classified detailed parameters are as follows:
3.1 Basic Product Identification & Classification
- Official Model: BCU-02
- Exclusive Factory Part Number: 3AUA000110429
- Product Type: Industrial Drive Basic Control Unit & Main Processing Module
- Applicable System: ABB Series Single & Multi-Drive Frequency Conversion Systems
- Core Function: Drive core operation calculation, dual optical fiber inter-unit linkage, PROFIBUS network communication, high-precision analog signal acquisition/output, system fault protection and data logging
- Applicable Scenarios: Heavy industrial motor drive, mining conveyor equipment, petrochemical compressor control, marine power system, industrial high-power fan and water pump energy-saving transformation
- Executive Standards: IEC 61131-2 industrial control standard, IEC 61000 EMC electromagnetic compatibility standard, SIL2 functional safety standard, ABB drive system specification
3.2 Core Hardware & Storage Parameters
- Core Control Chip: Industrial dedicated high-speed drive operation processor
- Storage Capacity: 128MB Flash large-capacity storage, supporting long-term data logging and firmware storage
- Signal Sampling Resolution: 16-bit ultra-high precision analog signal sampling
- Channel Sampling Cycle: ~25ms per channel stable sampling speed
- System Control Accuracy: High-precision closed-loop speed and torque control, low operation jitter
- Safety Level: Certified compliant with SIL2 functional safety standard
3.3 Electrical Performance Parameters
- Rated Power Supply: 24VDC ±10% industrial standard DC power supply
- Signal Input Range: Voltage: ±10V, 0–10V; Current: 4–20mA, 0–20mA
- Signal Output Range: Voltage: 0–10V; Current: 4–20mA standard industrial analog signals
- Relay Contact Capacity: AC220V/3A, DC125V/3A reliable load driving
- Anti-Overload Capability: Support instantaneous power grid fluctuation and load impact of high-power drive systems
- Isolation Performance: Industrial-grade electrical isolation between internal and external circuits, anti-surge and anti-interference
3.4 Communication & Linkage Parameters
- Optical Fiber Interfaces: Dual V1/V2 fiber optic ports for internal drive XD2D high-speed linkage
- Industrial Bus Protocol: Standard PROFIBUS DP communication protocol
- Communication Baud Rate: 9.6kBit/s ~ 12MBit/s wide-range adaptive rate
- Data Interaction Function: Real-time data upload, remote parameter modification, fault code transmission, remote start-stop control
- System Docking: Seamless matching with ABB upper monitoring system and third-party industrial automation platforms
3.5 Environmental & Mechanical Parameters
- Operating Temperature Range: -25℃ ~ +70℃ industrial ultra-wide temperature working range
- Storage Temperature Range: -40℃ ~ +70℃ low-temperature resistant storage tolerance
- Working Humidity: 5% ~ 95% non-condensing humidity environment
- Protection Grade: IP20 industrial cabinet protection grade, dust-proof and splash-proof
- Mechanical Performance: Passed industrial standard vibration, impact and temperature cycle aging tests
- Product Dimensions: 245mm × 150mm × 65mm standard module size
- Product Weight: 1.10kg lightweight industrial modular design
- Installation Method: Standard cabinet embedded fixed installation, convenient assembly and replacement
3.6 Certification & Reliability Parameters
- Industrial Certifications: CE safety certification, UL industrial certification, IEC 61326 EMC electromagnetic compatibility certification
- Safety Certification: SIL2 functional safety certification
- Environmental Certification: RoHS environmental protection compliance certification
- Operational Reliability: Ultra-low field failure rate after massive global heavy industrial engineering verification
- Continuous Operation: Support 7×24 hours long-term uninterrupted full-load stable operation
- Quality Consistency: Strict component screening and full-load aging test, stable batch performance

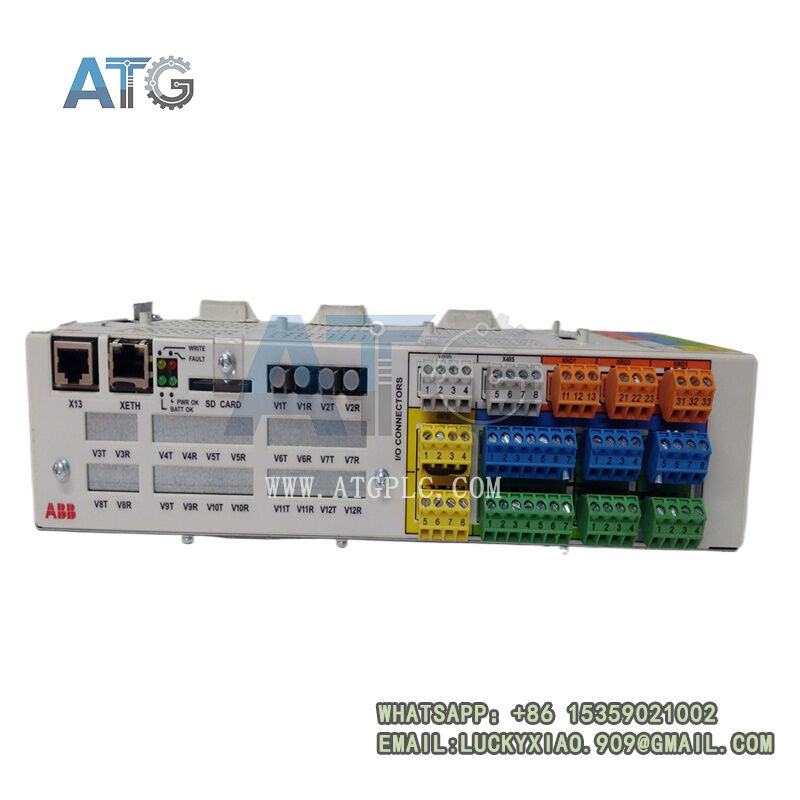

ABB BCU-02 3AUA000110429
E-commerce Sales Mode & Procurement Advantages
As a standardized core main control unit of ABB series high-power drive systems, the ABB (3AUA000110429) adopts a mature, transparent and standardized industrial e-commerce sales system. It supports global online inquiry, spot retail procurement, batch wholesale and engineering customized supporting services, providing one-stop reliable procurement solutions for industrial automation integrators, heavy industry manufacturing enterprises, power system engineering companies and industrial equipment maintenance departments. All products are 100% original factory genuine with unified technical specifications, transparent pricing mechanism and full-cycle after-sales guarantee, effectively reducing enterprise procurement risks and comprehensive operational costs.
4.1 Standardized Transparent Online Sales System
This product implements unified global official technical parameters, standard industrial anti-vibration, dust-proof and moisture-proof precision module packaging, and consistent global warranty policies. E-commerce platforms provide complete open resources including official hardware manuals, drive matching guidelines, parameter configuration tutorials, qualification certification documents and heavy industrial field application cases. The dual exclusive identification of model and 3AUA000110429 factory part number supports official factory authenticity verification and full lifecycle traceability. It completely avoids refurbished, disassembled and counterfeit products, ensuring 100% system matching and drive control performance compliance for ABB high-power frequency conversion systems.
4.2 Diversified Flexible Procurement Modes
- Single & Small-Batch Spot Retail: Support single-piece and small-quantity spot ordering, applicable to daily industrial high-power drive equipment maintenance, faulty main control module replacement, drive system debugging and old frequency conversion equipment renovation projects. Sufficient spot inventory ensures short delivery cycle and fast on-site system recovery and commissioning, minimizing heavy industrial production downtime losses.
- Bulk Wholesale & Framework Cooperation: Provide hierarchical preferential pricing and customized supply schemes for bulk orders from large heavy industrial groups and automation engineering integration enterprises. Support long-term framework agreement cooperation, fixed-point stocking and stable batch supply, significantly reducing long-term batch procurement costs for enterprise high-power drive core spare parts.
- Engineering Customized Supporting Service: Provide professional model matching verification, drive system scheme adaptation and parameter debugging guidance according to customers’ new high-power drive system construction, industrial equipment intelligent upgrading and old heavy-load drive system transformation projects, realizing one-stop supporting procurement of control units and ABB drive series auxiliary accessories.
4.3 Full-Cycle E-commerce Value-Added Services
- 100% Original Genuine Guarantee: All supplied products are original ABB factory genuine drive control units with complete factory test reports and qualification certificates, ensuring zero system matching error and zero high-power drive control failure risk for industrial core frequency conversion systems.
- Professional Industrial Logistics Protection: Adopt dedicated industrial anti-vibration, shockproof and moisture-proof customized packaging for precision optical fiber communication modules, support global multi-warehouse delivery, effectively preventing optical fiber interface damage, chip failure and program parameter loss during long-distance transportation and handling.
- 24/7 Professional Online Technical Support: Provide pre-purchase drive model matching and control scheme consultation, mid-purchase installation guidance and optical fiber linkage debugging tutorials, and post-purchase fault diagnosis, parameter calibration and system optimization full-process technical services.
- Complete Official After-Sales Warranty: Enjoy unified global ABB official warranty service, support online after-sales application, quality problem replacement and professional technical maintenance guidance, reducing enterprise high-power drive system failure maintenance costs and industrial production downtime losses.
Main Industrial Application Scenarios
Benefiting from its exclusive drive adaptation, high-speed optical fiber linkage, SIL2 safety performance and ultra-wide environmental adaptability, the ABB 3AUA000110429 control unit is widely applied in core control links of high-power industrial frequency conversion systems, covering key heavy industrial fields as follows:
- Mining & Metallurgy Industry: Core control of mining conveyors, hoist equipment and metallurgical high-power rolling mill drive systems, realizing stable synchronous operation and safe fault protection of heavy-load equipment, adapting to high-dust and high-vibration harsh mining working conditions.
- Petrochemical Industry: Intelligent control of petrochemical compressors, pumps and reaction kettle drive equipment, ensuring continuous and stable operation of process production equipment, improving production safety and energy-saving operation efficiency.
- Marine & Offshore Engineering: Drive control of marine thrusters and offshore platform power equipment, relying on ultra-wide temperature adaptability and high safety level to meet strict marine industrial equipment operation standards.
- Power & Energy Industry: Frequency conversion energy-saving transformation and intelligent upgrading of large industrial fans, water pumps and power generation auxiliary equipment, realizing precise power regulation and centralized equipment management.
- Old High-Power Drive System Renovation: Replacement and upgrading of aging control modules of old ABB series frequency converters, restoring drive system control accuracy and communication stability, realizing low-cost intelligent upgrading of heavy industrial frequency conversion equipment.
ABB BCU-02 3AUA000110429
Product Value & Market Competitiveness
The ABB (3AUA000110429) dedicated drive basic control unit solves the core pain points of poor matching degree, low linkage efficiency, insufficient safety performance and poor harsh environment adaptability of ordinary universal drive control modules. Its exclusive optical fiber high-speed linkage technology greatly improves the synchronous control accuracy of multi-drive systems, while the safety certification and multi-dimensional protection mechanism effectively guarantee the safe operation of high-power industrial equipment.
In the global industrial e-commerce market, this ABB original series core control module features mature and stable industrial-grade hardware design, reliable batch quality consistency and massive global heavy industrial engineering application cases. Its exclusive system compatibility, ultra-wide temperature adaptability and high-precision signal processing capability make it irreplaceable in high-power frequency conversion system construction, heavy industrial equipment intelligent upgrading and old drive system renovation projects. With strict genuine guarantee, comprehensive after-sales service system and low comprehensive operation and maintenance cost, it has become the preferred high-reliability core control unit for global ABB drive system supporting and heavy industrial automation intelligent transformation.
