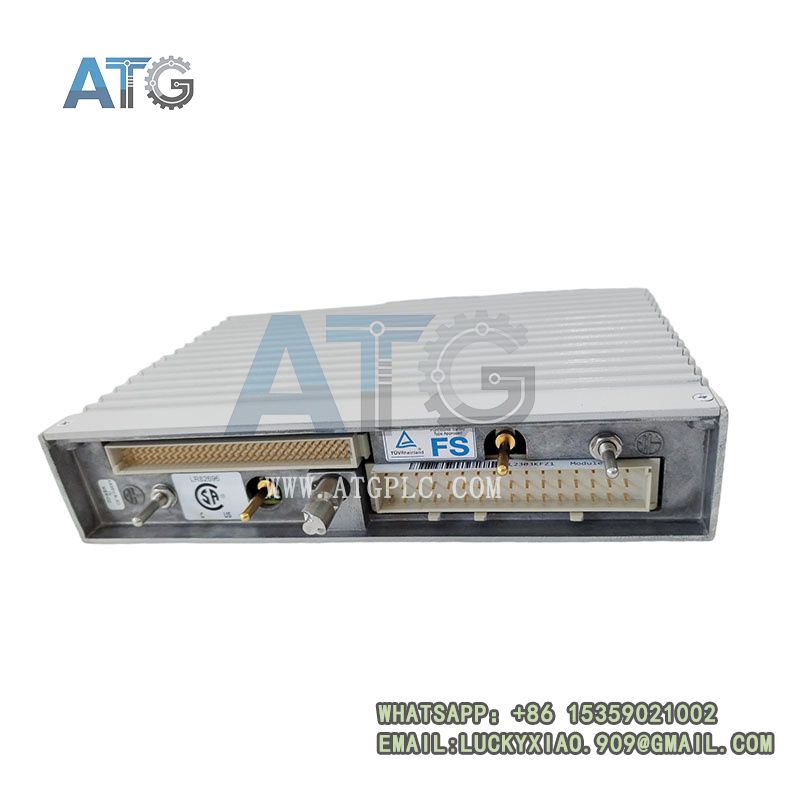

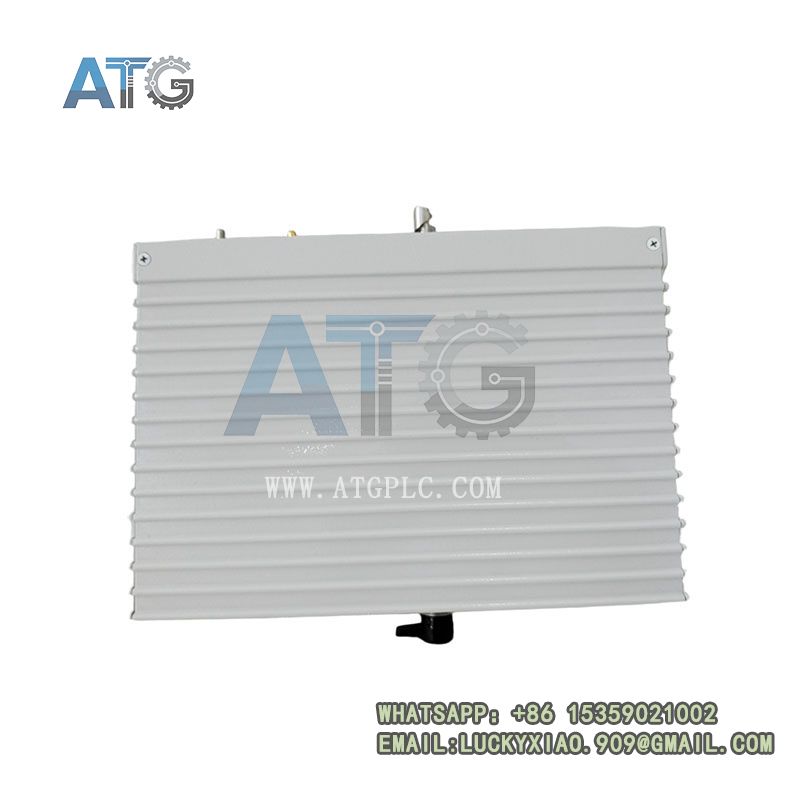

TRICONEX 3481S2 Analog output module

Description

Product Overview

The TRICONEX 3481S2 is an upgraded high-performance TMR (Triple Modular Redundancy) analog output module for Tricon Trident Safety Instrumented Systems (SIS). It serves as a core field execution unit for industrial safety and process control loops. Compared with the standard 3481S model, the 3481S2 features multi-signal programmable output, optimized diagnostic logic and stronger environmental adaptability. It converts digital safety logic commands into accurate analog signals to drive field actuators such as regulating valves, valve positioners and proportional control devices.

Traditional analog output modules and early-generation 3481 series modules have noticeable limitations in complex industrial scenarios. Most support only fixed 4–20mA current output with single signal mode. They feature relatively slow response speed and basic fault diagnosis functions. Severe on-site electromagnetic interference and frequent parameter adjustments easily cause signal jitter, output deviation and delayed response. These defects affect process control stability and bring potential safety risks. In addition, ordinary modules cannot meet the stringent IEC 61508 SIL3 safety requirements for high-risk process industries. The TRICONEX 3481S2 fully solves these pain points. It adopts upgraded TMR triple redundant synchronous architecture, multi-mode programmable output and Forced-Switch Diagnostics (FSD) technology. Each module undergoes strict factory calibration, full-load aging testing and extreme environment screening. It perfectly adapts to global industrial e-commerce procurement, high-precision safety loop upgrading and long-term 7×24-hour stable operation.

Core Product Features & Competitive Advantages

Conventional analog output modules only achieve fixed signal output and simple loop control. They lack flexible parameter configuration and in-depth fault diagnosis capabilities. They cannot adapt to multi-scenario complex process adjustment demands. In contrast, the TRICONEX 3481S2 is a customized upgraded version for high-standard industrial safety systems. It integrates upgraded TMR fault tolerance, multi-signal programmable output, fast dynamic response and full-link intelligent diagnosis. It effectively improves the flexibility, accuracy and operational reliability of industrial analog safety control loops.

• Upgraded TMR Triple Modular Redundancy Architecture: Equipped with three independent synchronous output circuits and hardware 2oo3 voting logic. Single-channel component failure or circuit abnormality will not disrupt overall output. It completely eliminates single-point failure risks and ensures ultra-high availability of safety control loops.
• Multi-Mode Programmable Analog Output: Supports flexible switching of multiple output signals, including 4–20mA, 0–20mA current and 0–10V voltage. Each channel supports independent parameter configuration. It adapts to diverse field actuator types without additional conversion modules.
• Dual Precision Grades for Stable Output: Adopts high-precision conversion design with optional 12-bit and 16-bit resolution. It achieves ultra-low full-scale error within ±0.1%~±0.25%. It maintains zero drift during long-term full-load operation to guarantee precise process parameter adjustment.
• IEC 61508 SIL3 Authoritative Safety Certification: Passes professional TÜV safety verification and complies with IEC 61511 international process safety specifications. It is fully applicable to ESD emergency shutdown systems, fire and gas linkage systems and other high-risk safety scenarios.
• Dual-Layer Isolation & Anti-Interference Design: Features channel-to-channel and channel-to-system double isolation structure. It effectively isolates on-site surge voltage, power harmonics and radio frequency interference. It avoids cross-channel signal crosstalk and ensures pure and stable output signals.
• Professional FSD Forced-Switch Diagnosis: Built-in Forced-Switch Diagnostics function. It actively detects hidden circuit faults that conventional diagnosis cannot identify. It greatly improves fault coverage and realizes comprehensive pre-warning of potential module failures.
• Ultra-Fast Dynamic Response Speed: Features typical 1ms rapid response time and programmable channel update rate. It quickly responds to system logic adjustment commands to ensure timely and accurate process parameter correction.
• Complete Reverse & Over-Voltage Protection: Supports reverse voltage protection and 36VDC continuous over-voltage resistance. It automatically cuts off abnormal circuits under overload and over-voltage conditions to protect modules and field equipment.
• Online Hot-Swap Maintenance Support: Supports non-stop online module replacement and loop debugging. It does not require system or production shutdown during maintenance and upgrading. It effectively reduces unplanned production losses.
• Enhanced Harsh Environment Adaptability: Optimized component screening and structural reinforcement. It stably operates in high-temperature, low-temperature, humid and vibration-intensive environments. It adapts to petrochemical, power, offshore oil and gas and other harsh industrial scenarios.
• Seamless Trident System Compatibility: Perfectly matches Tricon Trident series safety chassis and TMR controllers. It supports plug-and-play installation and direct program docking without secondary debugging.

TRICONEX 3481S2

Detailed Technical Specifications (Key Highlight Parameters)

The TRICONEX 3481S2 strictly follows upgraded Triconex safety design specifications and international industrial safety standards. All output modes, precision indicators, response performance and protection parameters pass authoritative factory testing and field verification. Its core advantages lie in multi-mode programmable output, FSD deep diagnosis and ultra-fast response. The sorted detailed parameters below support accurate engineering selection, diversified safety loop design and standardized batch procurement.

3.1 Basic Product Identification & System Matching

• Official Full Model: 3481S2 (AO3481 S2)
• Manufacturer: TRICONEX (Schneider Electric / Invensys)
• Product Series: Tricon Trident TMR Safety System Upgraded Analog Output Module Series
• Product Type: SIL3-Grade TMR Fault-Tolerant Multi-Mode Programmable Analog Output Module
• Core Functions: Multi-signal analog output, independent channel programmable configuration, FSD forced-switch fault diagnosis, dual isolation anti-interference protection, over-voltage and reverse-voltage protection
• Compatible Systems: Tricon Trident TMR SIS Safety Instrumented System, ESD Emergency Shutdown System, Fire and Gas Detection & Linkage System
• Applicable Scenarios: Petrochemical, chemical, electric power, oil and gas, offshore platform multi-type actuator control, old loop multi-function upgrading and safety spare parts strategic reserve
• Executive Standards: IEC 61508 SIL3 safety standard, IEC 61511 process safety specification, industrial EMC electromagnetic compatibility standard

3.2 Core Electrical & Output Performance Parameters

This module adopts upgraded triple redundant synchronous output and multi-mode signal conversion technology. It supports independent programming of each channel with flexible signal switching. It balances high precision and fast response, fully meeting multi-scenario high-reliability adjustment requirements of industrial safety loops.

• Output Channel Configuration: 4-channel independent isolated programmable analog output
• Programmable Output Modes: 4–20mA, 0–20mA current, 0–10V voltage (channel independent configuration)
• Practical Operating Range: 0–22mA wide adaptive over-range output
• Optional Resolution: 12-bit / 16-bit switchable high precision
• Full-Scale Output Accuracy: ±0.1% ~ ±0.25% FS ultra-low error
• Typical Response Time: 1ms ultra-fast dynamic response
• Update Mode: Independent programmable update rate per channel
• Maximum Withstand Voltage: 36VDC continuous over-voltage resistance
• Protection Mechanism: Reverse voltage protection, overload automatic protection
• Isolation Strength: Channel-to-channel and channel-to-system double isolation
• System Architecture: Triple Modular Redundancy (TMR) synchronous hardware voting
• Safety Level: IEC 61508 SIL3 certified with official TÜV safety qualification
• Diagnostic Technology: FSD forced-switch diagnosis + full-loop real-time fault monitoring
• Maintenance Mode: Support online hot-swap replacement without system shutdown

3.3 Structural & Installation Parameters

The product adopts compact single-slot integrated modular structure. It matches dedicated Tricon Trident chassis for centralized installation. It features compact layout, standardized anti-loose wiring and intuitive status display, suitable for intensive cabinet layout of safety instrument rooms.

• Installation Method: Dedicated Tricon Trident standard chassis card slot fixed mounting
• Structural Feature: Single-slot 4-channel high-density integrated design, saving cabinet space
• Status Display: Onboard LED indicators for power operation, running status and channel faults
• Wiring Interface: Standard industrial anti-loose terminal block for stable and anti-oxidation connection
• Operation Mode: Plug-and-play docking, support independent channel parameter programming
• Shell Material: High-strength flame-retardant industrial shell with anti-aging and anti-corrosion performance

3.4 Environmental & Mechanical Resistance Parameters

The TRICONEX 3481S2 passes upgraded industrial extreme environment simulation tests. It maintains stable multi-mode output performance and complete diagnosis functions under harsh temperature, humidity and vibration conditions.

• Operating Temperature Range: -40°C ~ +70°C full-load stable continuous operation
• Storage Temperature Range: -40°C ~ +85°C high and low temperature resistant storage
• Working Humidity Range: 5% ~ 95% RH non-condensing environment adaptation
• Environmental Adaptability: Dust-proof, moisture-proof, vibration-resistant and strong electromagnetic interference resistance
• Continuous Operation: Support 7×24-hour uninterrupted long-term safety loop adjustment

3.5 Factory Testing & Quality Certification Standards

All modules are manufactured in accordance with upgraded Triconex industrial safety quality control system. Each product completes full-function multi-mode testing and safety verification before delivery to meet global multi-scenario process safety control requirements.

• Core Certifications: IEC 61508 SIL3 safety certification, TÜV safety approval, CE EMC electromagnetic compatibility certification, ATEX and UL industrial certification
• Factory Testing Items: TMR voting function test, multi-mode output precision calibration, FSD diagnosis function test, over-voltage and reverse-voltage protection test, temperature cycle durability test and long-term full-load aging test
• Field Reliability: Widely applied in global high-risk industrial Trident safety systems, with long-term stable operation verification and ultra-low field failure rate

TRICONEX 3481S2

E-commerce Sales Mode & Complete Procurement Advantages

As an upgraded multi-functional core analog output spare part for Tricon Trident SIS safety systems, the TRICONEX 3481S2 adopts standardized and transparent global industrial e-commerce sales mode. It focuses on multi-type actuator loop upgrading, old module function expansion and enterprise high-end safety spare parts strategic reserve. It provides one-stop standardized procurement and full-cycle professional technical services for industrial enterprises and engineering integrators.

4.1 Standardized Transparent E-commerce Sales System

All TRICONEX 3481S2 products implement unified original factory production and upgraded testing standards. The whole production, multi-mode calibration and warehousing process is fully traceable. E-commerce platforms openly display complete product datasheets, SIL safety certification documents and FSD function test reports. Customers can verify product authenticity, functional integrity and system matching accuracy online. This transparent mechanism effectively avoids refurbished, modified and functionally incomplete modules. It ensures long-term stable and multi-functional operation of industrial safety instrumented systems.

4.2 Diversified Flexible Procurement Modes

Industrial safety system maintenance, functional upgrading and new project construction have differentiated demands for delivery speed and procurement quantity. We provide targeted flexible procurement solutions to cover emergency maintenance, daily spare stock and large-scale engineering deployment.

• Single Unit Emergency Spot Procurement: Support single spot orders for sudden module failure, signal mode mismatch and loop adjustment abnormality. Sufficient global spot inventory supports fast delivery. It enables rapid module replacement and quickly restores multi-functional precise adjustment of safety analog loops.
• Small-Batch Spare Parts Stocking: Suitable for enterprises to upgrade spare parts inventory. Pre-storing 3481S2 modules replaces single-function old modules. It improves on-site fault response efficiency and supports multi-type field actuator compatibility.
• Large-Batch Engineering Procurement: Provide hierarchical preferential pricing and long-term framework cooperation services for new multi-scenario safety system construction and old loop multi-function upgrading. It reduces overall project procurement costs and simplifies later equipment compatibility management.

4.3 Full-Cycle Value-Added Services & After-Sales Guarantee

The upgraded multi-mode analog output module is the key flexible execution unit of safety system process control. Its functional diversity, response speed and operation stability directly affect the flexibility and safety of entire production process adjustment. We deliver full-cycle technical support and quality assurance to eliminate all procurement risks for industrial customers.

• 100% Original Genuine Quality Guarantee: All products are brand-new original TRICONEX 3481S2 upgraded modules with complete factory test reports and certification files. It ensures perfect matching and consistent safety performance with original Trident TMR safety systems.
• Professional Industrial-Grade Logistics Protection: Adopt multi-layer shockproof, moisture-proof and dust-proof packaging. It protects internal precision conversion chips and diagnosis circuits from damage during long-distance transportation and storage.
• 24/7 Professional Technical Support: Provide pre-sales model matching consultation, in-sales multi-mode parameter configuration guidance, and after-sales loop debugging and fault diagnosis services.
• Official Long-Term Warranty Service: Enjoy unified official after-sales warranty. Free replacement and maintenance services are available for non-human-induced quality faults to reduce enterprise operation and maintenance costs.

Main Industrial Application Scenarios

Benefiting from upgraded TMR fault tolerance, multi-mode programmable output, FSD deep diagnosis and ultra-fast response capability, the TRICONEX 3481S2 is widely used in multi-type high-precision safety adjustment links of various high-risk process industries.

• Industrial SIS Safety Instrumented System: Serve as multi-functional analog output core unit for Trident SIS systems. It adapts to different types of field actuators through programmable signals. It supports unified and standardized control of multi-type safety loops.
• ESD Emergency Shutdown System: Cooperate with safety logic judgment to complete rapid parameter adjustment and stable safety reset. Its 1ms fast response ensures timely process status correction and avoids secondary safety accidents.
• Fire & Gas Protection Linkage System: Output customizable analog adjustment signals for ventilation equipment and safety valves. It realizes quantitative and accurate safety linkage control to reduce accident losses.
• Petrochemical Process Safety Control: Adapt to complex high-interference petrochemical production environments. Its dual isolation design ensures stable output. Multi-mode configuration meets diversified adjustment demands of refining and chemical processes.
• Power Plant Safety Interlock System: Applied to power plant boiler parameter adjustment and auxiliary equipment safety control. It meets high-response and high-precision safety control requirements of power industry.
• Offshore Oil & Gas Platform Safety System: Adapt to offshore high-humidity, high-corrosion and strong-interference working conditions. It provides durable and flexible multi-mode adjustment support for offshore safety systems.
• Old Safety System Functional Upgrading: Replace single-function 3481/3481S modules. It expands signal output modes and improves diagnosis depth and response speed. It realizes system function upgrading without overall reconstruction.

TRICONEX 3481S2

Product Value & Market Competitiveness

The TRICONEX 3481S2 is an upgraded iterative product of the classic 3481 series analog output modules. It fills the market gap of flexible multi-mode -grade TMR analog output modules for Tricon Trident safety systems. Compared with ordinary single-function analog modules, it integrates multi-signal programmable output, switchable precision, FSD forced-switch deep diagnosis and ultra-fast response technology. It solves core industry pain points such as single output mode, insufficient diagnosis capability and slow response of traditional safety analog modules.

In the global industrial safety spare parts e-commerce market, the TRICONEX 3481S2 has prominent differentiated competitive advantages. It features flexible multi-scenario adaptation, zero single-point failure risk, deep fault self-diagnosis and convenient non-stop maintenance. Combined with standardized genuine procurement, complete safety certification documents and professional full-cycle technical services, it is the preferred upgraded module for modern Trident safety system functional expansion and old equipment iteration upgrading.
