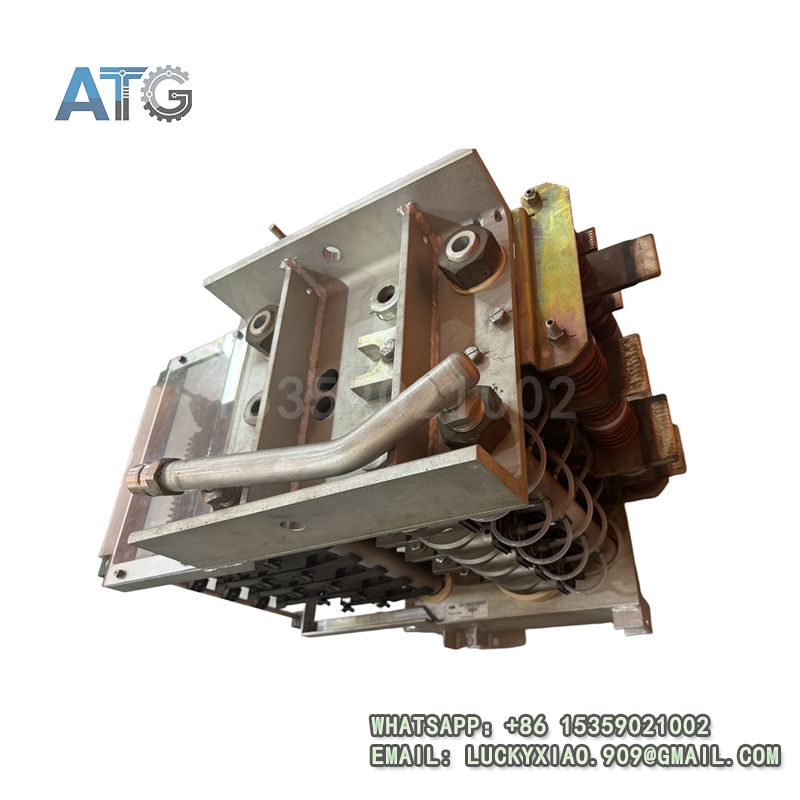

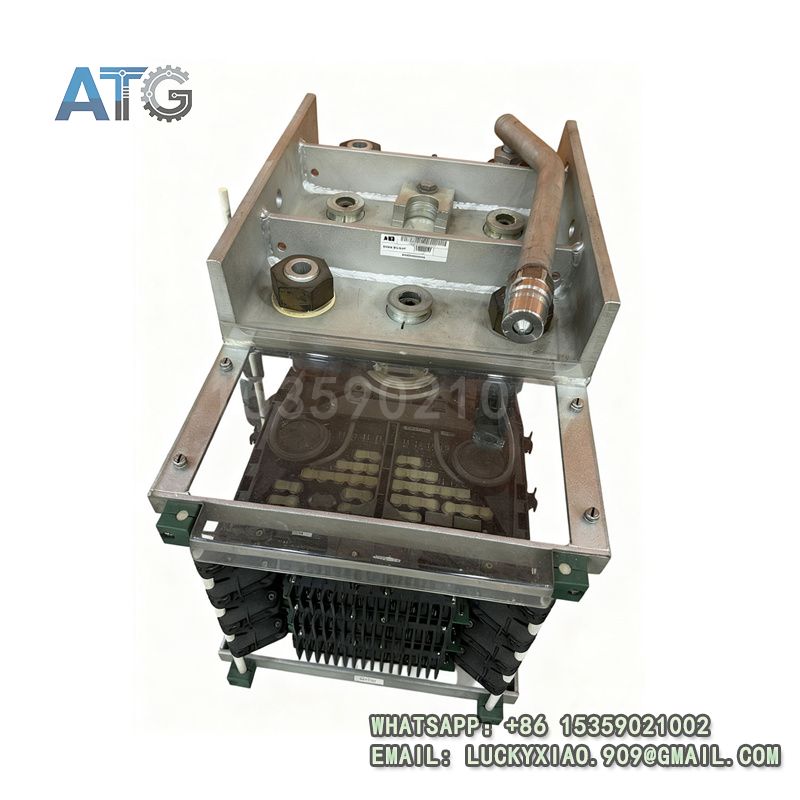

ABB S-093H 3BHB009885R0004 Product Introduction
- Model: S-093H 3BHB009885R0004
- Brand: ABB
- Series: ABB ACS 6000 Series
- Core Function: Medium voltage inverter phase control
- Type: Phase Module
- Key Specs: IGCT technology, 690VAC, High power
- Supply Status: in stock
- Stock: 12
- Warranty: 18 months
- Ship From: China
S-093H 3BHB009885R0004
Product System Function Introduction
The S-093H 3BHB009885R0004 is a phase module under ABB’s ACS 6000 Series. It is designed for medium voltage inverter systems. It adopts IGCT technology and runs stably. It is a key component of medium voltage frequency conversion. Its specific system functions are divided into the following points:
1. Functional Positioning and Core Value: It is a high-performance phase module. It is the core power unit of ACS 6000 medium voltage inverters. It converts DC bus voltage to AC voltage. It ensures stable operation of industrial motors.
2. Performance Characteristics: It adopts advanced IGCT technology. It combines the advantages of IGBT and GTO. It supports 690VAC rated voltage, with high blocking voltage and low conduction loss. It supports fast switching speed and high power capacity.
3. Compatibility and Integration: It is fully compatible with ABB ACS 6000 series inverters. It integrates seamlessly with medium voltage inverter systems. It has a compact design, easy to install and maintain. It simplifies the overall structure of the inverter.
4. Reliability and Durability: It uses high-quality materials and advanced production processes. It has strong anti-interference ability. It adapts to harsh industrial working environments. It has long service life and low failure rate, meeting long-term continuous operation needs.
S-093H 3BHB009885R0004
Application Industries
With its excellent performance and high reliability, this phase module is widely used in heavy industry and key infrastructure fields. It is mainly applied to ABB ACS 6000 medium voltage inverters. The main application industries are as follows:
1. Petroleum and Natural Gas Industry: It is used to control large compressors, pumps and fans. It adjusts the production process accurately. It ensures production efficiency and safety.
2. Mining Industry: It is applied to mine hoists, mills and conveyor belts. It realizes stable start and stop of motors. It protects equipment and reduces energy consumption.
3. Power Industry: It plays a key role in generator excitation systems. It ensures the stable operation of the power grid. It is also used in medium voltage auxiliary equipment.
4. Metallurgical Industry: It is used to control rolling mills, blowers and water pumps. Its precise speed regulation ensures product quality and production efficiency.
5. Other Industries: It is also used in water treatment, cement manufacturing and ship propulsion. It meets the needs of long-term continuous high-power operation.
ABB ACS 6000 Series
Usage Instructions
To ensure the stable and safe operation of the S-093H 3BHB009885R0004 phase module, please follow the following usage instructions:
1. Installation Requirements: Install the module firmly in the inverter cabinet. Keep it away from high temperature, humidity and corrosive gases. Ensure good ventilation to avoid overheating.
2. Wiring Specifications: Strictly follow the wiring diagram to connect lines. Distinguish positive and negative poles clearly. Use professional cables. Do not wire with power on.
3. Parameter Configuration: Configure parameters according to the inverter system requirements. Use ABB professional software for debugging. Ensure parameters match the working conditions, especially voltage matching.
4. Operation and Maintenance: Regularly check the module’s running status. Clean the module surface to remove dust. Check wiring for looseness and tighten it in time. Regularly detect its switching performance.
5. Safety Precautions: Cut off the power before installation or maintenance. Do not touch the module’s terminals with wet hands. Only professional personnel can perform debugging and maintenance.
