Description
Product Overview
The ROLLS ROYCE H1111.0103 is a rugged marine main controller module built for Rolls-Royce Common Control System (CCS) and Damatic Strategy maritime automation platforms. It serves as the core real-time processing unit for vessel propulsion, thruster control, dynamic positioning and ship power management systems. This safety-certified controller handles field signal collection, closed-loop logic calculation and multi-device data exchange on board ships and offshore installations.
Standard industrial controllers cannot survive strong vibration, humidity and salt fog inside marine engine rooms. They also lack marine classification approval and safety integrity certification. The H1111.0103 solves these challenges with lockstep triple-core hardware and reinforced marine-grade construction. Every unit passes strict marine environmental testing, vibration screening and full-load runtime verification. It supports global marine spare parts e-commerce sales, vessel retrofit projects and long-term 24/7 continuous operation under harsh offshore conditions.
Core Product Features & Competitive Advantages
Many general-purpose PLC modules work well for factory automation, but they fail to meet strict maritime safety standards. They are vulnerable to salt corrosion, mechanical shock and power fluctuation at sea. The ROLLS ROYCE H1111.0103 adopts dedicated marine hardware architecture. It balances high-speed deterministic control, safety redundancy and extreme environmental resistance. It greatly improves the reliability of ship automation and dynamic positioning systems.
- Triple Lockstep PowerPC Processor: Three synchronized cores run in lockstep mode. They cross-check calculation results in real time. Any core fault triggers instant fault diagnosis without sudden system shutdown.
- SIL 3 Functional Safety Certification: It meets IEC 61508 SIL3 safety integrity level. It is suitable for safety-critical marine control applications including DP systems and main propulsion control.
- Full Marine Class Approvals: Type approved by DNV GL, ABS and Lloyd’s Register. It satisfies global maritime rules for commercial vessels, offshore platforms and special marine units.
- Redundant 24V DC Power Input: Accepts 18–32 VDC wide-range input. Dual power supply support prevents single power circuit failure from interrupting control tasks.
- Rich Multi-Protocol Communication Ports: Equipped with Gigabit Ethernet, CAN FD, Fieldbus H1 and analog signal interfaces. It connects seamlessly with thruster units, engine governors, local HMI and vessel monitoring networks.
- ECC High-Capacity Memory: 2 GB ECC DDR3 RAM and 512 MB Flash storage. ECC memory automatically corrects bit errors caused by electromagnetic interference at sea.
- Deterministic Fast Control Cycle: Fixed control cycle as low as 250 microseconds. It delivers low-latency response for high-precision dynamic positioning and propulsion regulation.
- Anti-Corrosion & Vibration Resistant Housing: Reinforced metal casing with anti-salt-fog surface treatment. It withstands engine room vibration, humidity and coastal salt spray.
- Hot-Swap & Redundant Pair Operation: Supports primary-standby redundant configuration. The standby unit takes over control immediately once the main controller fails.
- Built-In Comprehensive Fault Diagnosis: Onboard watchdog and hardware self-test functions. It reports faults to ship monitoring systems for quick maintenance and troubleshooting.

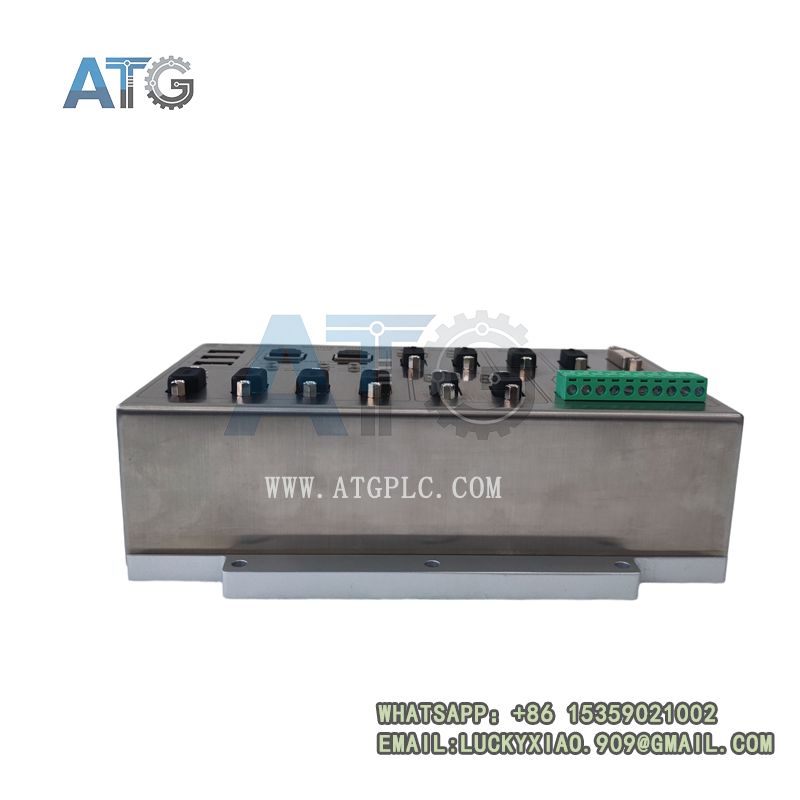

ROLLS ROYCE H1111.0103
Detailed Technical Specifications (Key Highlight Parameters)
The ROLLS ROYCE H1111.0103 follows Rolls-Royce original CCS marine control system design standards. All electrical, mechanical and safety indicators pass marine classification inspection. Its main strengths are safety redundancy, fast real-time computing and offshore environmental tolerance. The sorted parameters below help shipyards, vessel operators and system integrators for equipment selection, retrofit design and batch spare part procurement.
3.1 Basic Product Identification & System Matching
- Official Full Model: H1111.0103
- Manufacturer: ROLLS ROYCE Solutions
- Product Series: H1111 Marine Controller Series
- Product Type: Marine Safety-Critical Main Control Processor Module
- Core Functions: Real-time propulsion control, dynamic positioning logic, power management, signal acquisition and multi-network data communication
- Compatible Systems: Rolls-Royce CCS / Damatic Strategy marine automation, vessel DP systems, thruster control cabinets and ship integrated monitoring systems
- Applicable Scenarios: New vessel automation construction, offshore platform control system upgrade, shipboard controller replacement and marine spare parts inventory reserve
- Executive Standards: IEC 61508 SIL3, DNV GL, ABS, Lloyd’s Register marine type approval, IEC marine environmental standard
3.2 Core Computing & Electrical Performance Parameters
This marine controller uses triple-core lockstep computing architecture. It features error correction, fast response and redundant power design. It fully meets high safety and high stability control requirements for offshore and shipboard equipment.
- Processor: Triple PowerPC e5500 cores running in lockstep mode
- Memory: 2 GB ECC DDR3 RAM, 512 MB Flash memory
- Input Power: 18–32 VDC redundant power supply, rated 24 VDC
- Peak Power Consumption: 28 W at rated voltage
- Control Cycle: Deterministic control loop down to 250 µs
- Communication Interfaces: Gigabit Ethernet, CAN FD, Fieldbus H1, analog RTD / TC signal channels
- Safety Level: IEC 61508 SIL 3
- Protection Mechanism: Hardware watchdog, core cross-check, overvoltage and overcurrent protection
3.3 Structural & Installation Parameters
The module adopts compact rack-mounted marine hardware structure. It has standardized dimensions and high-density connectors for cabinet installation inside ship control rooms and engine control cabins.
- Installation Type: Standard marine cabinet rack mounting
- Overall Dimension: 180 mm × 135 mm × 65 mm
- Net Weight: 1.40 kg
- Shell Material: Reinforced metal housing with anti-salt-fog coating
- Connector: High-density marine-grade multi-pin connectors with vibration resistance
- Protection Grade: Designed for indoor marine cabinet installation
3.4 Environmental & Mechanical Resistance Parameters
The controller passes strict marine environmental simulation and mechanical durability tests. It maintains stable computing performance under the extreme vibration and temperature changes found on vessels and offshore rigs.
- Operating Temperature Range: -15°C ~ +70°C continuous operation
- Storage Temperature Range: -40°C ~ +85°C for spare part storage
- Working Humidity Range: 5% ~ 95% RH non-condensing
- Environmental Resistance: Salt fog resistance, vibration and shock resistance, dust and moisture proof
- Continuous Operation: Support 7×24-hour uninterrupted shipboard long-term operation
3.5 Certification & Factory Testing Standards
All modules follow Rolls-Royce original marine quality control system. Each controller completes a full series of factory tests before shipment to satisfy marine classification requirements.
- Marine Certifications: DNV GL, ABS, Lloyd’s Register type approval, SIL3 safety certification
- Factory Testing Items: Lockstep core test, ECC memory test, full-load aging test, temperature cycle test, vibration test and communication interface test
- Field Reliability: Massively deployed on offshore vessels and platforms, verified by years of marine operation records

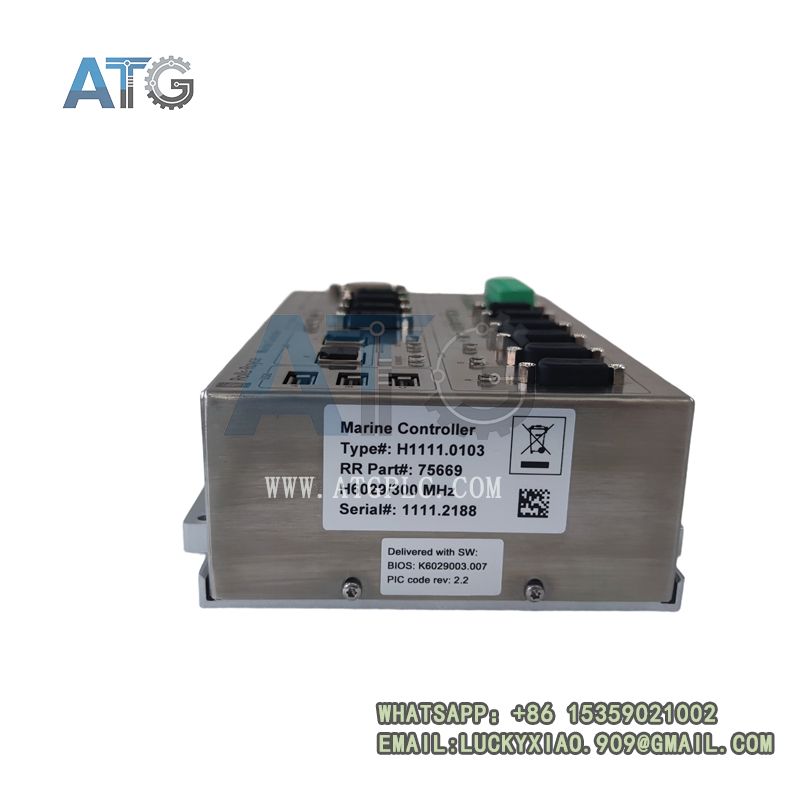

ROLLS ROYCE H1111.0103
E-commerce Sales Mode & Complete Procurement Advantages
As a safety-critical marine automation spare part, the ROLLS ROYCE .0103 uses standardized and transparent global marine industrial e-commerce operation. It targets vessel emergency repair, offshore system retrofitting and ship owner spare part stocking. It provides one-stop procurement and full-cycle professional marine technical service for shipyards, vessel operators and marine automation service teams.
4.1 Standardized Transparent E-commerce Sales System
All .0103 products follow unified Rolls-Royce factory testing standards. Every unit carries complete inspection records. The whole production, testing and warehousing process can be traced. E-commerce platforms publish full datasheets, marine certification documents and factory test reports. Buyers can verify product authenticity and system matching online. This transparent mechanism prevents refurbished modules and incompatible substitutes, which is critical for safe vessel navigation.
4.2 Diversified Flexible Procurement Modes
Marine projects have unique lead time and emergency breakdown demands. We offer flexible procurement plans for urgent replacement, spare part stocking and large-scale vessel retrofit projects.
- Single Unit Emergency Spot Procurement: Support single spot orders. It fits sudden marine controller faults and urgent vessel system recovery. Available spot inventory enables fast delivery to minimize vessel downtime.
- Small-Batch Spare Part Stocking: Support small batch procurement for ship owners and offshore operators. Pre-stocked spare parts cut response time during future onboard maintenance.
- Large Batch Project Procurement: Provide volume discount and long-term framework agreements for new ship construction, fleet-wide automation upgrade and large offshore platform retrofit projects. It reduces overall project procurement expenditure.
4.3 Full-Cycle Value-Added Services & After-Sales Guarantee
Marine safety controllers directly affect vessel navigation safety. We provide full-cycle technical support and quality assurance to remove procurement risks for marine customers.
- 100% Original Genuine Quality Guarantee: All products are original Rolls-Royce genuine controllers. Complete test reports and marine certification copies are supplied to guarantee compatibility with original CCS marine systems.
- Professional Marine-Grade Packaging & Logistics: Use shockproof, moisture-proof and salt-resistant packaging. It protects precision marine electronic modules during ocean freight and long-term storage.
- 24/7 Marine Technical Support: Offer pre-sales system matching check, installation guidance, firmware matching verification and remote fault diagnosis for shipboard commissioning.
- Official Warranty Service: Covered by unified warranty. Non-human-induced quality failures qualify for replacement service to reduce operational risks for vessels and offshore assets.
Main Industrial & Marine Application Scenarios
Thanks to SIL3 safety performance, triple-core redundant design and marine classification approval, the .0103 serves widely in safety-critical marine automation and offshore control systems.
- Dynamic Positioning (DP) Control Systems: Act as main processing node for DP vessels and offshore rigs. It calculates position correction and controls thrusters to keep stable station-keeping.
- Marine Propulsion & Thruster Control: Manage tunnel thrusters, azimuth thrusters and main propulsion governor systems. It realizes precise speed and torque regulation for vessel propulsion units.
- Ship Integrated Power Management: Monitor and manage ship generator sets and power distribution networks. It supports load sharing and power fault protection on board.
- Offshore Platform Automation: Deployed on oil & gas offshore platforms and floating production units. It handles safety-related control and real-time equipment monitoring.
- Vessel Retrofit & Automation Upgrade: Replace aging controllers on existing vessels. It upgrades control performance without full system reconstruction.
- New Shipbuilding Automation System Integration: Used for new construction of offshore supply vessels, ferries and special marine ships with Rolls-Royce CCS automation packages.

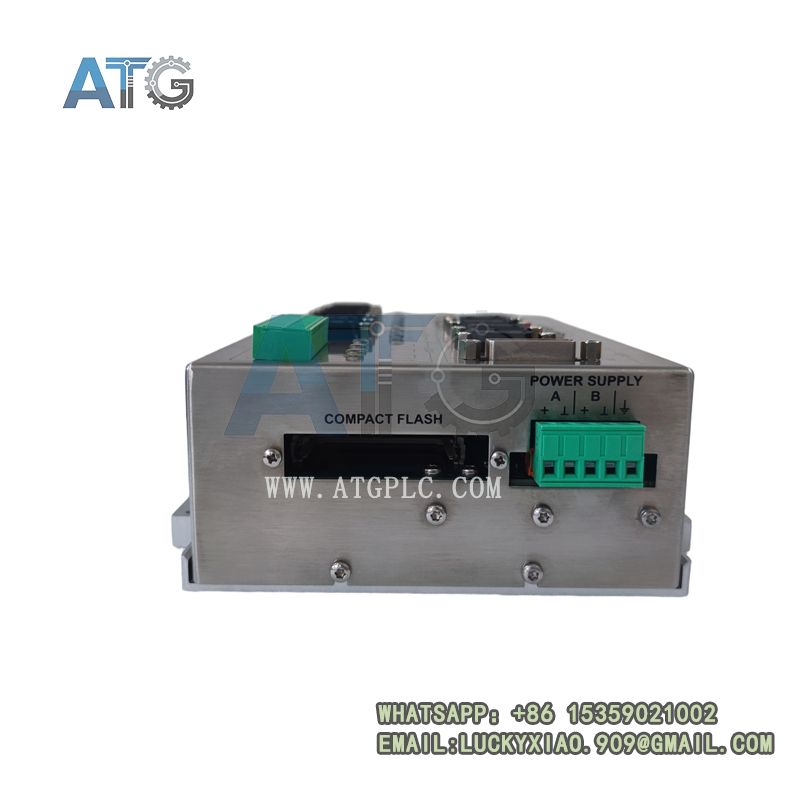

ROLLS ROYCE H1111.0103
Product Value & Market Competitiveness
The ROLLS ROYCE .0103 fills the demand gap of SIL3-grade marine main controllers for CCS and Damatic Strategy platforms. Compared with ordinary industrial controllers, it combines triple lockstep redundancy, marine class approval and high-speed deterministic control. It addresses major risks such as calculation error, environmental failure and lack of safety certification for shipboard control hardware.
Within the global marine spare parts e-commerce market, this module holds clear advantages for DP vessel and offshore automation maintenance. It features high safety integrity, robust marine hardware and redundant operation. Together with traceable genuine supply, complete certification documents and professional marine technical support, it is the preferred safety-critical control spare part for offshore fleets and marine automation retrofit projects.
