Prosoft MVI56E-MCM Modbus communication module

Description

Product Overview

The PROSOFT MVI56E-MCM is a high-performance enhanced Modbus communication module developed by ProSoft Technology. It is professionally built for Rockwell Automation 1756 ControlLogix chassis systems. As a multi-functional integrated Modbus gateway, it supports both Modbus TCP/IP Ethernet and Modbus RTU/ASCII serial communication. It perfectly solves the compatibility gap between Rockwell ControlLogix PLCs and universal Modbus field devices.

Different from single-protocol communication modules, the MVI56E-MCM integrates dual Ethernet and serial communication interfaces. It supports simultaneous Master and Slave mode operation, covering all mainstream Modbus communication scenarios in industrial sites. The module adopts independent on-board hardware protocol processing. It independently completes all protocol parsing and data mapping tasks without occupying ControlLogix controller CPU resources. Every unit undergoes strict factory protocol calibration, full-load aging testing, EMC anti-interference verification and environmental durability testing. It meets global industrial e-commerce sales standards, batch engineering procurement requirements and long-term industrial stable operation specifications.

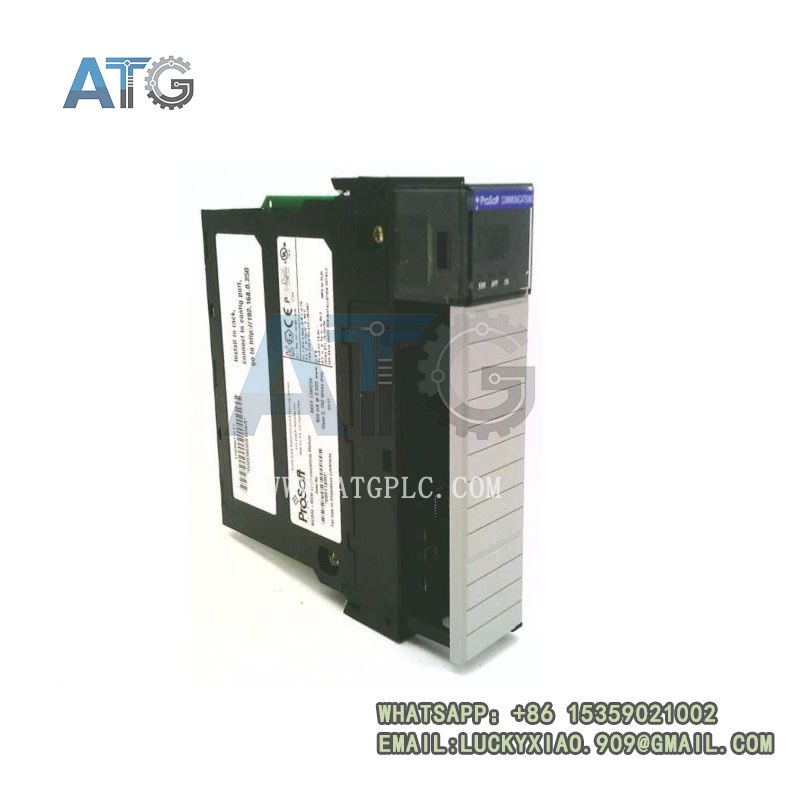

Prosoft MVI56E-MCM

Core Product Features & Competitive Advantages

Most traditional industrial communication modules only support a single Modbus protocol or fixed working mode. They cannot adapt to mixed network environments with both Ethernet and serial devices. In contrast, the PROSOFT MVI56E-MCM achieves multi-protocol integration and dual-mode free switching. It significantly improves on-site networking flexibility and system compatibility. It provides stable, efficient and all-scenario communication guarantees for hybrid industrial automation systems.

• Dual Modbus Protocol Integration: This module supports Modbus TCP/IP Ethernet and Modbus RTU/ASCII serial communication simultaneously. It covers Ethernet remote networking and on-site serial device docking, realizing one-module multi-purpose deployment.
• Universal Master/Slave Dual-Mode Operation: It works as both Modbus Master and Slave. It can actively poll multiple field devices as a master station. It can also respond to upper-system data access as a slave station. It adapts to diverse industrial network topologies.
• Independent Hardware Protocol Acceleration: Equipped with a dedicated on-board processing chip, the module runs the full Modbus protocol stack locally. It generates zero load on the ControlLogix main CPU. It avoids system delay and data jitter caused by large-scale data exchange.
• High-Speed Adaptive Ethernet Communication: Built-in 10/100 Mbps self-adaptive Ethernet port supports automatic rate matching and cable crossover detection. It ensures low-latency and stable real-time data transmission for Ethernet network devices.
• Configurable Serial Communication Interface: Integrated RS-232/RS-485 configurable serial ports support standard Modbus RTU and ASCII protocols. It is compatible with traditional serial instruments, remote IO modules and on-site low-speed field devices.
• Large-Capacity Register Data Mapping: It supports up to 10,000 user-definable 16-bit register data mapping. It fully meets massive data interaction demands for large-scale production lines and multi-device distributed networking scenarios.
• Visual Configuration & Intelligent Diagnosis: It is compatible with ProSoft Configuration Builder (PCB) software. Users can complete visual parameter configuration, offline programming and online real-time monitoring. The on-board 4-character digital display and multi-color LED indicators intuitively show module status, network links and fault information for fast on-site maintenance.
• Full Backward Compatibility: The module is fully backward compatible with legacy MVI56-MCM modules. It supports direct replacement without modifying controller programs or on-site wiring, which greatly reduces system upgrade costs.
• Industrial-Grade Environmental Adaptability: Optimized EMC electromagnetic compatibility design and reinforced mechanical structure deliver excellent vibration resistance and anti-interference performance. It works stably in dusty, humid and strong-electromagnetic industrial workshops.
• Automatic Network Recovery & Stable Operation: Built-in intelligent network self-diagnosis and auto-reconnection mechanisms ensure fast link recovery after communication interruption. It supports 7×24-hour full-load uninterrupted operation for industrial unattended scenarios.
• Plug-and-Play Deployment & Low Maintenance: Standard single-slot ControlLogix structure supports hot-swap replacement. It requires no frequent calibration after installation, effectively reducing long-term system operation and maintenance costs.

Detailed Technical Specifications (Key Highlight Parameters)

The MVI56E-MCM strictly complies with ProSoft original enhanced module standards and Rockwell 1756 ControlLogix chassis specifications. All technical indicators pass authoritative factory testing and industrial field verification. Its dual-protocol and dual-mode design is the core advantage over single-function Modbus modules. The complete classified parameters are listed below for engineering selection, system upgrading and standardized batch procurement.

3.1 Basic Product Identification & System Matching

• Official Full Model: MVI56E-MCM
• Manufacturer: ProSoft Technology
• Product Series: ControlLogix Enhanced Multi-Protocol Modbus Communication Module
• Product Type: Integrated Modbus TCP/RTU Master/Slave Dual-Mode Gateway
• Core Functions: Modbus TCP/RTU/ASCII protocol parsing, dual-protocol data interaction, master/slave mode switching, large-capacity register mapping and intelligent network diagnosis
• Fully Compatible Systems: Rockwell 1756 ControlLogix series PLC and chassis, firmware version 10.0 or higher
• Applicable Scenarios: Mixed Ethernet and serial Modbus device networking, cross-brand equipment data interconnection, old factory communication system renovation and industrial intelligent upgrading projects
• Executive Standards: Rockwell 1756 chassis specification, Modbus industrial protocol standard, IEC EMC standard, ISO 9001 quality management system

3.2 Core Communication Performance Parameters

This module integrates Ethernet and serial dual communication channels. It covers all mainstream Modbus communication modes and achieves flexible adaptation to complex on-site network structures.

• Ethernet Interface: Single 10/100BASE-T industrial Ethernet port
• Ethernet Protocol: Modbus TCP/IP full protocol support
• Network Adaptation: 10/100 Mbps self-adaptive rate, automatic cable crossover detection
• Serial Interface: Configurable RS-232 / RS-485 serial communication port
• Serial Protocol: Modbus RTU and Modbus ASCII dual-mode support
• Working Mode: Simultaneous Modbus Master and Slave operation
• Maximum Register Mapping: Up to 10,000 16-bit user-defined registers
• Configuration Tool: ProSoft Configuration Builder (PCB) full graphical visual configuration
• Network Mechanism: Cyclic polling, automatic fault reconnection and data error correction
• Transmission Performance: Stable low-delay data transmission, zero packet loss under full-load operation

3.3 Electrical & Backplane Load Parameters

The module adopts pure chassis backplane power supply. It requires no external power supply. It simplifies on-site wiring and improves system integration and operational safety.

• 5 VDC Backplane Current Load: 800 mA standard operating current
• 24 VDC Backplane Current Load: 3 mA ultra-low auxiliary power consumption
• Power Supply Mode: Pure ControlLogix chassis backplane power supply
• Typical Power Consumption: 2 W low-power energy-saving design
• Built-in Protection: Overvoltage, overcurrent, short-circuit and surge anti-interference protection

3.4 Structural & Installation Parameters

The module adopts standard single-slot compact structure. It supports fast installation and hot-swap replacement, which facilitates daily maintenance and system expansion.

• Chassis Specification: Standard single-slot 1756 ControlLogix module
• Display Unit: 4-character alphanumeric digital display + multi-color LED status indicators
• Installation Method: Embedded chassis installation, plug-and-play deployment, hot-swap supported
• Structural Feature: High-integration compact layout to save chassis internal space
• Shell Material: High-strength flame-retardant industrial shell, anti-corrosion and anti-aging

3.5 Environmental & Mechanical Resistance Parameters

To adapt to complex industrial working conditions, the module passes strict environmental and mechanical tests. It ensures long-term stable operation in ordinary industrial scenarios.

• Operating Temperature Range: 0°C ~ +60°C full-performance stable operation
• Storage Temperature Range: -40°C ~ +85°C high and low temperature resistant storage
• Working Humidity Range: 5% ~ 95% RH non-condensing environment adaptation
• Vibration Resistance: 5 g vibration resistance (10 Hz – 150 Hz, compliant with IEC 60068-2-6)
• Shock Resistance: 30 g operational shock resistance, 50 g non-operational shock resistance (11 ms half-sine)
• Working Altitude: Normal operation up to 2000 meters
• Environmental Adaptability: Dust-proof, moisture-proof, vibration-resistant and anti-electromagnetic interference
• Continuous Operation: Support 7×24-hour full-load uninterrupted industrial long-term operation

3.6 Certification & Factory Testing Standards

All products are produced and tested in accordance with international industrial standards. They have complete qualification certification and factory inspection reports to ensure global unified quality consistency.

• Industrial Certifications: CE electromagnetic compatibility certification, RoHS environmental protection certification
• Quality Management System: ISO 9001 international quality system standardized production
• Factory Testing Items: Modbus multi-protocol calibration, network full-load stability test, high-low temperature cycle test, vibration shock test and 72-hour aging test
• Field Reliability: Verified by global multi-scene Modbus networking projects with ultra-low failure rate

Prosoft MVI56E-MCM

E-commerce Sales Mode & Complete Procurement Advantages

As a versatile multi-protocol Modbus core module for ControlLogix systems, the PROSOFT MVI56E-MCM adopts a standardized and transparent global industrial e-commerce operation system. It covers full-process services from pre-sales technical consultation and flexible procurement to after-sales quality guarantee and technical support. It provides one-stop reliable communication solutions for automation integrators, factory maintenance teams and engineering contractors.

4.1 Standardized Transparent E-commerce Sales System

All products implement unified ProSoft original factory technical standards and industrial-grade precision packaging. The whole production, testing and warehousing process is fully traceable. E-commerce platforms openly display complete datasheets, configuration manuals, qualification certificates and factory test reports. Customers can verify product authenticity and parameter accuracy online. This mechanism effectively avoids refurbished and inferior modules and ensures 100% protocol matching and stable operation for user projects.

4.2 Diversified Flexible Procurement Modes

Different industrial projects have different demands for procurement quantity and cycle. We provide diversified procurement channels to meet emergency maintenance, small-scale transformation and large-scale engineering supporting needs.

• Single & Small-Batch Spot Emergency Procurement: Support single-unit and small-quantity spot orders. It is suitable for on-site faulty module replacement and urgent system communication recovery. Sufficient global spot inventory ensures fast delivery and avoids production shutdown losses caused by communication failure.
• Large Engineering Batch Wholesale: Provide hierarchical preferential pricing and long-term framework cooperation services for large-scale factory intelligent transformation, hybrid network construction and batch equipment upgrading. It effectively reduces enterprise procurement costs and inventory pressure.
• Customized Supporting Procurement Service: Provide professional model matching verification, network topology optimization and on-site debugging guidance. Support one-stop procurement of modules, Ethernet cables, serial cables and auxiliary accessories to simplify project procurement procedures.

4.3 Full-Cycle Value-Added Services & After-Sales Guarantee

We focus on long-term stable operation of customer projects. We provide full-cycle technical support and quality assurance to eliminate after-purchase worries.

• 100% Original Genuine Quality Guarantee: All modules are original ProSoft genuine products. Complete factory protocol test data and performance reports are provided to ensure zero communication mismatch risk.
• Professional Precision Logistics Protection: Adopt industrial anti-static, shockproof and moisture-proof packaging. It prevents product damage during cross-regional transportation and ensures intact product performance.
• 24/7 Full-Process Technical Support: Provide pre-sales scheme optimization, in-sales installation and configuration guidance, after-sales fault diagnosis and firmware upgrade services.
• Official Global Warranty Service: Enjoy unified ProSoft global warranty and quick after-sales response. Free replacement is supported for quality problems to reduce enterprise operation risks.

Main Industrial Application Scenarios

Benefiting from its multi-protocol integration and master-slave dual-mode flexibility, the is widely used in hybrid Modbus network scenarios that require both Ethernet and serial communication. It covers multiple core industrial fields.

• Hybrid Network Industrial Control System: Suitable for industrial sites with both Modbus TCP Ethernet devices and Modbus RTU serial instruments. It realizes unified data collection and centralized monitoring through one single module.
• Process Industry Automation: Widely applied in chemical, petroleum, water treatment and building material industries. It connects ControlLogix systems with on-site frequency converters, sensors and intelligent instruments to ensure stable process data transmission.
• Legacy System Renovation & Upgrading: Perfect for old factory system upgrading. It replaces outdated single-function modules and supports seamless program-free replacement to improve overall system compatibility and stability.
• Intelligent Factory Production Line Networking: Used for hybrid production line data integration. It solves communication docking problems between Rockwell main control systems and multi-type Modbus field equipment.
• Energy & Power Industrial Control: Applied in thermal power, photovoltaic and power distribution systems. It realizes stable data interaction of power monitoring equipment and improves system intelligent operation level.
• General Industrial Automation Projects: Serve as universal Modbus communication core components for various automation integration projects, meeting diversified networking demands of conventional industrial scenarios.

Product Value & Market Competitiveness

The PROSOFT solves the functional limitation of traditional single-protocol Modbus modules. It integrates TCP and RTU dual protocols and master-slave dual modes in one unit. It greatly improves on-site networking flexibility and reduces equipment procurement costs for hybrid network projects.

In the global industrial e-commerce market, the has obvious differentiated competitive advantages. It features full-protocol coverage, large-capacity data mapping, zero-program replacement and industrial-grade stability. It lowers project transformation difficulty and long-term maintenance costs. With standardized transparent procurement, 100% genuine quality traceability and full-cycle professional services, it is the preferred universal Modbus communication module for ControlLogix system new construction and renovation projects.
