Description
Product Overview
The ProSoft 5205-DFNT-PDPS is a high-performance standalone industrial protocol gateway. It serves as a professional EtherNet/IP Client to PROFIBUS DP Slave bidirectional converter. This DIN-rail mounted device solves core communication conflicts between EtherNet/IP industrial Ethernet systems and traditional PROFIBUS DP field devices. It enables stable, low-latency cross-protocol data interconnection for hybrid industrial automation networks.
Different from universal multi-protocol gateways with scattered functions, the 5205-DFNT-PDPS features targeted protocol optimization for EtherNet/IP and PROFIBUS DP hybrid networking. It focuses on reliable data mapping and real-time signal transmission. It adopts an industrial compact metal shell design with excellent environmental adaptability. It supports plug-and-play deployment and long-term unattended full-load operation. Every unit undergoes strict factory protocol calibration, full-load aging testing and EMC anti-interference verification. It fully meets global industrial e-commerce sales, batch engineering procurement and long-term stable operation in complex factory environments.
Core Product Features & Competitive Advantages
Most ordinary cross-protocol gateways lack targeted adaptation for PROFIBUS DP slave device docking. They often face unstable connection, data frame disorder and poor anti-interference ability in long-term industrial operation. In contrast, the ProSoft 5205-DFNT-PDPS adopts a dedicated dual-protocol stack design. It balances high transmission accuracy, strong environmental resistance and simple operation. It effectively improves the compatibility and stability of EtherNet/IP and PROFIBUS hybrid automation systems.
- Dedicated EtherNet/IP to PROFIBUS DP Slave Conversion: This gateway acts as an EtherNet/IP client and connects to upper-layer EtherNet/IP controllers. It operates as a PROFIBUS DP slave for lower-layer field device docking. It realizes one-stop bidirectional protocol conversion without additional auxiliary hardware or program development.
- High-Precision Stable Data Transmission: It supports standardized cyclic data exchange and acyclic parameter reading and writing. It maintains ultra-low packet loss rate and zero data disorder in continuous industrial operation. It fully meets real-time monitoring and precise control requirements of automated production lines.
- Independent Local Data Processing: All protocol parsing, data sorting and signal conversion are completed independently by the gateway. It does not occupy PLC CPU operating resources or network bandwidth. It guarantees the stable and independent operation of the main control system.
- Industrial-Grade Structural & Environmental Resistance: It adopts a durable industrial metal shell with anti-corrosion and anti-aging performance. It supports stable operation in complex environments with dust, humidity and electromagnetic interference. It delivers far better durability than ordinary plastic-shell gateways.
- Compact DIN-Rail Mounting Layout: It features a miniaturized integrated structure. It supports standard DIN-rail installation. It occupies minimal cabinet space and simplifies on-site wiring and deployment. It adapts to various compact industrial control cabinet layout scenarios.
- Intuitive LED Status Diagnosis: Equipped with multi-functional LED indicator lights for power supply, system operation, EtherNet/IP network, PROFIBUS communication and fault alarm. On-site staff can quickly judge operating status and locate faults to improve maintenance efficiency.
- Strict Industrial Standard Compatibility: It fully complies with international EtherNet/IP and PROFIBUS DP industrial protocol standards. It is compatible with all mainstream brand EtherNet/IP controllers and PROFIBUS DP slave field devices with strong universal adaptability.
- Simple Configuration & Low Operating Cost: It supports visual graphical configuration tools. It simplifies parameter setting, data mapping and network debugging processes. The device features low power consumption and ultra-low failure rate, effectively reducing long-term operation and maintenance costs.
- 7×24-Hour Full-Load Uninterrupted Operation: Optimized industrial circuit design and standardized factory aging testing ensure continuous full-load operation. It adapts to long-term uninterrupted production scenarios of industrial factories.

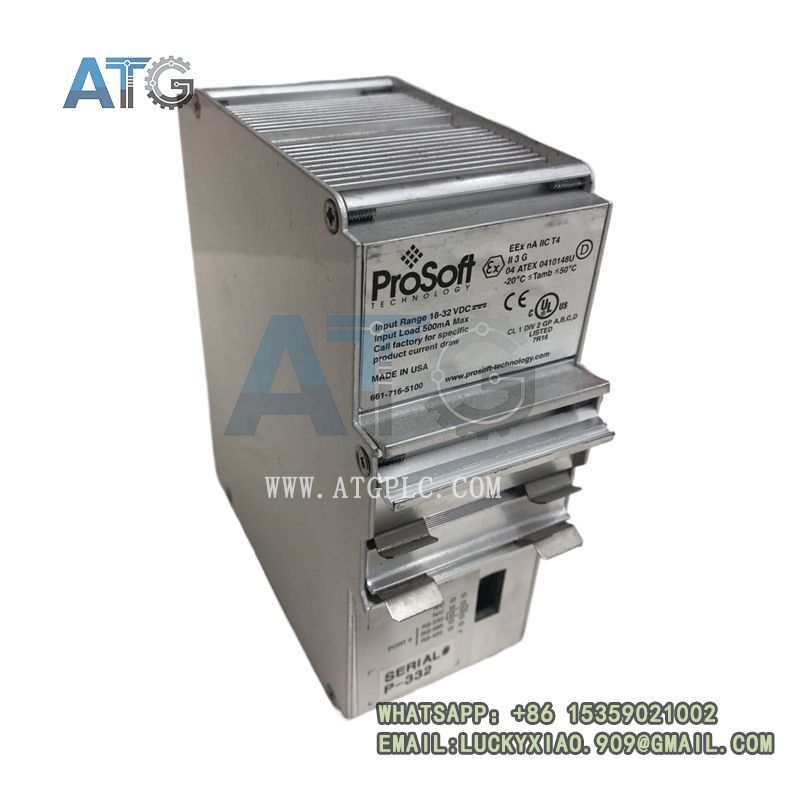

5205-DFNT-PDPS
Detailed Technical Specifications (Key Highlight Parameters)
The ProSoft 5205-DFNT-PDPS strictly complies with international EtherNet/IP and PROFIBUS DP protocol specifications. It meets industrial mechanical, environmental and safety test standards. All technical indicators pass authoritative factory testing and field verification. Its core advantages lie in dedicated dual-protocol conversion, high stability transmission and industrial-grade durability. The complete classified parameters are listed below for engineering selection, scheme design and standardized batch procurement.
3.1 Basic Product Identification & System Matching
- Official Full Model: 5205-DFNT-PDPS
- Manufacturer: ProSoft Technology
- Product Series: 5205 Industrial Cross-Protocol Gateway Series
- Product Type: EtherNet/IP Client to PROFIBUS DP Slave Dedicated Communication Gateway
- Core Functions: Dual-protocol signal conversion, bidirectional real-time data transmission, intelligent data mapping, network status monitoring and automatic fault diagnosis
- Compatible Systems: Rockwell EtherNet/IP control systems and all standard PROFIBUS DP slave field devices
- Applicable Scenarios: PROFIBUS legacy system EtherNet/IP networking, cross-brand equipment integration, factory automation upgrading and industrial data centralized monitoring
- Executive Standards: EtherNet/IP international protocol specification, IEC 61158 PROFIBUS DP standard, industrial EMC anti-interference standard, ISO 9001 quality management system
3.2 Core Communication Performance Parameters
The gateway adopts a professional industrial protocol processing chip. It integrates independent EtherNet/IP and PROFIBUS protocol stacks. It achieves high-precision and high-stability cross-protocol data interaction for industrial scenarios.
- Supported Protocols: Standard EtherNet/IP Client protocol and PROFIBUS DP Slave protocol
- Communication Mode: Bidirectional real-time cyclic data transmission and acyclic parameter configuration
- Ethernet Interface: 1 × 10/100 Mbps adaptive industrial RJ45 Ethernet port
- PROFIBUS Interface: Standard PROFIBUS DP communication interface with signal anti-interference optimization
- Transmission Performance: Low-latency data transmission, ultra-low packet loss rate, stable long-term full-load operation
- Configuration Method: Visual graphical industrial configuration software, support offline parameter editing and online debugging
- Fault Mechanism: Automatic network offline detection, intelligent reconnection and data error correction
- Status Feedback: Multi-indicator synchronous display of power, operation, network connection and fault status
3.3 Electrical Power Parameters
The device adopts industrial wide-voltage power supply design. It adapts to on-site voltage fluctuations in factory workshops. It features stable power output and low power consumption for long-term continuous operation.
- Power Supply Range: 18 VDC to 36 VDC industrial wide voltage input, nominal 24 VDC
- Rated Power Consumption: 14.8 W low-power energy-saving design
- Power Protection: Built-in overvoltage, overcurrent, reverse connection and surge anti-interference protection circuit
- Power Performance: Stable power output, no voltage fluctuation interference during full-load operation
3.4 Structural & Installation Parameters
It adopts integrated industrial metal shell structure and standard DIN-rail installation. It features compact size, firm structure and flexible deployment, which saves cabinet space and simplifies on-site construction.
- Installation Method: Standard industrial DIN-rail mounting
- Product Dimensions: 150 mm × 100 mm × 30 mm compact industrial body
- Product Weight: 0.5 kg lightweight portable design
- Protection Grade: IP20 indoor industrial protection grade
- Shell Material: High-strength industrial metal shell, anti-corrosion, anti-aging and anti-vibration
3.5 Environmental & Mechanical Resistance Parameters
The gateway passes strict industrial extreme environment and mechanical durability tests. It maintains full and stable performance in complex factory working conditions.
- Operating Temperature Range: 0°C ~ +60°C full-performance stable operation
- Storage Temperature Range: -40°C ~ +85°C high and low temperature resistant storage
- Working Humidity Range: 5% ~ 95% RH non-condensing environment adaptation
- Mechanical Performance: Industrial-grade vibration and shock resistance, adapting to on-site mechanical operation vibration
- Environmental Adaptability: Dust-proof, moisture-proof and strong electromagnetic interference resistance
- Continuous Operation: Support 7×24-hour full-load uninterrupted industrial long-term operation
3.6 Certification & Factory Testing Standards
All products are manufactured in accordance with international industrial standards. They complete standardized factory testing and authoritative certification to ensure global unified quality consistency and industrial applicability.
- Industrial Certifications: UL industrial safety certification, CE electromagnetic compatibility certification, RoHS environmental protection certification
- Quality Management System: ISO 9001 international quality system standardized production
- Factory Testing Items: Dual-protocol compatibility calibration, network transmission stability test, full-load aging test, temperature cycle test and EMC anti-interference test
- Field Reliability: Verified by massive industrial hybrid network integration projects with ultra-low failure rate
E-commerce Sales Mode & Complete Procurement Advantages
As a dedicated EtherNet/IP to PROFIBUS DP cross-protocol gateway, the ProSoft 5205-DFNT-PDPS adopts a standardized and transparent global industrial e-commerce operation system. It focuses on legacy PROFIBUS system networking renovation and EtherNet/IP hybrid system integration scenarios. It provides one-stop standardized procurement and full-cycle professional technical services for engineering integrators, factory maintenance teams and industrial intelligent transformation enterprises.
4.1 Standardized Transparent E-commerce Sales System
All 5205-DFNT-PDPS products implement unified ProSoft original factory production and testing standards. They adopt professional industrial shockproof, dustproof and moisture-proof sealed packaging. The whole production, testing and warehousing process is fully traceable. E-commerce platforms openly display complete datasheets, configuration manuals, qualification certificates and factory test reports. Customers can verify product authenticity and protocol matching accuracy online. This transparent mechanism effectively avoids refurbished and incompatible equipment and ensures stable operation of cross-protocol industrial networking projects.
4.2 Diversified Flexible Procurement Modes
Aiming at on-site emergency replacement, small-scale network upgrading and large-scale factory system integration projects, we provide diversified flexible procurement channels to meet different project cycle and quantity demands.
- Single & Small-Batch Spot Emergency Procurement: Support single-unit and small-quantity spot orders. It is suitable for on-site faulty gateway replacement and urgent cross-protocol network recovery. Sufficient global spot inventory ensures fast delivery and avoids production shutdown losses caused by network communication failure.
- Large Engineering Batch Wholesale: Provide hierarchical preferential pricing and long-term framework cooperation services for large-scale factory intelligent transformation, PROFIBUS system overall networking and batch equipment supporting projects. It effectively reduces overall project procurement costs.
- Customized Supporting Procurement Service: Provide professional cross-protocol network scheme design, parameter matching verification and on-site debugging guidance. Support one-stop procurement of gateways, communication cables and auxiliary installation accessories to simplify project procurement procedures.
4.3 Full-Cycle Value-Added Services & After-Sales Guarantee
Cross-protocol industrial network operation has strict requirements for protocol compatibility and transmission stability. We provide full-cycle professional technical support and quality assurance to eliminate customer after-purchase worries.
- 100% Original Genuine Quality Guarantee: All gateways are original ProSoft genuine products. Complete protocol compatibility test reports are provided to ensure stable docking with standard EtherNet/IP controllers and PROFIBUS DP slave devices.
- Professional Industrial-Grade Logistics Protection: Adopt multi-layer industrial shockproof, dustproof and moisture-proof packaging. It prevents precision equipment damage during cross-regional long-distance transportation and storage.
- 24/7 Full-Process Technical Support: Provide pre-sales network scheme matching consultation, in-sales configuration debugging guidance and after-sales fault diagnosis and firmware upgrade services.
- Official Global Warranty Service: Enjoy unified ProSoft global warranty and quick after-sales response. Free replacement is supported for non-human quality problems to reduce enterprise operational risks.
5205-DFNT-PDPS
Main Industrial Application Scenarios
Benefiting from dedicated dual-protocol conversion, high stability transmission and industrial-grade durability, the 5205-DFNT-PDPS is widely used in various PROFIBUS and EtherNet/IP hybrid networking and old system renovation scenarios.
- PROFIBUS Legacy System EtherNet/IP Upgrading: It helps traditional PROFIBUS DP field devices access modern EtherNet/IP control systems. It avoids full equipment replacement and saves massive intelligent transformation costs for old factories.
- Cross-Brand Automation System Integration: Realize seamless data interconnection between Rockwell EtherNet/IP systems and multi-brand PROFIBUS DP field equipment. It solves long-standing cross-protocol communication barriers in hybrid industrial networks.
- Process Industry Automatic Control: Widely applied in chemical, water treatment, machinery manufacturing, energy and packaging industries. It ensures stable real-time data interaction and precise control of production line systems.
- Industrial Centralized Data Monitoring: Gather distributed PROFIBUS device data and upload to EtherNet/IP upper monitoring system. It realizes unified data management and remote real-time monitoring of field equipment.
- Old Network Equipment Replacement & Maintenance: Serve as a universal standard replacement gateway for aging cross-protocol conversion equipment. It ensures consistent system performance and long-term stable network operation.
- Intelligent Factory Digital Transformation: Provide reliable cross-protocol communication support for factory digital upgrading. It integrates scattered field device data to support intelligent scheduling and digital management.
Product Value & Market Competitiveness
The ProSoft 5205-DFNT-PDPS fills the market gap of dedicated EtherNet/IP to PROFIBUS DP slave professional gateways. Compared with universal multi-protocol gateways, it features targeted protocol stack optimization, higher transmission stability and stronger industrial environmental adaptability. It avoids redundant function waste and unstable docking problems of universal gateways.
In the global industrial e-commerce market, the 5205-DFNT-PDPS has outstanding differentiated competitiveness in traditional PROFIBUS system upgrading scenarios. It features industrial metal shell durability, low power consumption and simple maintenance. With standardized transparent procurement, 100% genuine quality traceability and professional full-cycle technical services, it is the preferred cost-effective core gateway for EtherNet/IP and PROFIBUS DP cross-protocol networking projects.
