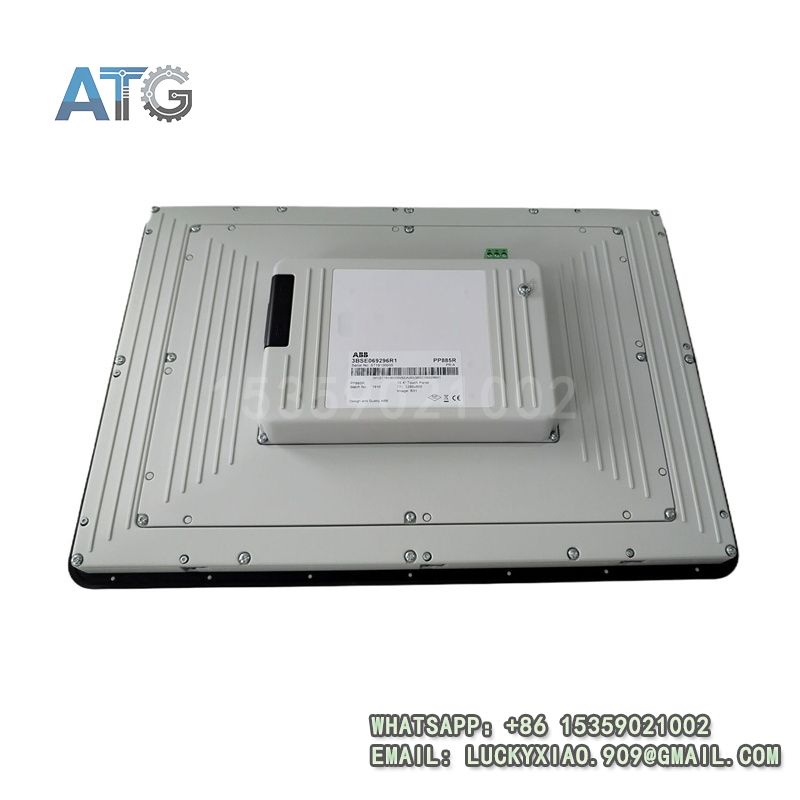

ABB PP885R 3BSE0692985R1 Product Introduction
- Model: PP885R 3BSE0692985R1
- Brand: ABB
- Series: ABB AC 800M Series
- Core Function: Industrial human-machine interface & system operation
- Type: Operator Panel / HMI Module
- Key Specs: 24VDC, touchscreen, multi-protocol support
- Supply Status: in stock
- Stock: 16
- Warranty: 18 months
- Ship From: China

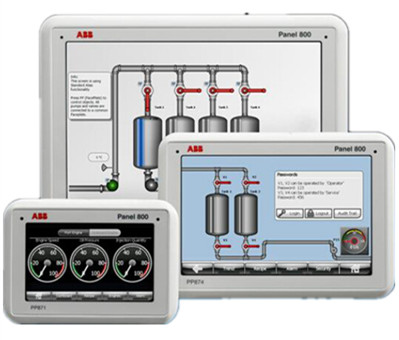

ABB Panel 800
Product System Function Introduction
The ABB PP885R 3BSE0692985R1 is a rugged industrial operator panel for the AC 800M DCS system. It enables intuitive system monitoring, parameter setting, and on-site operation control in harsh industrial environments. Key functions are listed below:
- Human-Machine Interaction: This module provides a user-friendly touch interface for real-time system monitoring. It displays process data, alarm logs, and equipment status clearly for operators.
- System Operation & Control: It supports manual parameter adjustment, mode switching, and emergency stop commands. It realizes seamless interaction between operators and the AC 800M control system.
- Communication & Compatibility: It connects stably with AC 800M CPU modules and I/O stations. It supports mainstream industrial protocols for reliable data transmission and synchronization.
- Alarm & Fault Prompt: It shows real-time fault codes and alarm messages visually. It helps operators locate problems quickly and respond to abnormal conditions promptly.
- Industrial Durability: With a rugged, dust-proof and anti-interference design, it adapts to harsh plant environments. It ensures stable long-term operation with high touch sensitivity.
ABB Panel 800
Application Industries
This HMI operator panel is widely used in process automation and industrial control scenarios, mainly including:
- Power Generation Industry: Thermal power plants, hydropower stations, and substation automation systems.
- Oil & Gas Industry: Refineries, pipeline monitoring, and petrochemical process control.
- Metallurgical Industry: Steel mills, rolling lines, and smelting equipment operation consoles.
- Chemical & Pharmaceutical Industry: Reaction kettles, batch production, and safety monitoring systems.
- Water Treatment & Infrastructure: Sewage treatment plants and urban utility control rooms.
PP885R 3BSE0692985R1
Usage Instructions
- Installation: Mount securely in a control cabinet or operation desk, away from direct sunlight and high heat. Ensure proper ventilation to maintain screen performance.
- Wiring: Follow the official wiring diagram strictly; connect 24VDC power and communication lines correctly. Use shielded cables to reduce electromagnetic interference.
- Configuration: Set communication parameters and interface layout via ABB professional software. Calibrate the touchscreen and match with the AC 800M system before use.
- Maintenance: Clean the screen with a soft, dry cloth regularly. Check cable connections and indicator status periodically. Avoid heavy impact on the touch surface.
- Safety Notes: Cut off power before installation or wiring. Do not use corrosive cleaners on the panel. Only qualified personnel should perform configuration and debugging.
