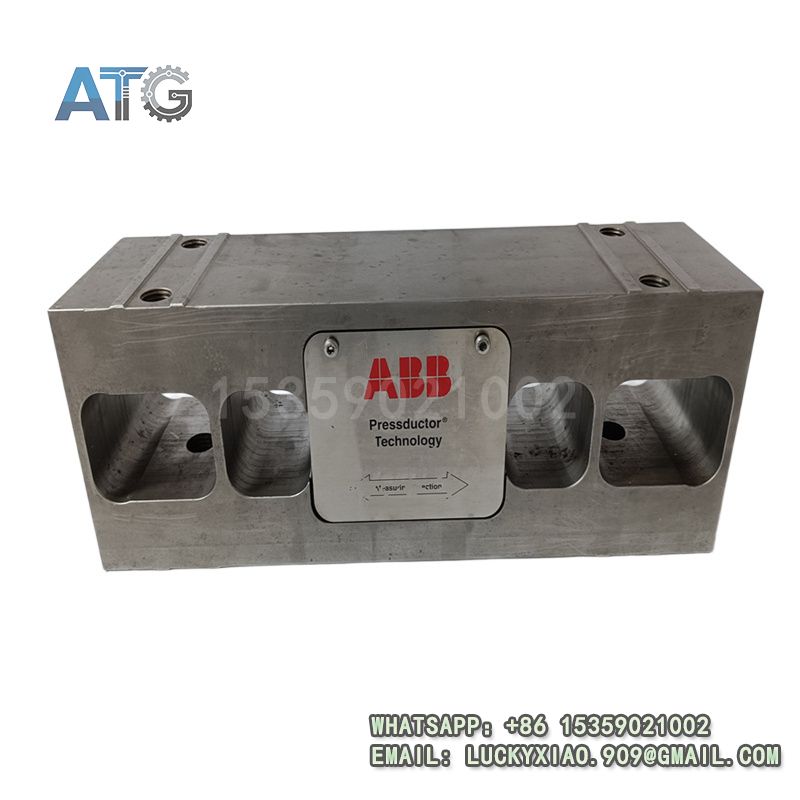

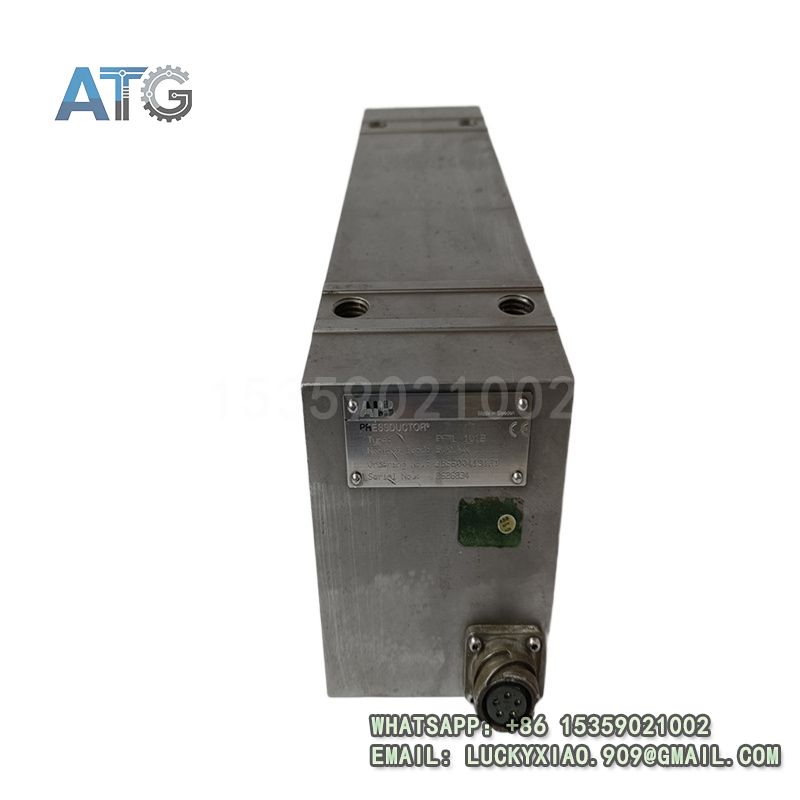

ABB PFTL101B 5.0KN 3BSE004191R1 Product Introduction
- Model: PFTL101B 5.0KN 3BSE004191R1
- Brand: ABB
- Series: ABB PFTL Series
- Core Function: Web tension measurement & force monitoring
- Type: Tension Load Cell
- Key Specs: 5.0KN rated load, 24VDC, high precision
- Supply Status: in stock
- Stock: 12
- Warranty: 18 months
- Ship From: China
PFTL101B 5.0KN 3BSE004191R1
Product System Function Introduction
The ABB PFTL101B 5.0KN 3BSE004191R1 is a high-precision tension load cell for industrial web processing systems. It delivers accurate tension detection and stable signal output for continuous production lines. Key functions are listed below:
- Tension Force Measurement: This load cell accurately detects web tension up to 5.0KN rated load. It converts mechanical force into stable electrical signals for real-time monitoring and control.
- High Precision & Stability: It features high measurement accuracy and low drift. It maintains consistent performance under varying load and temperature conditions for reliable data output.
- Signal Conditioning & Output: Built-in signal conditioning circuits provide standard analog outputs. It transmits tension data seamlessly to control systems for closed-loop regulation.
- Industrial Compatibility: Designed for integration with ABB tension control systems. It works smoothly with drives, PLCs, and HMIs to form a complete tension control loop.
- Durable Construction: Rugged metal housing resists dust, vibration, and mechanical shock. It adapts to harsh production environments and ensures long service life.
PFTL101B 5.0KN 3BSE004191R1
Application Industries
This tension load cell is widely used in web processing and continuous production scenarios, mainly including:
- Paper & Printing Industry: Paper machines, printing presses, and coating lines for web tension control.
- Textile Industry: Yarn and fabric production lines for constant tension monitoring.
- Plastic & Film Industry: Film extrusion, laminating, and packaging equipment.
- Metal Processing Industry: Strip rolling and metal foil production lines.
- Converting Industry: Labeling, slitting, and rewinding machines for precise tension regulation.
PFTL101B 5.0KN 3BSE004191R1
Usage Instructions
- Installation: Mount securely on idle rollers of production lines. Ensure proper alignment and even load distribution to avoid measurement errors.
- Wiring: Follow official wiring diagrams strictly; connect 24VDC power and signal lines correctly. Use shielded cables to reduce electromagnetic interference.
- Calibration: Calibrate the load cell with standard weights before initial use. Set zero tension and full-scale values to match system requirements.
- Maintenance: Regularly check mounting bolts and cable connections. Keep the sensor surface clean and free from debris or oil contamination.
- Safety Notes: Avoid overloading beyond 5.0KN rating. Cut off power before installation or maintenance. Only qualified personnel should perform calibration.
ABB PFTL Series
