Description
The KOLLMORGEN S72402-NANANA is a high-power industrial digital servo drive belonging to Kollmorgen’s premium S700 series motion control system. Professionally engineered for high-precision, high-dynamic servo motion control, this servo amplifier delivers outstanding power output, ultra-fast response speed and superior operational stability. Adopting advanced full-digital control algorithm and dual-channel safety design, it supports multi-protocol industrial communication and flexible motion control modes. With rugged industrial structure, low noise operation and comprehensive safety protection mechanisms, it is widely deployed in automated machinery, precision processing equipment, robotic systems and high-end industrial automation scenarios, serving as the core power drive unit for high-precision motion systems.
KOLLMORGEN S72402-NANANA
Physical Specifications (Dimension & Weight)
The S72402-NANANA features a standardized industrial integrated casing with optimized heat dissipation structure, supporting standard cabinet embedded installation. The reasonable structural layout ensures stable heat dissipation performance while saving equipment space, adapting to long-term high-load industrial operation.
Overall Dimensions (H × W × D): 348 × 100 × 285 mm (with connectors)
Overall Dimensions (H × W × D): 348 × 100 × 243 mm (without connectors)
Net Weight: 4.4 kg (9.7 lbs)
Installation Method: Standard industrial control cabinet fixed mounting
Protection Grade: IP20 industrial dustproof protection rating
Operating Noise: ≤ 65 dB(A) low-noise stable operation
Core Electrical & Power Technical Parameters
Equipped with high-performance power switching devices and precise digital control chips, the S72402-NANANA achieves high-efficiency power conversion and ultra-stable servo drive performance, perfectly matching medium and high-power servo motors for industrial dynamic control.
Rated Input Voltage: 220 VAC industrial standard power supply
Maximum DC Bus Voltage: 900 V high-voltage bus tolerance
Rated Output Power: 18 kVA high-power stable output
Rated Output Current: 24 A RMS continuous operating current
Peak Output Current: 48 A RMS instantaneous overload current
Maximum Output Frequency: 30 kHz high-frequency fast response
Minimum Motor Inductance Adaptation: 0.7 mH professional matching inductance

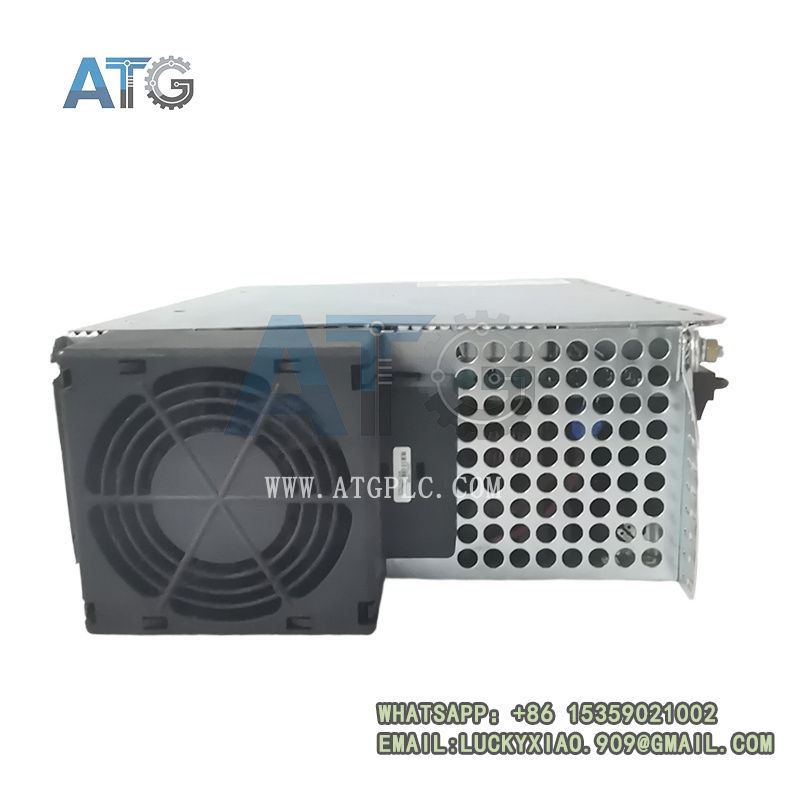

KOLLMORGEN S72402-NANANA
Interface & Communication Configuration Parameters
This servo drive integrates rich industrial communication interfaces and multi-functional signal terminals, supporting diversified bus protocols and flexible motion control configuration, realizing seamless docking with industrial PLC, CNC systems and robotic controllers.
Main Communication Protocols: EtherCAT, CANopen mainstream industrial bus protocols
Expansion Support: Compatible with SynqNet and DeviceNet expansion modules
Analog Input Channels: 2-channel 0–10V high-precision analog signal input
Digital I/O Ports: Industrial standard IEC 61131-2 compliant digital signal terminals
Programming Software: Compatible with Kollmorgen WorkBench IDE professional debugging software
Environmental Adaptability & Industrial Grade Parameters
Optimized for complex industrial working environments, the S72402-NANANA features reliable temperature and humidity adaptability and professional vibration resistance, supporting long-term stable high-load operation.
Long-Term Stable Operating Temperature Range: 0°C to +40°C
Storage Temperature Range: -20°C to +85°C
Maximum Tolerable Humidity: 85% Non-Condensing Relative Humidity
Vibration Resistance Grade: IEC 60068-2-6 vibration class 3M1 industrial standard
Environmental Performance: Low electromagnetic interference, stable anti-interference capability

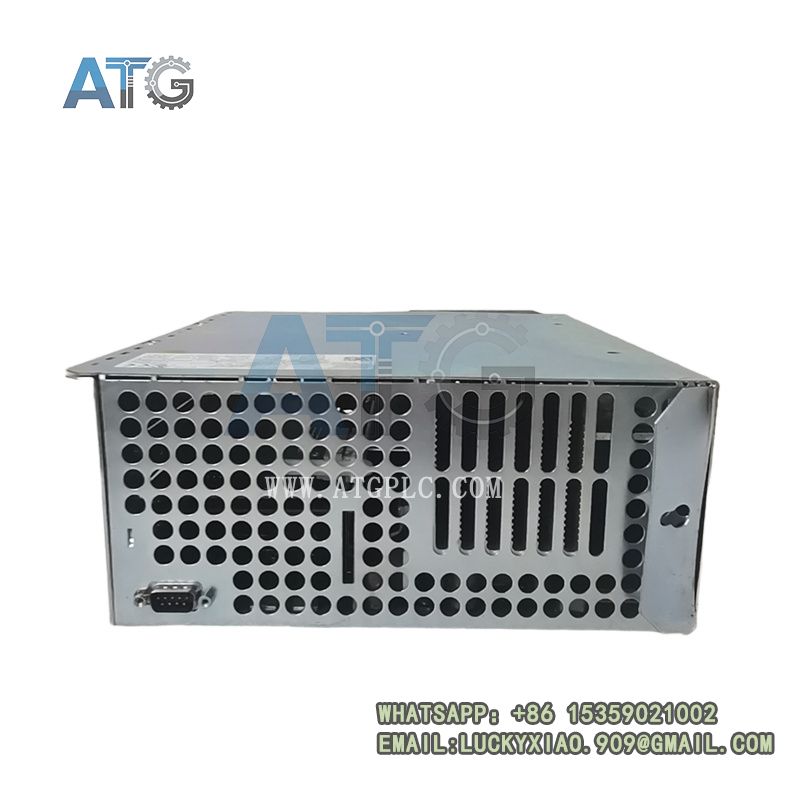

KOLLMORGEN S72402-NANANA
Intelligent Safety Protection Mechanisms
The drive integrates multiple built-in safety protection functions and dual-channel safety design, effectively avoiding equipment damage and system faults caused by overload, overheating, voltage abnormality and signal errors, ensuring safe and reliable operation of servo motion systems.
Built-In Safety Function: Dual-channel STO (Safe Torque Off) safety protection
Overload & Overcurrent Protection: Intelligent current limiting and overload automatic protection
Overvoltage & Undervoltage Protection: Real-time bus voltage monitoring and fault locking
Overtemperature Protection: Automatic power-off protection under overheating working conditions
Signal Abnormality Protection: Automatic fault diagnosis and alarm for abnormal input and output signals
Product Advantages & Application Scenarios
The KOLLMORGEN S72402-NANANA stands out with its high-power output capability, high-frequency dynamic response, multi-protocol compatibility and low-noise operation. The advanced full-digital control algorithm ensures ultra-high precision in position, speed and current loop control, effectively improving the accuracy and stability of automated equipment motion. The dual-channel STO safety design meets industrial safety standards, while the rich expansion interfaces greatly enhance system scalability. With strong environmental adaptability and long operational life, it significantly reduces equipment failure rates and daily maintenance costs.
It is widely applicable to high-precision packaging machinery, industrial robotic arms, CNC precision processing equipment, automated assembly lines, printing and textile machinery, and high-end industrial automation motion control systems. All products undergo strict factory aging tests and precision performance calibration, equipped with a 12-month official warranty, providing reliable core drive guarantee for industrial high-precision automation equipment.
