Honeywell 05701-A-0145 Four-Channel Analog Control Card Product Introduction
The Honeywell 05701-A-0145 is an original industrial-grade four-channel analog control card belonging to the Honeywell System 57 fixed gas detection and safety monitoring system. As a high-density core signal processing module, it is specially designed for multi-point analog signal acquisition and loop power supply management of industrial gas detectors. Supporting standard 4–20mA analog signal input and isolated loop power output, this module can access and process multiple types of industrial gas sensor signals simultaneously. Adopting independent channel isolation design, built-in short-circuit protection and high-precision signal conditioning technology, it features low power consumption, strong anti-interference performance and excellent long-term operational stability. It serves as a key hardware component for high-precision, multi-point centralized gas safety monitoring in industrial hazardous environments.

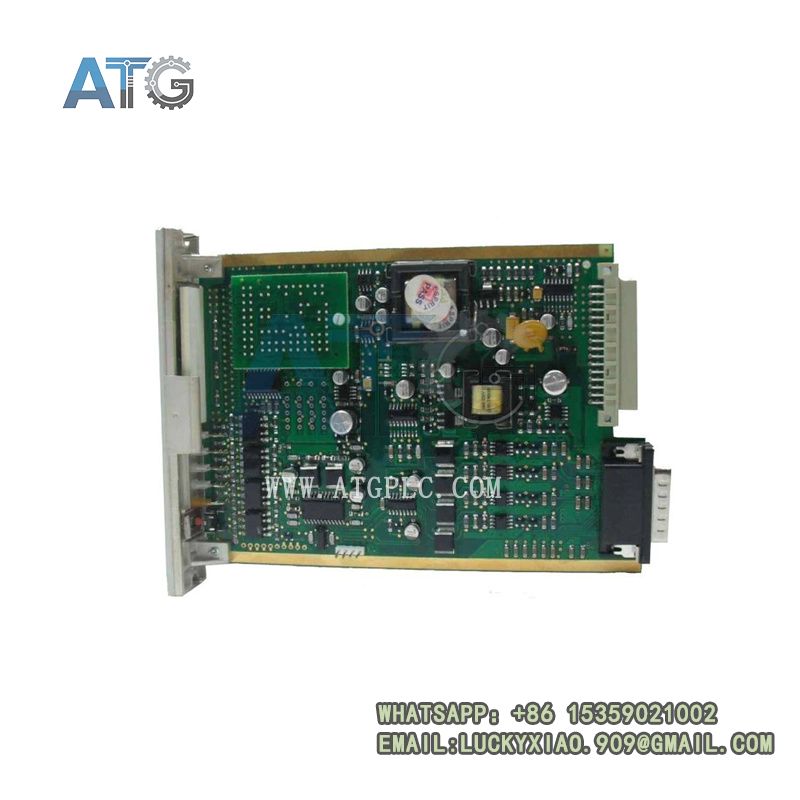

HONEYWELL 05701-A-0145
Core System Functions & Technical Mechanism
The 05701-A-0145 module integrates four fully independent analog signal acquisition channels and dedicated loop power supply functions, realizing one-card multi-point gas monitoring for industrial safety systems. It is mainly responsible for collecting 0–25mA linear analog signals from on-site flammable and toxic gas sensors, completing high-precision signal amplification, filtering, linear calibration and data conversion, and uploading standard detection data to the upper System 57 host system. Each channel operates independently without mutual crosstalk, ensuring stable and accurate signal acquisition even in multi-point parallel monitoring scenarios.
In terms of loop power supply and safety protection, the module provides isolated 24V regulated loop power for field sensors, with perfect overvoltage, overcurrent, short-circuit and open-circuit fault protection mechanisms. When the field circuit is abnormal, it can automatically cut off the loop power and feed back fault codes to the system to avoid module burnout and system failure. Equipped with real-time channel self-diagnosis function, it continuously monitors sensor operating status and circuit health conditions, supports remote parameter configuration and data calibration, and greatly improves the intelligent level and maintainability of industrial gas detection systems.
Detailed Technical Specifications
Manufactured in strict accordance with Honeywell global industrial safety standards and EU EN50054, EN50057, EN50270 international gas detection specifications, the Honeywell 05701-A-0145 has standardized and rigorous industrial technical parameters, fully adapting to 7×24-hour continuous stable operation of industrial safety monitoring systems. The core technical indicators are listed below:
- Product Model: 05701-A-0145, four-channel analog control card dedicated for Honeywell System 57 gas detection system
- Channel Configuration: 4 fully independent signal acquisition channels, supporting simultaneous multi-point gas signal monitoring
- Signal Input Range: 0–25mA linear analog signal, compatible with mainstream industrial catalytic and electrochemical gas sensors
- Loop Power Output: Isolated 24VDC ±5% regulated power supply, maximum output current 25mA per channel
- Power Consumption: Typical power consumption 7.5W, maximum power consumption 8.3W, low-power energy-saving design
- Circuit Protection: Built-in short-circuit, overcurrent, overvoltage and open-circuit full-range loop protection
- Operating Voltage: 18V–32V DC wide adaptive working voltage, tolerating industrial on-site power fluctuation
- Operating Temperature: Working temperature: -20°C to +70°C; Storage temperature: -40°C to +85°C
- Working Humidity: 5%–95% RH non-condensing, adapting to humid and dusty industrial environments
- Anti-Interference Performance: Industrial EMC electromagnetic compatibility design, resisting on-site electromagnetic signal interference
- Installation Method: Standard System 57 rack-mounted card structure, supporting plug-and-play quick replacement
- System Compatibility: 100% compatible with Honeywell System 57 series monitoring hosts and supporting software
HONEYWELL 05701-A-0145
Origin & Official Warranty Policy
The Honeywell 05701-A-0145 is an original authentic industrial safety monitoring module produced under Honeywell’s strict global quality management system. Each product undergoes rigorous factory tests including four-channel signal accuracy calibration, loop power stability test, high and low temperature cycle aging test and electromagnetic compatibility verification, ensuring industrial-grade durability and 100% compatibility with original Honeywell System 57 gas detection systems.
This product provides an official 12-month global warranty service starting from the formal delivery date. During the warranty period, any functional failure, performance attenuation or quality problems caused by non-human damage, non-equipment misoperation and non-external destructive factors are eligible for free official maintenance, component replacement or overall product replacement services. Meanwhile, full-life-cycle professional technical support including installation guidance, multi-channel parameter debugging, sensor matching calibration and fault troubleshooting is provided to ensure stable operation of industrial gas safety monitoring systems.
Core Technical Advantages
Compared with traditional single-channel control cards, the Honeywell 05701-A-0145 features high integration and cost-effective advantages. The four-channel integrated design greatly saves cabinet installation space, reduces the number of hardware modules and on-site wiring workload, and effectively lowers system construction and maintenance costs. Each channel adopts independent isolation and separate loop power supply design, which completely avoids cross-channel interference and fault linkage, ensuring consistent detection accuracy of each monitoring point.
Equipped with high-precision linear signal processing algorithm and multi-stage filtering circuit, the module effectively corrects signal drift and data deviation caused by environmental changes and long-distance transmission, maintaining high stability of monitoring data. The built-in multi-dimensional fault protection and active diagnosis mechanism can quickly locate loop faults, reduce system false alarms and missing alarms, and improve the overall safety and reliability of industrial gas monitoring. The low-power industrial-grade design supports long-term uninterrupted operation, with low failure rate and long service life, meeting the continuous operation requirements of industrial safety systems.
Wide Application Fields
Relying on its high integration, stable signal processing capability and excellent environmental adaptability, the Honeywell 05701-A-0145 is widely applied in various industrial scenarios requiring multi-point flammable and toxic gas safety monitoring. The core application fields include petrochemical and natural gas processing, chemical storage and transportation parks, coal chemical industry, pharmaceutical fine chemical production, thermal power generation, metallurgical manufacturing, industrial environmental protection workshops and hazardous chemical enterprise safety protection systems.
In actual industrial operation, this module serves as the core multi-point signal acquisition and loop power supply unit of the System 57 gas detection system. It is mainly responsible for real-time collection, precise processing and stable transmission of on-site gas concentration signals, providing accurate data basis for system safety alarm, threshold judgment and linkage interlock. It is an indispensable key component for building high-efficiency, high-stability and low-failure industrial gas safety early warning and monitoring systems.
