Description

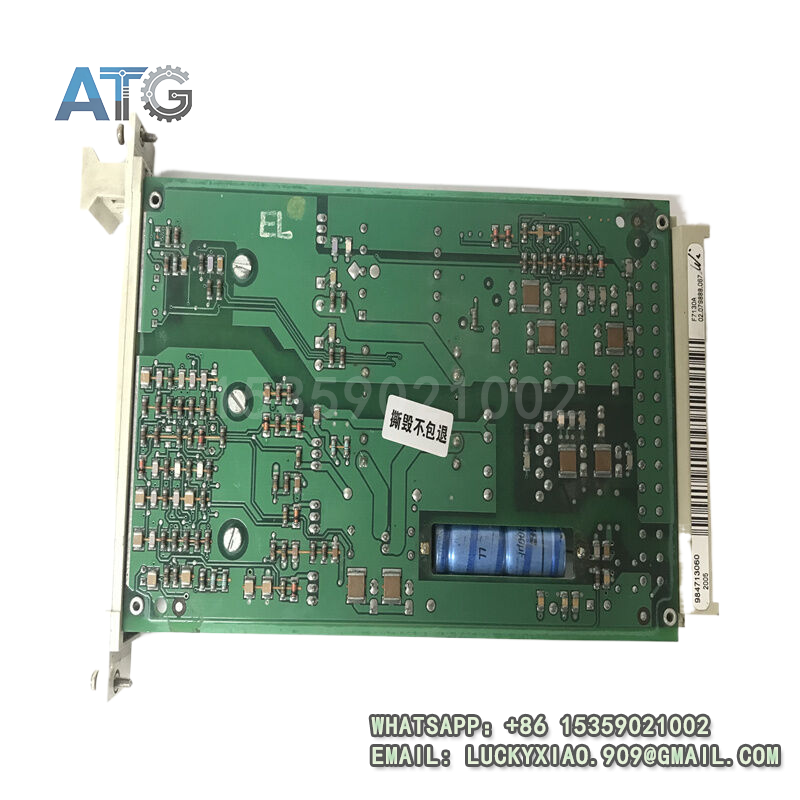

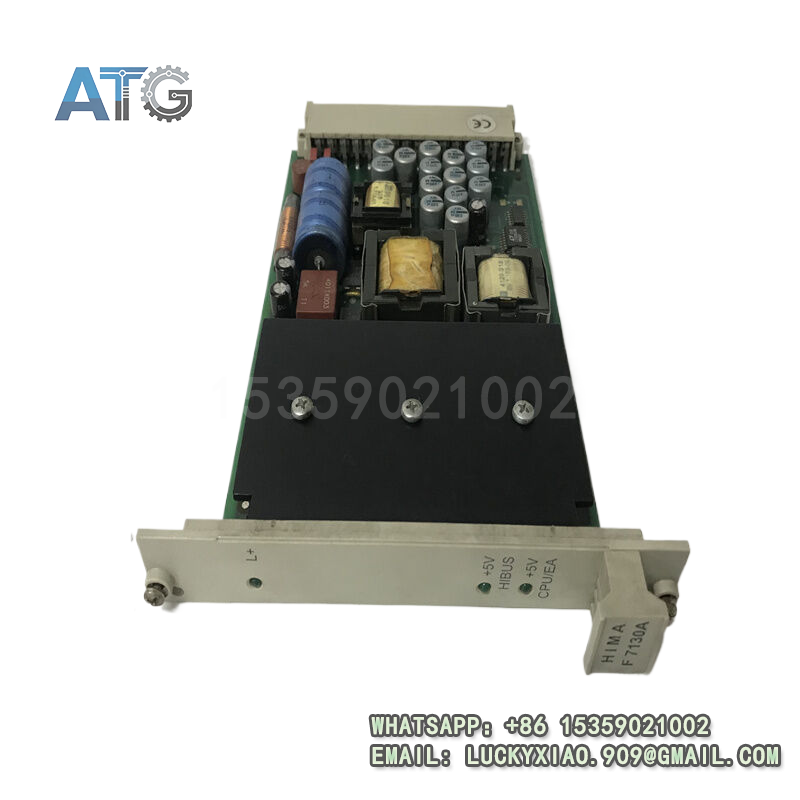

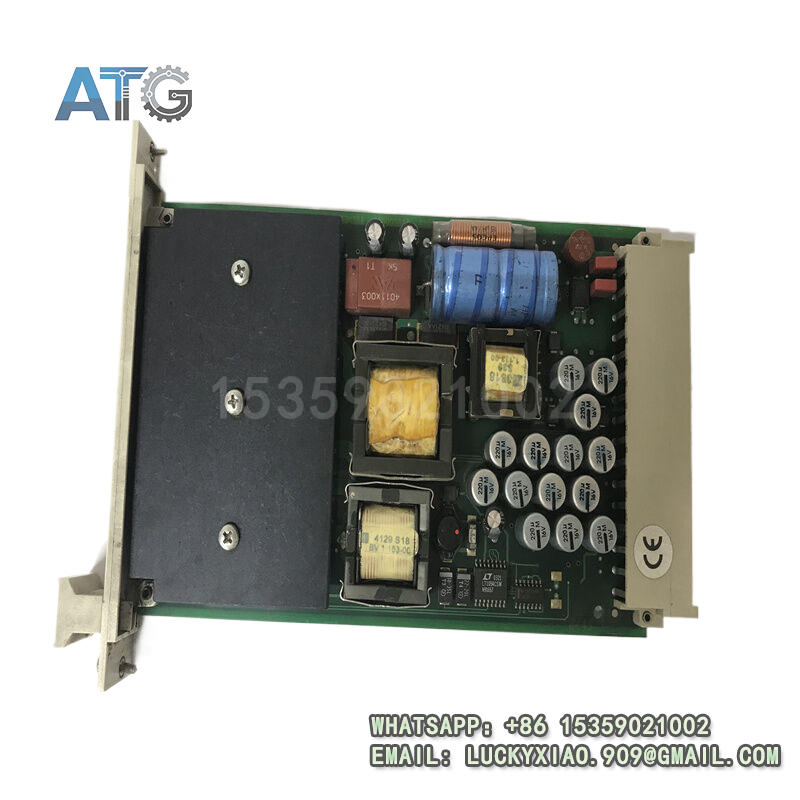

HIMA F7130A 984713060 Product Introduction
- Model: F7130A 984713060
- Brand: HIMA (HIMA Paul Hildebrandt GmbH + Co KG)
- Series: HIMA HIMax Series
- Core Function: Digital signal output & safety interlock
- Type: Digital Output Module (Safety-Related)
- Key Specs: 24VDC, 8 channels, SIL 3
- Supply Status: in stock
- Stock: 17
- Warranty: 18 months
- Ship From: Europe
HIMA F7130A 984713060
Product System Function Introduction
1. Applicable SystemMainly used in HIMA HIMax Series safety PLC systems.Applied to industrial safety instrument systems (SIS).Suitable for high-safety industrial automation scenarios.Compatible with HIMA HIMax H41q/H51q controllers.2. System RoleCore digital output component of safety instrument systems.Sends safety interlock commands to field actuators.Transmits control signals for emergency shutdown operations.Ensures safe and stable operation of industrial processes.3. Working PrincipleAdopts dual-channel redundant design for high reliability.Receives control signals from safety PLC controllers.Converts digital signals to drive field executive components.Conducts real-time self-diagnosis to detect output faults.Feeds back output status to the upper control system.
Physical Parameters (Size & Weight)
- Dimensions: 22mm × 195mm × 130mm
- Weight: Approximately 0.16kg
- Mounting: 4 TE standard rack mounting
- Enclosure Material: High-strength industrial plastic
- Indicator Lights: LED indicators (operation, fault, output status)
- Protection Level: IP20 (cabinet mounting)
Technical Specifications
- Operating Voltage: 24VDC ±10%, stable power supply
- Output Channels: 8 digital output channels, channel isolation
- Output Signal: 24VDC, max 2A per channel
- Safety Level: IEC 61508 SIL 3, Cat.4 safety grade
- Operating Temperature: -20℃ ~ 60℃, non-condensing
- Response Time: ≤10ms, fast signal output
- Isolation: 1500VAC (rms) between channels and backplane
HIMA F7130A 984713060
Application Industries
- Oil & Gas Industry: Refineries, gas fields, pipeline safety control
- Chemical Industry: Reactor emergency shutdown, hazardous material control
- Power Industry: Thermal power plant safety interlock, equipment protection
- Pharmaceutical Industry: Sterile production process safety control
Usage Instructions
- Installation: Mount on 4 TE standard rack, ensure good ventilation
- Wiring: Use shielded cables, separate power and signal lines
- Configuration: Set output parameters via HIMA configuration software
- Maintenance: Check LED indicators regularly, clean surface dust
- Safety Notes: Cut off power before maintenance, avoid overload
