ABB GFD563A101 3BHE046836R0101 Product Introduction

• Model: GFD563A101 3BHE046836R0101
• Brand: ABB
• Series: ABB AC 800PEC Series
• Core Function: Industrial excitation & interface signal control
• Type: Interface Module / Control Module
• Key Specs: 24VDC, Multi-protocol, High-speed processing
• Supply Status: in stock
• Stock: 9
• Warranty: 18 months
• Ship From: China

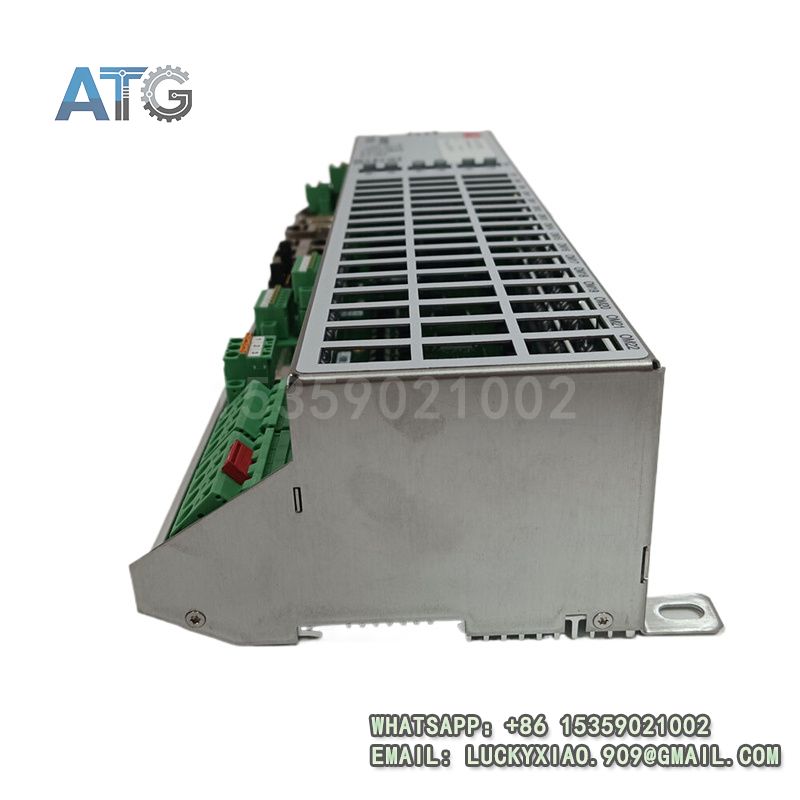

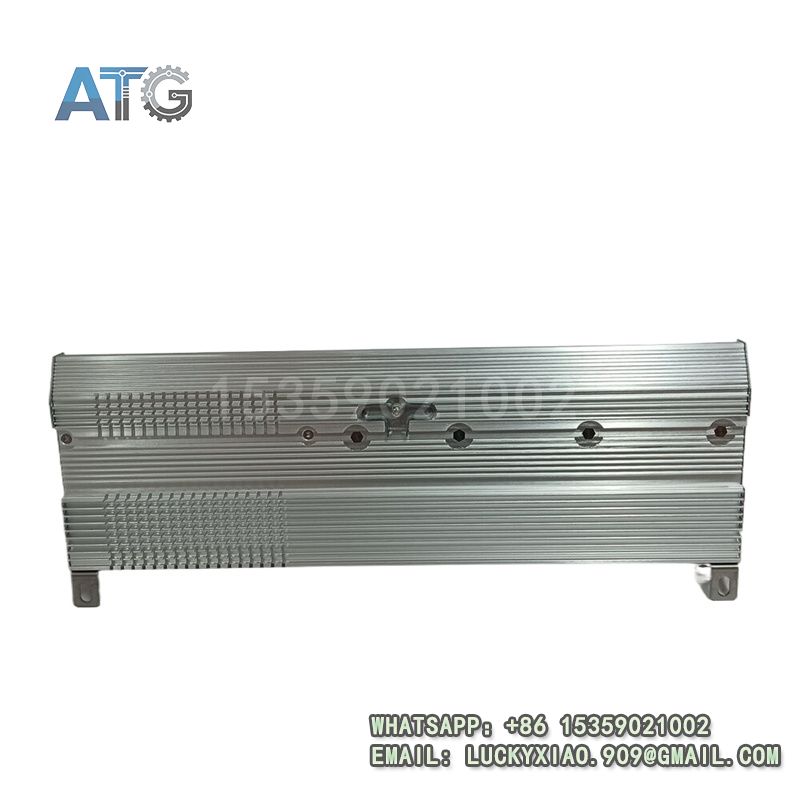

GFD563A101 3BHE046836R0101

Product System Function Introduction

The ABB GFD563A101 3BHE046836R0101 is a dedicated control and interface module for high-performance industrial automation systems. It delivers stable signal conversion, fast data transmission, and reliable excitation control, and adapts to harsh industrial environments. Below is its detailed functional breakdown:

1. Core Control & Signal Management: This module acts as a critical link between field devices and the main control system. It handles analog/digital signal conversion, supports automatic voltage regulation (AVR), and executes reactive power control to optimize equipment performance. It ensures accurate data acquisition and stable command execution for excitation and monitoring tasks.
2. Communication & Compatibility: It supports mainstream industrial protocols including Modbus RTU, Profinet, and EtherNet/IP, enabling seamless connectivity with ABB control systems and third-party devices. With high-speed data transmission (up to 100Mbps for Ethernet), it reduces latency and supports real-time system interaction.
3. Stability & Durability: Built with rugged industrial design, it features strong anti-electromagnetic interference capability. It operates reliably in a wide temperature range (-40°C to 70°C) and high-humidity environments, with low power consumption and long service life to minimize downtime.
4. Self-Diagnosis & Protection: The module has built-in self-diagnosis functions to monitor running status, communication links, and power supply. It triggers timely alarms for faults such as loose connections or abnormal voltage, and supports soft start/stop to protect connected equipment from damage.

Application Industries

This module is widely used in heavy-duty and precision industrial fields that require stable control and reliable data transmission, mainly including:

• Power Generation Industry: Applied in generator excitation systems, power grid monitoring, and substation automation to ensure stable voltage and grid operation.
• Oil & Gas Industry: Used in pipeline control, compressor systems, and offshore drilling equipment to adapt to harsh on-site conditions.
• Metallurgical Industry: Deployed in rolling mills, blast furnace control, and high-power equipment regulation for precise motion and process control.
• Industrial Automation & Manufacturing: Integrated into automated production lines, DCS systems, and high-speed processing equipment for unified control and monitoring.
• Marine & Offshore Applications: Used in shipboard power systems and offshore equipment to maintain stable operation in challenging environments.

Usage Instructions

• Installation: Mount the module in a well-ventilated control cabinet, away from high temperature, humidity, and strong electromagnetic sources. Use standard rail mounting for firm fixation and reserve heat dissipation space.
• Wiring: Follow the official wiring diagram strictly; distinguish power and signal cables to avoid interference. Use shielded cables for signal lines and ensure terminal connections are tight. Do not perform wiring with power on.
• Configuration: Set parameters via ABB professional software (Control Builder M), match communication protocols and signal types with the upper system. Verify parameter consistency before startup.
• Maintenance: Regularly check indicator status, clean surface dust, and inspect cable connections. Back up configuration data periodically and conduct routine fault detection to ensure long-term stable operation.
• Safety Notes: Cut off power before installation, maintenance, or disassembly. Only qualified professional personnel are allowed for debugging and fault handling to avoid electric shock or equipment damage.
