1. Product Overview
The GE WES5120 2340-21005 is a high-performance industrial digital input module belonging to GE’s professional WES5120 field control series. It serves as a core signal acquisition unit for industrial field control systems. This module is designed for stable digital signal collection, real-time status monitoring and field data transmission. It features multi-channel isolated signal input, fast response speed and industrial-grade anti-interference performance. It accurately captures on-site switch status and digital signals. It transmits valid data to the upper controller for logic judgment and system linkage. It is widely used in power generation equipment, industrial automation production lines, petrochemical control systems and intelligent field monitoring scenarios.
Traditional ordinary digital input modules have obvious limitations in complex industrial field environments. Most generic modules adopt non-isolated or semi-isolated circuit design. They suffer from signal crosstalk and data distortion under strong electromagnetic interference. They also have slow response speed and poor voltage fluctuation resistance. These defects easily cause system misjudgment and abnormal equipment operation. In addition, ordinary modules lack hot-swap support and status self-diagnosis functions. On-site replacement and maintenance will force system downtime. In contrast, the GE WES5120 2340-21005 adopts full-channel group isolation design and optimized high-speed signal acquisition circuit. It supports hot-swap replacement and real-time LED status indication. Each module passes strict high-low temperature aging, signal accuracy calibration and full-function testing before factory delivery. It has become a mainstream device for industrial field control system upgrading, old module replacement and global industrial e-commerce standardized procurement.

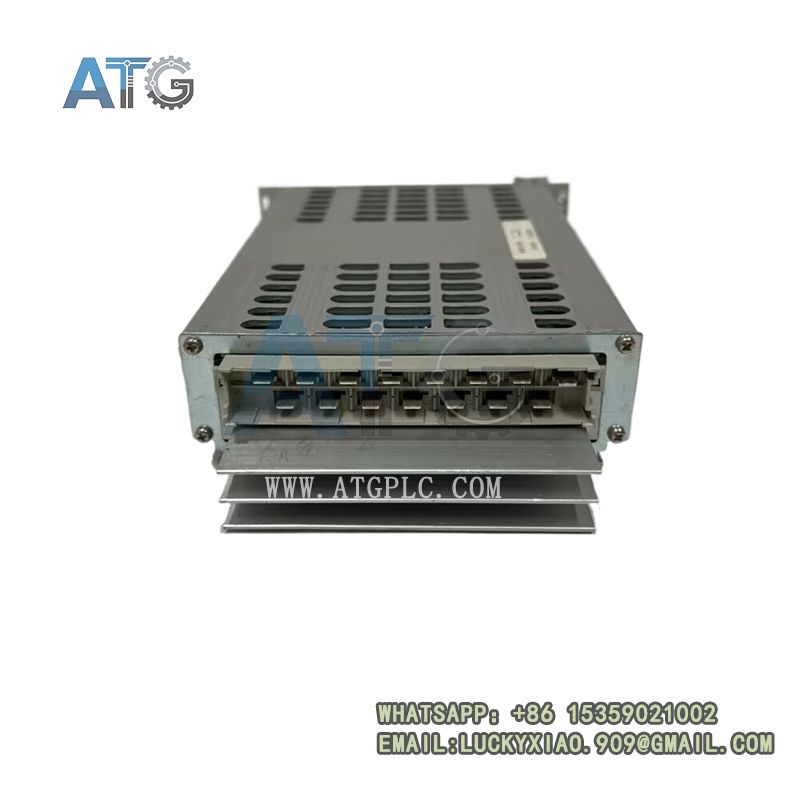

GE WES5120 2340-21005
2. Core Product Features & Competitive Advantages
Modern industrial field control systems require signal acquisition modules to deliver high precision, strong stability and convenient maintainability. Ordinary low-grade digital modules cannot adapt to long-term high-interference industrial operation. As a high-spec field signal acquisition module, the GE WES5120 2340-21005 optimizes signal processing, circuit protection and on-site deployment in all dimensions. It provides reliable underlying data support for industrial automatic control systems.
-
16-Channel Full Isolated Signal Acquisition: Equipped with 16 independent group-isolated digital input channels. It effectively eliminates signal crosstalk and interference between channels. It ensures independent and accurate collection of each on-site switch signal.
-
Ultra-Fast Signal Response: Features a typical 2ms high-speed response time. It instantly captures real-time changes of field digital signals. It guarantees the timeliness of system logic control and equipment linkage actions.
-
Dual-Mode Input Polarity Adaptation: Supports both sinking and sourcing input mode configuration. It flexibly matches different types of field sensors and switch equipment. It reduces on-site wiring limitation and equipment matching difficulty.
-
Professional Hot-Swap Support: Adopts industrial hot-swap design. It allows direct module replacement during system operation. It avoids production shutdown caused by module maintenance and greatly improves system operation continuity.
-
Real-Time LED Status Indication: Built-in independent channel status indicator lights. It intuitively displays the working state of each input channel. It helps engineers quickly judge signal faults and locate abnormal points on site.
-
Wide Voltage Adaptive Operation: Adapts to standard 24VDC industrial power supply with ±15% voltage fluctuation tolerance. It stably operates under industrial grid voltage deviation. It reduces module failure caused by unstable power supply.
-
Reverse Polarity & Overload Protection: Integrated reverse polarity protection, over-current and overload protection circuits. It effectively protects internal precision circuits from damage caused by wrong wiring and instantaneous current surge.
-
High-Speed Multi-Protocol Communication: Compatible with mainstream industrial protocols such as Modbus TCP/IP and Ethernet/IP. It supports high-speed data upload and remote parameter monitoring. It seamlessly connects with GE field controllers and upper monitoring systems.
-
Plug-In Terminal Convenient Wiring: Equipped with plug-in screw terminals. It simplifies on-site wiring and disassembly work. It shortens equipment installation and maintenance cycles.
-
Industrial-Grade Environmental Adaptability: Adopts high-quality industrial components and anti-vibration structural design. It resists on-site dust, humidity, mechanical vibration and electromagnetic interference. It supports 7×24-hour long-term uninterrupted operation.
3. Detailed Segmented Technical Specifications
The GE WES5120 2340-21005 strictly complies with GE industrial manufacturing standards and international field control module specifications. All signal acquisition performance, electrical indicators, communication parameters and environmental resistance capabilities pass professional laboratory testing and long-term field verification. The classified detailed parameters below support accurate model selection, engineering design and standardized batch procurement.
3.1 Basic Product & Application Parameters
The GE WES5120 2340-21005 is a high-reliability 16-channel isolated digital input module. It focuses on real-time digital signal acquisition and field status monitoring for GE WES5120 field control systems.
-
Official Product Model: WES5120 2340-21005
-
Product Category: Industrial Isolated Digital Input Module
-
Manufacturer: General Electric (GE)
-
Core Positioning: Field digital signal acquisition, switch status monitoring and real-time data transmission
-
Compatible System: Fully matched with GE WES5120 series field controller master units
-
Installation Method: Standard industrial DIN rail mounting
-
Application Scenarios: Power generation control systems, petrochemical field monitoring, automated production line signal collection and old industrial control system upgrading
-
Executive Standards: GE original factory technical specifications, industrial EMC electromagnetic compatibility standards and IEC industrial control module safety standards
3.2 Core Signal Acquisition & Electrical Parameters
High-precision signal processing and stable electrical design ensure accurate and reliable field data collection in complex industrial environments.
-
Input Channel Quantity: 16 independent group-isolated digital input channels
-
Input Voltage Specification: 24VDC standard industrial voltage (±15% fluctuation tolerance)
-
Single Channel Max Current: 5mA per channel stable operating current
-
Signal Response Time: 2ms ultra-fast typical response speed
-
Input Mode: Configurable sinking / sourcing dual working mode
-
Protection Mechanism: Reverse polarity protection, over-current protection and overload protection
-
Channel Isolation: Full group isolation design to eliminate inter-channel signal interference
3.3 Communication & Operating Parameters
Standard industrial communication configuration ensures efficient data interaction and stable system docking.
-
Supported Communication Protocols: Modbus TCP/IP, Ethernet/IP mainstream industrial protocols
-
Ethernet Communication Speed: 10Mbps stable transmission rate
-
Serial Port Baud Rate: Maximum 115.2kbps high-speed serial transmission
-
Module Power Consumption: Less than 10W low-power stable operation
-
Working Mechanism: Support hot-swap replacement and real-time channel status self-diagnosis
3.4 Mechanical & Structural Parameters
Compact standardized industrial structure simplifies on-site installation and intensive cabinet layout.
-
Overall Dimensions: 150mm × 100mm × 80mm 3U standard industrial size
-
Installation Mode: DIN rail fixed mounting, convenient and quick deployment
-
Terminal Structure: Plug-in screw terminal design, easy wiring and maintenance
-
Status Display: Independent LED indicator for each channel, real-time working status feedback
-
Structural Feature: Integrated anti-vibration and anti-loose industrial structure
3.5 Environmental Adaptability Parameters
After strict extreme environment simulation testing, the module maintains full-performance stable operation in harsh industrial working conditions.
-
Full-Load Operating Temperature: -20°C to +60°C wide-temperature stable operation
-
Storage Temperature Range: -40°C to +85°C high and low temperature resistance
-
Working Humidity: 5%–95% RH non-condensing humid environment adaptation
-
Environmental Resistance: Resists industrial dust, mechanical vibration and strong electromagnetic interference
-
Continuous Operation Capacity: Supports 7×24-hour uninterrupted full-load industrial operation
3.6 Factory Testing & Quality Certification
Every GE WES5120 2340-21005 module is manufactured under GE’s strict industrial quality control system. All units complete full-function signal testing, accuracy calibration and environmental aging screening before delivery to meet high-standard industrial control requirements.
-
Core Testing Items: Channel signal accuracy test, response speed calibration, communication stability test, high-low temperature cycle test and long-term aging operation test
-
Quality Inspection Standard: 100% full-function test + full performance calibration + complete test data filing
-
Authoritative Certification: CE, UL industrial safety certification and EMC electromagnetic compatibility certification
-
Field Operation Reliability: Widely deployed in global industrial control projects with ultra-low signal error rate and long-term stable performance

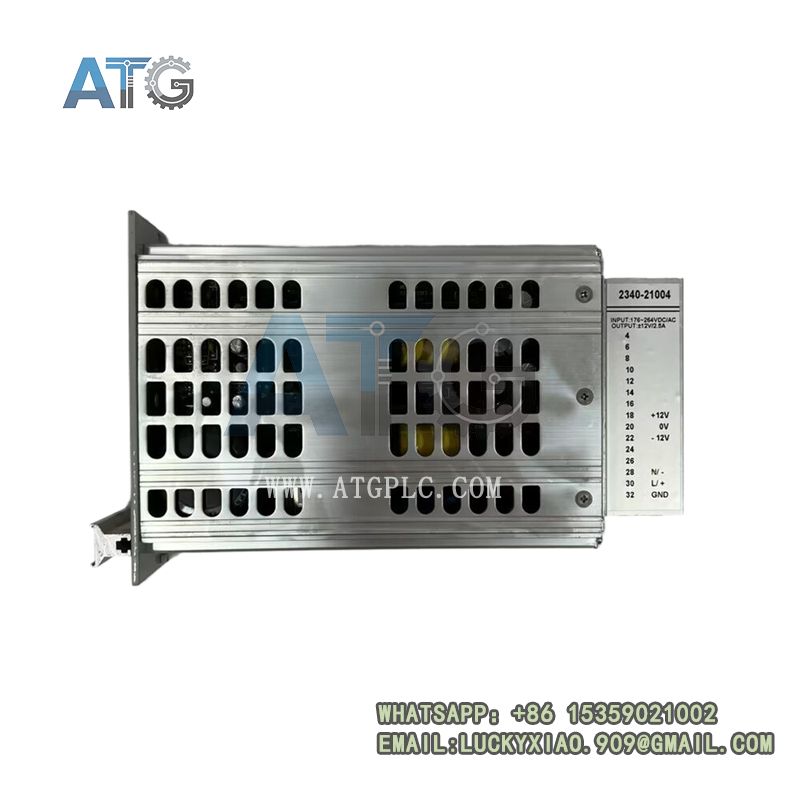

GE WES5120 2340-21005
4. E-commerce Sales Mode & Complete Procurement Advantages
As a core signal acquisition module of GE WES5120 field control systems, the GE WES5120 2340-21005 adopts standardized, transparent and efficient global industrial e-commerce sales mode. It focuses on industrial control system maintenance, old field signal module upgrading and enterprise industrial equipment strategic spare parts reserve. It provides one-stop standardized procurement and full-cycle professional technical services for industrial engineering integrators and automation equipment manufacturers.
4.1 Standardized Transparent E-commerce System
All GE WES5120 2340-21005 products adopt unified original factory production and full-process standardized testing. The whole production, signal calibration and warehousing process is fully traceable. E-commerce platforms openly display complete product datasheets, performance test reports and official qualification certificates. Customers can verify product authenticity, signal acquisition accuracy and system matching performance online. This transparent sales mechanism effectively avoids refurbished and inferior modules. It fully guarantees the stability and accuracy of industrial field signal acquisition systems.
4.2 Diversified Flexible Procurement Modes
Industrial control equipment emergency replacement, daily spare parts stocking and large-scale automation system upgrading projects have different procurement demands. To cover all industrial application scenarios, we provide flexible multi-dimensional procurement solutions for the GE WES5120 2340-21005.
-
Emergency Spot Procurement: Suitable for on-site module failure, signal acquisition abnormality and emergency replacement. Sufficient global spot inventory supports fast delivery. It helps enterprises quickly restore field signal monitoring functions and avoid automatic system operation failure and production shutdown losses.
-
Small-Batch Spare Parts Stocking: Ideal for power plants, chemical enterprises and automated factories to build industrial control spare parts inventory. Pre-storing this module improves on-site fault emergency response speed and reduces system operational risks.
-
Large-Batch Engineering Procurement: Provide exclusive preferential pricing and long-term framework cooperation services for large-scale industrial automation upgrading and field control system reconstruction projects. It effectively reduces overall project procurement costs and shortens equipment installation and commissioning cycles.
4.3 Full-Cycle After-Sales Service Guarantee
The digital input module is the underlying signal acquisition core of industrial automation systems. Its signal accuracy and operational stability directly determine the normal logic operation of the entire control system. We provide comprehensive full-cycle after-sales protection to eliminate all customer procurement risks.
-
100% Original Genuine Guarantee: All modules are brand-new original GE products with complete factory test reports and qualification documents, ensuring 100% signal acquisition performance and system compatibility.
-
Professional Industrial Packaging: Adopt multi-layer anti-static, shockproof, moisture-proof and dust-proof industrial packaging. It protects internal precision circuits and chips from damage during long-distance transportation and storage.
-
24/7 Professional Technical Support: Provide pre-sales model matching consultation, in-sales wiring guidance and system debugging, and after-sales fault diagnosis and performance calibration services.
-
Long-Term Official Warranty Service: Enjoy unified official warranty coverage. Free maintenance and replacement services are provided for non-human-induced quality faults to reduce enterprise equipment operation and maintenance costs.

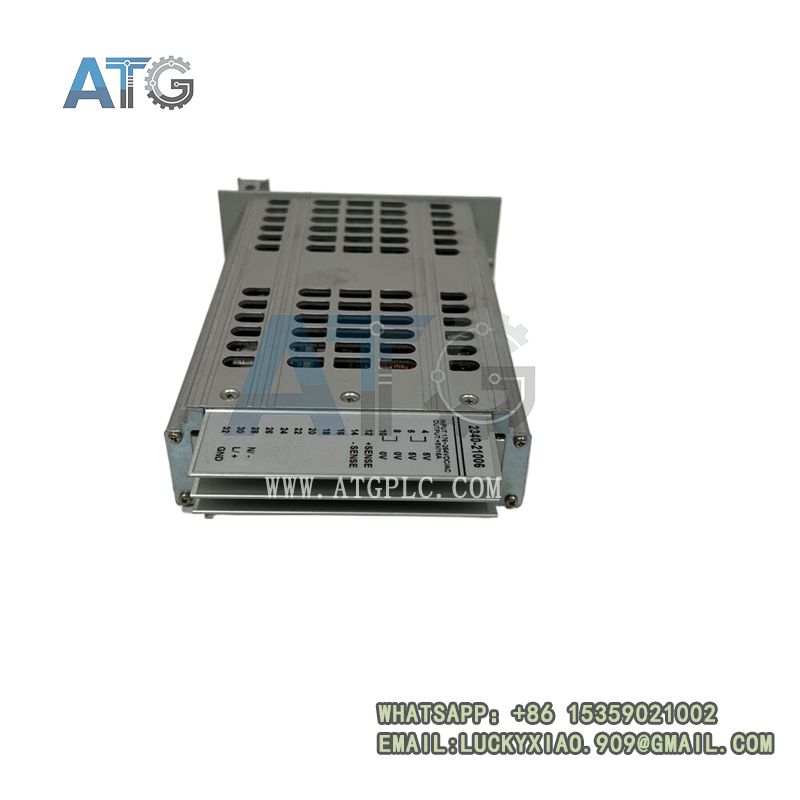

GE WES5120 2340-21005
5. Main Industrial Application Scenarios
Relying on its 16-channel isolated acquisition, fast signal response, hot-swap maintainability and strong anti-interference performance, the GE WES5120 2340-21005 is widely used in core signal monitoring links of various industrial field control systems.
-
Power Generation Field Control Systems: Applied to signal acquisition of power plant equipment switches and status points. It ensures real-time and accurate field data transmission. It supports stable operation of power generation automatic control systems.
-
Petrochemical Monitoring Systems: Serves as field signal collection equipment for chemical production devices. It adapts to harsh industrial environments with strong interference. It provides reliable data support for production safety monitoring.
-
Factory Automation Production Lines: Used for switch signal and equipment status monitoring of automated assembly and processing lines. It improves the sensitivity and stability of production line linkage control.
-
Old Control System Upgrading: Replaces low-precision, easy-interference and non-hot-swap old input modules. It improves the overall signal acquisition accuracy and system maintainability without large-scale equipment reconstruction.
6. Product Value & Market Competitiveness
The GE WES5120 2340-21005 solves common industry pain points of traditional digital input modules, such as easy signal crosstalk, slow response, no hot-swap function and difficult maintenance. It integrates full-channel isolation acquisition, 2ms high-speed response, dual-mode input adaptation and real-time status diagnosis. It comprehensively improves the accuracy, stability and maintainability of industrial field signal acquisition systems.
In the global industrial automation spare parts e-commerce market, the GE WES5120 2340-21005 has outstanding differentiated competitiveness. It features industrial-grade anti-interference ability, zero downtime maintenance, wide environmental adaptation and perfect system compatibility. Combined with standardized genuine procurement, complete qualification documents and full-cycle professional after-sales services, it is the preferred signal acquisition module for WES5120 system maintenance, industrial control upgrading and enterprise strategic spare parts reserve.
