Description
Product Overview

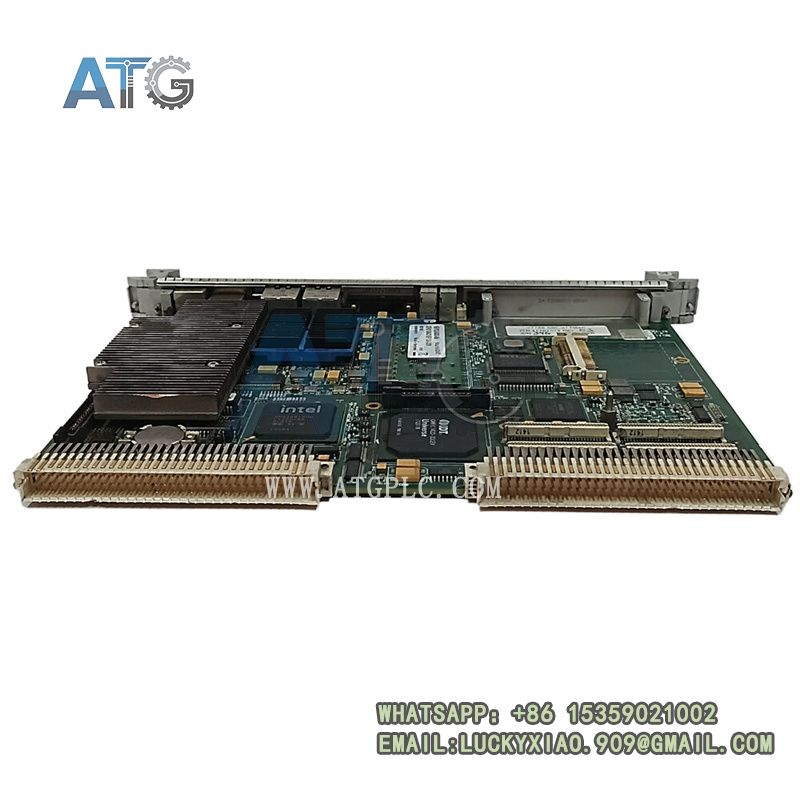

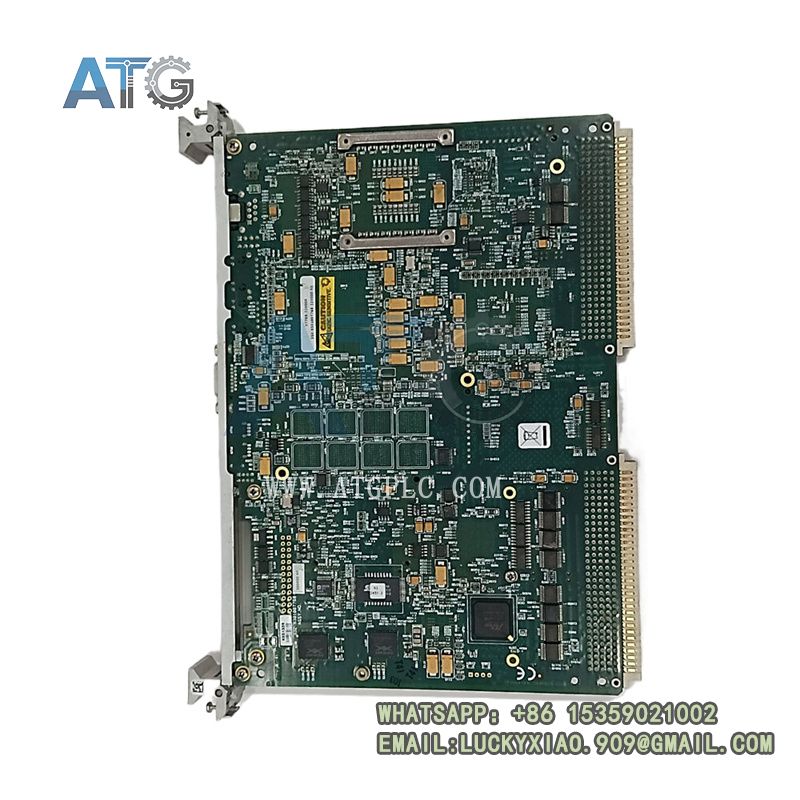

The GE V7768-320000 — referenced by the order part number 350-9301007768-320000 A0 — is a high-performance 6U single-slot VMEbus single-board computer (SBC) from the GE Intelligent Platforms V7768 embedded control product family. It serves as the core computing engine for mission-critical real-time control, data acquisition and embedded computing systems in harsh industrial, energy and aerospace environments.
Built on the Intel Core 2 Duo processor platform with the Intel 945GME Express chipset, this module delivers powerful dual-core processing performance while occupying only one standard VME chassis slot. It integrates rich on-board I/O, storage and expansion interfaces, and is fully compliant with the VME64x backplane standard. With passive cooling and industrial-grade component selection, it delivers reliable 24/7 operation for demanding embedded control applications.
Core Product Features
- Intel Core 2 Duo T7400 processor running at 2.16 GHz with 4 MB L2 cache delivers strong parallel processing for complex control algorithms and data-intensive tasks.
- Single SODIMM socket supports up to 2 GB of DDR2-667 SDRAM for flexible memory scaling to match application workloads.
- Integrated bootable CompactFlash slot (up to 8 GB) and dual SATA interfaces provide both solid-state and rotating storage options for operating systems, application code and data logging.
- Front-panel I/O includes dual Gigabit Ethernet ports, two RS-232 serial channels, four USB 2.0 ports, PS/2 keyboard/mouse and SVGA graphics for direct peripheral connectivity.
- One on-board PCI-X capable PMC expansion site supports custom I/O, communication or acceleration modules; a board-to-board connector enables pairing with the PMC237CM1/V carrier for three additional PMC slots.
- VME64x compliant bus interface with Tundra Universe II bridge supports both system controller and peripheral CPU modes for flexible multi-node VME system architectures.
- Passive heat-sink cooling eliminates fan failure points and reduces maintenance requirements for long-term unattended operation.
- Supports mainstream operating systems including VxWorks, Windows XP Embedded and Linux for broad software compatibility.
- Hardware programmable watchdog timer and built-in self-diagnostic functions enhance system reliability and simplify fault isolation.
Technical Specifications
| Item | Specification |
|---|---|
| Model Designations | V7768-320000; 350-9301007768-320000 A0 |
| Product Type | 6U Single-Slot VMEbus Single-Board Computer |
| Processor | Intel Core 2 Duo T7400, 2.16 GHz |
| L2 Cache | 4 MB |
| Chipset | Intel 945GME Express + ICH7-M |
| Front-Side Bus | 667 MHz |
| Main Memory | Up to 2 GB DDR2-667 SDRAM, single SODIMM socket |
| Storage | 1× bootable CompactFlash slot (max 8 GB); 2× SATA 1.5 Gb/s ports |
| VME Bus Standard | VME64x (VITA 1-1994 compliant), 32/64-bit address/data |
| Front-Panel I/O | 2× Gigabit Ethernet (RJ-45); 2× RS-232 serial; 4× USB 2.0; 1× SVGA; 1× PS/2 |
| Expansion | 1× PCI-X PMC site; board-to-board connector for PMC expansion carrier |
| Power Input | +5 V DC from VME backplane |
| Typical Power Consumption | 25 W |
| Operating Temperature | 0°C to +55°C (standard commercial grade) |
| Storage Temperature | -40°C to +85°C |
| Form Factor | 6U Eurocard, single VME slot |
| Cooling Method | Passive heat sink, fanless |
| Certifications | CE, UL, industrial EMC compliance |
Application Fields
- Gas and steam turbine control and monitoring systems in thermal and combined-cycle power plants
- Industrial process control and DCS computing nodes in chemical, petrochemical and refining facilities
- Aerospace ground test platforms and flight line test equipment
- Defense embedded command, control and data acquisition systems
- Transportation signaling and traffic management control systems
- Legacy VMEbus system retrofit, performance upgrade and spare part replacement
Related Model Recommendations
- V7768-32001: Higher-configuration variant of the V7768 family with expanded I/O and an enhanced feature set for advanced embedded applications.
- V7769-32000: Dual-slot VME SBC from the same product generation, offering additional expansion and storage capacity for larger system requirements.
- VMIVME-7750: Pentium III-based VME SBC for cost-sensitive legacy control system replacement and spare applications.
- PMC237CM1/V: PMC expansion carrier board that adds three extra PMC slots to the V7768 via the on-board board-to-board connector.
