Description
Product Overview
The GE PMC422-LAM D2 is a high-performance multi-channel serial communication control module. It adopts standard PMC industrial modular design. It serves as a core serial data transmission and signal expansion unit for embedded industrial control systems.
This module integrates eight independent universal serial channels. It supports high-speed parallel data collection and device communication. It connects multiple field sensors and industrial equipment to the main control system. It stably transmits real-time operating data and control instructions. It features strong environmental adaptability and plug-and-play installation. It is widely used for system upgrading, maintenance and spare part backup in industrial automation and power control scenarios.

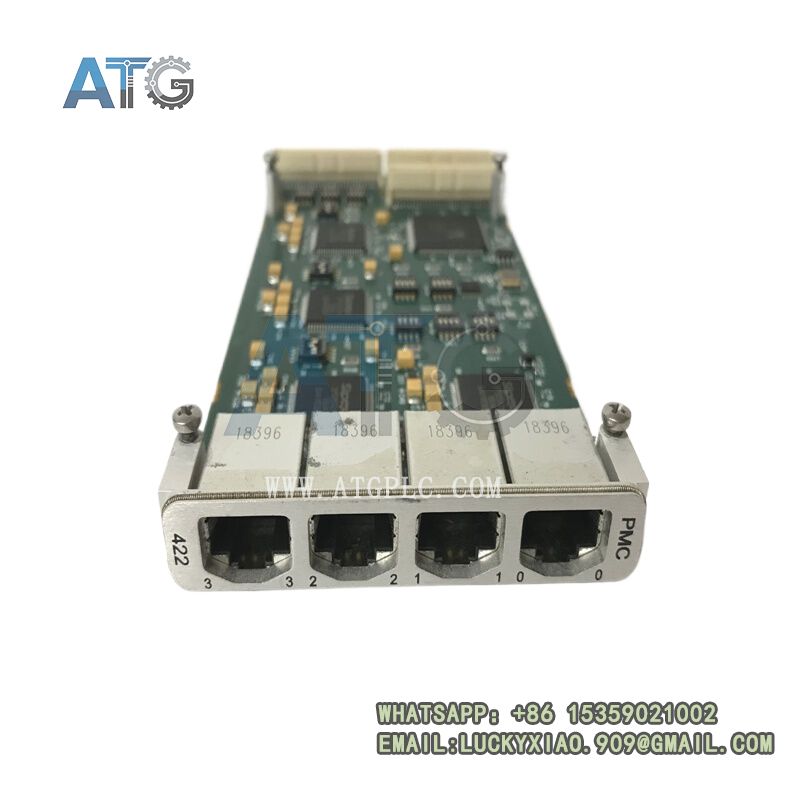

GE PMC422-LAM D2
Core Product Features
The GE PMC422-LAM D2 adopts professional serial communication architecture. It solves the problems of few channels and low transmission efficiency of ordinary communication modules. It maintains stable operation in high-intensity industrial scenarios.
- 8 Independent Serial Channels: It supports eight-channel parallel signal transmission. It connects multiple field devices at the same time. It greatly improves data collection efficiency.
- High-Speed Programmable Baud Rate: The baud rate ranges from 150 bps to 6.2 Mbps. Users can adjust parameters freely according to on-site equipment demands.
- Standard UART Compatibility: Equipped with 16C550 compatible UART chips. Each channel has a 64-byte independent transceiver FIFO cache. It avoids data packet loss and transmission delay.
- High-Performance PCI Bus Interface: It complies with PCI 2.2 bus standard. It supports 33MHz clock speed and 32-bit high-speed data transmission.
- Industrial Anti-Interference Ability: Optimized circuit shielding design resists electromagnetic interference. It ensures accurate and stable data transmission in complex industrial environments.
- Compact Modular Design: Standard PMC size saves cabinet space. It supports fast plug-in installation without complex wiring.
- Long-Term Operational Stability: Industrial-grade components support 7×24 hours full-load continuous operation. It features low power consumption and ultra-low failure rate.

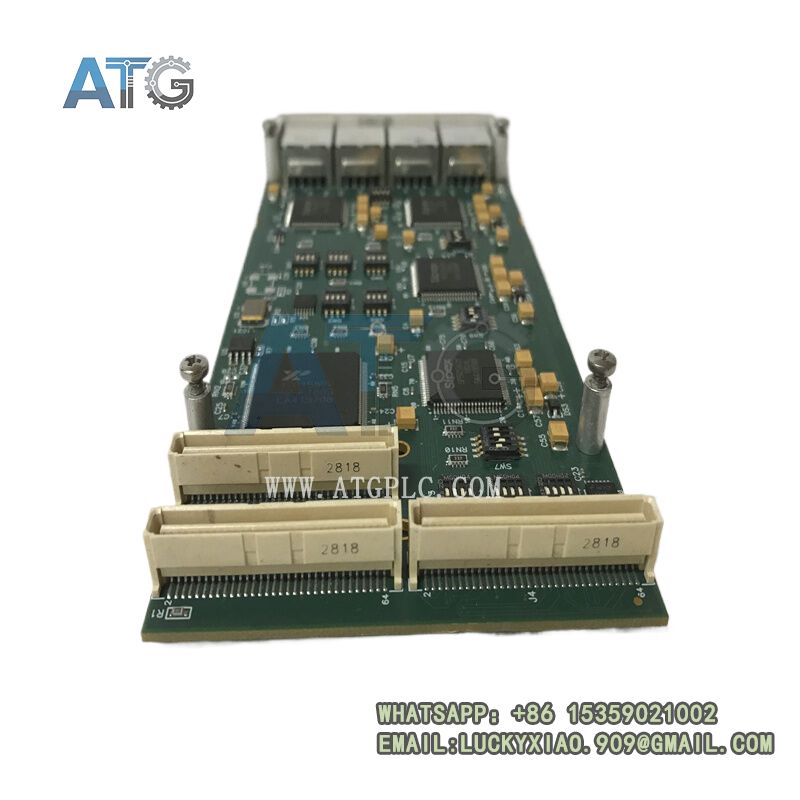

GE PMC422-LAM D2
Detailed Technical Specifications
All parameters of the GE PMC422-LAM D2 meet GE industrial control standards. Each module passes strict high-speed communication testing and aging screening before delivery. Standard parameters support accurate model selection and batch procurement.
- Official Model: PMC422-LAM D2
- Product Type: Multi-Channel Serial Communication Control Module
- Bus Standard: PCI 2.2 compatible, 32-bit, 33MHz maximum clock frequency
- Channel Quantity: 8 independent programmable serial channels
- Core Chip: 16C550 compatible high-performance UART
- FIFO Cache: 64 bytes per channel for transmit and receive
- Baud Rate Range: 150 bps to 6.2 Mbps (fully programmable)
- Installation Method: Standard PMC modular plug-in installation
- Operating Temperature Range: -20°C to +70°C
- Storage Temperature Range: -40°C to +85°C
- Working Humidity: 5%–95% RH, non-condensing environment
- Continuous Operation: Support 7×24 hours full-load uninterrupted operation
- Industrial Certification: CE safety certification, UL industrial certification, EMC electromagnetic compatibility certification

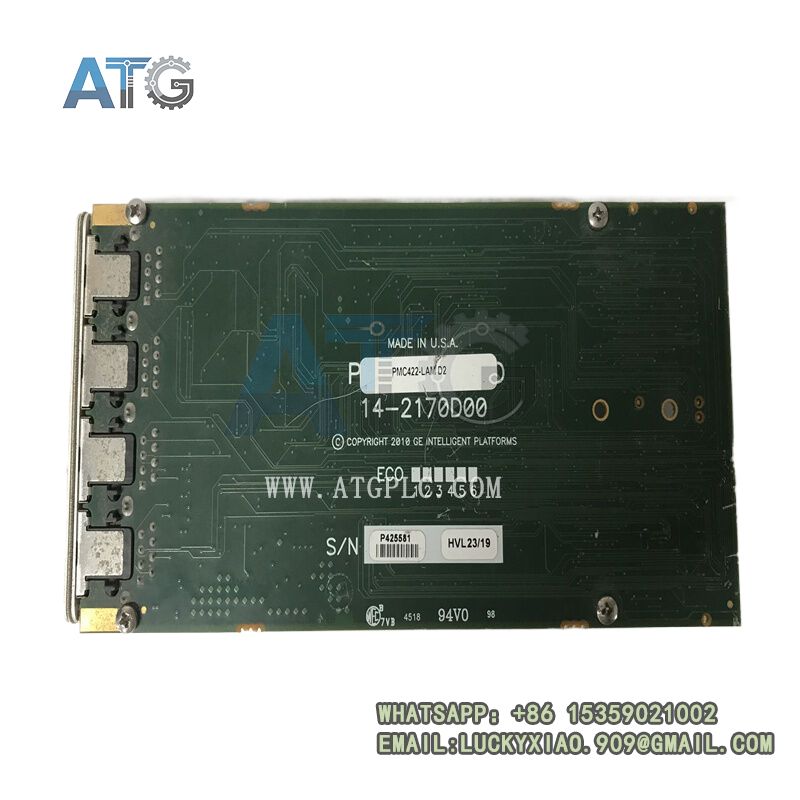

GE PMC422-LAM D2
Main Application Fields
The GE PMC422-LAM D2 focuses on high-density serial communication and multi-device data acquisition. It is widely applied in energy power and industrial automation fields.
- Power Generation Control System: It serves turbine and generator unit monitoring. It collects operating parameters of power equipment and transmits data to the main control system.
- Industrial Process Automation: It connects multiple sensors and execution devices on production lines. It realizes synchronous data acquisition and equipment linkage control.
- Embedded Control System: It acts as high-speed I/O expansion unit for industrial embedded equipment. It improves system communication expansion capability.
- Heavy Industry Equipment Monitoring: It applies to metallurgy, cement and papermaking industry equipment. It ensures stable data interaction of mechanical power systems.
- Enterprise Spare Part Reserve: It is used as a core communication spare part. It replaces faulty modules quickly and reduces industrial production downtime.
GE PMC422-LAM D2
Related Model Recommendations
The following compatible models match the GE PMC422-LAM D2 perfectly. They meet different system expansion, maintenance and upgrading needs.
- : Standard base version of the serial module. It shares consistent core performance and compatibility for universal replacement.
- PMC422FP: Enhanced high-stability version. It supports stronger anti-interference performance for harsh industrial environments.
- IS200Series Communication Boards: Matched auxiliary communication boards. It cooperates with D2 to expand multi-group signal transmission functions.
- UCV Series Main Control Modules: Core control units supporting serial protocol docking. It forms a complete high-speed communication control system with this module.
