Description
Product Overview
The GE ITM11A8XJ036645 is a compact high-performance industrial programmable control module belonging to GE Mark VI industrial automation series. It serves as a core mini PLC control unit for industrial automatic control and power auxiliary system regulation. This module integrates signal acquisition, logic operation, PID control and data communication functions. It independently completes on-site equipment logic control and closed-loop regulation tasks. It works with the main control rack to form a distributed control system and ensures stable and coordinated operation of industrial production and power equipment.
Small-scale industrial control and auxiliary loop regulation require compact, efficient and highly reliable control hardware. Ordinary mini control modules have obvious functional limitations. They feature low operation accuracy, single control logic and poor environmental adaptability. These defects easily cause regulation deviation and equipment jitter in long-term industrial operation. To solve these practical pain points, the GE ITM11A8XJ036645 adopts optimized industrial control chip architecture and built-in multi-group PID algorithm. It supports rich instruction sets and multi-channel signal synchronous processing. Every module passes strict full-load aging testing, algorithm calibration and extreme environment screening before delivery. It supports fast installation and program debugging, and fully adapts to standardized global industrial spare parts e-commerce procurement modes.
Core Product Features & Competitive Advantages
Industrial auxiliary control and small-loop regulation scenarios put forward high requirements for control precision and operational stability. Ordinary universal mini control modules cannot meet the long-term high-intensity operation needs of power plants and industrial workshops. In contrast, the GE ITM11A8XJ036645 is professionally customized for GE industrial distributed control architecture. It integrates multi-channel I/O control, intelligent algorithm operation and multi-protocol communication, with comprehensive performance far exceeding ordinary substitute modules.
- Integrated 8-In-8-Out Channel Design: Equipped with 8 independent input channels and 8 independent output channels. It realizes synchronous acquisition and control of multiple on-site discrete and analog signals. It simplifies on-site wiring and system layout.
- Built-In Multi-PID Control Algorithm: Supports 8 groups of independent PID loop operations. It meets precise closed-loop regulation needs of temperature, pressure, flow and other industrial parameters.
- Rich Industrial Instruction Set: Carries 229 complete operation instructions. It supports high-speed counting, floating-point operation, logic judgment and complex customized control programming.
- Dual Multi-Protocol Communication: It adapts to Modbus TCP/IP Ethernet protocol and RS485 serial communication. It achieves seamless data docking with GE main control systems and third-party upper monitoring platforms.
- High-Precision Operation & Stable Output: Adopts dedicated industrial control chip. It ensures accurate logic operation and stable signal output, effectively avoiding equipment regulation deviation.
- Real-Time Clock Function: Built-in high-precision real-time clock and calendar module. It supports timing control, data recording and fault time marking.
- Industrial-Grade Anti-Interference Ability: Optimized circuit shielding and signal filtering design. It resists on-site electromagnetic interference and voltage surges to ensure long-term stable operation.
- Ultra-Wide Environmental Adaptability: Adopts high-quality industrial components. It runs stably in ultra-wide temperature and humidity environments, adapting to harsh industrial workshop conditions.
- Plug-and-Play Replacement: Perfectly compatible with GE Mark VI industrial control systems. It supports direct replacement of old and faulty modules without modifying system control logic.
- 7×24 Hours Continuous Operation: Low-power and high-efficiency circuit design reduces heat generation. It supports long-term uninterrupted full-load industrial operation.

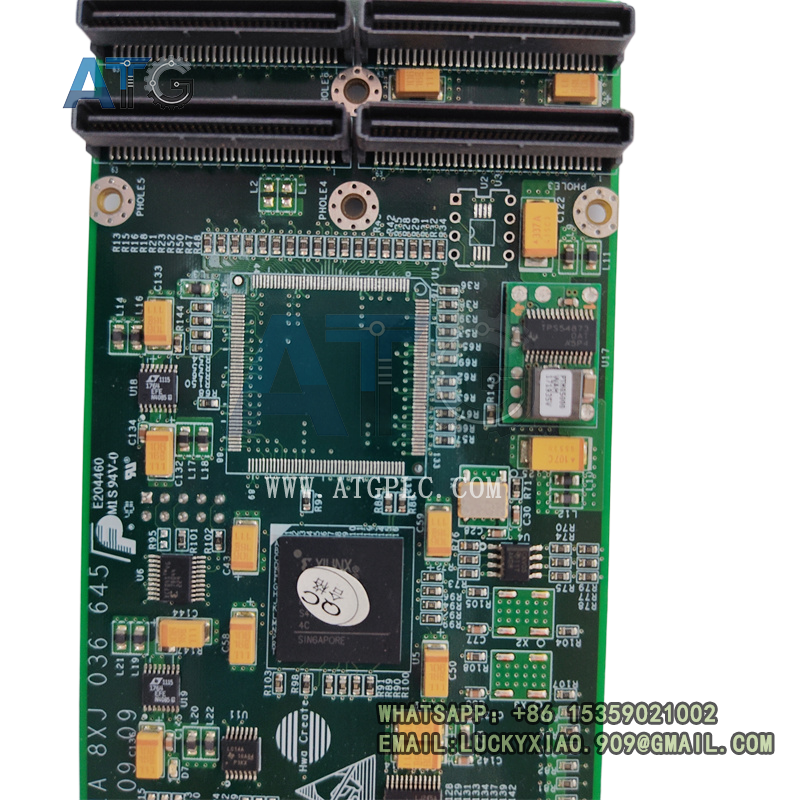

GE ITM11A8XJ036645
Detailed Segmented Technical Specifications
The GE ITM11A8XJ036645 strictly complies with GE industrial automation hardware standards and industrial safety specifications. All core performance indicators including channel parameters, algorithm operation, communication performance and environmental resistance pass professional laboratory verification and long-term field operation tests. The classified detailed parameters below support accurate model selection, faulty module replacement and large-scale engineering batch procurement.
3.1 Basic Product & Application Parameters
This mini programmable control module is a core auxiliary control component for GE industrial distributed control systems. It is widely used in industrial auxiliary equipment regulation and power system small-loop control projects.
- Official Product Model: ITM11A8XJ036645
- Product Category: Industrial Mini Programmable Control Module / Auxiliary PLC Module
- Manufacturer: General Electric (GE)
- Core Product Positioning: On-site signal acquisition, PID closed-loop regulation, logic control operation, equipment linkage control, system data communication
- Fully Compatible System: GE Mark VI Industrial Distributed Control System
- Installation Method: Standard cabinet rail mounting / embedded rack mounting
- Core Application Scenarios: Faulty module replacement, industrial auxiliary system upgrading, power small-loop control renovation, equipment precision regulation optimization, enterprise strategic spare part stocking
- Implementation Standards: GE official industrial control specifications, CE safety certification, UL industrial certification, EMC electromagnetic compatibility standard
3.2 Core Operation & Memory Parameters
The module is equipped with independent operating memory and complete instruction system. It supports complex logic operation and multi-loop simultaneous regulation.
- Total Operating Memory: 14.8K dedicated industrial control memory
- Built-In Instruction Quantity: 229 industrial control dedicated instructions
- Supported Control Functions: High-speed counting, floating-point arithmetic, timing control, PID closed-loop operation, logic interlock
- Independent PID Loops: 8 groups of configurable independent PID control loops
- Timing Function: Built-in real-time clock and calendar for accurate timing and data recording
3.3 Channel & Electrical Parameters
It adopts 8I/8O integrated channel layout. It matches industrial standard power supply and signal specifications to meet diverse on-site control demands.
- Input Channel Quantity: 8 independent signal input channels
- Output Channel Quantity: 8 independent control output channels
- AC Input Voltage Range: 100–240VAC wide voltage adaptation
- DC Rated Output Voltage: 24VDC standard industrial control voltage
- Rated Working Current: 1A stable rated operating current
- Power Supply Adaptation: 50Hz/60Hz industrial dual-frequency adaptive
- Protection Mechanism: Built-in overvoltage, overcurrent and short-circuit protection
3.4 Communication Interface Parameters
Equipped with dual communication interfaces and dual protocol adaptation capabilities. It realizes efficient and stable data interaction between on-site equipment and upper monitoring system.
- Ethernet Communication Interface: Standard adaptive Ethernet port
- Serial Communication Interface: RS485 dedicated industrial serial port
- Supported Core Protocols: Modbus TCP/IP, Modbus RTU
- Transmission Performance: Stable data transmission, no packet loss or disconnection under long-term full load
- Docking Ability: Compatible with GE main control rack and mainstream industrial upper computer monitoring systems
3.5 Physical & Structural Parameters
Adopts compact modular structure and high-strength industrial shell. It features small size, light weight and firm structure for easy installation and maintenance.
- Product Dimensions: 203mm × 127mm × 45mm compact industrial specification
- Net Weight: 0.75kg lightweight modular design
- Shell Material: Industrial high-strength flame-retardant material
- Structural Advantage: Anti-loose and anti-vibration structure, suitable for long-term cabinet operation
3.6 Environmental Adaptability Parameters
After strict extreme environment cycle tests, this module maintains stable operation and accurate control performance in complex industrial scenes.
- Full-Load Operating Temperature Range: -40°C to +85°C ultra-wide temperature stable operation
- Storage Temperature Range: -40°C to +85°C
- Working Humidity Range: 0%–95% RH non-condensing environment
- Comprehensive Environmental Resistance: Dust-proof, moisture-proof, anti-corrosion and anti-electromagnetic interference
- Continuous Operation Capacity: Support 7×24 hours uninterrupted full-load industrial operation
3.7 Factory Testing & Quality Certification
All GE ITM11A8XJ036645 modules are manufactured in strict accordance with GE industrial quality management system. Each product completes full-function performance testing and long-term aging verification before factory delivery.
- Core Factory Test Items: Channel signal accuracy test, PID algorithm operation calibration, communication stability test, full-load aging test, high-low temperature cycle test, vibration resistance test, EMC electromagnetic compatibility test
- Quality Inspection Standard: 100% full-function detection + precision parameter calibration + complete test record filing
- Authoritative Qualification Certification: CE industrial safety certification, UL electrical certification, EMC electromagnetic compatibility certification
- Field Operation Performance: Widely deployed in global GE Mark VI industrial control systems, with ultra-low failure rate and stable long-term control performance

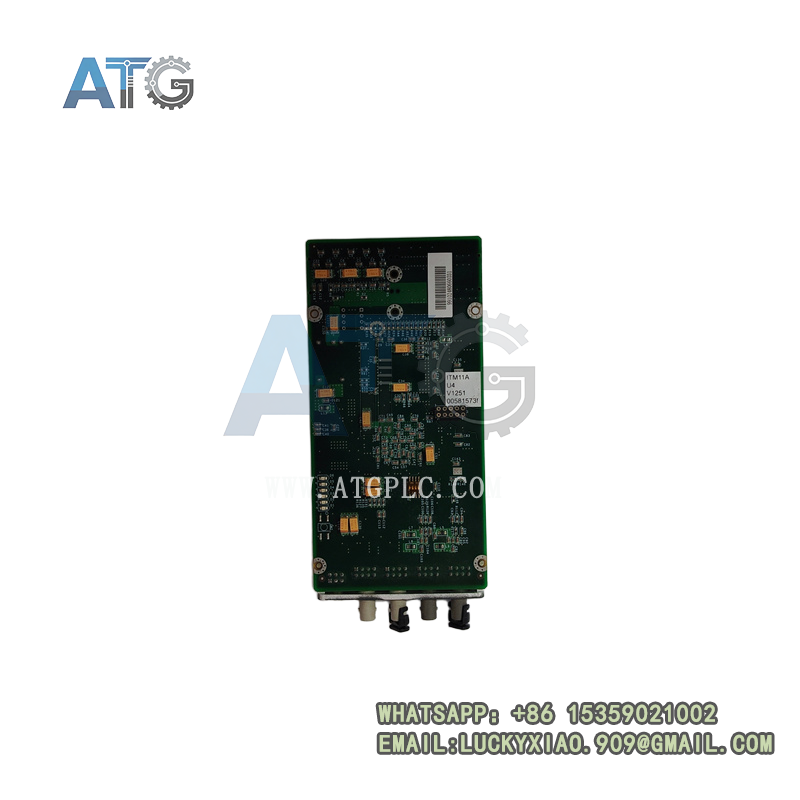

GE ITM11A8XJ036645
E-commerce Sales Mode & Complete Procurement Advantages
As the original dedicated mini programmable control module for GE Mark VI industrial control systems, the GE adopts standardized, transparent and efficient global industrial e-commerce sales mode. It mainly serves industrial automation auxiliary system maintenance, power equipment small-loop control upgrading, old system renovation and enterprise spare part inventory planning. It provides one-stop formal procurement services and full-cycle professional technical after-sales support for industrial manufacturing enterprises and power generation industries.
4.1 Standardized Transparent E-commerce System
All products are 100% original genuine GE products with complete traceable production, calibration and warehousing records. E-commerce platforms openly display official datasheets, factory test reports and qualification certificates. Buyers can verify product authenticity and core operation and communication parameters online at any time. This transparent sales mechanism effectively avoids refurbished, modified and incompatible substitute modules. It fully guarantees the control precision and operational stability of industrial automatic control systems.
4.2 Diversified Flexible Procurement Modes
Industrial system maintenance and equipment renovation projects have different construction cycles and quantity demands. To cover all industrial application scenarios, we provide three flexible and customized procurement solutions.
- Emergency Spot Procurement: Suitable for sudden module failure, loop control disorder and signal acquisition abnormality emergencies. Sufficient spot inventory supports rapid delivery. It helps users quickly restore normal system regulation functions and reduce industrial production downtime losses.
- Small-Batch Spare Part Stocking: Ideal for industrial and power enterprises to build standardized GE system spare part libraries. Pre-storing this mini control module shortens emergency maintenance response time and improves system operation redundancy and safety.
- Large-Batch Engineering Procurement: We provide customized preferential pricing and long-term framework cooperation agreements for large-scale system renovation and batch equipment upgrading projects. It effectively reduces overall project procurement costs.
4.3 Full-Cycle After-Sales Service Guarantee
This programmable control module undertakes core tasks of industrial auxiliary loop regulation and equipment linkage control. Module failure or precision attenuation will directly cause parameter deviation and equipment abnormal operation. To eliminate customer procurement risks, we provide comprehensive and reliable full-cycle after-sales protection.
- 100% Original Genuine Guarantee: All modules are genuine GE original products with complete factory official documents. It ensures 100% system compatibility and consistent original factory control precision and operation performance.
- Professional Industrial Packaging: Adopt anti-static, shockproof and moisture-proof integrated industrial packaging. It protects internal precision chips and circuits from damage during long-distance transportation and long-term warehouse storage.
- 24/7 Professional Technical Support: Provide full-process services including pre-sales model matching verification, program configuration guidance, on-site installation debugging and post-sales control fault diagnosis.
- Long-Term Warranty Service: Enjoy unified official warranty coverage. Free repair and replacement services are provided for non-human-caused quality defects to reduce enterprise operation and maintenance costs.
GE ITM11A8XJ036645
Main Industrial Application Scenarios
With multi-loop PID regulation, rich logic operation functions and industrial-grade stability, this module is widely used in the construction, daily maintenance and performance upgrading of GE industrial distributed control systems.
- Auxiliary Control System Construction: Serve as core mini control hardware for newly built industrial auxiliary systems to support precise closed-loop regulation of various process parameters.
- Faulty Module Direct Replacement: Quickly replace aging, damaged and low-precision original control modules. No system program modification is required to restore stable loop control functions.
- System Precision Regulation Upgrade: Upgrade old control units to improve industrial parameter regulation accuracy and equipment operation stability.
- Power Equipment Overhaul & Renovation: Applied in regular maintenance and upgrading of power auxiliary control loops to eliminate hidden risks of regulation deviation.
- Enterprise Spare Part Reserve: Stored as key core spare parts for GE Mark VI systems. It copes with sudden hardware faults and ensures continuous and stable industrial production and power equipment operation.
Product Value & Market Competitiveness
The GE effectively makes up for the common shortcomings of ordinary mini control modules, such as few PID loops, single instruction function and poor environmental adaptability. It integrates multi-channel signal processing, 8-group independent PID regulation and multi-protocol communication functions. It greatly improves the precision, flexibility and stability of industrial auxiliary loop control systems.
In the global industrial spare parts e-commerce market, this programmable control module has outstanding comprehensive competitive advantages. It features exclusive GE Mark VI system adaptation, rich industrial instruction sets, ultra-wide temperature resistance and high-precision algorithm operation. Supported by genuine product guarantee, complete technical documents and full-cycle professional after-sales services, it has become the preferred auxiliary control spare part for global industrial and power equipment maintenance, overhaul and precision upgrading projects.
