Description
Product Overview
The GE IS200EPMCH1 is an Exciter Power Monitor Card within the GE Mark VI Speedtronic control series. It acts as a dedicated power monitoring and feedback board. This module is designed exclusively for GE Mark VI turbine control and static excitation systems. It serves as a key monitoring unit between the excitation power circuit and main turbine controller. It samples excitation voltage and current signals continuously. It feeds real-time power status data back to the host control system for closed-loop regulation.
Turbine excitation systems need accurate power monitoring to keep generators running safely. Generic monitoring boards often fail to capture fast-changing excitation parameters. Delayed or inaccurate readings may trigger unnecessary excitation trips. These unplanned stops lead to huge economic losses for power plants. Besides, non-original replacement cards usually have mismatched signal sampling logic. They cannot communicate properly with Mark VI host software. To solve these risks, the GE IS200EPMCH1 uses high-speed sampling circuits and isolated signal channels. Every board completes signal calibration and full functional testing before leaving the warehouse. It works as a standard maintenance spare and fully supports global industrial e-commerce procurement.

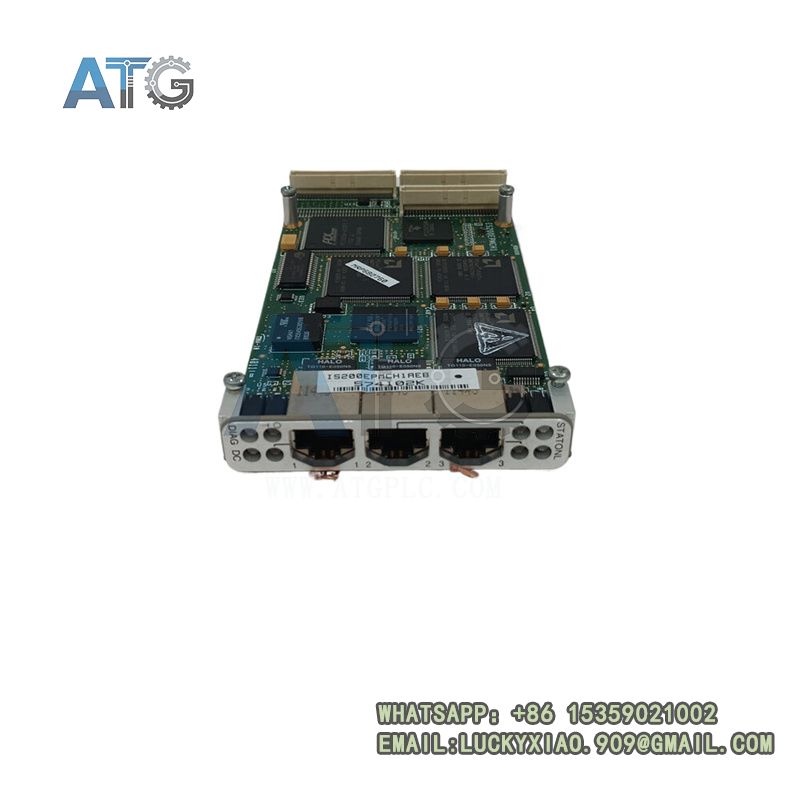

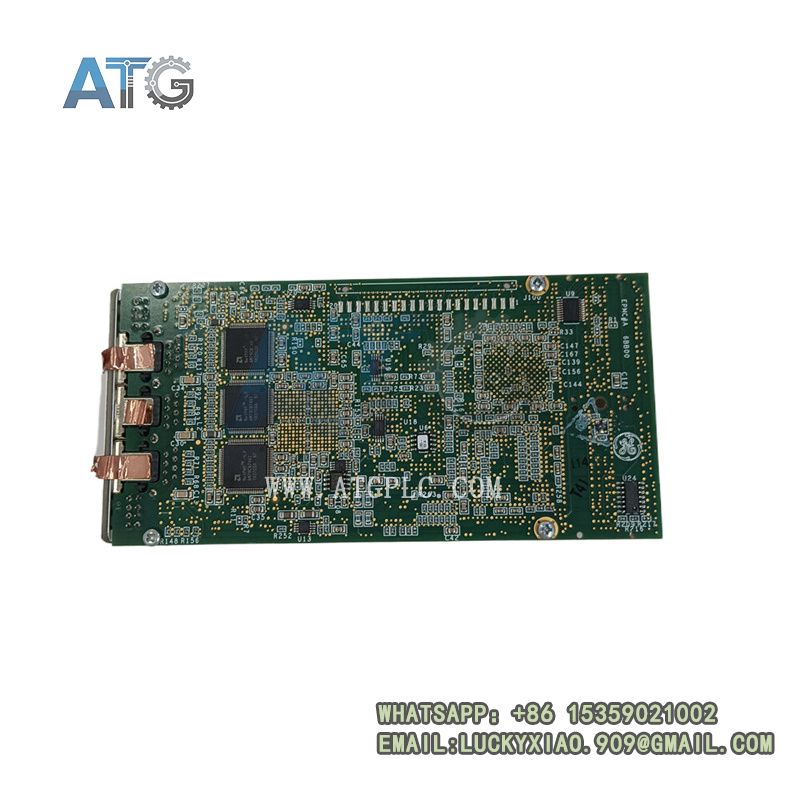

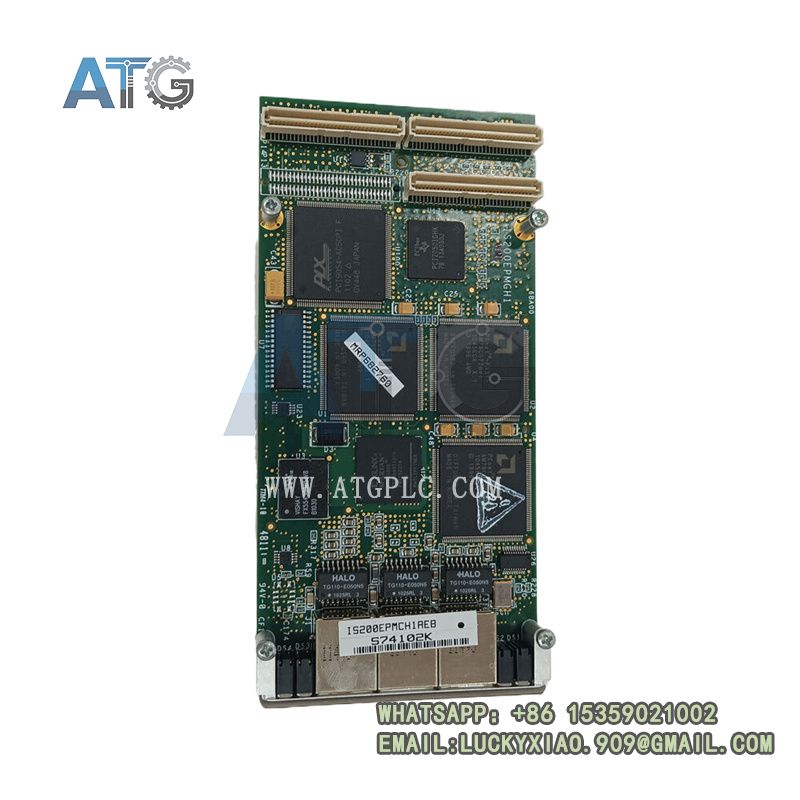

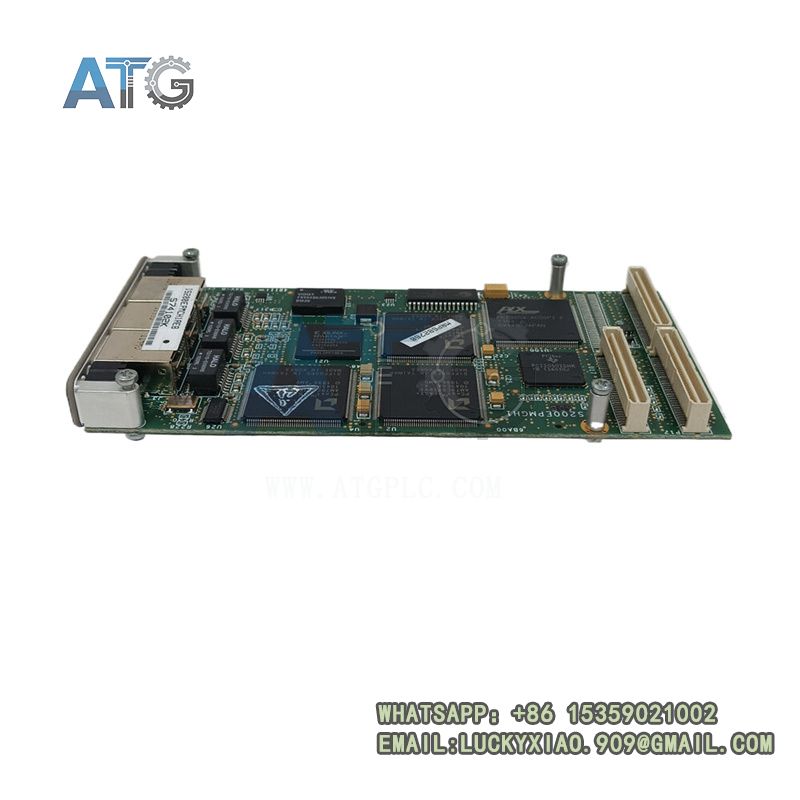

GE IS200EPMCH1
Core Product Features & Competitive Advantages
Precise power monitoring is critical for generator excitation control. Ordinary monitor boards only offer basic measurement functions. They lack high-speed sampling and isolation protection for power plant excitation cabinets. The GE IS200EPMCH1 brings multiple targeted improvements for heavy-duty power generation applications.
- High-Speed Excitation Signal Sampling: It captures real-time voltage, current and active power values from the excitation loop. It delivers instant feedback to the Mark VI turbine controller.
- Galvanic Isolation Signal Design: Isolation circuits separate high-power excitation circuits from low-voltage control logic. It blocks noise and transient surges to protect the main controller.
- On-Board Signal Conditioning: Built-in conditioning circuits clean raw excitation signals. It reduces waveform distortion and improves measurement precision.
- Native Mark VI System Compatibility: It follows GE IS200 series hardware and communication protocols. Direct plug-and-play replacement works without complex program changes.
- Over-Limit Alarm Trigger Function: It detects abnormal excitation power parameters. It sends alarm signals immediately when values exceed preset safety thresholds.
- Full-Board Conformal Coating: The protective coating covers the whole PCB. It defends against dust, moisture and mild corrosive gas inside excitation cabinets.
- Standard Rack Mount Structure: It uses the standard IS200 series form factor. It fits Mark VI cabinet slots for quick installation and on-site replacement.
- Reinforced Component Soldering: Robust solder joints resist continuous vibration from turbine sets. It maintains stable contact during long-term unit operation.
- Built-In Self-Diagnosis Logic: The card runs periodic self-checks after power-up. It reports hardware faults to the control system for easy troubleshooting.
GE IS200EPMCH1
Detailed Segmented Technical Specifications
The GE IS200EPMCH1 strictly follows GE IS200 series and Mark VI original design standards. All sampling accuracy, electrical isolation and mechanical indicators pass laboratory testing and long-term field verification. The grouped parameters below support accurate model selection, cabinet retrofit and bulk procurement planning.
3.1 Basic Product & Application Parameters
This product is a dedicated Exciter Power Monitor Card of GE IS200 series. It focuses on excitation power signal sampling, conditioning, real-time monitoring and alarm transmission for Mark VI turbine static excitation systems.
- Official Product Model: IS200EPMCH1
- Product Category: Exciter Power Monitor PCB, Turbine Excitation Feedback Card
- Manufacturer: General Electric (GE)
- Core Product Positioning: Excitation voltage & current sampling, power calculation, signal conditioning, parameter alarm and data upload
- Fully Compatible Systems: GE Mark VI Speedtronic Turbine Control System, GE Static Excitation System
- Installation Method: Rack-mounted installation inside Mark VI control cabinet
- Core Application Scenarios: Excitation system maintenance, aged monitor card replacement, generator excitation loop upgrade and power plant cabinet renovation
- Implementation Standards: GE original industrial control specifications, IEC insulation & EMC standards, UL industrial safety requirements
3.2 Electrical Parameters
The board is designed to sample high-side excitation signals while working on low-voltage control power. It maintains stable isolation performance under power fluctuation conditions.
- Control Supply Voltage: 24VDC
- Signal Sampling Range: Matched with standard generator excitation voltage and current loops
- Sampling Frequency: High-speed synchronous sampling for dynamic excitation parameter tracking
- Insulation Withstand Voltage: 2000VAC between excitation sampling circuit and control logic circuit
- Measurement Accuracy: Low drift for long-term continuous power monitoring
- Communication Interface: Internal backplane bus for data exchange with Mark VI main controller
3.3 Signal & Interface Parameters
The board connects via dedicated backplane connectors. It exchanges measured power data and status signals with other Mark VI control modules reliably.
- Interface Type: GE dedicated backplane edge connector
- Signal Type: Analog excitation sampling signals, digital status and alarm signals
- Data Output Form: Processed power parameter data transmitted over the internal system bus
- PCB Marking: Permanent silkscreen labels for signal definition and test points
- Test Points: Reserved onboard test points for field calibration and maintenance inspection
3.4 Mechanical & Structural Parameters
This PCB uses the standard form factor of the GE IS200 series. It fits the original Mark VI cabinet slot without mechanical modification.
- Structure Type: Printed circuit monitor board, standard IS200 series footprint
- Mounting Style: Rack mount in GE Mark VI turbine control cabinet
- Overall Dimensions: 26.0 cm × 12.4 cm × 3.4 cm
- Product Weight: 0.41 kg
- Surface Protection: Full-board acrylic conformal coating
- Mechanical Resistance: Reinforced soldering to withstand continuous turbine vibration
3.5 Environmental Adaptability Parameters
This monitor card can operate steadily in typical power plant control and excitation cabinet environments. It handles temperature cycles and moderate humidity.
- Operating Temperature Range: -20°C to +70°C
- Storage Temperature Range: -40°C to +85°C
- Working Humidity: 5%–95% RH, non-condensing
- Environmental Resistance: Dust-proof, moisture-resistant, resistant to light airborne industrial contaminants
- Continuous Operation Capacity: Supports 7×24 hour continuous operation within rated environmental limits
3.6 Factory Testing & Quality Certification
Every GE IS200EPMCH1 undergoes strict factory inspection before shipment. These tests verify sampling precision, insulation performance and communication stability.
- Core Factory Test Items: Signal sampling accuracy test, insulation resistance test, backplane communication test, solder joint visual inspection, coating integrity check
- Quality Inspection Standard: 100% full function test, all test records archived for traceability
- Qualifications: Complies with UL, CE and IEC EMC and electrical safety standards
- Field Operation Performance: Widely deployed in Mark VI excitation systems, stable performance for generator power monitoring tasks
GE IS200EPMCH1
E-commerce Sales Mode & Complete Procurement Advantages
The GE serves as a critical spare part for GE Mark VI turbine and static excitation system maintenance. It is sold through standardized global industrial e-commerce channels. It serves power generation plants, automation system integrators and heavy industry asset owners. Customers can buy single units for emergency replacement or build long-term spare parts inventory.
4.1 Standardized Transparent E-commerce System
All products follow unified inspection protocols before warehousing. Specification sheets and test records are available for online review. Buyers can check board condition, connector integrity and coating quality before confirming orders. This transparent workflow greatly reduces risks of counterfeit or poorly reworked control cards.
4.2 Diversified Flexible Procurement Modes
Maintenance projects carry different purchasing requirements. Emergency breakdown repair, routine spare stocking and large cabinet upgrade projects need separate procurement solutions.
- Emergency Spot Procurement: Suitable for sudden monitor card failure or excitation signal feedback loss. Available stock supports fast shipment. It helps restore excitation system operation quickly and reduce generation losses.
- Small-Batch Spare Parts Stocking: Designed for power plant maintenance teams. Stock spare cards onsite to shorten repair time once the original board ages.
- Large-Batch Engineering Procurement: For large-scale excitation system renovation projects. Volume orders enjoy preferential pricing and coordinated batch delivery schedules.
4.3 Full-Cycle After-Sales Service Guarantee
A faulty excitation monitor card can disturb generator closed-loop control and trigger unit trips. We provide full service support to lower customer procurement risks.
- Genuine Product Guarantee: Verified GE board with complete factory test documents. It matches original pin definition and mechanical dimensions perfectly.
- Professional Industrial Packaging: Anti-static bag, shock-absorbing foam and sturdy carton protect the PCB during transit.
- 24/7 Technical Support: Pre-sales model verification, system matching consultation and post-delivery troubleshooting guidance.
- Warranty Coverage: Standard warranty applies. Non-artificial quality defects qualify for maintenance or replacement service.
GE IS200EPMCH1
Main Industrial Application Scenarios
With high-precision power sampling, galvanic isolation and native Mark VI compatibility, this monitor card fits many power plant excitation control projects.
- Generator Excitation Power Monitoring: Continuously samples excitation voltage and current. It calculates real-time power and feeds data back to the Mark VI controller.
- Aged Excitation Card Replacement: Replace old monitor boards with drifting sampling values. It recovers measurement accuracy without cabinet reconstruction.
- Excitation Overload Protection Auxiliary Loop: Detects abnormal excitation power. It sends alarm signals for overload or under-power working conditions.
- Mark VI Turbine System Retrofit: Used during control cabinet upgrade to strengthen excitation monitoring capacity of the generator set.
GE IS200EPMCH1
Product Value & Market Competitiveness
The GE solves common weaknesses of ordinary power monitoring boards. These weaknesses include low sampling speed, insufficient isolation protection and poor system matching. It combines high-speed excitation signal sampling, onboard conditioning and self-diagnosis functions. It stabilizes the power monitoring loop of Mark VI static excitation systems.
In the global industrial spare parts e-commerce market, this excitation monitor card holds distinct competitive advantages. It maintains native compatibility with GE Mark VI Speedtronic platforms. It comes with conformal coating and built-in isolation protection. Together with transparent inspection records and flexible ordering options, it becomes the preferred spare part for excitation cabinet maintenance and generator control system renovation.
