Description
Product Overview

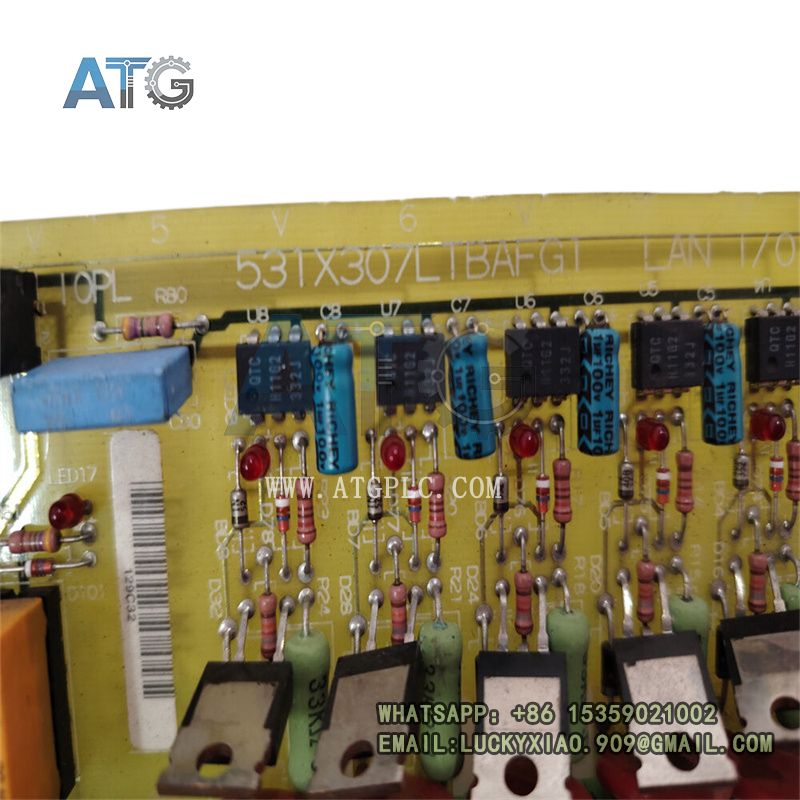

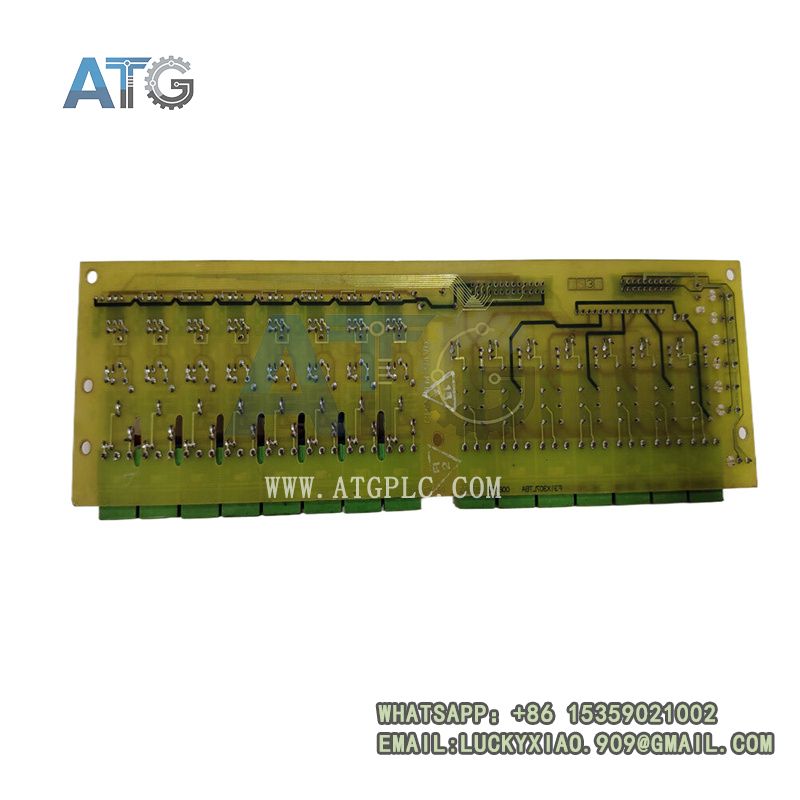

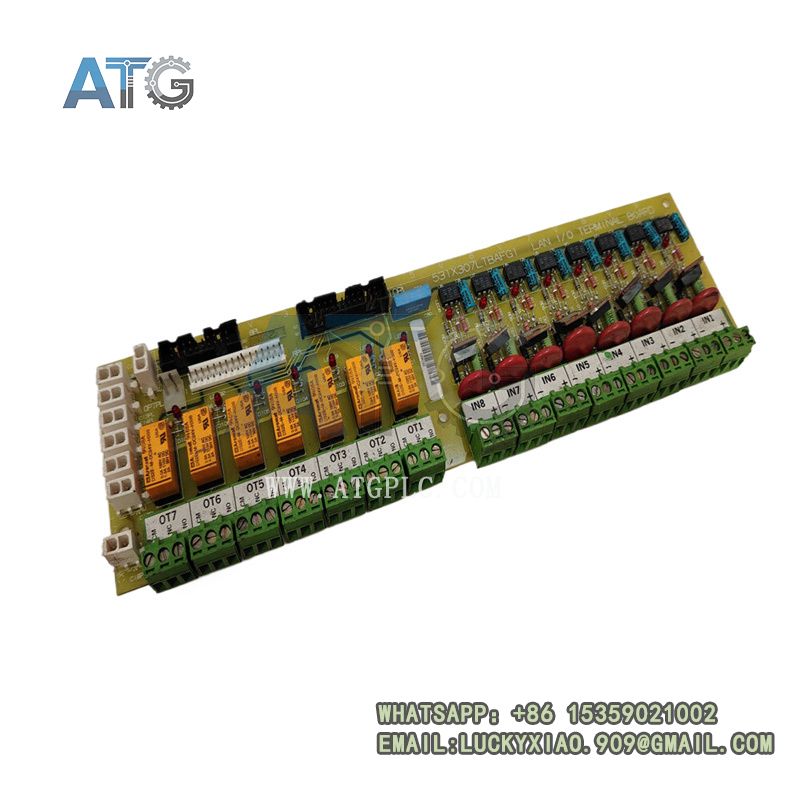

The GE 531X307LTBAFG1 is a high-performance local terminal board from the GE 531X industrial control series. It serves as a dedicated signal termination and power distribution unit. This board is developed exclusively for GE DC2000 adjustable speed drive systems. It also supports integration with GE Mark V turbine control platforms. It creates a reliable physical link between field sensors, actuators and main drive control cards. It routes analog signals, digital I/O and auxiliary power lines in one centralized board. It maintains stable signal transmission for drive closed-loop regulation.
Variable speed drive systems depend heavily on stable wiring terminals. Ordinary generic terminal boards cannot handle harsh industrial cabinet conditions well. Continuous vibration can loosen wire terminals and cause intermittent signal drops. These unexpected signal failures often trigger drive trips and costly production downtime. In addition, non-original replacement boards usually have mismatched pin assignments. They require heavy rewiring work and raise commissioning risks. To resolve these practical pain points, the GE 531X307LTBAFG1 adopts reinforced PCB layout and industrial screw terminal blocks. Every board completes continuity, insulation and visual inspection before delivery. It acts as a standard maintenance spare and fully supports global industrial e-commerce procurement.
Core Product Features & Competitive Advantages
Solid signal termination forms the foundation of steady drive operation. Basic terminal boards only provide simple wire connection. They lack built-in surge protection and vibration resistance for power plant environments. The GE 531X307LTBAFG1 adds multiple practical upgrades for heavy-duty industrial applications.
- Integrated Multi-Point Termination: It provides grouped terminals for analog input, digital I/O and auxiliary power circuits. It organizes scattered field cables inside the control cabinet neatly.
- Built-In Transient Surge Suppression: It integrates TVS protection components. These elements absorb voltage spikes from field wiring and shield downstream main control circuits.
- Durable PCB Pin Markings: Clear silkscreen labels stay legible over long operating cycles. They speed up wiring work and reduce human connection errors.
- Vibration-Resistant Screw Terminals: Screw-clamp terminal blocks maintain steady clamping force. Terminals remain tight under constant mechanical vibration from drive equipment.
- Native DC2000 System Compatibility: Its pinout fully matches GE DC2000 adjustable speed drive hardware standards. Direct replacement works without modifying the existing wiring layout.
- High Dielectric Insulation Design: High-quality PCB substrate isolates signal and power channels. It prevents cross-channel short circuits and leakage risks.
- Full-Board Conformal Coating: The protective coating covers the entire circuit board. It guards against dust, moisture and mild corrosive gas inside industrial cabinets.
- Standard Modular Rack Mount: It follows the 531X series form factor. It fits original cabinet slots for quick installation, inspection and on-site replacement.
- Independent Loop Test Access: Signal and power terminals are separated by function. Technicians can test individual loops without disconnecting the whole cable bundle.
GE 531X307LTBAFG1
Detailed Segmented Technical Specifications
The GE 531X307LTBAFG1 strictly follows GE 531X series original design specifications. All electrical insulation, terminal rating and mechanical indicators pass laboratory testing and long-term field verification. The grouped parameters below support accurate model selection, cabinet retrofitting and bulk procurement planning.
3.1 Basic Product & Application Parameters
This product is a dedicated local terminal board in the GE 531X series. It handles field cable termination, signal splitting and auxiliary power distribution for DC2000 drives and Mark V turbine auxiliary control loops.
- Official Product Model: 531X307LTBAFG1
- Product Category: Local Terminal Board, Signal Distribution PCB
- Manufacturer: General Electric (GE)
- Core Product Positioning: Field cable termination, signal routing, auxiliary power distribution and transient overvoltage protection
- Fully Compatible Systems: GE DC2000 Adjustable Speed Drive System, GE Mark V Turbine Control Platform
- Installation Method: Rack-mounted installation inside the GE drive control cabinet
- Core Application Scenarios: DC2000 drive cabinet wiring upgrade, aged terminal board replacement, turbine auxiliary signal wiring integration
- Implementation Standards: GE original industrial control specifications, IEC insulation & EMC standards, UL industrial safety requirements
3.2 Electrical Parameters
The board is designed for mixed low-voltage control signal and auxiliary power circuits. It keeps stable insulation performance during normal on-site voltage fluctuations.
- Rated Control Signal Voltage: 24VDC
- Maximum Terminal Rated Voltage: 300V
- Single Terminal Continuous Rated Current: 5A
- Insulation Withstand Voltage: 1500VAC between power and signal circuits
- Surge Protection Level: Integrated TVS components for transient voltage suppression
- Channel Isolation Type: Galvanic separation between analog signal channels and power terminals
3.3 Terminal & Wiring Parameters
Removable screw-clamp terminals are selected for heavy-duty industrial wiring. They provide stable clamping force for solid or stranded copper conductors.
- Terminal Type: Screw-type detachable terminal blocks
- Supported Wire Cross-Section: 0.5 mm² to 2.5 mm² copper cable
- Terminal Function Groups: Analog signal terminals, digital I/O terminals, DC power terminals, common ground terminals
- PCB Marking: Permanent silkscreen pin numbers and function labels
- Wiring Feature: Each terminal supports independent connection and disconnection of single wires
3.4 Mechanical & Structural Parameters
This PCB uses the standard form factor of the GE 531X series. It fits the original cabinet slot without any mechanical modification.
- Structure Type: Printed circuit terminal board, standard 531X series footprint
- Mounting Style: Rack mount inside GE drive cabinet
- Overall Dimensions: 24.8 cm × 11.0 cm × 3.2 cm
- Product Weight: 0.37 kg
- Surface Protection: Full-board acrylic conformal coating
- Mechanical Resistance: Reinforced component soldering to withstand continuous equipment vibration
3.5 Environmental Adaptability Parameters
The terminal board can run reliably in typical power plant and industrial drive cabinet environments. It tolerates temperature cycles and moderate humidity levels.
- Operating Temperature Range: -30°C to +70°C
- Storage Temperature Range: -40°C to +85°C
- Working Humidity: 5%–95% RH, non-condensing
- Environmental Resistance: Dust-proof, moisture-resistant, resistant to light airborne industrial contaminants
- Continuous Operation Capacity: Supports 7×24 hour continuous operation within rated environmental limits
3.6 Factory Testing & Quality Certification
Every GE 531X307LTBAFG1 undergoes standard factory inspection before shipment. These tests verify circuit continuity, insulation performance and mechanical reliability.
- Core Factory Test Items: Continuity test, insulation resistance test, terminal pull force test, solder joint visual inspection, coating integrity check
- Quality Inspection Standard: 100% electrical function test, all test records archived for traceability
- Qualifications: Complies with UL, CE and IEC EMC and electrical safety standards
- Field Operation Performance: Widely deployed in drive systems, low failure rate for wiring interface faults
GE 531X307LTBAFG1
E-commerce Sales Mode & Complete Procurement Advantages
The GE 531X307LTBAFG1 acts as a critical spare part for GE drive and Mark V turbine maintenance. It is sold through standardized global industrial e-commerce channels. It serves power plants, automation integrators and heavy industry asset owners. Customers can order single units for emergency replacement or build long-term spare parts inventory.
4.1 Standardized Transparent E-commerce System
All products follow unified inspection protocols before warehousing. Specification sheets and test records are available for online review. Buyers can check board condition, pin integrity and coating quality before confirming orders. This transparent workflow greatly reduces risks of counterfeit or poorly reworked terminal boards.
4.2 Diversified Flexible Procurement Modes
Maintenance projects carry different purchasing requirements. Emergency breakdown repair, routine spare stocking and large cabinet upgrade projects need separate procurement solutions.
- Emergency Spot Procurement: Suitable for sudden terminal board damage or loose wiring faults. Available stock supports fast shipment. It helps restore drive system operation quickly and reduce production losses.
- Small-Batch Spare Parts Stocking: Designed for maintenance teams. Stock several boards on site to shorten repair time once the original terminal board ages.
- Large-Batch Engineering Procurement: For large-scale system renovation projects. Volume orders enjoy preferential pricing and coordinated batch delivery schedules.
4.3 Full-Cycle After-Sales Service Guarantee
A faulty terminal board can shut down the entire control loop. We provide full service support to lower customer procurement risks.
- Genuine Product Guarantee: Verified GE board with complete factory test documents. It matches original pin definition and mechanical dimensions perfectly.
- Professional Industrial Packaging: Anti-static bag, shock-absorbing foam and sturdy carton protect the PCB during transit.
- 24/7 Technical Support: Pre-sales model verification, wiring consultation and post-delivery troubleshooting guidance.
- Warranty Coverage: Standard warranty applies. Non-artificial quality defects qualify for maintenance or replacement service.
GE 531X307LTBAFG1
Main Industrial Application Scenarios
With reliable termination, built-in surge suppression and native compatibility, this terminal board fits many heavy industry control cabinet projects.
- : Collect cables from field sensors and actuators, and transfer signals to the main drive control card.
- Aged Terminal Board Replacement: Replace old boards with corroded or loose screw terminals. It recovers signal connection reliability without cabinet modification.
- Mark V Turbine Auxiliary Signal Interface: Manage auxiliary analog and digital wiring for turbine auxiliary control loops.
- Drive System Retrofit Project: Used in cabinet reconstruction work to reorganize wiring layout and improve system maintainability.
Product Value & Market Competitiveness
The GE 531X307LTBAFG1 addresses common weak points of ordinary terminal boards. These weaknesses include poor vibration resistance, insufficient surge protection and unclear pin marking. It combines multi-channel signal termination, transient voltage protection and high-reliability screw terminals. It stabilizes the wiring interface of adjustable speed drive systems.
In the global industrial spare parts e-commerce market, this terminal board holds distinct competitive advantages. It maintains native compatibility with GE drives. It comes with conformal coating and integrated surge suppression. Together with transparent inspection records and flexible ordering options, it becomes the preferred spare part for drive cabinet maintenance and industrial control system renovation.
