Description
- Model: 3500/32M 149986-02
- Brand: Bently Nevada (Baker Hughes)
- Series: 3500 High-Precision Machinery Protection System Series
- Core Function: Provides relay output for machinery alarm and safety trip protection
- Type: 4-Channel Relay Output Module
- Key Specs: 4 independent relay channels, configurable logic, failsafe operation mode
- Supply Status: In stock
- Stock: Available
- Warranty: 1 year
- Ship From: China
Bently Nevada 3500/32M 149986-02
Product System Overview
The Bently Nevada 3500/32M 149986-02 is a compact high-performance relay output module designed for the industry-standard 3500 machinery protection system developed by Baker Hughes. As a core signal output component of the TSI (Turbine Supervisory Instrumentation) system, it works in coordination with vibration monitoring cards, power supply units and communication modules to build a complete API 670-compliant industrial machinery safety monitoring solution. This module is responsible for converting internal system digital fault judgment signals into physical relay contact outputs, realizing on-site alarm indication and external equipment interlock control. It features excellent compatibility with all 3500 series rack devices and supports seamless data linkage with System 1 diagnostic software, DCS and SCADA industrial control platforms. After long-term verification in global energy and process industries, it has become a standard matching component for system debugging, daily maintenance and old module replacement projects.

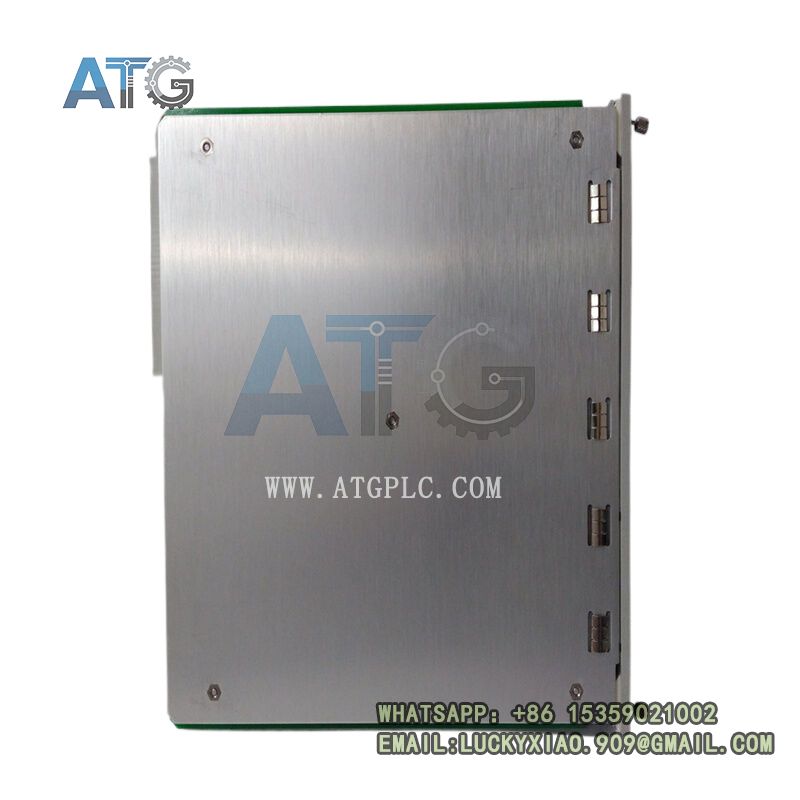

Bently Nevada 3500/32M 149986-02
Core Product Functions
This professional relay module undertakes key safety output and status feedback tasks for industrial rotating machinery monitoring systems. Equipped with four fully independent programmable relay channels, it supports flexible configuration of alarm voting logic such as AND and OR judgment rules, adapting to diversified safety protection standards of different production equipment. When the system detects abnormal operating conditions including excessive vibration, shaft displacement deviation and equipment overspeed, the module quickly responds and triggers corresponding relay switch actions to output early warning or trip control signals. It supports graded safety management, distinguishing ordinary alarm prompts and dangerous shutdown commands to achieve hierarchical risk prevention. In addition, it synchronizes real-time channel operating status and fault records to upper industrial control systems, providing reliable signal basis for equipment fault isolation, safety interlock and intelligent predictive maintenance management.

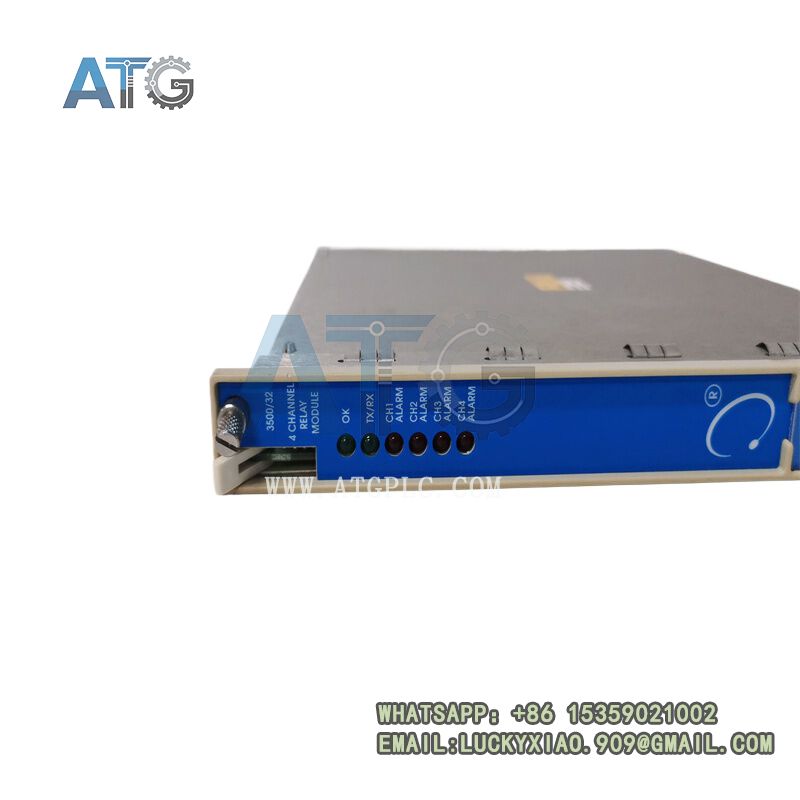

Bently Nevada 3500/32M 149986-02
Product Features & Technical Advantages
The 3500/32M 149986-02 module features high operational reliability, flexible configurability and outstanding industrial environmental adaptability, meeting strict safety control requirements of heavy industrial sites. Adopting advanced failsafe circuit design, it automatically switches to a safe working state during power failure or system anomalies, effectively preventing equipment misoperation and accidental start-stop risks. The four channels operate independently without mutual signal interference, supporting free combination of multi-channel logic to meet complex on-site control demands. The industrial-grade relay core delivers stable switch action performance, long mechanical service life and ultra-low failure rate, adapting to 24-hour uninterrupted industrial operation. Built-in intelligent self-diagnosis function automatically identifies channel faults and circuit abnormalities, greatly improving troubleshooting efficiency. The standardized rack-mounted plug-and-play structure simplifies on-site installation and replacement processes, effectively reducing equipment downtime and overall system maintenance costs.
Bently Nevada 3500/32M 149986-02
Industrial Application Scenarios
This high-stability relay output module is widely deployed in key industrial scenarios equipped with Bently Nevada 3500 machinery protection systems. It mainly serves core production facilities in thermal power plants, combined cycle power stations, petrochemical refining bases, oil and gas compression stations and large metallurgical enterprises. It provides accurate alarm output and safety trip protection for critical rotating equipment such as steam turbines, gas turbines, centrifugal compressors and high-speed industrial blowers. As an essential safety output unit of the 3500 TSI system, it ensures timely fault response and effective risk isolation, avoids unplanned production shutdown losses, and guarantees long-term safe and stable operation of industrial core production equipment.
