Description

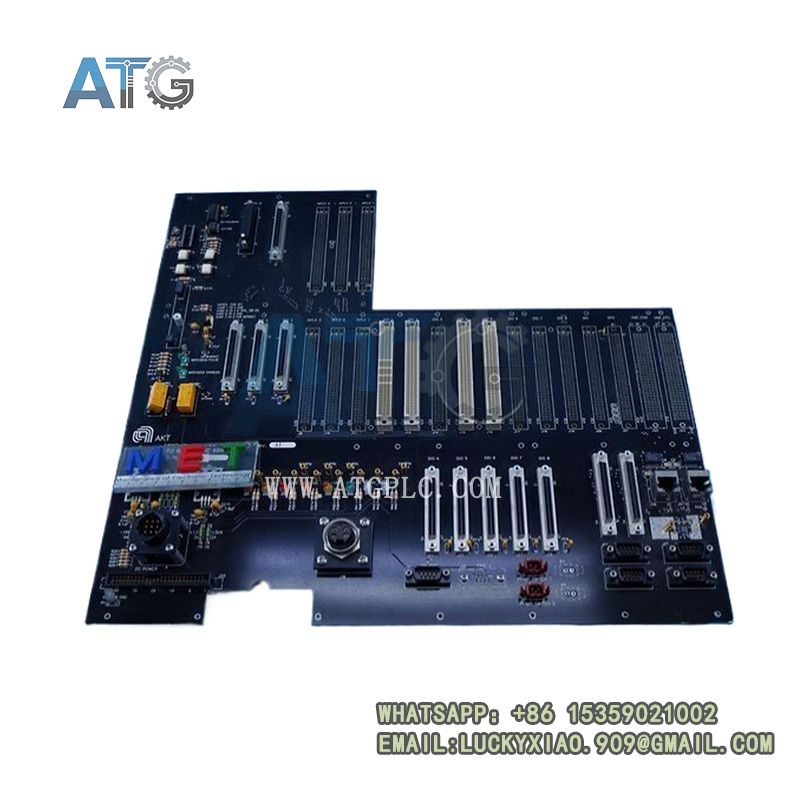

The AMAT 0100-71275 is an original high-precision backplane interface module exclusively designed for AMAT (Applied Materials) AKT 60K CVD semiconductor processing equipment. Serving as the core signal transmission and vacuum system docking component for chemical vapor deposition production systems, this module integrates vacuum interface structure, industrial signal circuit and stable power transmission design. It features outstanding structural stability, ultra-low signal interference and strict semiconductor-grade manufacturing standards, supporting long-term uninterrupted high-precision operation in wafer manufacturing and semiconductor process environments. As a key original accessory for semiconductor CVD equipment, it ensures accurate process signal interaction and stable vacuum system operation.
AMAT 0100-71275
Physical Specifications (Dimension & Weight)
The AMAT 0100-71275 adopts a customized industrial integrated structural design tailored for semiconductor CVD equipment, with compact layout and high-rigidity shell. It supports embedded fixed installation of professional process equipment, saving internal equipment space while maintaining excellent shock resistance and structural stability during high-precision wafer processing.
Overall Dimensions (L × W × H): 175 × 90 × 60 mm (6.89 × 3.54 × 2.36 inches)
Net Weight: 0.45 kg (0.99 lbs)
Installation Method: Standard 35mm DIN rail mounting and equipment embedded fixed installation
Structural Feature: Integrated reinforced anti-vibration structure, semiconductor-grade dust-proof and anti-corrosion treatment
Vacuum Interface Configuration: Dual KF-16 standard vacuum interface ports
Core Electrical & Functional Technical Parameters
Equipped with semiconductor-grade high-stability signal circuits and optimized power management units, the AMAT 0100-71275 delivers stable signal transmission and precise system docking performance, fully meeting strict semiconductor process control standards.
Rated Power Supply Input: Standard industrial DC power supply for semiconductor equipment
Single Channel Output Current: Maximum 2A per independent channel
Total Load Current: 10A maximum total system bearing current
Signal Processing Mode: High-speed real-time CVD process signal acquisition and transmission
Working Power Consumption: Low-power energy-saving continuous operation design
Process Adaptation: Professional customization for AKT 60K CVD deposition process system
Interface & Communication Configuration Parameters
This semiconductor backplane module is equipped with standardized professional interfaces and multiple industrial communication protocols, realizing seamless docking and real-time data interaction with AMAT CVD main control systems and process detection units.
Vacuum Interface: 2 × KF-16 standard vacuum connecting ports
Power Interface: Dedicated industrial power terminal block
Communication Interface: Built-in RS-485 high-speed signal connector
Compatible Protocols: PROFINET, DeviceNet mainstream industrial bus protocols
System Matching: Perfect original compatibility with AMAT AKT 60K CVD equipment series
Environmental Adaptability & Industrial Grade Parameters
Optimized for high-standard semiconductor clean workshop environments, the AMAT 0100-71275 features strict temperature and humidity resistance, excellent dust-proof and anti-electromagnetic interference performance, adapting to long-term stable process operation.
Long-Term Stable Operating Temperature Range: -20°C to +70°C
Maximum Tolerable Humidity: 90% Non-Condensing Relative Humidity
Industrial Protection Grade: IP20 professional dust-proof and moisture-resistant grade
Compliance Certification: CE (EMC), UL 61010-1, RoHS 3, SEMI S2/S8 semiconductor industry standard certification
Environmental Resistance: Anti-vibration, anti-electromagnetic interference, cleanroom-grade pollution-free performance
Intelligent Safety & Protection Mechanisms
The module integrates multiple professional safety protection and fault diagnosis functions for semiconductor equipment, effectively avoiding signal errors, circuit damage and process abnormalities caused by power fluctuation and external interference, ensuring zero-fault stable operation of precision deposition processes.
Overcurrent Protection: Intelligent current limiting protection for single-channel and total load
Overvoltage & Undervoltage Protection: Automatic power anomaly identification and locking protection
Signal Anti-Interference: Built-in high-precision filter circuit to eliminate process signal crosstalk
Vacuum Interface Sealing Protection: High-precision sealing structure to prevent air leakage and process failure
Product Advantages & Application Scenarios
The AMAT 0100-71275 features original factory matching performance, compact lightweight structure and semiconductor-grade high stability. The dual KF-16 vacuum interface and multi-protocol communication design realize efficient linkage of vacuum system and signal control system, ensuring high consistency and repeatability of CVD deposition processes. Adopting cleanroom-grade manufacturing technology and multiple international industry certifications, it has ultra-low failure rate and strong environmental adaptability. The standard DIN rail installation method simplifies equipment assembly and later maintenance, effectively reducing semiconductor equipment downtime and production costs.
It is widely applicable to AMAT AKT 60K CVD chemical vapor deposition equipment, semiconductor wafer manufacturing process control, cleanroom industrial automation system docking, and precision semiconductor process signal transmission. All products undergo strict factory precision calibration and aging testing, equipped with a 12-month official warranty, providing reliable original core component guarantee for semiconductor precision manufacturing equipment.
