Description
- Model: HC800
- Brand: ABB
- Series: ABB Symphony Plus HPC800 Control Series
- Core Function: Execute high-speed logic and process control for DCS systems
- Type: Control Processor Module / Central Processing Unit
- Key Specs: 24VDC power, 30000 function blocks, Modbus TCP protocol
- Supply Status: In Stock
- Stock: Available
- Warranty: 12 months
- Ship From: China

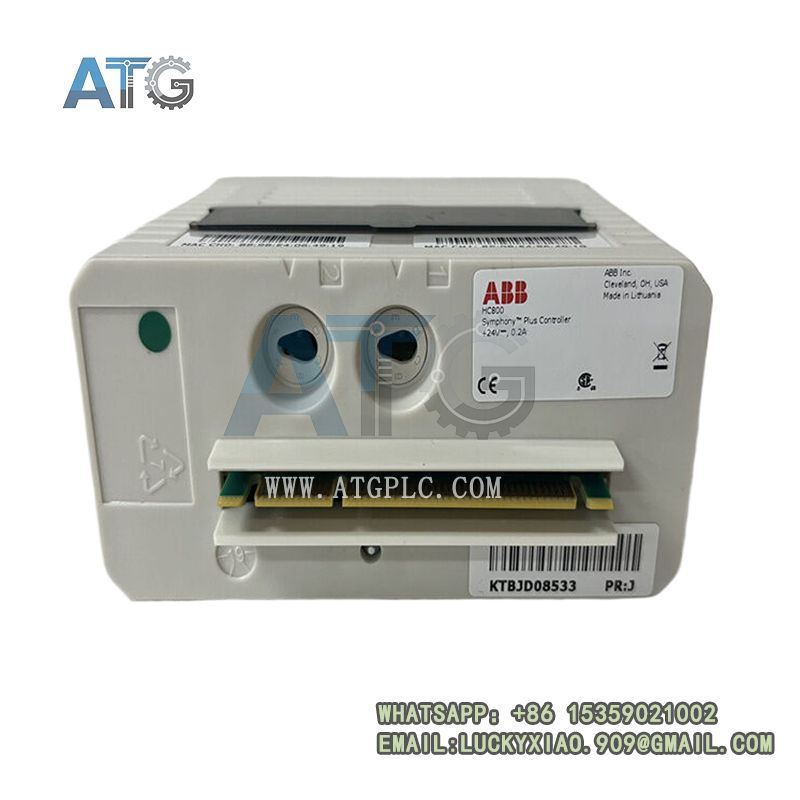

ABB HC800
Product System Introduction
The ABB HC800 is a high-performance core control processor module serving the ABB Symphony Plus HPC800 distributed control system, acting as the central computing and scheduling core of the entire industrial automation platform. Developed for large-scale process industrial control scenarios, this processor module adopts advanced embedded industrial control architecture and modular design concepts, perfectly matching Symphony Plus series I/O modules, communication cards, power units and human-machine interaction equipment. It can independently undertake complex system logic operation and process regulation tasks, and supports redundant configuration to build high-fault-tolerance control systems. Widely applied in power generation, petrochemical, pulp and paper, metallurgy and other continuous production industries, it provides stable, efficient and reliable core computing support for large-scale industrial DCS system operation.
Product Functions
As the core processing unit of the HPC800 control system, the ABB HC800 undertakes comprehensive industrial control and data processing tasks with powerful operational capabilities. It supports up to 30,000 function blocks for flexible programming configuration, covering diverse control demands such as continuous process regulation, discrete logic control, batch production scheduling and safety interlock protection. With an ultra-fast response speed within 250ms, it can efficiently process loop control of more than 5000 I/O points, realizing real-time collection, analysis and logical judgment of field analog and digital signals. It supports standard Modbus TCP industrial Ethernet communication protocol, enabling high-speed data interaction with upper monitoring systems, HMI terminals and third-party automation equipment. In addition, it integrates complete system self-diagnosis, operation log recording and fault alarm functions, automatically monitoring module operating status and link abnormalities, facilitating engineers’ daily system maintenance, program debugging and rapid fault troubleshooting, and ensuring uninterrupted and stable operation of industrial control processes.

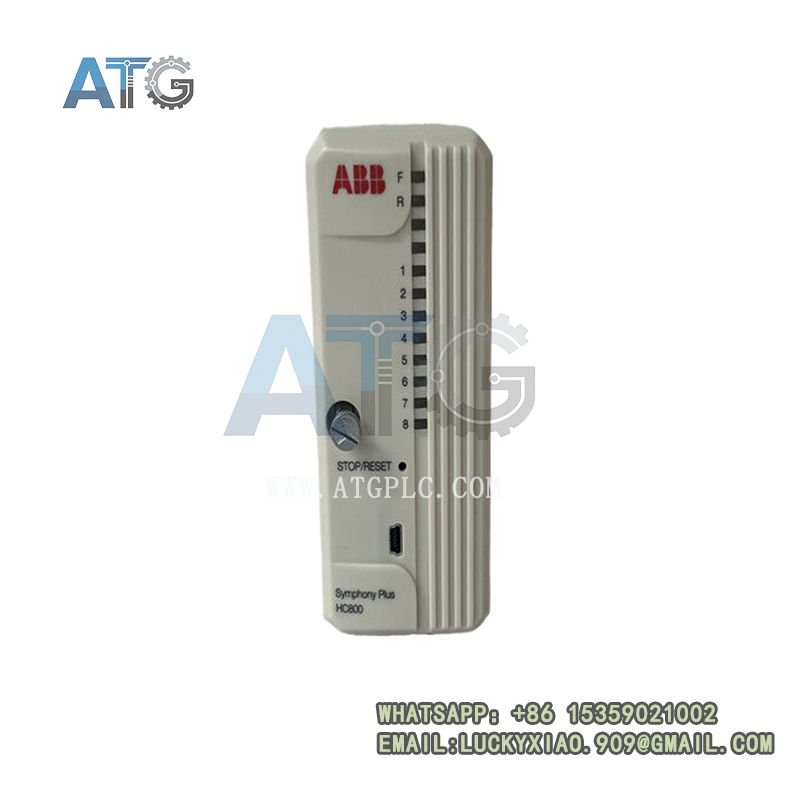

ABB HC800
Product Features
ABB HC800 control processor boasts outstanding operational performance, extreme industrial reliability and excellent system scalability, fully adapting to harsh and complex industrial operating environments. Equipped with 64MB DRAM, 4MB ROM and 2MB NVRAM high-capacity storage configuration, it ensures smooth operation of complex multi-task programs and stable data storage during power failure. The ultra-fast system response capability effectively reduces control delay and improves the precision and stability of industrial process regulation. Adopting industrial-grade anti-interference circuit design and rugged sealed structure, it resists strong electromagnetic interference, temperature fluctuation and vibration impact on industrial sites, maintaining long-term stable operation. It supports redundant backup operation, effectively avoiding single-point system failure and greatly improving the overall safety and continuity of production control. Featuring standardized modular installation, it supports quick assembly and replacement, with low maintenance cost and long service life. Meanwhile, it has strong compatibility and expandability, suitable for new DCS system construction and old Symphony Plus system renovation and upgrade projects.
Compatible & Recommended Products
To build a complete and high-stability ABB Symphony Plus HPC800 control system, we recommend matched supporting products: ABB series industrial analog and digital I/O modules, Modbus TCP communication adapter card and dedicated redundant power supply module. These compatible accessories achieve seamless hardware docking and efficient data synchronization with HC800, effectively optimizing system operation efficiency, enhancing control accuracy, and ensuring long-term reliable operation of the entire distributed control system.
