Description
Model: PM633 3BSE008062R1
Brand: ABB
Series: ABB Advant Controller 110 Processor Series
Core Function: Executes core logic and data processing for industrial DCS systems
Type: DCS Processor CPU Module
Key Specs: 25MHz main frequency, 24VDC power supply, multi-bus protocol support
Supply Status: In stock
Stock: Available
Warranty: 1 year
Ship From: China

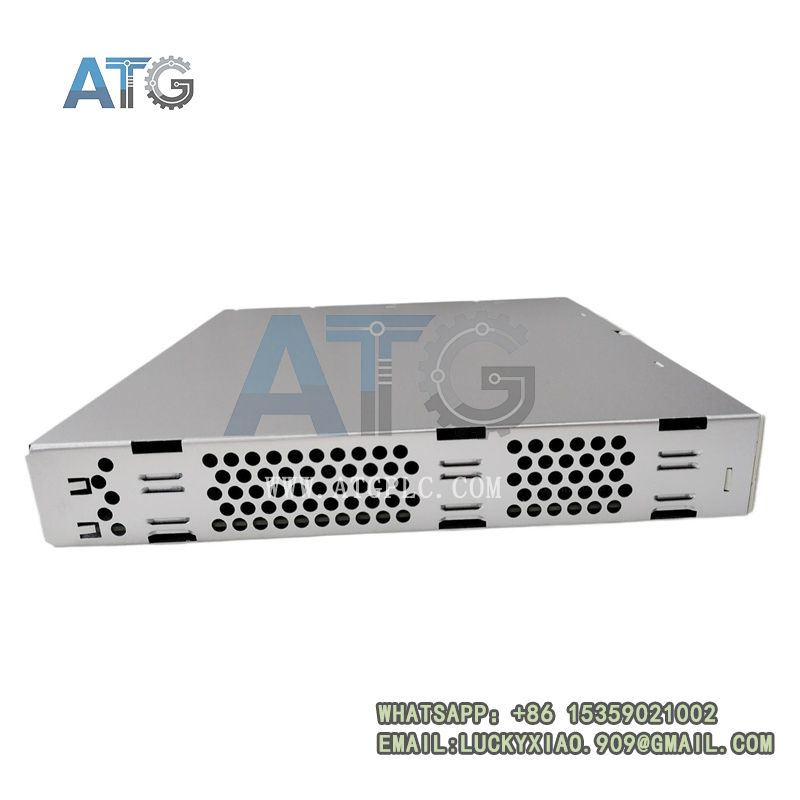

ABB PM633 3BSE008062R1
Product System Integration Overview
The ABB PM633 3BSE008062R1 is a compact and high-stability CPU processor module developed for ABB Advant Controller 110 distributed control systems. As the core computing and scheduling unit of small and medium-sized industrial DCS architectures, it undertakes full program operation, field data analysis and system linkage control tasks. This module features native compatibility with Advant Controller 110 system racks, matched I/O modules and upper monitoring platforms, supporting rapid system assembly and equipment replacement. Built with mature MC68340 industrial chip architecture, it adapts to long-term stable operation in conventional process industrial environments. It is widely applied in traditional DCS system renovation, old automation equipment upgrading and industrial control CPU module replacement and maintenance projects.
Detailed Product Functionalities
This industrial DCS processor module integrates core program operation, field data processing, protocol communication and system self-diagnosis functions to support stable operation of distributed control systems. Driven by a 25MHz high-efficiency main control chip, it stably executes user-programmed automation logic, including process sequence control, PID regulation and equipment interlock protection. It supports real-time collection and sorting of field I/O signal data, realizing accurate data analysis and control command output to ensure consistent production process operation. Compatible with multiple mainstream industrial bus protocols, it achieves stable data interaction between field equipment and upper monitoring systems. Equipped with built-in data retention and system self-check functions, it can automatically record operating logs and fault information, effectively assisting on-site debugging and post-fault maintenance analysis.

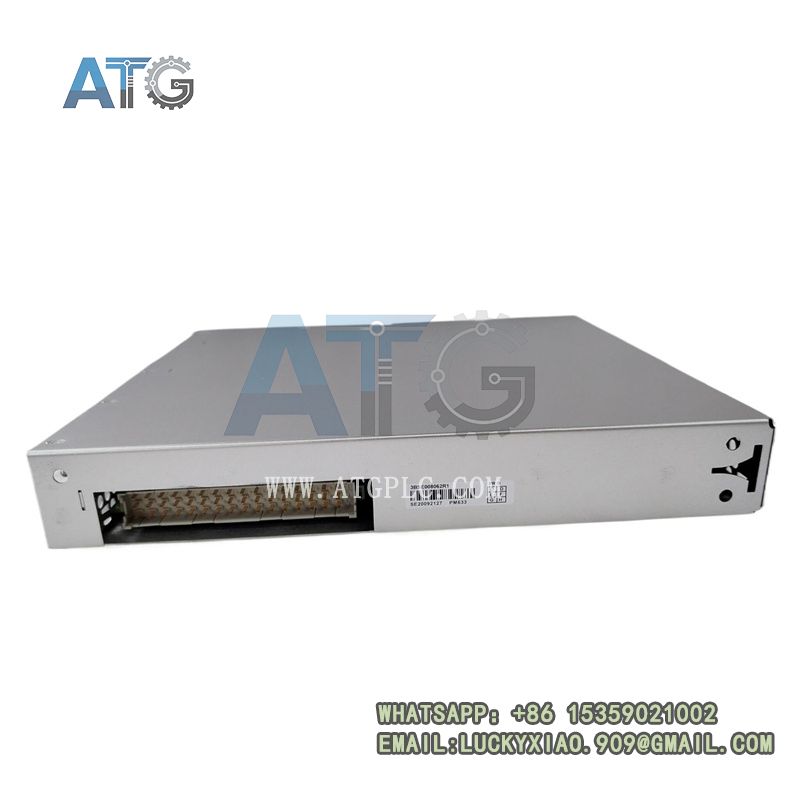

ABB PM633 3BSE008062R1
Product Features & Technical Strengths
The ABB PM633 processor module stands out with mature industrial chip solution, stable operational performance and strong environmental adaptability, fully meeting long-term industrial control operation requirements. Adopting classic industrial-grade processing core, it delivers stable computing capability with low failure rate, avoiding program crash and logic disorder caused by unstable operation. The optimized low-power circuit design ensures low heat generation during long-term continuous operation, reducing equipment aging speed. It supports a wide temperature working range from -20°C to +70°C, adapting to complex temperature changes in industrial workshops. The standardized modular structure supports plug-and-play installation and quick replacement, greatly simplifying system maintenance and shortening equipment downtime. In addition, excellent electromagnetic anti-interference performance enables it to operate stably in complex industrial electromagnetic environments.
Industrial Application Scenarios
This high-reliability DCS CPU module is widely applicable to small and medium-sized process industrial automation control scenarios. It is mainly deployed in industrial water treatment control systems, municipal environmental protection automation projects, small chemical process production lines, factory auxiliary equipment control systems and traditional industrial upgrading and reconstruction projects. As the core control component of the ABB Advant Controller 110 series, it provides stable and reliable computing and logic support for distributed control systems, ensuring safe, stable and efficient automatic operation of industrial production equipment.
ABB PM633 3BSE008062R1
