ABB IMHSS03 Servo control module

Description

Product Overview

The ABB IMHSS03 is a high-performance integrated hydraulic servo control module developed for ABB INFI90 and Harmony distributed control systems. As a core intelligent I/O and precision motion control unit, it specializes in closed-loop regulation of hydraulic servo valves, hydraulic cylinders and hydraulic motor actuators. It integrates multi-channel analog signal acquisition, high-precision servo algorithm operation, signal output driving and system bus data interaction functions in a single modular unit, realizing full-automatic and high-precision dynamic control of industrial hydraulic systems.

Designed for heavy-duty industrial precision control scenarios, the IMHSS03 perfectly matches NTHS03 dedicated termination units and is fully compatible with ABB IMMFP series multi-function processor cards. Adopting 12-bit high-resolution sampling technology and advanced hydraulic servo closed-loop control algorithm, it features ultra-high control accuracy, fast dynamic response and strong operational stability. It effectively solves the problems of slow response, low precision and poor anti-interference of traditional discrete hydraulic control units. Undergoing strict factory aging tests, industrial vibration impact verification and standardized batch production, it is widely used for new hydraulic control system construction, old industrial equipment renovation, faulty module replacement and batch engineering supporting procurement, fully adapting to standardized and high-efficiency procurement demands of the global industrial e-commerce market.

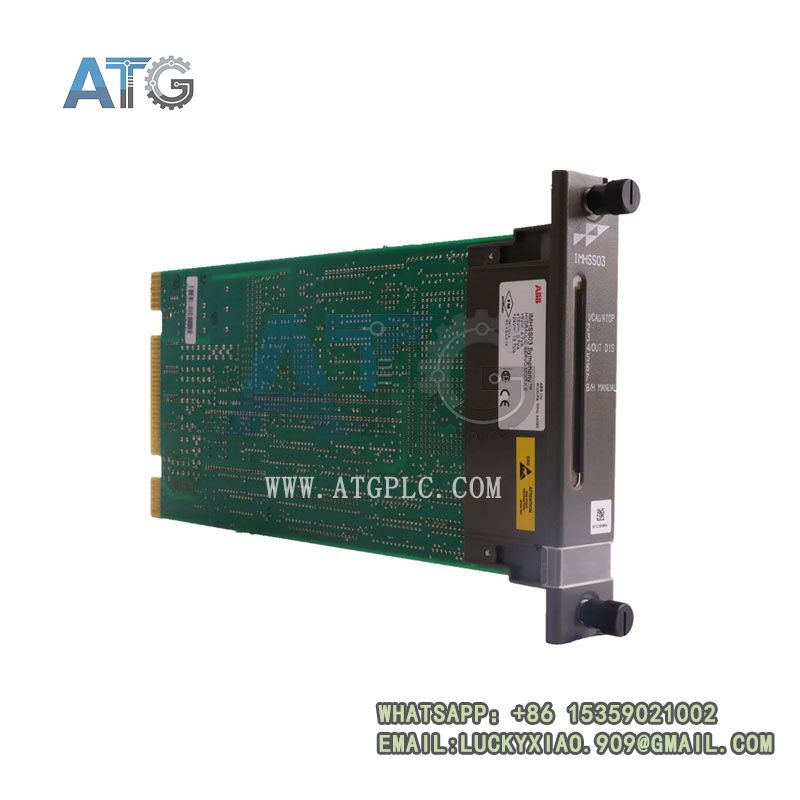

ABB IMHSS03

Core Product Features & Competitive Advantages

Different from ordinary industrial analog control modules and discrete hydraulic control accessories, the ABB IMHSS03 integrated hydraulic servo module has prominent comprehensive advantages in control precision, response speed, signal integration and system compatibility. It provides stable and reliable precision control guarantee for heavy industrial hydraulic automation equipment, and its core competitive advantages are summarized as follows:

• High-Precision Closed-Loop Servo Control: Equipped with 12-bit high-resolution analog sampling and dedicated hydraulic servo control algorithm, achieving control accuracy up to ±0.05%FS. It realizes ultra-fine adjustment of hydraulic pressure, flow and displacement, meeting ultra-high precision control requirements of precision manufacturing, heavy machinery and process industry hydraulic systems.
• Multi-Channel Integrated I/O Resource: Integrates 4 analog input channels (including 2 LVDT secondary signal inputs), 9 analog output channels, 3 digital input channels and 1 digital output channel. The highly integrated I/O design simplifies on-site hydraulic system wiring, reduces external auxiliary module configuration and system failure points, and improves overall system integration and stability.
• Ultra-Fast Dynamic Response Performance: Supports up to 500Hz high-frequency response, realizing real-time tracking and rapid adjustment of hydraulic system dynamic changes. It effectively eliminates hydraulic system hysteresis and jitter, ensuring smooth and accurate operation of high-speed hydraulic actuators.
• Perfect DCS System Compatibility: Exclusively developed for ABB INFI90 and Harmony DCS systems, perfectly matching IMMFP01/02/03 series main processors and NTHS03 termination units. It supports seamless bus docking and protocol adaptation, plug-and-play without complex program debugging, ensuring zero error system matching and stable data interaction.
• Diversified Industrial Signal Adaptation: Compatible with standard industrial 0-10V voltage signals and 4-20mA current signals, supporting LVDT displacement sensor signal access. It adapts to mainstream industrial hydraulic sensor and servo valve signal specifications, with wide application flexibility and strong equipment compatibility.
• Industrial-Grade Harsh Environment Resistance: Adopts high-quality industrial-grade components and optimized circuit isolation design, with excellent dust-proof, moisture-proof and electromagnetic interference resistance. It can operate stably in heavy industrial environments such as high vibration, high temperature and strong electromagnetic clutter, adapting to long-term continuous working conditions of heavy machinery and process industrial equipment.
• Intelligent Operation Diagnosis & High Reliability: Built-in system self-diagnosis and signal monitoring function, supporting real-time detection of signal abnormality, module operation status and circuit faults. It features ultra-long service life with MTBF exceeding 10,000 hours, greatly reducing equipment failure rate and enterprise maintenance costs.
• Compact Modular Design & Easy Maintenance: Adopts lightweight integrated modular structure with standardized installation size. It supports fast disassembly, replacement and on-site debugging, with simple wiring and intuitive status judgment, effectively reducing on-site operation and maintenance technical thresholds and downtime losses.

Detailed Technical Specifications (Key Highlight Parameters)

All technical parameters of ABB IMHSS03 strictly comply with ABB original factory industrial control standards and international hydraulic servo system specifications. With high-precision control performance, multi-channel integrated configuration and industrial-grade reliability, it fully meets the technical requirements of heavy industrial hydraulic system construction, intelligent upgrading, faulty module replacement and batch standardized procurement. The classified detailed parameters are as follows:

3.1 Basic Product Identification & Classification

• Official Model: IMHSS03
• Product Type: Integrated Hydraulic Servo Control I/O Module
• Applicable System: ABB INFI90, Harmony Distributed Control System
• Matching Devices: IMMFP01/IMMFP02/IMMFP03 Processors, NTHS03 Termination Unit
• Core Function: Hydraulic system signal acquisition, servo closed-loop control, multi-channel signal conversion, bus data transmission, equipment status monitoring
• Applicable Scenarios: Heavy industry, metallurgy, petrochemical, mechanical manufacturing and process industrial hydraulic precision control systems
• Executive Standards: Industrial DCS system standard, hydraulic servo control industry specification, IEC electromagnetic compatibility standard

3.2 Core I/O & Control Performance Parameters

• Analog Input Channels: 4 channels (including 2 dedicated LVDT secondary signal inputs)
• Analog Output Channels: 9 high-precision analog output channels
• Digital Input Channels: 3 isolated digital signal input channels
• Digital Output Channels: 1 digital control signal output channel
• Sampling Resolution: 12-bit high-precision AD conversion resolution
• Control Accuracy: ±0.05%FS full-scale ultra-high precision control
• Response Frequency: 500Hz high-frequency dynamic response capability
• Supported Signal Types: 0-10V voltage signal, 4-20mA current signal, LVDT displacement signal

3.3 Electrical Performance Parameters

• Rated Working Power Supply: 24VDC industrial standard power supply
• Maximum Working Current: 3A peak operating current
• Output Power: 120W stable rated output power
• Built-In Protection Mechanism: Overvoltage, overcurrent, surge and short-circuit protection, effectively preventing module burnout caused by abnormal field signals and power supply fluctuation
• Signal Isolation Performance: Independent channel electrical isolation design, no signal crosstalk, strong common-mode interference suppression capability

3.4 Hydraulic System Adaptation Parameters

• Adaptable Working Pressure: Maximum 200bar industrial hydraulic system pressure
• Control Mode: Analog closed-loop servo regulation + pulse signal precise control dual mode
• Controlled Objects: Hydraulic servo valves, hydraulic cylinders, hydraulic motors and other hydraulic actuators
• System Regulation Performance: Fast dynamic tracking, stable static regulation, no jitter and no hysteresis

3.5 Environmental & Mechanical Parameters

• Operating Temperature Range: -20℃ ~ +70℃ ultra-wide industrial working temperature
• Storage Temperature Range: -40℃ ~ +85℃ long-term storage temperature tolerance
• Working Humidity: 5% ~ 95% non-condensing humidity environment
• Cooling Method: Natural convection heat dissipation, no auxiliary fan required
• Protection Grade: Industrial dust-proof and anti-corrosion grade, adapting to workshop harsh environment
• Product Dimensions: 100mm × 60mm × 30mm compact modular size
• Product Net Weight: Approximately 0.5kg lightweight design
• Installation Method: Standard cabinet embedded modular installation, convenient for system layout and maintenance

3.6 Reliability & Certification Parameters

• Industrial Certifications: CE safety certification, ABB original factory quality certification, industrial EMC electromagnetic compatibility certification
• Environmental Certification: RoHS environmental protection compliance certification
• Mean Time Between Failures (MTBF): >10,000 hours ultra-high operational reliability
• Continuous Operation: Support 7×24 hours long-term uninterrupted stable operation of industrial hydraulic control systems
• Quality Stability: Standardized batch production, consistent performance, low failure rate and long service life

ABB IMHSS03

E-commerce Sales Mode & Procurement Advantages

As a standardized core hydraulic servo control module for ABB INFI90 and Harmony DCS systems, the ABB IMHSS03 adopts a mature, transparent and standardized industrial e-commerce sales system. It supports global online inquiry, spot retail procurement, batch wholesale and engineering customized supporting services, providing one-stop reliable procurement solutions for DCS system integrators, heavy industrial manufacturing enterprises, hydraulic equipment maintenance companies and engineering project contractors. All products are 100% original factory genuine with unified technical specifications, transparent pricing mechanism and full-cycle after-sales guarantee, effectively reducing enterprise procurement risks and comprehensive operational costs.

4.1 Standardized Transparent Online Sales System

This product implements unified global official technical parameters, standard industrial anti-vibration, dust-proof and moisture-proof professional packaging, and consistent global warranty policies. E-commerce platforms provide complete open resources including official datasheets, detailed parameter manuals, qualification certification documents, installation wiring diagrams and hydraulic system configuration cases. The unified standard model supports official factory authenticity verification and full lifecycle traceability. It completely avoids refurbished, disassembled and counterfeit products, ensuring 100% model matching and control performance compliance for industrial hydraulic servo control systems.

4.2 Diversified Flexible Procurement Modes

• Single & Small-Batch Spot Retail: Support single-piece and small-quantity spot ordering, applicable to daily industrial hydraulic equipment maintenance, faulty servo module replacement, hydraulic system debugging and old production line renovation projects. Sufficient spot inventory ensures short delivery cycle and fast on-site equipment recovery and system commissioning.
• Bulk Wholesale & Framework Cooperation: Provide hierarchical preferential pricing and customized supply schemes for bulk orders from large industrial groups and engineering integration companies. Support long-term framework agreement cooperation, fixed-point stocking and stable batch supply, significantly reducing long-term batch procurement costs for enterprise DCS and hydraulic system spare parts.
• Engineering Customized Supporting Service: Provide professional model selection verification, DCS system matching and hydraulic control scheme consultation according to customers’ industrial automation system construction, hydraulic equipment intelligent upgrading and old system renovation projects, realizing one-stop supporting procurement of modules, NTHS03 termination units and matching DCS accessories.

4.3 Full-Cycle E-commerce Value-Added Services

• 100% Original Genuine Guarantee: All supplied products are original ABB factory genuine modules with complete factory test reports and qualification certificates, ensuring zero system matching error and zero control failure risk for industrial hydraulic servo control systems.
• Professional Industrial Logistics Protection: Adopt dedicated industrial anti-vibration, shockproof and moisture-proof customized packaging for precision control modules, support global multi-warehouse delivery, effectively preventing circuit board damage and performance attenuation during long-distance transportation and handling.
• 24/7 Professional Online Technical Support: Provide pre-purchase model matching verification and hydraulic scheme consultation, mid-purchase installation guidance and servo parameter configuration tutorials, and post-purchase fault diagnosis, loop debugging and system optimization full-process technical services.
• Complete Official After-Sales Warranty: Enjoy unified global ABB official warranty service, support online after-sales application, quality problem replacement and professional technical maintenance guidance, reducing enterprise hydraulic control system failure downtime losses and long-term maintenance costs.

Main Industrial Application Scenarios

Benefiting from its high-precision servo control performance, multi-signal integration capability and ultra-high operational stability, the ABB module is widely applied in core precision control links of industrial hydraulic automation systems, covering key industrial fields as follows:

• Metallurgy & Steel Industry: Precision control of rolling mill hydraulic systems, pressing equipment and lifting hydraulic actuators, ensuring stable and high-precision operation of heavy metallurgical production equipment and improving product processing accuracy.
• Petrochemical & Process Industry: Hydraulic valve regulation and pipeline pressure control for petrochemical production equipment, adapting to 24-hour continuous and stable production requirements, avoiding production fluctuation caused by hydraulic system control deviation.
• Heavy Machinery Manufacturing: Servo control of large stamping, forging and forming machinery hydraulic systems, realizing precise displacement and pressure regulation of mechanical actuators, improving production consistency and product qualification rate.
• Electric Power Industry: Hydraulic system control and status monitoring of power station auxiliary equipment and generating unit regulating devices, ensuring safe and stable operation of power system hydraulic equipment.
• Intelligent Industrial Upgrading: Renovation and precision upgrading of old industrial hydraulic control systems, replacing traditional discrete control units, improving the intelligence level, control accuracy and operational stability of industrial hydraulic systems.

Product Value & Market Competitiveness

The ABB integrated hydraulic servo control module breaks the functional limitations of traditional discrete hydraulic control accessories. Its highly integrated multi-I/O design simplifies system structure and reduces engineering costs, while the ±0.05%FS ultra-high precision control and 500Hz high-frequency response performance effectively improve the dynamic control accuracy and stability of industrial hydraulic systems, solving the common pain points of slow response and low precision of traditional hydraulic control systems.

In the global industrial e-commerce market, this ABB original INFI90/Harmony series core module features mature and stable servo control algorithm, reliable batch quality consistency and a large number of global heavy industrial engineering application cases. Its exclusive DCS system matching performance, strong harsh environment adaptability and ultra-high operational reliability make it irreplaceable in industrial hydraulic system construction, equipment upgrading and fault maintenance projects. With strict genuine guarantee, comprehensive after-sales service system and low comprehensive operation and maintenance cost, it has become the preferred high-precision hydraulic servo control module for global industrial DCS supporting and hydraulic system intelligent upgrading.
