ABB CI854AK01 3BSE030220R1 PROFIBUS-DP/V1 communication interface module

Description

Product Overview

The ABB CI854AK01, with exclusive factory part number 3BSE030220R1, is a high-performance dual-channel PROFIBUS‑DP/V1 communication interface module designed for ABB AC 800M series controllers and 800xA distributed control systems. As a core industrial bus gateway component, it acts as a critical data bridge between the controller’s internal CEX bus and external PROFIBUS field bus networks, enabling high-speed, stable and bidirectional data interaction between master controllers, remote distributed I/O units and third-party PROFIBUS slave devices. This module is supplied as a complete assembly kit including the CI854A main communication board and dedicated TP854 baseplate, ensuring standardized installation and seamless system docking.

Adopting industrial RS‑485 differential transmission technology and galvanic isolation design, the CI854AK01 3BSE030220R1 supports both line redundancy and module redundancy architectures, perfectly solving single-point failure risks of traditional single-channel communication modules. It fully complies with IEC 61158 international industrial bus standards, supporting PROFIBUS DP‑V0 and DP‑V1 dual-protocol operation, covering cyclic real-time data transmission and acyclic parameter diagnosis functions. With ultra-fast 12 Mbps maximum baud rate, wide industrial environmental adaptability and hot-swap support, it undergoes strict factory aging testing and standardized batch production. Widely adopted in new DCS project construction, old automation system renovation, faulty communication module replacement and batch engineering supporting procurement, it fully meets standardized and high-efficiency procurement demands of the global industrial e-commerce market.

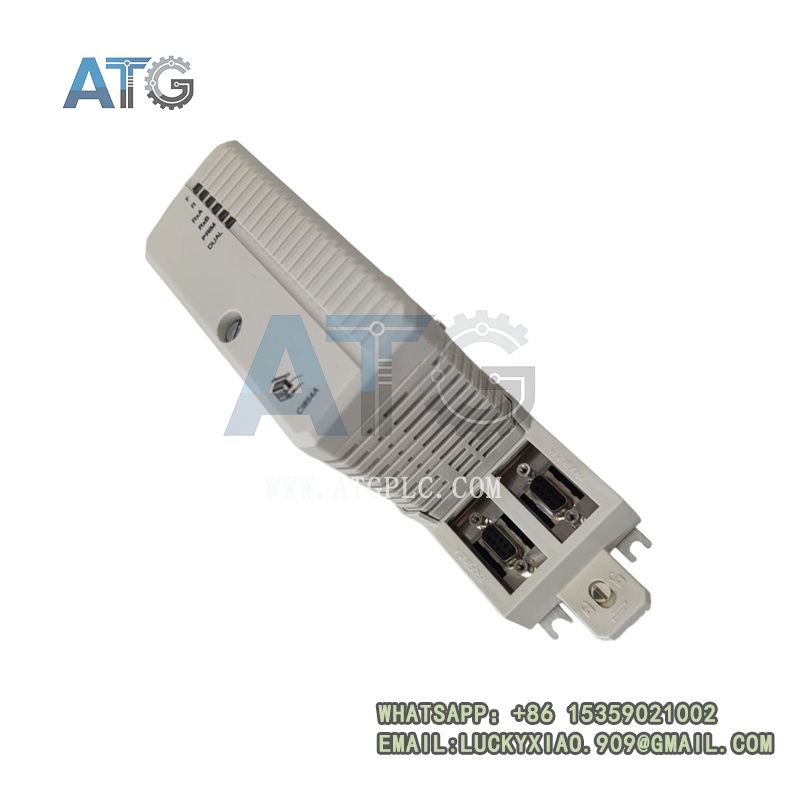

ABB CI854AK01 3BSE030220R1

Core Product Features & Competitive Advantages

Different from ordinary single-channel industrial communication modules, the ABB CI854AK01 (3BSE030220R1) redundant PROFIBUS interface module has outstanding advantages in communication reliability, transmission efficiency, system compatibility and fault tolerance capability. It provides industrial-grade stable bus communication guarantee for high-reliability automated production lines, and its core competitive advantages are summarized as follows:

• Dual-Channel Redundant Communication Architecture: Equipped with two independent galvanically isolated PROFIBUS channels, supporting both bus line redundancy and module redundancy configuration. It realizes seamless communication switching in case of single-channel line failure or module abnormality, completely eliminating production shutdown risks caused by bus communication interruption and significantly improving system operational reliability.
• Ultra-High-Speed PROFIBUS Transmission Performance: Supports adjustable baud rates from 9.6 kbps up to 12 Mbps maximum high-speed transmission, adapting to different industrial bus distance and real-time control requirements. It ensures low-latency cyclic data refresh and fast response of field equipment signals, fully meeting high-precision and high-dynamic industrial process control demands.
• Dual DP‑V0/DP‑V1 Protocol Compatibility: Fully compatible with PROFIBUS DP‑V0 and DP‑V1 standard protocols. DP‑V0 realizes high-frequency cyclic I/O data transmission for real-time equipment control; DP‑V1 supports acyclic parameter reading, remote diagnosis and equipment maintenance, integrating control and monitoring functions in one module.
• Industrial-Grade Isolation & Anti-Interference Capability: Each channel adopts independent electrical galvanic isolation design, effectively isolating industrial on-site common-mode interference, voltage surge and electromagnetic clutter. It prevents signal distortion and bus communication jitter in strong electromagnetic interference environments such as metallurgy, chemical and power plants, ensuring long-term stable bus operation.
• Support Hot-Swap & Online Maintenance: Features hot-swap functional design, allowing module replacement, maintenance and upgrading during system normal operation without powering off or stopping production. It greatly reduces equipment downtime and maintenance risks, improving the continuous operation capability of industrial automation systems.
• Perfect ABB System Matching & Expandability: Exclusively adapted to ABB AC 800M controller series and 800xA DCS platforms with zero matching error. It supports free networking with multiple PROFIBUS slave devices, remote I/O stations and third-party intelligent instruments, realizing flexible expansion of system bus nodes and wide compatibility of industrial equipment.
• Integrated Complete Kit Design & Low Maintenance Cost: Delivered as a complete set of CI854A main board + TP854 dedicated baseplate, with standardized DB9 interface layout and modular installation structure. It supports fast on-site assembly and debugging, with stable batch quality and ultra-low failure rate, effectively reducing enterprise long-term operation and maintenance costs.

Detailed Technical Specifications (Key Highlight Parameters)

All technical parameters of ABB CI854AK01 (3BSE030220R1) strictly comply with ABB original factory DCS system standards and IEC 61158 international field bus specifications. With redundant channel configuration, verifiable high-speed transmission performance and complete industrial certification qualifications, it fully meets the technical requirements of high-reliability industrial DCS system construction, intelligent upgrading, faulty module replacement and batch standardized procurement. The classified detailed parameters are as follows:

3.1 Basic Product Identification & Classification

• Official Model: CI854AK01
• Exclusive Factory Part Number: 3BSE030220R1
• Product Type: Dual-Channel Redundant PROFIBUS‑DP/V1 Communication Interface Module
• Product Composition: CI854A Communication Main Board + TP854 Dedicated Baseplate (Complete Assembly Kit)
• Applicable System Series: ABB AC 800M Controllers, ABB 800xA Distributed Control System
• Core Function: PROFIBUS field bus data transmission, controller and field device data interaction, redundant bus communication, remote equipment diagnosis
• Bus Protocol Standard: IEC 61158 international industrial field bus standard
• Applicable Scenarios: High-reliability process industry, power generation, metallurgy, chemical, oil & gas and intelligent factory DCS control systems

3.2 Core Communication Performance Parameters

• Communication Channels: 2 independent galvanically isolated PROFIBUS‑DP channels
• Supported Protocols: PROFIBUS DP‑V0 (cyclic data) / DP‑V1 (acyclic diagnosis)
• Baud Rate Range: 9.6 kbps ~ 12 Mbps full-range adjustable industrial standard baud rate
• Max Transmission Speed: 12 Mbps ultra-high-speed real-time data transmission
• Bus Mode: PROFIBUS master station mode, supporting multi-slave device networking
• Redundancy Mode: Support line redundancy and module redundancy dual fault-tolerant configuration
• Interface Type: Standard DB9 female PROFIBUS bus interface on TP854 baseplate
• Transmission Medium: Standard industrial PROFIBUS shielded twisted-pair cable

3.3 Electrical Performance Parameters

• Rated Working Power Supply: 24VDC industrial standard power supply
• Voltage Fluctuation Tolerance: 24VDC ±10% wide voltage adaptation, resisting industrial power supply fluctuation
• Isolation Performance: Independent channel electrical isolation, high dielectric withstand voltage, effectively isolating internal and external circuit interference
• Transmission Technology: RS‑485 differential signal transmission, strong anti-common-mode interference capability
• Working Power Consumption: Low-power optimized circuit design, low heat generation for long-term full-load operation
• Hot-Swap Support: Allow online module plugging and replacement without system shutdown

3.4 System Matching & Networking Parameters

• Internal Bus Docking: Compatible with AC 800M controller dedicated CEX bus
• Networking Capacity: Support large-scale PROFIBUS slave device networking, meeting multi-node automation system expansion
• Data Interaction Mode: Real-time cyclic data refresh + acyclic parameter access dual mode
• System Compatibility: Perfectly compatible with ABB 800xA system software, supporting one-click configuration and online diagnosis

3.5 Environmental & Mechanical Parameters

• Operating Temperature Range: -20℃ ~ +70℃ ultra-wide industrial working temperature
• Storage Temperature Range: -40℃ ~ +85℃ long-term storage temperature tolerance
• Working Humidity: 5% ~ 95% non-condensing humidity environment, anti-moisture and anti-condensation
• Protection Grade: Industrial standard IP20 dust-proof and anti-collision grade
• Installation Method: Standard modular cabinet embedded installation, matching AC800M system card slot size
• Mechanical Performance: Passed industrial vibration, shock and long-term aging tests, stable structural performance and strong durability

3.6 Certification & Reliability Parameters

• Industrial Certifications: CE safety certification, IEC 61158 bus standard certification, ABB original factory quality certification
• Environmental Certification: RoHS environmental protection compliance certification
• EMC Performance: Industrial-grade electromagnetic compatibility, adapting to complex industrial electromagnetic interference environments
• Continuous Operation: Support 7×24 hours uninterrupted stable operation of industrial DCS systems
• Reliability Advantage: Redundant fault-tolerant design effectively reduces communication failure rate, ensuring ultra-high system operational stability

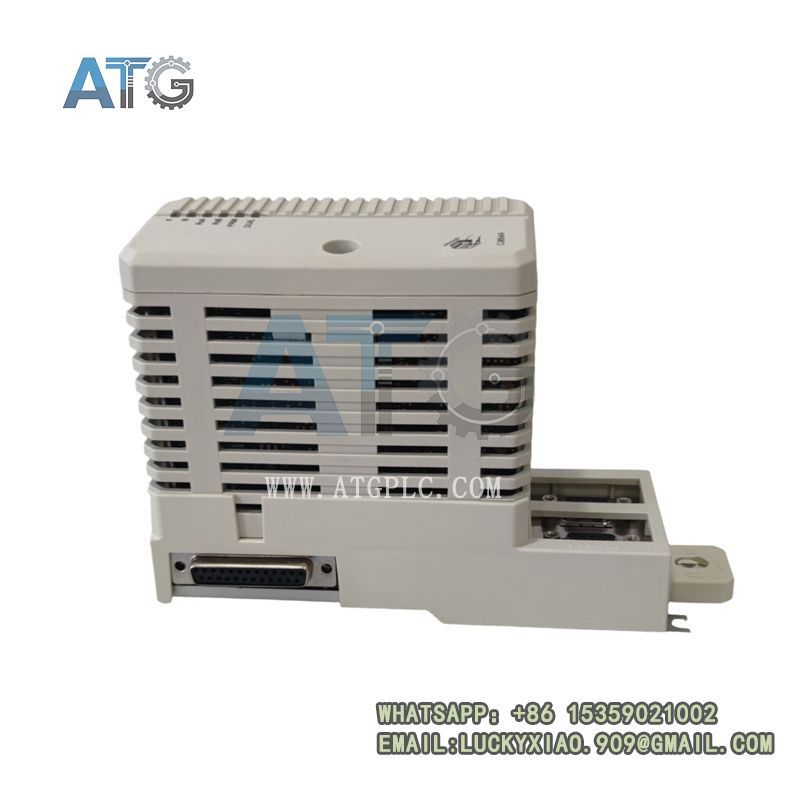

ABB CI854AK01 3BSE030220R1

E-commerce Sales Mode & Procurement Advantages

As a standardized core redundant communication module for ABB AC800M/800xA DCS systems, the ABB CI854AK01 (3BSE030220R1) adopts a mature, transparent and standardized industrial e-commerce sales system. It supports global online inquiry, spot retail procurement, batch wholesale and engineering customized supporting services, providing one-stop reliable procurement solutions for DCS system integrators, process manufacturing enterprises, power engineering companies and industrial equipment maintenance departments. All products are 100% original factory genuine with unified technical specifications, transparent pricing mechanism and full-cycle after-sales guarantee, effectively reducing enterprise procurement risks and comprehensive operational costs.

4.1 Standardized Transparent Online Sales System

This product implements unified global official technical parameters, standard industrial anti-vibration and moisture-proof professional packaging, and consistent global warranty policies. E-commerce platforms provide complete open resources including official datasheets, detailed parameter manuals, qualification certification documents, standard installation drawings and DCS system communication configuration cases. Each product corresponds to the exclusive factory part number 3BSE030220R1, supporting official factory authenticity verification and full lifecycle traceability. It completely avoids refurbished, disassembled and counterfeit products, ensuring 100% model matching and communication performance compliance for industrial DCS control systems.

4.2 Diversified Flexible Procurement Modes

• Single & Small-Batch Spot Retail: Support single-piece and small-quantity spot ordering, applicable to daily DCS system maintenance, faulty communication module replacement, bus system debugging and small-scale factory automation renovation projects. Sufficient spot inventory ensures short delivery cycle and fast on-site replacement and system commissioning.
• Bulk Wholesale & Framework Cooperation: Provide hierarchical preferential pricing and customized supply schemes for bulk orders from large industrial groups and engineering integration companies. Support long-term framework agreement cooperation, fixed-point stocking and stable batch supply, significantly reducing long-term batch procurement costs for enterprise DCS system spare parts.
• Engineering Customized Supporting Service: Provide professional model selection verification, DCS system matching and technical docking consultation according to customers’ industrial distributed control system construction, intelligent upgrading and old system renovation projects, realizing one-stop supporting procurement of AC800M series full-range communication modules and system accessories.

4.3 Full-Cycle E-commerce Value-Added Services

• 100% Original Genuine Guarantee: All supplied products are original ABB factory genuine complete kits with complete factory test reports and qualification certificates, ensuring zero matching error and zero communication failure risk for industrial DCS bus systems.
• Professional Industrial Logistics Protection: Adopt dedicated industrial anti-vibration, dust-proof and moisture-proof customized packaging for precision communication modules, support global multi-warehouse delivery, effectively preventing module damage and performance attenuation during long-distance transportation and handling.
• 24/7 Professional Online Technical Support: Provide pre-purchase model matching verification and bus scheme consultation, mid-purchase installation guidance and communication parameter configuration tutorials, and post-purchase bus fault diagnosis, redundant debugging and system optimization full-process technical services.
• Complete Official After-Sales Warranty: Enjoy unified global ABB official warranty service, support online after-sales application, quality problem replacement and professional technical maintenance guidance, reducing enterprise DCS system failure downtime losses and maintenance costs.

ABB CI854AK01 3BSE030220R1

Main Industrial Application Scenarios

Benefiting from its dual-channel redundant communication, high-speed transmission performance and ultra-high operational stability, the ABB (3BSE030220R1) communication module is widely applied in core bus communication links of high-reliability industrial DCS control systems, covering key industrial fields as follows:

• Power Generation Industry: PROFIBUS bus communication and data transmission for thermal power, hydropower and new energy power station DCS systems, ensuring stable data interaction of power generation unit control systems and improving power supply reliability.
• Petrochemical & Oil & Gas Industry: Redundant bus communication support for petrochemical production, oil extraction and gas transmission control systems, adapting to 24-hour continuous production requirements and avoiding production safety accidents caused by communication interruption.
• Metallurgy & Steel Industry: Field bus data interaction for metallurgical smelting and steel rolling production line DCS systems, resisting strong on-site electromagnetic interference, ensuring real-time and accurate transmission of production process data.
• Water Treatment & Environmental Protection Industry: Communication connection of large-scale water treatment and environmental protection monitoring automation systems, realizing stable data transmission of field equipment and remote monitoring equipment.
• Intelligent Process Manufacturing: Bus network construction and old system upgrading for pharmaceutical, food, building materials and other process industries, improving the real-time performance and fault tolerance of factory automation control systems.

Product Value & Market Competitiveness

The ABB (3BSE030220R1) redundant PROFIBUS communication module solves the core pain points of single-channel communication vulnerability, poor fault tolerance and easy interruption of traditional industrial bus modules. Its dual-channel redundant fault-tolerant architecture fundamentally improves the operational stability and continuous working capability of industrial DCS systems, while the 12 Mbps high-speed transmission and dual-protocol design meet the high real-time and multi-functional communication demands of modern intelligent industrial control systems.

In the global industrial e-commerce market, this ABB original AC800M series communication module features mature and stable bus technology, reliable batch quality consistency and a large number of global industrial engineering application cases. Its exclusive system matching performance, hot-swap maintainability and ultra-high communication reliability make it irreplaceable in high-reliability industrial control system construction and renovation projects. With strict genuine guarantee, perfect after-sales service system and low comprehensive operation cost, it has become the preferred redundant PROFIBUS communication interface module for global industrial DCS system supporting and upgrading.
