Description
6186M-15PT Allen-Bradley Product Introduction
- Model: 6186M-15PT
- Brand: Allen-Bradley (Rockwell Automation)
- Series: Allen-Bradley 6186M PanelView Plus Series
- Core Function: Industrial HMI for process monitoring and control
- Type: Human-Machine Interface (HMI) Panel
- Key Specs: 15-inch display, 1024×768 resolution, Ethernet
- Supply Status: In Stock
- Stock: 9
- Warranty: 1 year
- Ship From: China

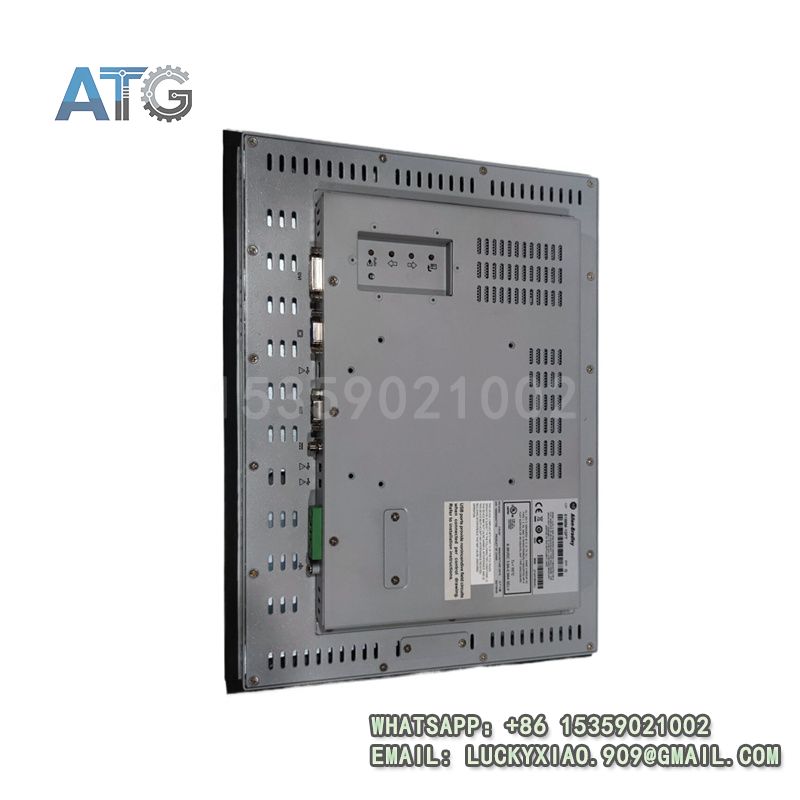

6186M-15PT
Product System Function Introduction
From a professional technical engineer’s perspective, the 6186M-15PT is a high-performance industrial HMI panel belonging to Allen-Bradley’s 6186M PanelView Plus Series, which serves as a critical human-machine interaction terminal in industrial automation control systems. Its core function is to establish a reliable communication bridge between field equipment (such as PLCs, inverters, and sensors) and operators, enabling real-time monitoring of process parameters, manual control of equipment operations, and visualization of alarm information. The panel is equipped with a 15-inch high-brightness LCD display with 1024×768 resolution, ensuring clear and sharp presentation of complex process data, historical trends, and equipment statuses even in harsh industrial environments with strong light or dust. It supports Ethernet communication protocol, realizing seamless data interaction with Allen-Bradley ControlLogix, CompactLogix series PLCs, and other mainstream industrial controllers, which is conducive to the integration and unified management of the entire automation system. The module adopts a ruggedized design with IP65 protection rating for the front panel, effectively resisting dust, water splashes, and mechanical vibration, meeting the long-term stable operation requirements of industrial on-site applications. In addition, it supports custom configuration of control interfaces, allowing engineers to design personalized operation pages according to actual process needs, improving operation efficiency and reducing misoperation risks.
Application Industries
Combined with industrial application practices, the 6186M-15PT is widely used in various fields that require human-machine interaction and process monitoring, mainly including: 1. Petrochemical industry: Used in oil refining, chemical reaction kettle control systems, to monitor temperature, pressure, flow and other key process parameters, and realize manual intervention and parameter adjustment; 2. Automobile manufacturing: Applied in assembly line control, monitoring the operation status of each station, displaying fault information in real time, and facilitating maintenance personnel to quickly locate and handle faults; 3. Food and beverage industry: Used in production line automation control, such as filling, packaging process monitoring, ensuring product quality and production efficiency; 4. Power generation industry: Applied in power plant auxiliary system control, monitoring the operation status of pumps, fans and other equipment, and realizing remote operation and parameter setting; 5. Metallurgical industry: Used in smelting, rolling process control, displaying real-time data of molten steel temperature, rolling speed and other parameters, and assisting operators in completing process adjustment. It is particularly suitable for medium and large-scale industrial automation projects that require large-size display screens, high-definition data presentation and stable communication performance.

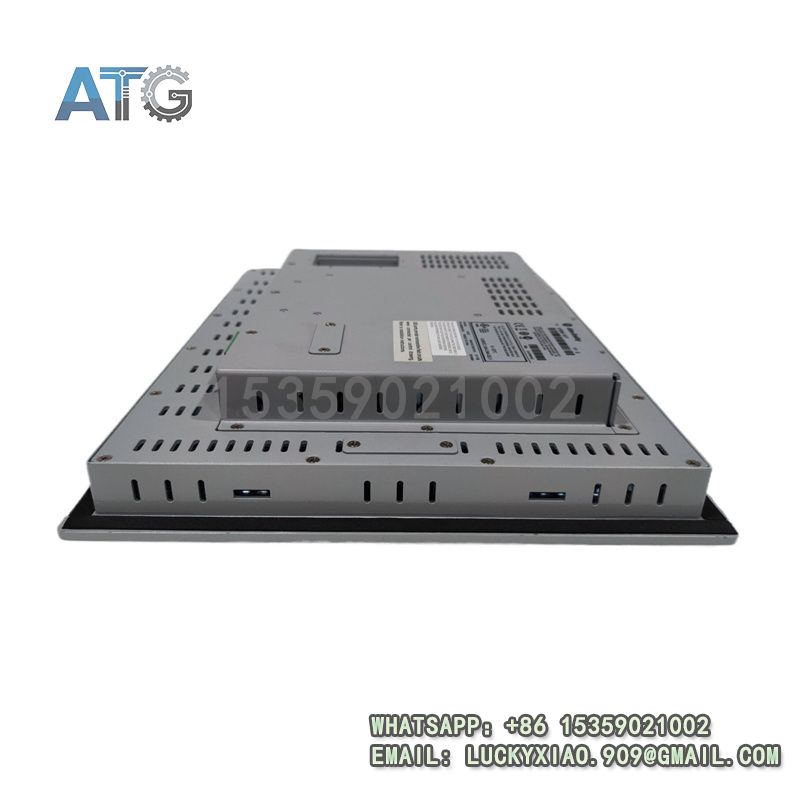

6186M-15PT
Usage Instructions
- Installation: Fix the panel to the equipment cabinet or mounting bracket using matching screws, ensure the installation is firm, and the front panel is tightly fitted with the cabinet surface to maintain IP65 protection performance; the installation position should avoid direct sunlight and strong vibration areas to prevent display damage or communication interference.
- Wiring: Connect the power supply (24VDC) to the corresponding terminals, strictly follow the positive and negative polarity requirements to avoid short circuit burning the internal circuit; connect the Ethernet cable to the communication port, and ensure the wiring is firm and the contact is good to ensure stable data transmission between the HMI and the controller.
- Parameter Configuration: Use Allen-Bradley FactoryTalk View Studio software to configure the HMI, including communication parameters (IP address, subnet mask), operation interface design, process parameter monitoring points, alarm thresholds, and historical data recording settings; after configuration, download the project to the HMI through Ethernet, and restart the panel to make the configuration take effect.
- Operation and Maintenance: During operation, regularly check the display clarity and touch sensitivity; if there is dust on the screen, clean it with a soft dry cloth to avoid scratching the screen. Regularly back up the HMI configuration project to prevent configuration loss due to unexpected failures. When the panel fails (such as no display, communication interruption), first check the power supply and wiring, then troubleshoot the communication link with the controller, and contact professional maintenance personnel if necessary.
- Safety Precautions: Cut off the power supply before installation, disassembly or wiring to prevent electrical shock or internal component damage; do not operate the panel with wet hands to avoid short circuit; avoid collision or impact on the panel to prevent physical damage to the display screen and internal circuit board.
