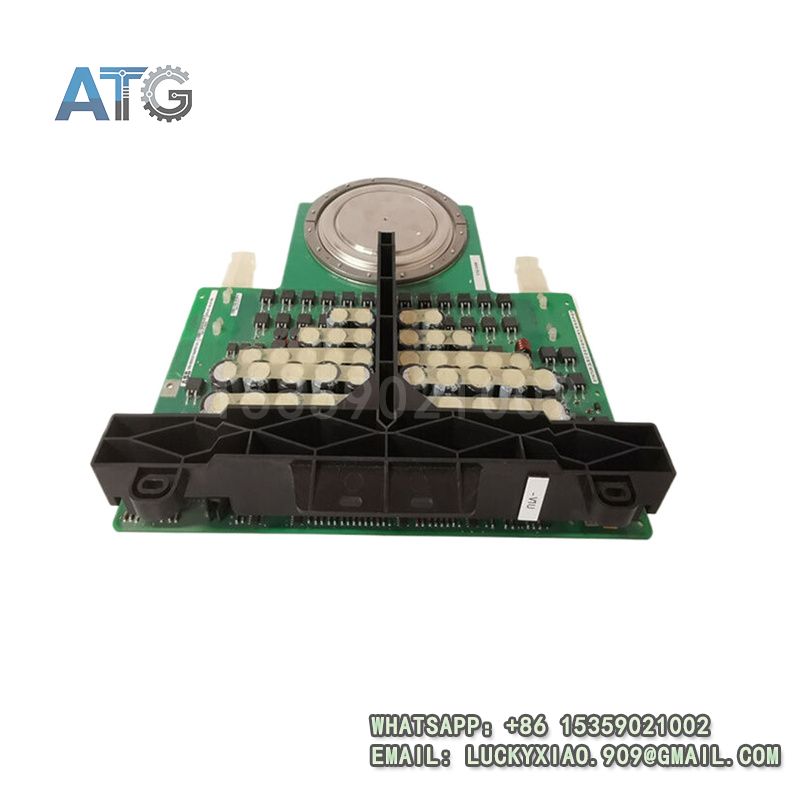

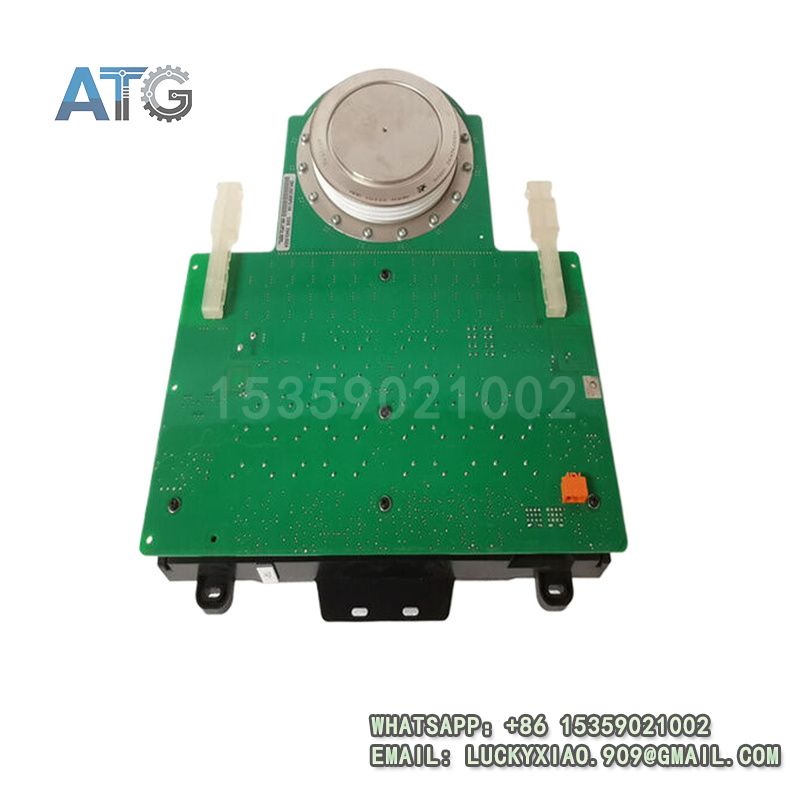

ABB 5SHX2645L0004 3BHL000389P0104 Product Introduction
- Model: 5SHX2645L0004 3BHL000389P0104
- Brand: ABB
- Series: ABB IGCT Power Module Series
- Core Function: High-power power conversion & fast switching control
- Type: IGCT Power Module
- Key Specs: 2.6kV, 450A, fast switching
- Supply Status: in stock
- Stock: 17
- Warranty: 1 year
- Ship From: China
5SHX2645L0004 3BHL000389P0104
Product System Function Introduction
The ABB 5SHX2645L0004 3BHL000389P0104 is a high-performance IGCT power module for heavy-duty industrial power systems. It delivers efficient power conversion, stable switching, and reliable operation in high-voltage environments. Key functions are listed below:
- High-Voltage Power Conversion: This module performs efficient rectification and inversion for high-power systems. It handles large current loads and supports stable power transmission in industrial drives and grid applications.
- Fast Switching Performance: Adopts advanced IGCT technology for quick on/off switching. It reduces power loss and improves overall system efficiency, ideal for high-frequency power control.
- Overload & Surge Protection: Built-in protection circuits guard against over-voltage, over-current, and thermal overload. It safeguards the module and connected equipment from damage in harsh conditions.
- System Compatibility: Designed for seamless integration with ABB high-voltage inverters and power control systems. It features a compact, rugged layout for easy installation and replacement.
- Industrial Durability: Built to withstand extreme temperatures and strong electromagnetic interference. It ensures long-term stable operation with low failure rates in heavy industrial settings.
5SHX2645L0004 3BHL000389P0104
Application Industries
This IGCT power module is widely used in high-power and high-voltage industrial scenarios, mainly including:
- Power Transmission & Grid: High-voltage inverter stations, grid stability control, and renewable energy grid-tie systems.
- Metallurgical Industry: Steel rolling mills, electric arc furnaces, and high-power motor drive systems.
- Oil & Gas Industry: Pipeline compressors, offshore drilling power units, and refinery drive equipment.
- Rail Transit: High-speed rail traction systems and electric locomotive power conversion devices.
- Industrial Drives: Large-scale fans, pumps, and high-power motor speed control systems.
5SHX2645L0004 3BHL000389P0104
Usage Instructions
- Installation: Mount securely in a ventilated power cabinet, away from high heat and moisture. Ensure proper heat dissipation and firm mechanical fixation.
- Wiring: Follow official wiring diagrams strictly; use high-current rated cables. Tighten all terminals firmly and separate power lines to avoid interference.
- Commissioning: Verify voltage and current ratings before startup. Test switching functions and protection logic with professional equipment.
- Maintenance: Regularly check temperature and connection status. Clean dust buildup and inspect for signs of overheating or wear.
- Safety Notes: Cut off all power before installation or maintenance. Only qualified technicians should handle debugging and replacement to avoid electric shock.
