Description
2711P-T12W22D9P-BSHK Allen-Bradley Product Introduction
- Model: 2711P-T12W22D9P-BSHK
- Brand: Allen-Bradley (Rockwell Automation)
- Series: Allen-Bradley 2711P PanelView Plus HMI Series
- Core Function: Industrial automation human-machine interaction
- Type: HMI (Human-Machine Interface) Touch Screen
- Key Specs: 12-inch, 24VDC, Ethernet/IP
- Supply Status: In Stock
- Stock: 6
- Warranty: 1 year
- Ship From: China

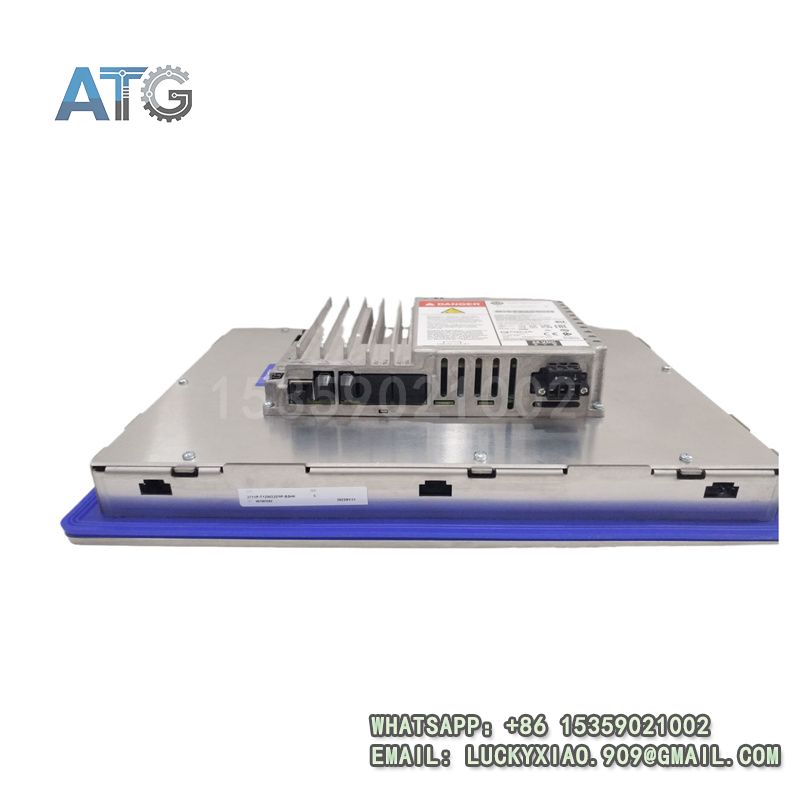

2711P-T12W22D9P-BSHK
Product System Function Introduction
The 2711P-T12W22D9P-BSHK is a high-performance HMI touch screen under Allen-Bradley’s 2711P PanelView Plus Series, specially designed to realize convenient human-machine interaction in industrial automation systems. Its specific system functions are divided into the following points:
1. Functional Positioning and Core Value: As a key component of the 2711P PanelView Plus Series, this HMI touch screen is positioned as a human-machine interaction terminal for industrial automation systems, responsible for displaying real-time equipment status, parameter settings, fault alarms and operation control. Its core value lies in bridging the gap between operators and automation equipment, enabling intuitive operation and real-time monitoring, improving operation efficiency and reducing misoperation risks.
2. Display Performance and Operation Experience: The module is equipped with a 12-inch high-definition color touch screen, with clear display effect and wide viewing angle, which can clearly display various data, graphics and operation interfaces even in harsh industrial environments. It adopts a high-sensitivity capacitive touch design, supports multi-touch operation, with smooth response and comfortable operation feel. The interface can be customized according to actual production needs, facilitating operators to quickly grasp key information and complete operation tasks.
3. Communication Compatibility and System Integration: It supports Ethernet/IP communication protocol as standard, which can realize seamless data interaction with Allen-Bradley 1756 ControlLogix, 1756 CompactLogix and other series controllers, as well as servo drives, I/O modules and other industrial equipment. It can be seamlessly integrated into industrial Ethernet networks, realizing real-time synchronization of data between the HMI and the automation system, facilitating unified monitoring and management of the entire production line. In addition, it supports multiple communication protocols, which can be compatible with third-party equipment, expanding the application scope.
4. Reliability and Practicality: The module adopts a ruggedized industrial design, with strong dust-proof, water-proof and anti-vibration performance, which can adapt to harsh industrial on-site environments such as high temperature, high humidity and strong electromagnetic interference. It is equipped with a built-in fault self-diagnosis function, which can timely detect communication faults and hardware abnormalities and send alarm signals, facilitating maintenance personnel to quickly troubleshoot. The low-power design ensures long-term stable operation, reducing the overall operation and maintenance cost of the system.
Application Industries
With its excellent display performance, strong compatibility and high reliability, the 2711P-T12W22D9P-BSHK HMI touch screen is widely used in various industrial fields that require human-machine interaction, mainly covering the following fields:
1. General Industrial Automation: Applied in various industrial automation production lines, it is used to display real-time operation status of equipment, set control parameters, and realize manual operation and fault alarm, ensuring the smooth operation of the production line and improving operation efficiency.
2. Automotive Manufacturing Industry: Used in automobile assembly lines, stamping and welding workshops, it is connected with robots, conveyors and other equipment to display equipment operation parameters, fault information and production progress, facilitating operators to monitor and control the production process in real time.
3. Petrochemical Industry: Applied in petrochemical production process control systems, it displays real-time data such as temperature, pressure and flow of the production process, realizes parameter setting and fault alarm, and ensures the safety and stability of the production process.
4. Food and Beverage Industry: Used in automatic food processing and packaging lines, it displays production parameters, equipment status and production count, facilitates operators to adjust process parameters, and ensures the consistency of product quality and the efficiency of the production line.
5. Power Generation Industry: Applied in power plant auxiliary system control, it displays the operation status of pumps, fans and other equipment, realizes remote operation and fault monitoring, and ensures the stable operation of the power generation system.
Usage Instructions
To ensure the long-term stable operation of the 2711P-T12W22D9P-BSHK HMI touch screen and the smooth operation of the industrial automation system, the following usage instructions should be followed:
1. Installation Requirements: Install the HMI touch screen in a dry, well-ventilated position, avoiding direct sunlight, high temperature (above 65℃) and areas with strong vibration or heavy dust. Ensure firm installation, and the installation surface should be flat to avoid damage to the touch screen due to uneven force. Keep a certain distance from high-voltage components to avoid electromagnetic interference.
2. Wiring Specifications: The module adopts 24VDC power supply. When connecting the power supply, strictly distinguish the positive and negative poles, and never reverse the connection to avoid short circuit burning the internal components. For communication wiring, use a standard Ethernet cable to connect to the Ethernet/IP port, ensure the wiring is firm and the contact is good, and the shielding layer of the cable should be properly grounded to reduce electromagnetic interference. It is strictly prohibited to wire with power on to avoid electrical shock or equipment damage.
3. Parameter Configuration and Interface Customization: Use Allen-Bradley FactoryTalk View Studio software to configure the HMI parameters, including communication parameters (IP address, subnet mask, gateway), interface design, data display, alarm setting and operation authority management. Customize the operation interface according to actual production needs, simplify the operation process, and facilitate operators to use. After configuration, download the project to the HMI touch screen and restart the device to make the configuration take effect.
4. Operation and Maintenance: During daily operation, regularly clean the touch screen surface with a soft dry cloth to remove dust and stains, avoiding scratching the screen. Do not use sharp objects to touch the screen to prevent damage to the touch layer. Regularly check the running status of the HMI, including power indicator, communication indicator and screen display, and timely handle abnormalities such as screen blackout and communication interruption. Regularly back up the HMI project file to a computer or storage device to prevent project loss due to unexpected faults.
5. Safety Precautions: Cut off the power supply before installation, disassembly or wiring to prevent electrical shock. Do not touch the module terminals or internal components with wet hands or metal tools to avoid short circuit. Avoid collision or impact on the touch screen to prevent physical damage to the screen and internal components. In flammable and explosive industrial environments, strictly follow the on-site safety regulations and ensure that the module is used in a safe environment to prevent safety accidents.
